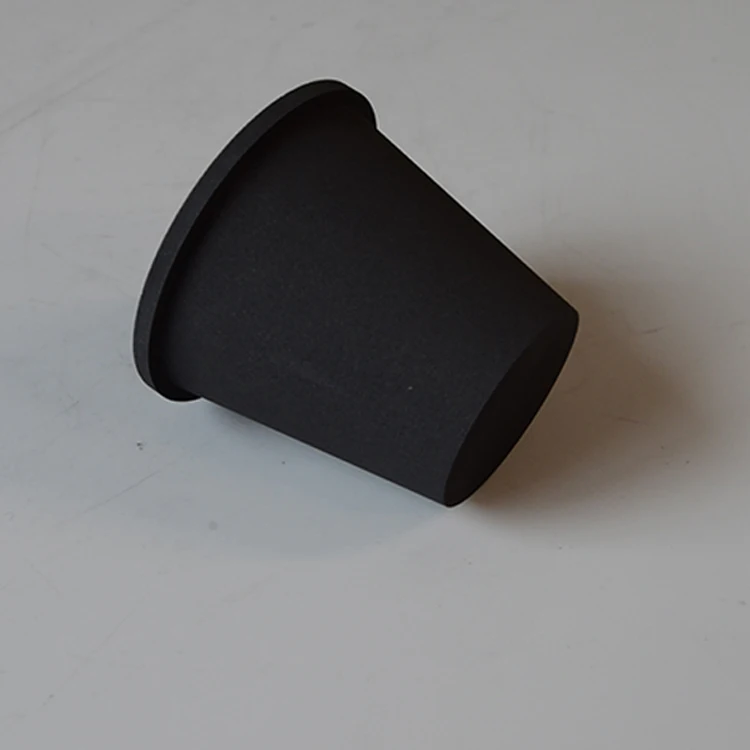

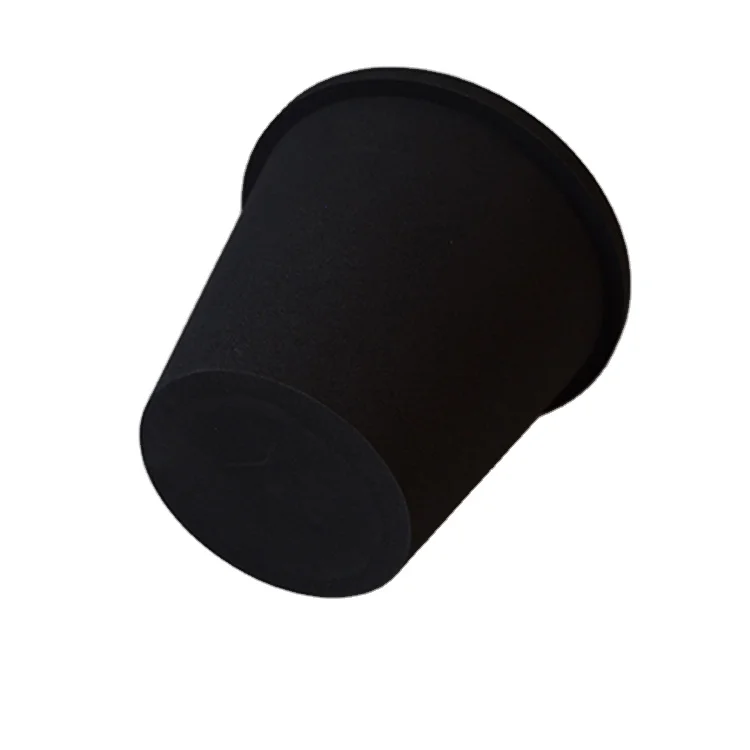

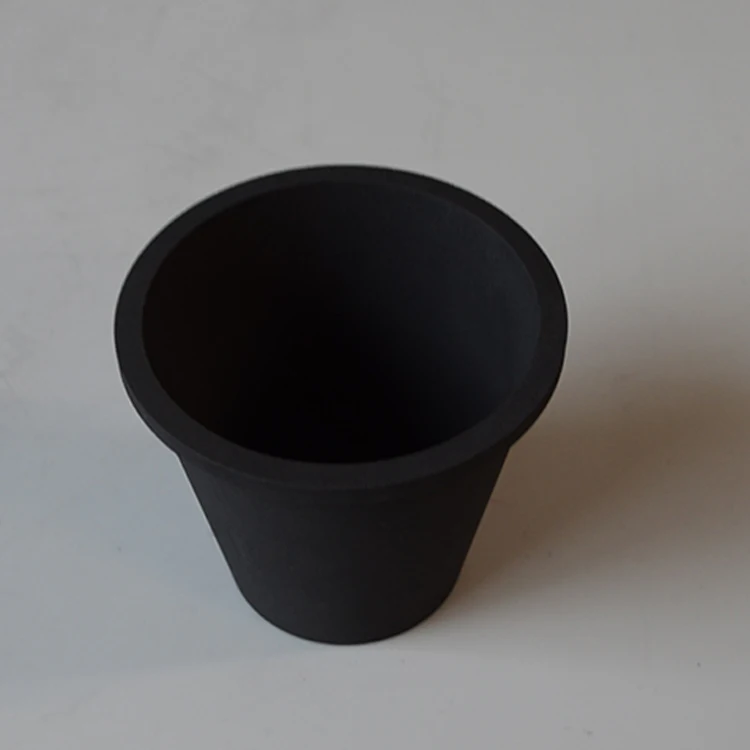

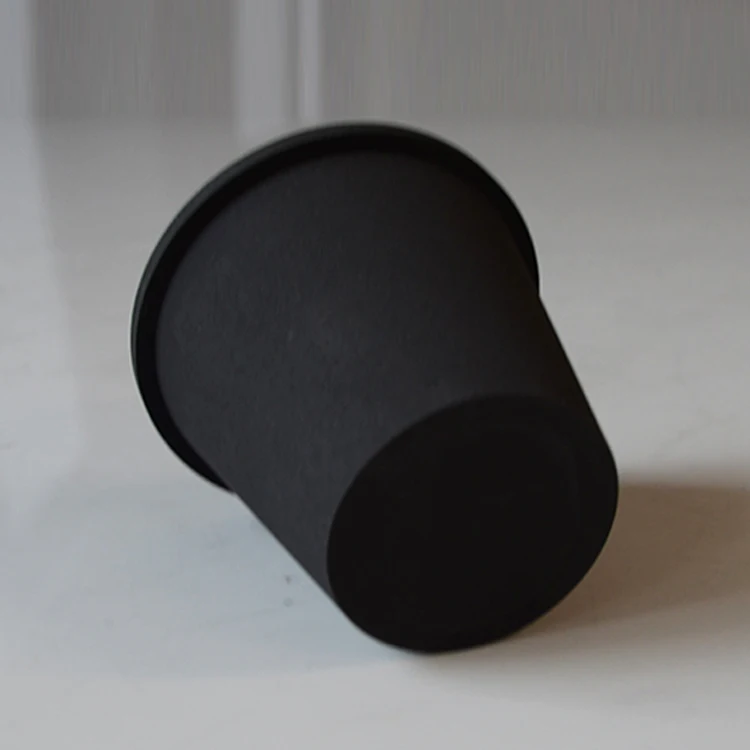

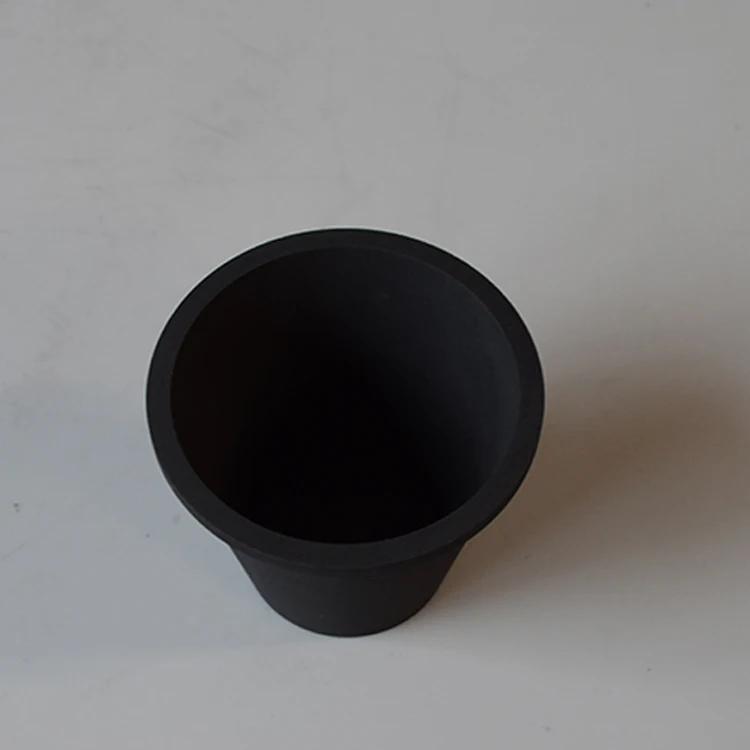

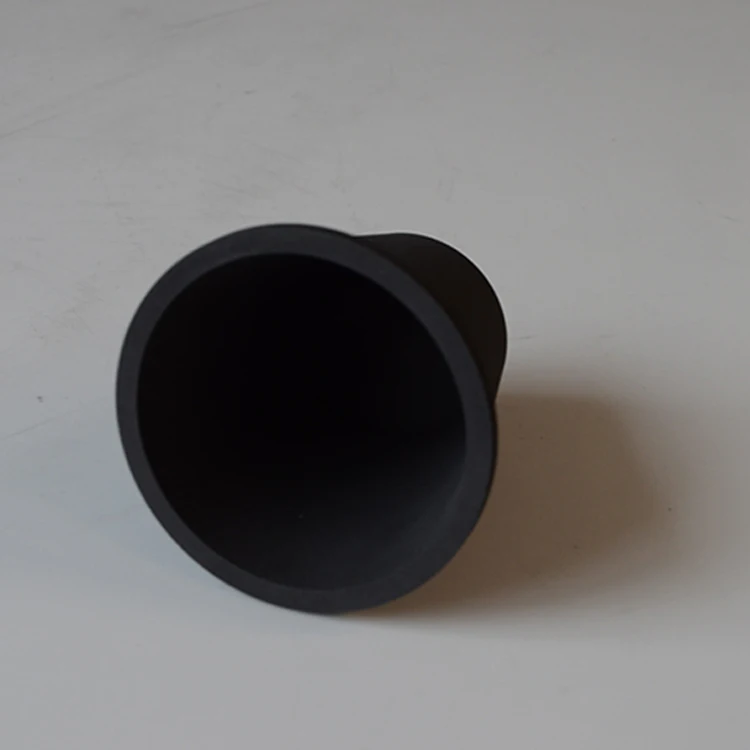

China Graphite Crucible For Metal Smelting

Key Benefits

• Technological Merit


• Good mechanical strength


• Long life: Due to a the excellent chemical stability, corrosion, erosion and temperature resistance, the material is afforded a long lifespan.


• High heat conduction performance and resistance to thermal shock: Possible to use even at 2760°C in inert atmosphere, high thermal shock resistance at high temperatures.


• Excellent corrosion resistance: Resistance is excellent against a wide range of acid and alkaline environments, great degree of chemical stability.

PROPERTY	UNIT	VALUE
Bulk Density	g/cm3	1.77
Flexural Strength	MPa	45
Tensile Strength	MPa	29
Compressive Strength	MPa	98
Specific Resistance	μohm.cm	1550
Grain Size	µm	15
Hardness – Shore		52
Hardness – Rockwell H		95
Coefficient of thermal expansion (400 to 500oC)	/ oC	4.3 x 10E-6
Porosity	%	9
Thermal Conductivity	W/moC	85
Modulus of Elasticity	GPa	9.2
Ash	ppm	750



Specifications from the graphite crucible :

1.Long working lifetime: its working lifetime is increased 3-5 times over normal clay-crucible due to the compact body formed under    high pressure.

2.High thermal conductivity: high-density body and low apparent porosity greatly improve its heat conductivity.

3.New-style materials: new heat conduction material ensures faster heat conductivity and pollution-free product, reduces adherent slag.

4.Resistance to corrosion:better anti-corrosion than normal clay-crucible.

5.Resistance to oxidation: advanced process dramatically improves its oxidation resistance, which ensures persistent heat conductivity and long working lifetime.

6.High-strength: high-density body and logical structure make the product better compression property.

7.Eco-friendly: energy-efficient and pollution-free, not only ensure metal product purity, but also ensure sustainable development on environment.



NOTICE: We also supply Copper-melting Clay Graphite Crucible and Aluminum-melting Clay Graphite Crucible. Meanwhile, a matched graphite stand is strongly recommended in order to expand the lifetime and improve heat conduction of crucible.



The crucible is  an utensil or melting tank vessels that is made of refractory material (such as clay, graphite, clay, quartz or difficult molten metal iron, etc.).

Graphite crucible, which is divided into general type of graphite crucible, special type of graphite crucible, high purity graphite crucible.Graphite crucible, which is divided into general type of graphite crucible, special type of graphite crucible, high purity graphite crucible.

The main raw materials of Graphite crucible is natural crystalline graphite. Therefore, it maintains the original natural graphite various physical and chemical properties.

Graphite crucible has good thermal conductivity and high temperature resistance;Uder the high temperature, the thermal expansion coefficient is small, rapid heating, quench with certain anti-strain properties. The strong corrosion resistance of acid, alkaline solution has excellent chemical stability.

Graphite crucible, with their more excellent performance, in metallurgy, casting,mechanical, chemical and other industrial sectors, is widely used in smelting and alloy tool steel smelting of non-ferrous metals and their alloys . Besides,it has achieved a good technical and economic results.



 Physicochemical Properties of the graphite crucible:

Type of Crucible	Type S	Type D
Carbon Content/%	≥38	≥45
Bulk Density/(g/cm3)	≥1.70	≥1.85
Apparent Porosity/%	≤29	≤21
Compression Strength/MPa	≥20	≥25
Refractoriness/°C	≥1400	≥1400

Type S: Clay graphite crucible for AL melting

Type D: Isostatic pressing graphite crucible

Cite from CNS China National Standard of Graphite Crucible, which is solely drifted by Xingtailong company.



Packaging of cast iron crucible: PE bag inside outer carton(930*630*230mm),finally make the wooden pallet(950*950mm 950*1000mm) or according to your requirement

Shipping of cast iron crucible:  delivery within 15 days after confirm the order.



Why choose Xingtailong?

High puriy material make sure high max working temperature,

Tight tolerance make sure the right installation.

Large quantity in stock ensured fast delivery.

Large capacity reduce materical prices.

Our service from Xingtailong:

Inquiry response: Your inquiries will be replied in 24 hours.

Sample support: Two free samples are available in 3~5days.

Delivery time: Your shipment will be loaded in 15~25days.depends on quantity.

Payment term: T/T, L/C, D/P, D/A, Western Union (Sample only) We can supply the products according to customer's drawings, samples and performance requirement.



Please follow the using specifications to expand the working lifetime and better

the heat conductivity of graphite crucible.

A piece of instruction paper will be found in graphite crucible,If manual book is

required, please notice in advance.

If any questions please feel free to let us know anytime.
