Оборудование для горных работ Вибрационный питатель маятниковый шаровой


Поделиться:


Цена:1 600,00 $ - 2 100,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 1904.59 $* 1999.80 $*
Aug-15-2025 1888.12 $* 1982.77 $*
Jul-15-2025 1584.47 $* 1663.61 $*
Jun-15-2025 1856.5 $* 1949.10 $*
May-15-2025 1616.96 $* 1697.15 $*
Apr-15-2025 1824.13 $* 1915.71 $*
Mar-15-2025 1808.41 $* 1898.93 $*
Feb-15-2025 1792.15 $* 1882.92 $*
Jan-15-2025 1776.85 $* 1865.71 $*

Характеристики







---We supply full line of mining equipments and technical support



Product Description


 Swaying Feeder is installed under the storage tank or hopper to convey the materials with particle size less than 50mm and the materials that are dry and not easy to agglomerate such as ore stones, coal blocks etc. It is not suitable to convey powder which is easy to block feeding, and makes powder fly.

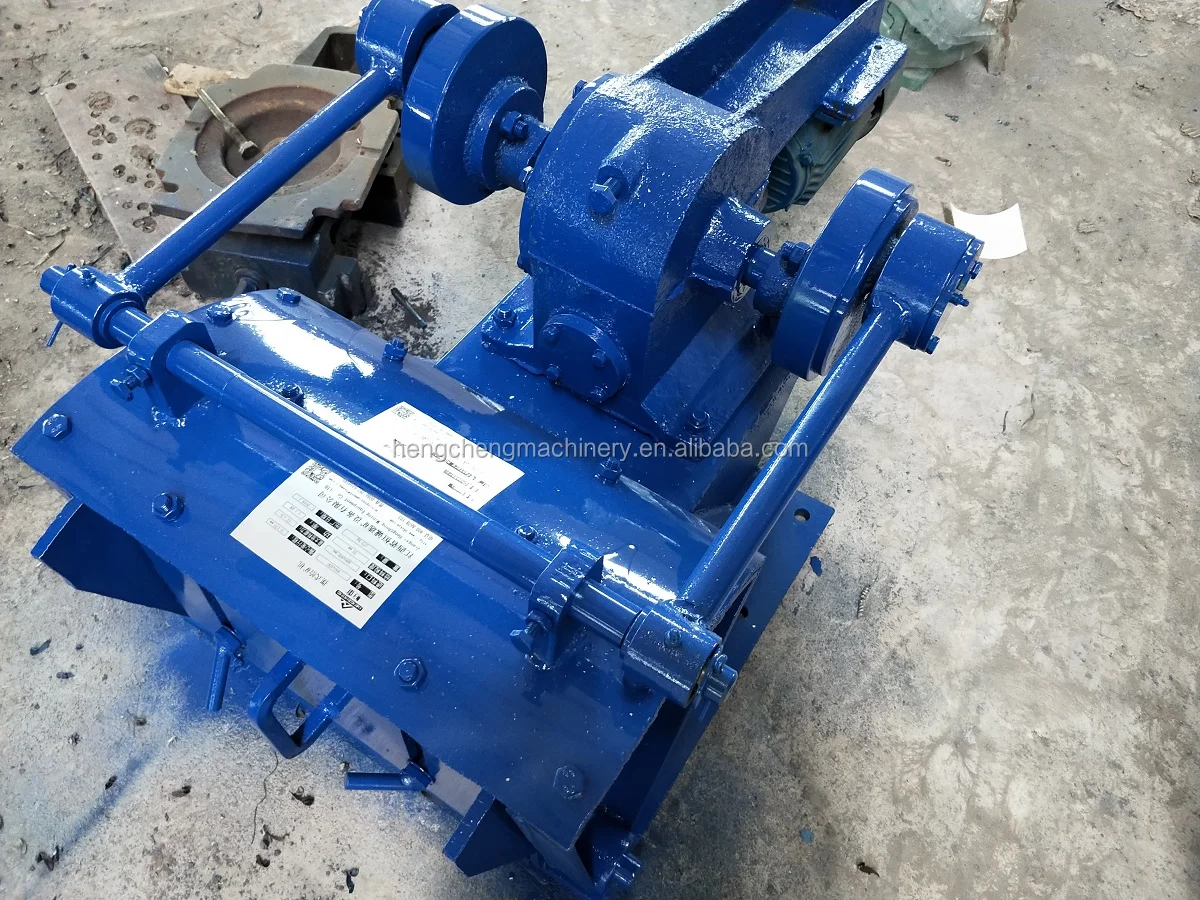

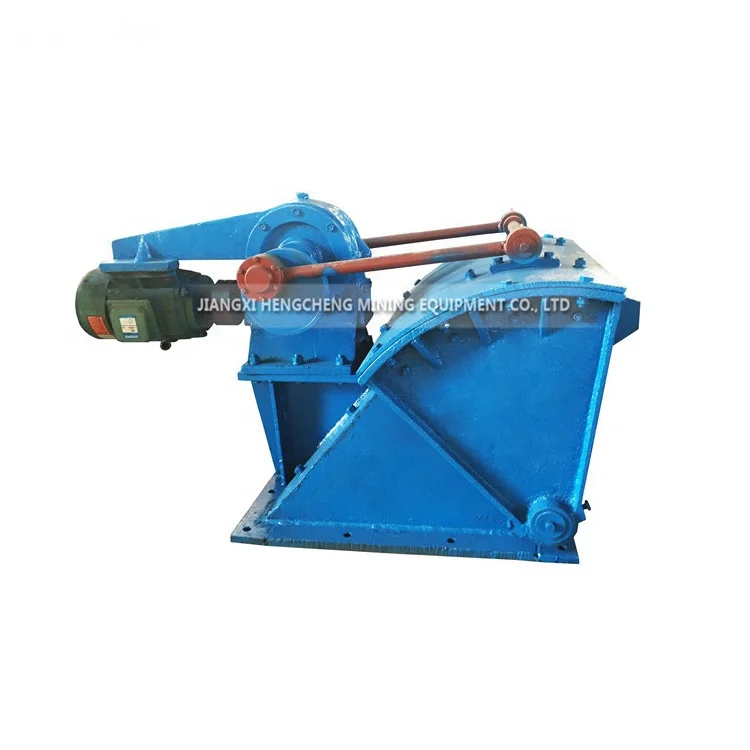

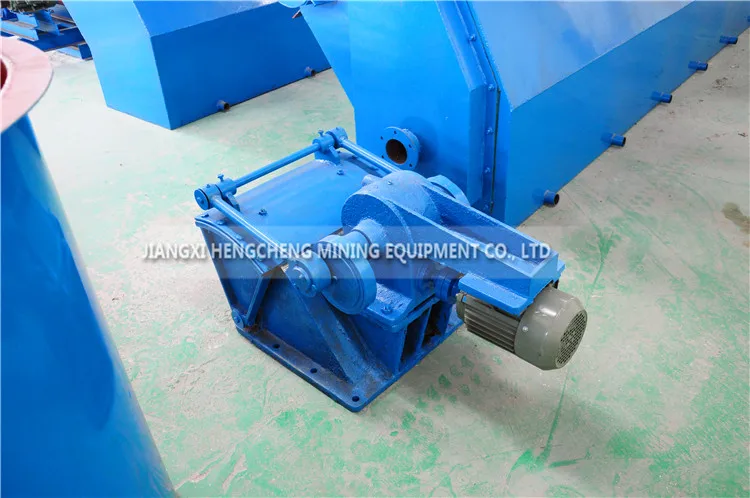

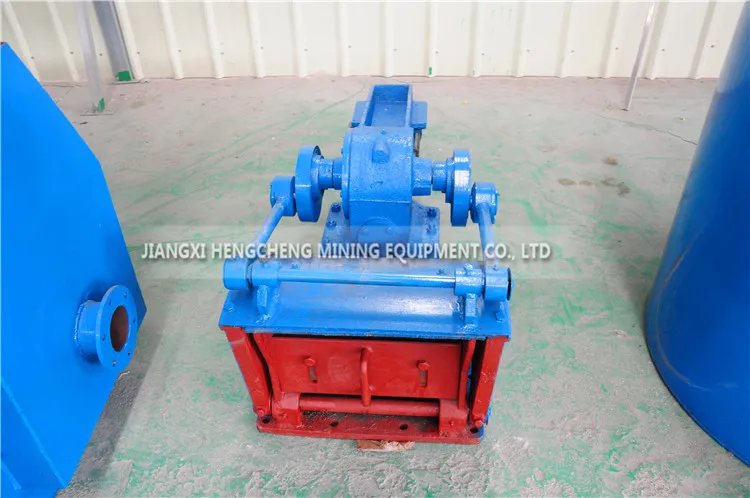

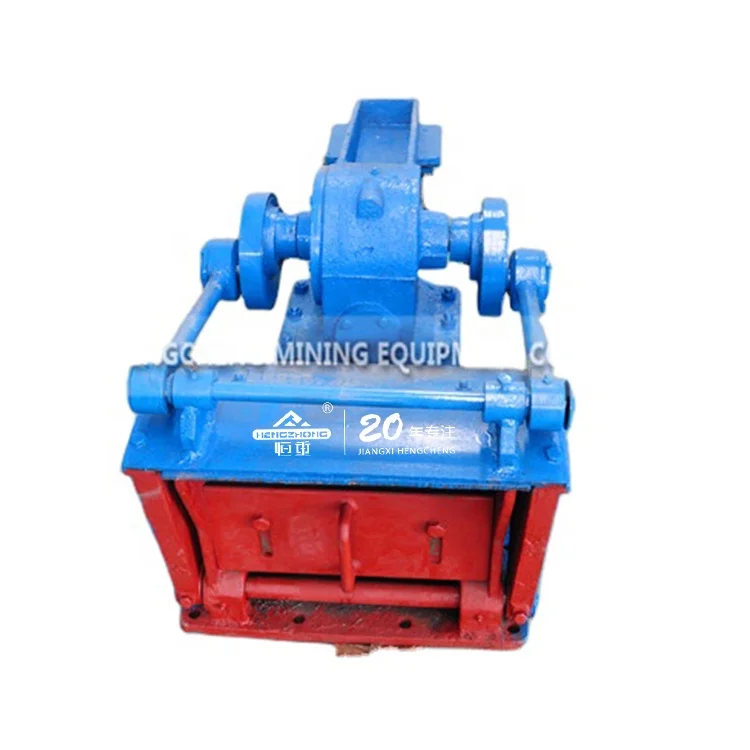

Swaying Feeder (4)

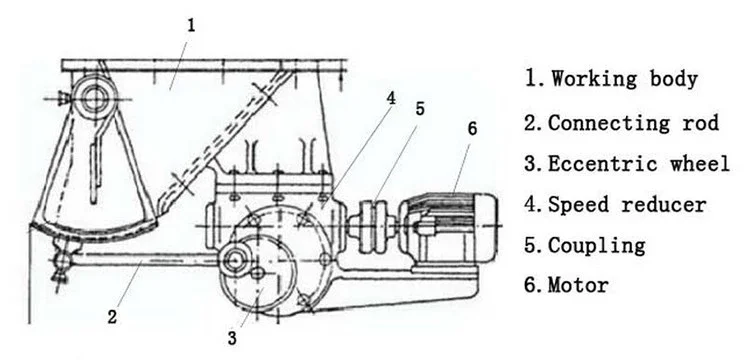

 Working Principle:



The machine is installed beneath the discharging opening of ore bin. Minerals fall in the ore feeding box from ore bin. When it works, via coupler, electric motor drive turbine reducer to operate; the pendulum plate of chute begin the reciprocal movement through eccentric wheel on the output shaft of turbine reducer. So, the mineral feeding process is finished. The mineral feeding quantity can be controlled by adjusting eccentric wheel or regulating the revolving speed of motor.  .png05_04_07_






Parameters of Swaying Feeder

















































ModelEntranceExitFrequencyMax ParticleCapacityPower
Size mmSize mmSize(mm)(t/h)(kw)
300*300300*300300*1256810081.1
400*400400*400400*50-1507435121.1
600*600600*600600*50-15045.550251.5





Packaging & Shipping


1. All the goods will be delivered in 10-20 days after receving payment.
2. The machine will be packed in export container.
3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
4. We promise that your goods will be shipped to destination timely and safely.














Company Information


Jiangxi Hengcheng Mining Equipment Company is specialized in manufacturing various kinds of mining equipment. We have served the mineral processing industry as an excellent mineral processing equipment manufacturer for over 20 years.


company profile pic





Hengcheng company is dedicated to provide a complete line of equipment including shaking table, spiral chute, jig machine,trommel,rotary scrubber, flotation machine, magnetic separator,grinding mill, and so on. We are involved in the range of mineral beneficiation services including mineral testing, process flowchart design, installation and commissioning, technical consulting, as well as staff training,etc. Our proven technologies and experience permit us to provide every customer with the most effiicent & commercial beneficiation plant equipment.





1








Exhibition


exhibition





Contact Us


 We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.




1) What's the capacity per hour would you want ?





2) What 's the raw materials do you want to process?







"Send" inquiry
