LUXPOWER 5 кВт однофазный 48 В ~ 59 в 220 В/110 SNA 5000WPV MPPT параллельный ИБП Гибридный автономный инвертор 5000
- Категория: Solar Inverter >>>
- Поставщик: Beijing,Shan,Hu,International,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 666.60 $* | 699.25 $* |
| Aug-17-2025 | 661.26 $* | 694.40 $* |
| Jul-17-2025 | 554.39 $* | 582.72 $* |
| Jun-17-2025 | 650.60 $* | 683.34 $* |
| May-17-2025 | 566.11 $* | 594.14 $* |
| Apr-17-2025 | 638.1 $* | 670.90 $* |
| Mar-17-2025 | 633.8 $* | 665.40 $* |
| Feb-17-2025 | 627.40 $* | 658.78 $* |
| Jan-17-2025 | 622.83 $* | 653.52 $* |
Характеристики
Products Parameters
Model | SNA 3000 WPV | SNA 4000 WPV | SNA 5000 WPV | |||
Output Data | ||||||
Rated Power | 3000W/3000VA | 4000W/4000VA | 5000W/5000VA | |||
Parallel Capacity | Yes | Yes | Yes | |||
Normal Output Voltage | 230/240 Split phase 220/110Vac | 230/240 Split phase 220/110Vac | 230/240 Split phase 220/110Vac | |||
Normal Output Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |||
Surge Power | 6000VA | 8000VA | 10000VA | |||
Switch Time | 10ms | 10ms | 10ms | |||
Waveform | Pure sine wave | Pure sine wave | Pure sine wave | |||
Battery Data | ||||||
Battery Type | Lithium/Lead-Acid | Lithium/Lead-Acid | Lithium/Lead-Acid | |||
Normal Voltage | 51.2V/48V | 51.2V/48V | 51.2V/48V | |||
Max. Charge Voltage | 59V | 59V | 59V | |||
Solar Charger Data | ||||||
Max. Recommend PV Power | 6000W | 6000W | 6000W | |||
MPPT Tracker | 2 | 2 | 2 | |||
Max.PV Open Circuit Voltage | 480Vdc | 480Vdc | 480Vdc | |||
MPPT Voltage Range | 100~385Vdc | 100~385Vdc | 100~385Vdc | |||
Max. Solar Charge Current | 100A | 100A | 100A | |||
Max.MPPT Efficiency | >98% | >98% | >98% | |||
Parallel MPPT Charger | Yes | Yes | Yes | |||
AC Charger Data | ||||||
Normal Voltage | 230Vac | 230Vac | 230Vac | |||
AC Voltage Range | 110~280Vac | 110~280Vac | 110~280Vac | |||
Max. Charge Current | 60A | 60A | 60A | |||
Frequency Range | 50/60(Auto Sensing) | 50/60(Auto Sensing) | 50/60(Auto Sensing) | |||
General Data | ||||||
Dimensions(W/H/D) | 504x330x135mm | 504x330x135mm | 504x330x135mm | |||
Weight | 14Kg | 14Kg | 14Kg | |||
Protection Degree | IP20 | IP20 | IP20 | |||
Relative Humidity | 5%~95% Relative Humidity(Non-condensing) | |||||
Operating Temperature | 0~50°C | 0~50°C | 0~50°C | |||
Storage Temperature | -15°C~60°C | -15°C~60°C | -15°C~60°C | |||
Interfaces | ||||||
Display | LCD+LED | LCD+LED | LCD+LED | |||
Lithium Battery Communication | CAN/RS485 | CAN/RS485 | CAN/RS485 | |||
RS485/Dry Connector | Yes/Yes | Yes/Yes | Yes/Yes | |||
Wifi/GPRS | Yes/Yes | Yes/Yes | Yes/Yes | |||
Warranty | 2 Years | 2 Years | 2 Years | |||
Product Description
Packing & Delivery

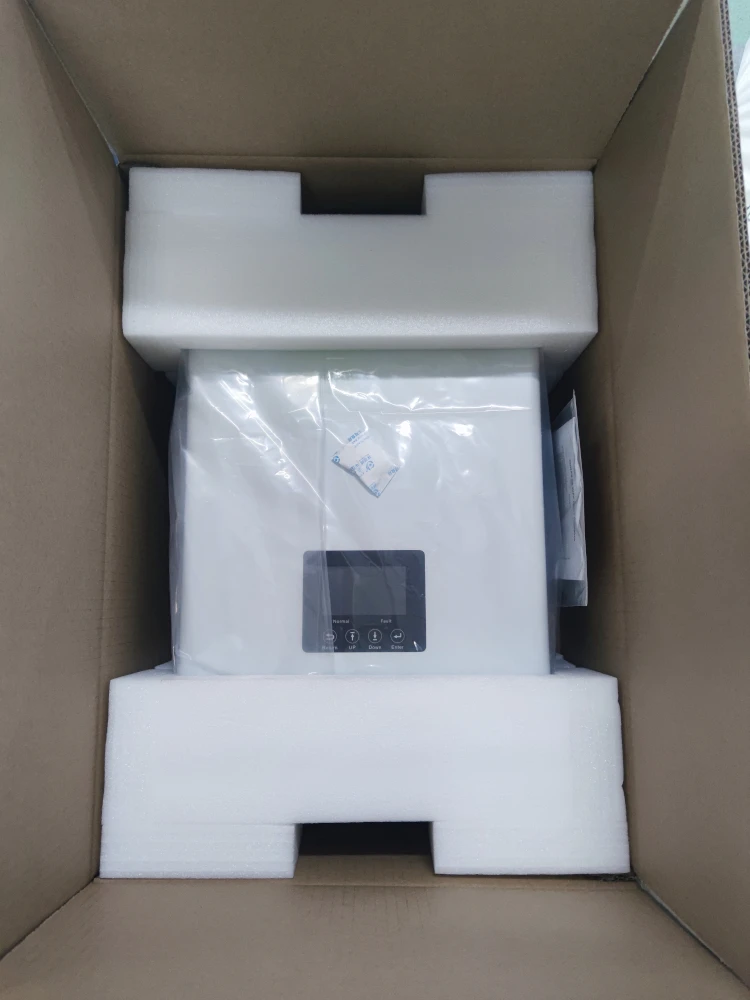

Package: Paper box. It's stable and environment friendly.
