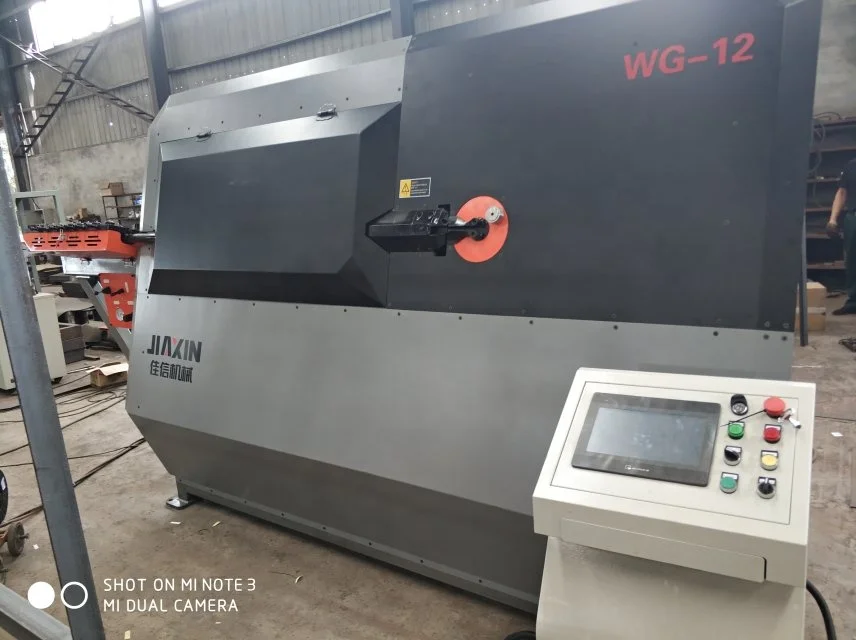

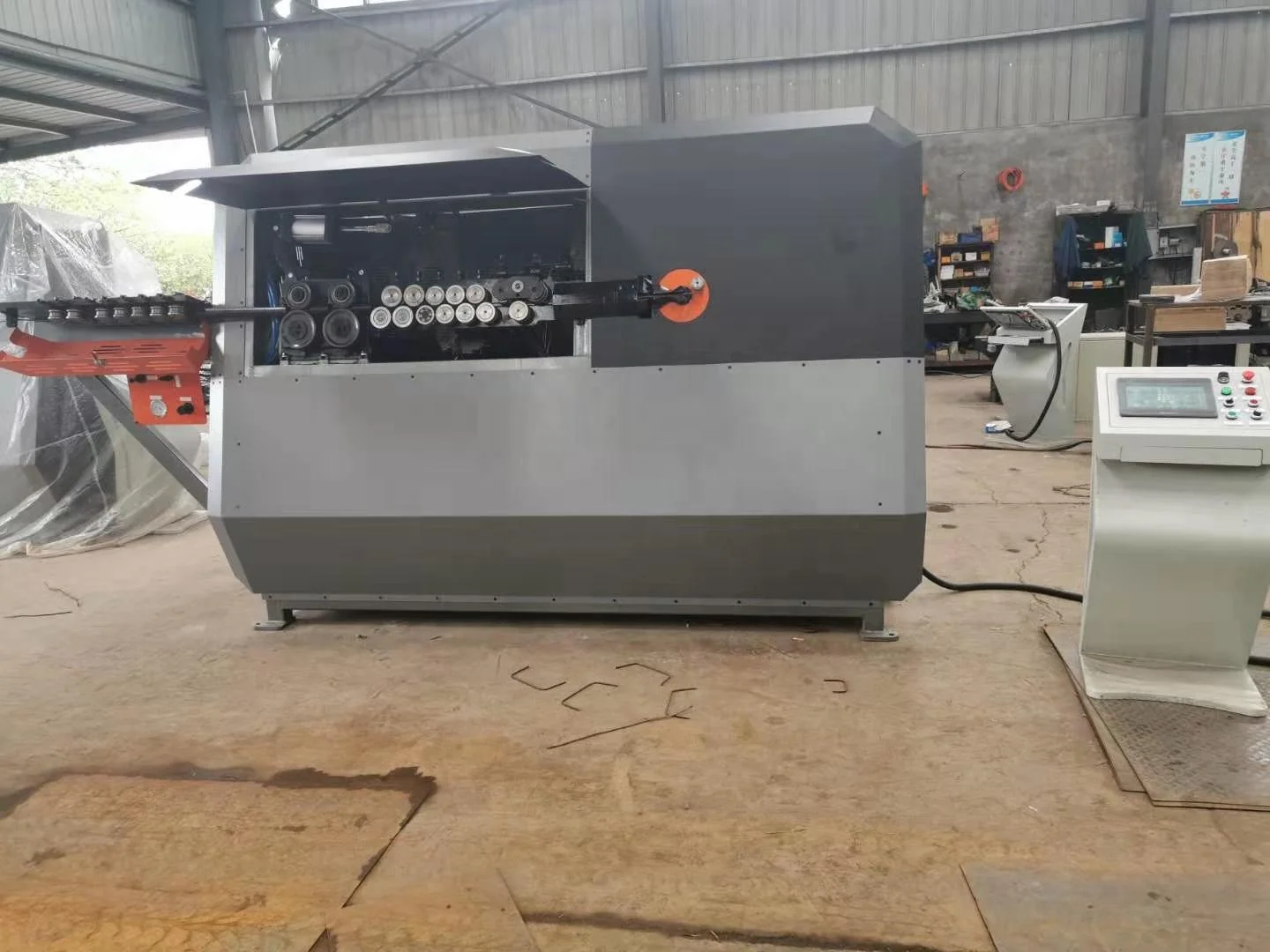

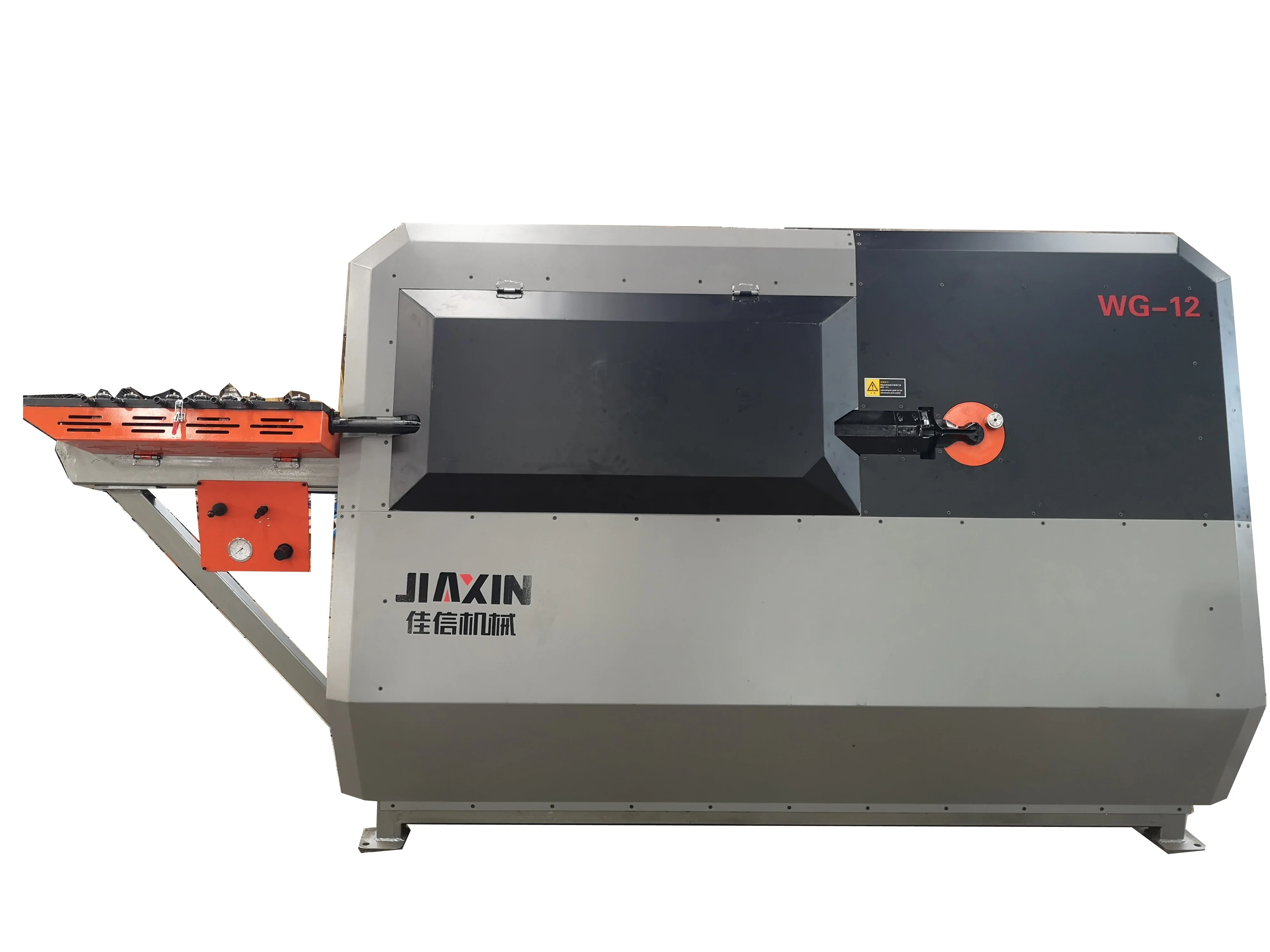

12 мм cnc Стальной Арматурный стержень для резки и небольшой автоматический гибочный
- Категория: Rebar Cutting Machine >>>
- Поставщик: Shandong,Jiaxin,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.1 $* | 0.88 $* |
| Aug-16-2025 | 0.82 $* | 0.90 $* |
| Jul-16-2025 | 0.20 $* | 0.96 $* |
| Jun-16-2025 | 0.66 $* | 0.81 $* |
| May-16-2025 | 0.93 $* | 0.39 $* |
| Apr-16-2025 | 0.57 $* | 0.52 $* |
| Mar-16-2025 | 0.47 $* | 0.24 $* |
| Feb-16-2025 | 0.80 $* | 0.21 $* |
| Jan-16-2025 | 0.79 $* | 0.84 $* |
Характеристики
Product Description
1, combine with horizontal and vertical straightening wheels, drive by Big 18.1kw Vector brand servo motor,make sure best accuracy when straightening rebar
2, bending spindle could rotating and telescope in high speed, could cut rebars very quick to get high bending precision.
2, bending spindle could rotating and telescope in high speed, could cut rebars very quick to get high bending precision.
3, large storage capacity can save many processing graphics,
4, FATEK PLC control system, WECON touchscreen, VECTOR servo motor. 5, straightening, measure length, bending, shear at same time, processing in high efficiency.
Functions of machine
This Automatic Steel wire rebar Stirrup bender use FATEK or Simens control system with touchscreen, could automatically accomplish processing of feeding, straighten, bending and cutting on rebars.
Max bending diameter of rebar is 12mm,widely used in construction industry and rebar
Max bending diameter of rebar is 12mm,widely used in construction industry and rebar
manufacturing enterprise;
Detailed Images

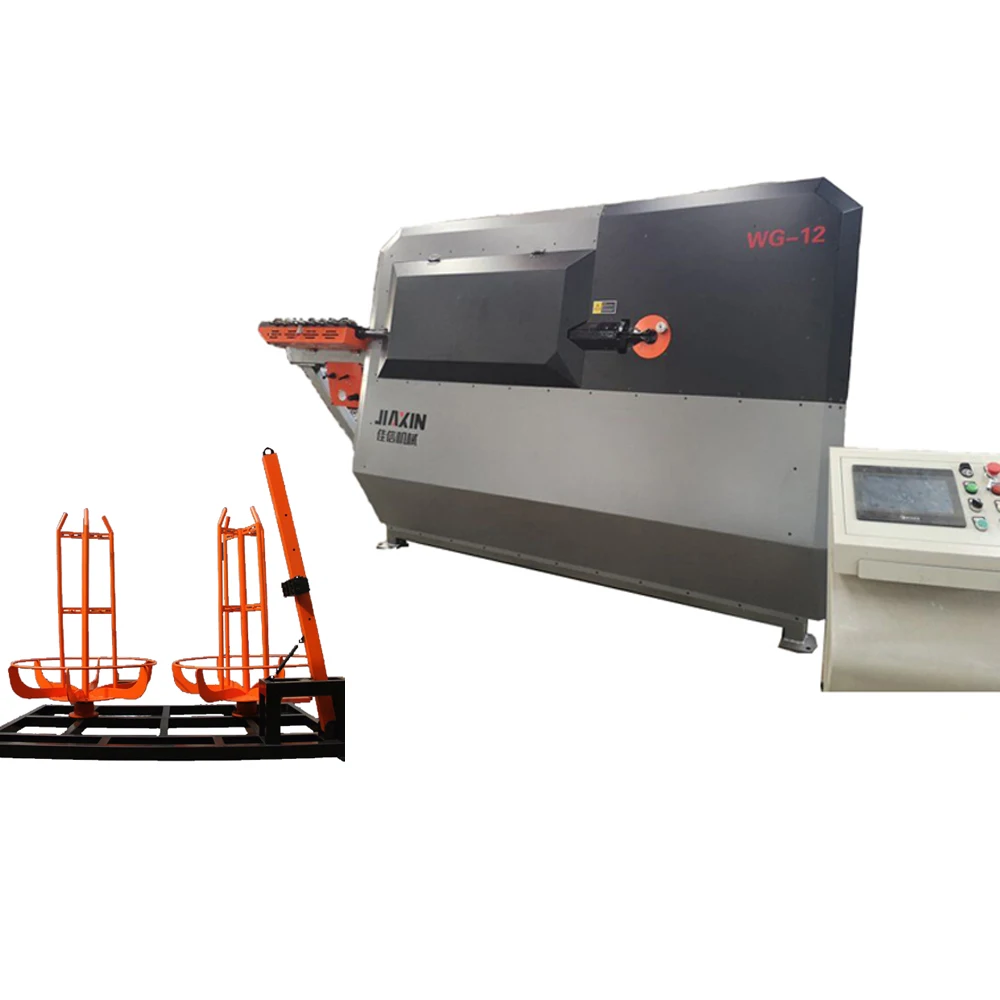

Two payoffs, to feed steel wires
Maximum carrying capacity 2,000Kg each. Automatic braking system (pneumatic) and buffering system.
Emergency stop.Inner diameter adjustable

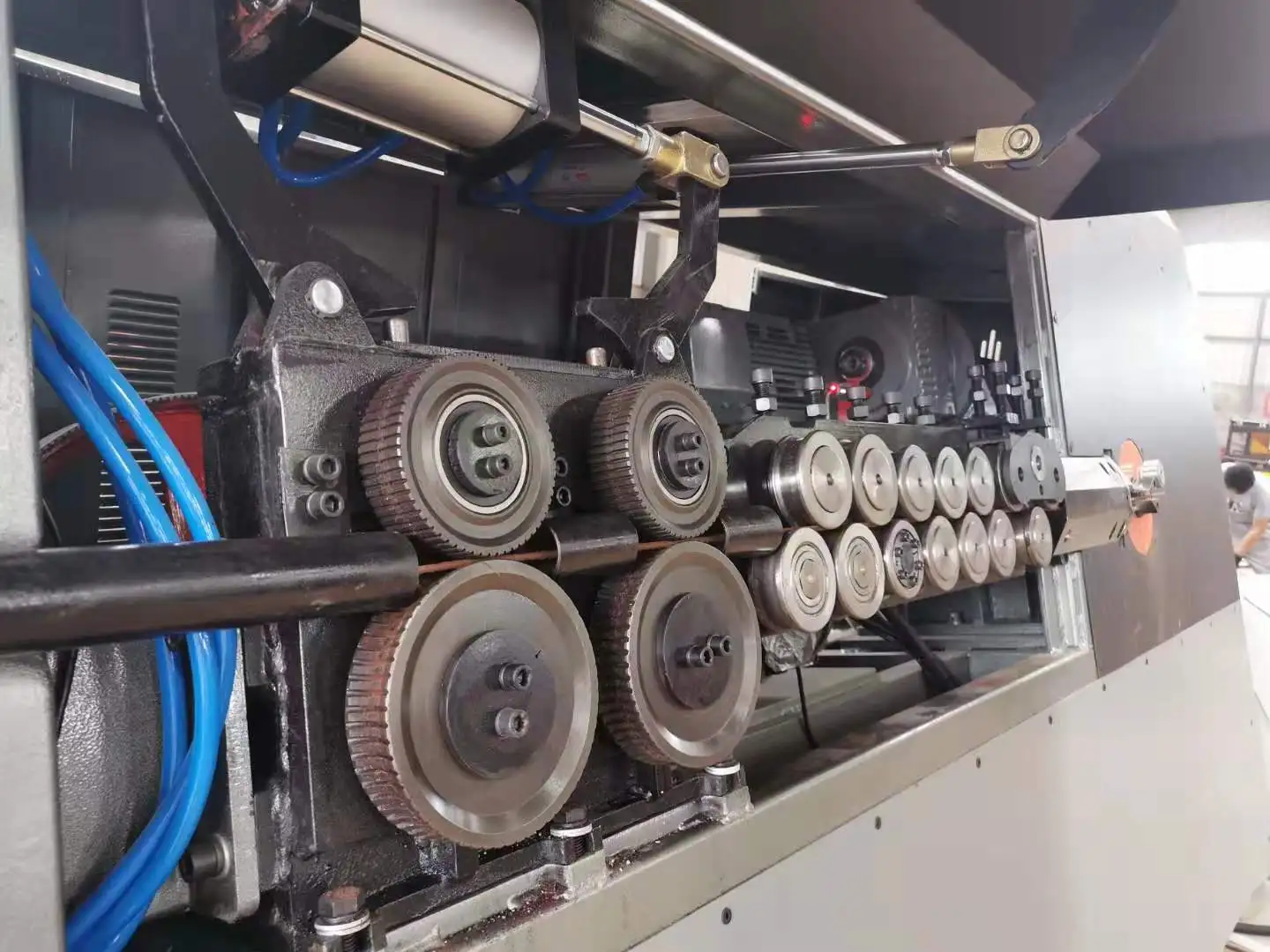

Wires Straightening rollers
Could impact wires aromatically, pneumatic impact wire.
Wire cutting tools
Mobile blade driven by an electric brake motor.
Plug type fixed blade and mobile blade, convenient to replace and save spare parts cost.
Plug type fixed blade and mobile blade, convenient to replace and save spare parts cost.
Bending axis
Driven by 7.5KW servo bending motor, could
bending ±180°;
and retractable and rotating smoothly. Bending axis could be replaced conveniently.
bending ±180°;
and retractable and rotating smoothly. Bending axis could be replaced conveniently.
Product Paramenters
Automatic steel bar bending machine | ||
Processing range of a single steel | Level I round steel 4-12mm | |
Level III thread steel 5-12mm | ||
Processing range of double steels | Level I round steel 5-10mm | |
Level III thread steel 5-8mm | ||
Processing efficiency | 1440 pcs/hour | |
Max. Bending angel | ±180° | |
Max. Feeding speed | 2000mm/s | |
Max. Bending speed | 1000 (°/s) | |
Ground clearance of bending spindle | 1120mm | |
Stirrup side length | 130--1800mm | |
Average electric power consumption | 6kw/h | |
Total capacity | 32.35kw | |
