Станок для сверления бетона/алмазная буровая установка
- Категория: Drilling Machines >>>
- Поставщик: Changge,Deleixi,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 857.67 $* | 900.43 $* |
| Aug-17-2025 | 850.49 $* | 893.39 $* |
| Jul-17-2025 | 713.27 $* | 749.97 $* |
| Jun-17-2025 | 835.85 $* | 877.20 $* |
| May-17-2025 | 727.12 $* | 763.77 $* |
| Apr-17-2025 | 821.80 $* | 862.76 $* |
| Mar-17-2025 | 814.83 $* | 855.77 $* |
| Feb-17-2025 | 806.55 $* | 846.56 $* |
| Jan-17-2025 | 799.75 $* | 839.29 $* |
Характеристики
Horizontal Diamond Power Tools For Core Sampling Of Concrete And Asphalt Borehole Concrete Drilling Hole Core Cutting Machine
Product Description
Machine Summary:
Concrete core drilling machine is mainly used for building, highway, airport, wharf, dam and other hardened concrete, limestone core drilling, bending and compression test.
It has the advantages of simple operation, convenient moving, accurate drilling and coring, smooth core surface, and no accidental damage to the core. It is an indispensable equipment for highway transportation department, construction department and related colleges and universities. The drilling rig can also be used for drilling and coring other non-metallic brittle and hard materials, such as refractory, ceramics, glass and rock.
| Model No. | DLX-20 |
| Core diameter | ≤200 mm |
| Coring depth | ≤ 700mm |
| Spindle speed | 900-1300r / min |
| Weight | 190kg |
| Dimension | 1050x780 × 1300mm |

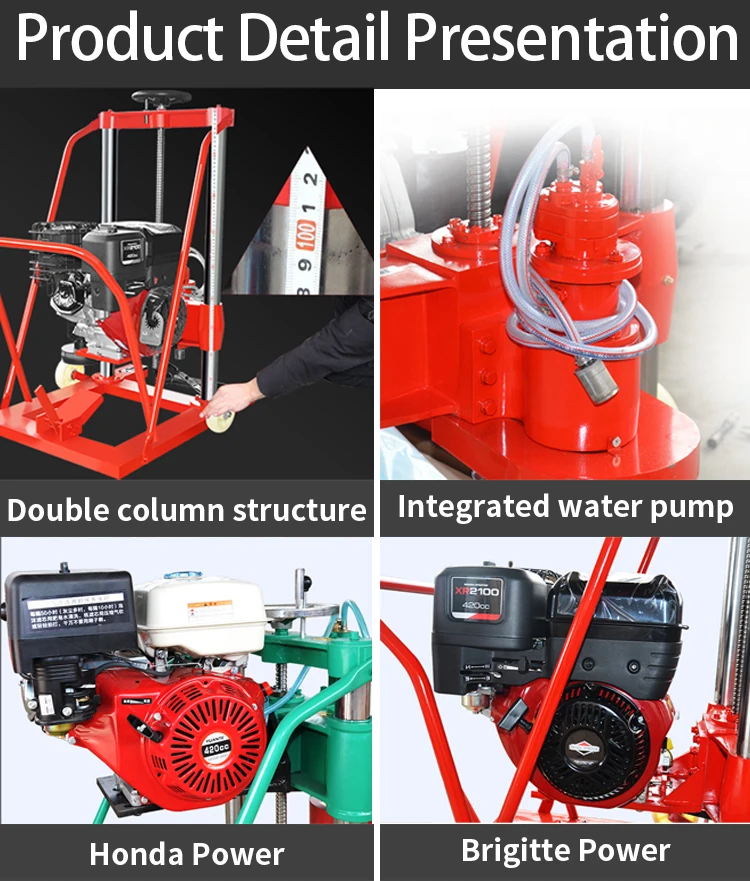

Structure Principle: Highway Drilling Coring Machine Concrete Rock Drilling Machine
1. Rack: rack is installed on the column, and four adjusting screws are installed on the base.
2. Sliding seat: set on the column, the internal gear and rack on the column form a gear pair, rotate the feed handle to make the sliding seat move up and down along the column.
3. Gearbox: it is fixed on the sliding seat, and the main shaft is equipped with a drill bit, which moves along with the sliding seat to achieve the purpose of drilling.
Matters Needing Attention:
1. When drilling, the resistance should be small and the cutting should be stable. The feed speed is about 4-5m / min. when the drilling is nearly finished, the drilling will vibrate due to the change of cutting force. At this time, the feed speed should be reduced appropriately. When the cutting is finished, the drill should be quickly lifted until the cutting edge is out of work, and the drilling machine and water source should be shut down.
2. Sufficient water cooling must be maintained throughout the drilling process
3. When the drill is rapidly lifted during drilling and after drilling, it is not allowed to stop. When the drill is just out of work, stop the spindle rotation and then lift the drill.
4. During drilling, if the bit is found stuck, the bit should be quickly lifted for a section, and then slowly drilled in, and the bit should not be damaged by hard drilling.
5. If the temperature of the motor exceeds 70 ℃ during drilling, it should be stopped temporarily and used after cooling.
6. Turn the switch button and turn the operating handle in a positive direction to make the drill bit contact the concrete surface slowly. After the drill bit is put into the groove, the drill can be pressurized.
7. If during drilling, the bit can not be drilled and the diamond part on the bit surface is not exposed completely, cutting with strong abrasion materials (such as firebrick, grinding wheel, etc.) is required. When the diamond on the bit surface is exposed completely, the hand mold surface layer is rough before drilling.
Horizontal Diamond Power Tools For Core Sampling Of Concrete And Asphalt Borehole Concrete Drilling Hole Core Cutting Machine

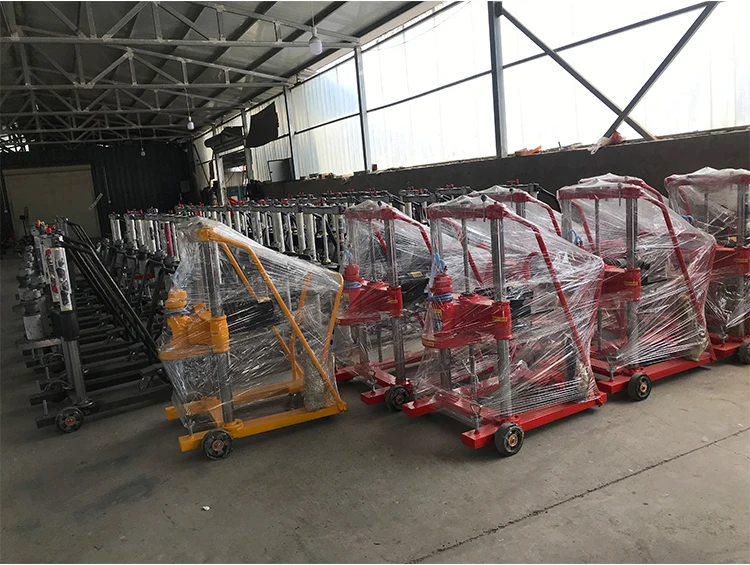

Packaging & Shipping
Packing and Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Concrete Cutting Drilling Rig Machin/Hilti Diamond Core Drill
Company Information
Changge Deleixi Machinery Equipment co. LTD is a manufacturer of processing machine our products include steel bar cutting machine,steel bar bending machine,straightening cutting machine,stirrup bending machine,plate compactor,tamping rammer ,trowel machine and so on, with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are very popular in Mid-east,Africa,European ,American .ect, they are widely used in building ,road,railway and other area.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!Hi
Concrete Cutting Drilling Rig Machin/Hilti Diamond Core Drill
Our Services
Horizontal Diamond Power Tools For Core Sampling Of Concrete And Asphalt Borehole Concrete Drilling Hole Core Cutting Machine
1.We have more than10 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
Drilling Machine For Concrete
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are
using. Horizontal Diamond Power Tools For Core Sampling Of Concrete And Asphalt Borehole Concrete Drilling Hole Core Cutting Machine
3) What's the order procedure?
Horizontal Diamond Power Tools For Core Sampling Of Concrete And Asphalt Borehole Concrete Drilling Hole Core Cutting Machine
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be
requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the
order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for
shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
Horizontal Diamond Power Tools For Core Sampling Of Concrete And Asphalt Borehole Concrete Drilling Hole Core Cutting Machine
