Полуавтоматическая сварочная машина для кондиционирования воздуха аппарат
- Категория: Other Welding Equipment >>>
- Поставщик: Zhengzhou,Daqing,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 51111.87 $* | 53667.67 $* |
| Aug-20-2025 | 50681.66 $* | 53215.41 $* |
| Jul-20-2025 | 42521.95 $* | 44647.15 $* |
| Jun-20-2025 | 49822.80 $* | 52313.12 $* |
| May-20-2025 | 43380.16 $* | 45549.12 $* |
| Apr-20-2025 | 48963.47 $* | 51411.43 $* |
| Mar-20-2025 | 48534.96 $* | 50961.19 $* |
| Feb-20-2025 | 48104.85 $* | 50509.77 $* |
| Jan-20-2025 | 47675.78 $* | 50059.27 $* |
Характеристики

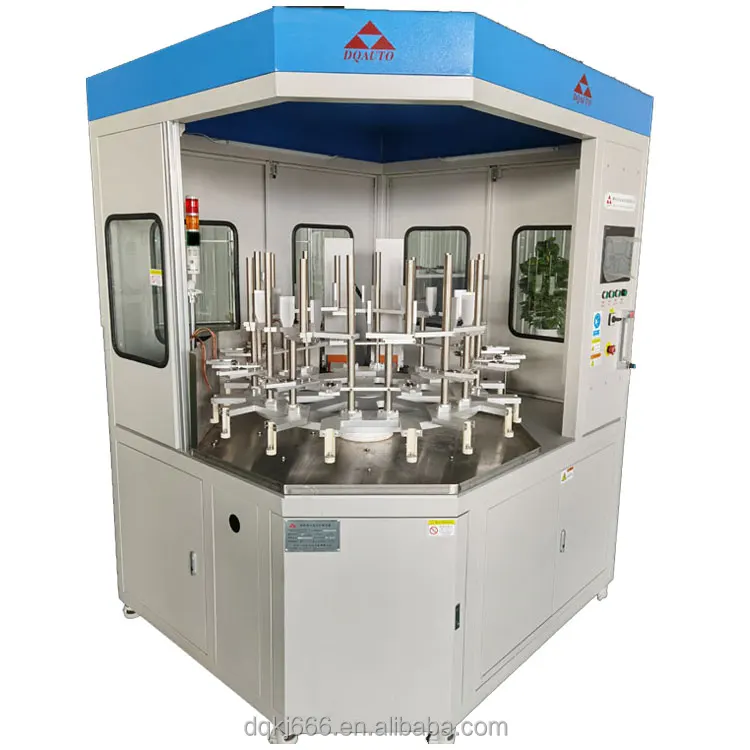

Semi automatic welding air-condition refrigeration machine brazing machine
Note: The equipment used 16 stations,each station welding two products
Technical parameters of intelligent turntable induction brazing series products | ||||||
Welding beat | (8-15) s two products | Operator requirements | 1 general worker | |||
High frequency machine model | All digitalFD-40H | Number of high frequency machines | 2 sets | |||
Feeding form | Manual feeding and automatic welding | Unload feeding form | Manual or automatic unload feeding | |||
Display size | 10-inch touch screen | High frequency machine type | DSP full digital control | |||
Section heating | 5 segments | Number of stored products | 8 types | |||
Max power | 50kW | Max input current | 80A | |||
Rated power | 30KW | Rated current | 45A | |||
Motor type | Servo motor | Max lifting stroke | 200mm | |||
Sensor lifting speed | 100mm/s | Lifting accuracy | 0.1mm | |||
Tooling base type | Special ceramics | Number of tooling bases | 16 piece | |||
Nitrogen protection function | Equipped with nitrogen protection function | Air cooling function | Equipped with air cooling function | |||
Water cooling function | Equipped with independent water cooling system | Lighting function | Station, distribution box lighting | |||
Working desk | Aluminum alloy | Sink type | 304 stainless steel | |||
Equipment size | 1450*1600*2360mm | Equipment weight | 400kg | |||
Industrial chiller (optional) | 3P | Water quality requirements | Scale free purified water | |||
Cooling water flow | 4L/min | Cold water pressure | 4-8bar | |||
Max water temperature of cooling water inlet | 35℃ | Cooling water PH | 7.0-9.0 | |||
Memo:
This automatic induction welding system is a custom brazing welding line for different metal parts brazing welding, if you have any other requests, please contact us for customizing the appropriate technical solution.
This automatic induction welding system is a custom brazing welding line for different metal parts brazing welding, if you have any other requests, please contact us for customizing the appropriate technical solution.
Application fields:
The induction brazing soldering system is a customized induction heating system, mainly used for all kinds of air conditioner parts, tubes, pipes, valves, bathroom accessories, refrigerators, electrical home appliances, and automotive parts brazing welding jobs.
Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
Q: How can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card.
Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15 days. If special machine, please confirm with our seller.
Q: How about warranty?
Q: How about warranty?
A: Warranty is one year, but we will offer lifetime service for machine.
Q: How do we confirm the accuracy and performance of machines?
A: (1) Regarding the performance ,we could produce a work piece for your consult ,which will be produced according to the customer's sample that send to us.
(2) You could inspect machine accuracy by online video
(3) You also could check our factory and machine quality by other Inspecting Authority.
