Контроллер заряда солнечной батареи SY48100A 100 А 12 В/24 В/36 В/48 В контроллер панели для литиевых и свинцово-кислотных
- Категория: Solar Energy Products >>>
- Поставщик: Dongguan,Engineer,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.79 $* | 0.58 $* |
| Aug-15-2025 | 0.32 $* | 0.32 $* |
| Jul-15-2025 | 0.96 $* | 0.31 $* |
| Jun-15-2025 | 0.44 $* | 0.34 $* |
| May-15-2025 | 0.25 $* | 0.14 $* |
| Apr-15-2025 | 0.68 $* | 0.38 $* |
| Mar-15-2025 | 0.59 $* | 0.21 $* |
| Feb-15-2025 | 0.78 $* | 0.66 $* |
| Jan-15-2025 | 0.70 $* | 0.10 $* |
Характеристики
Technical specifications
Module | SY48100A |
Support Battery | Lithium Battery & Lead Acid Battery |
Solar Panel Power Input | 1200W(12V), 2400W(24V), 3600W(36V), 4800W(48V) |
Rated Input Current | 100A |
System Voltage From Panel | 15V-23V(12V), 30V-45V(24V), 45V-69V(36V), 60V-90V(48V) |
Max. Solar energy input voltage | 100V DC ( 12V/24V/36V/48V ) |
Fast Charging Voltage | 10.5V(12V), 21V(24V), 31.50V(36V), 42V(48V), |
Float Charging Voltage | 13.8V(12V), 27.6V(24V), 41.4V(36V), 55.2V(48V), |
Full Charging Voltage | 14.4V(12V), 28.8V(24V), 43.2V(36V), 57.6V(48V), |
Load Protect Voltage | 10.7V(12V), 21.4V(24V), 32.10V(36V), 42.8V(48V), |
DC Output Current | 50A |
USB Output | 5V 1.5A * 2 |
Solar Panel Charging Way | MPPT |
Operating Temperature | -25C to +55C |
Unit Weight | 1.30 kg |
Package | 10 Pieces/Carton |

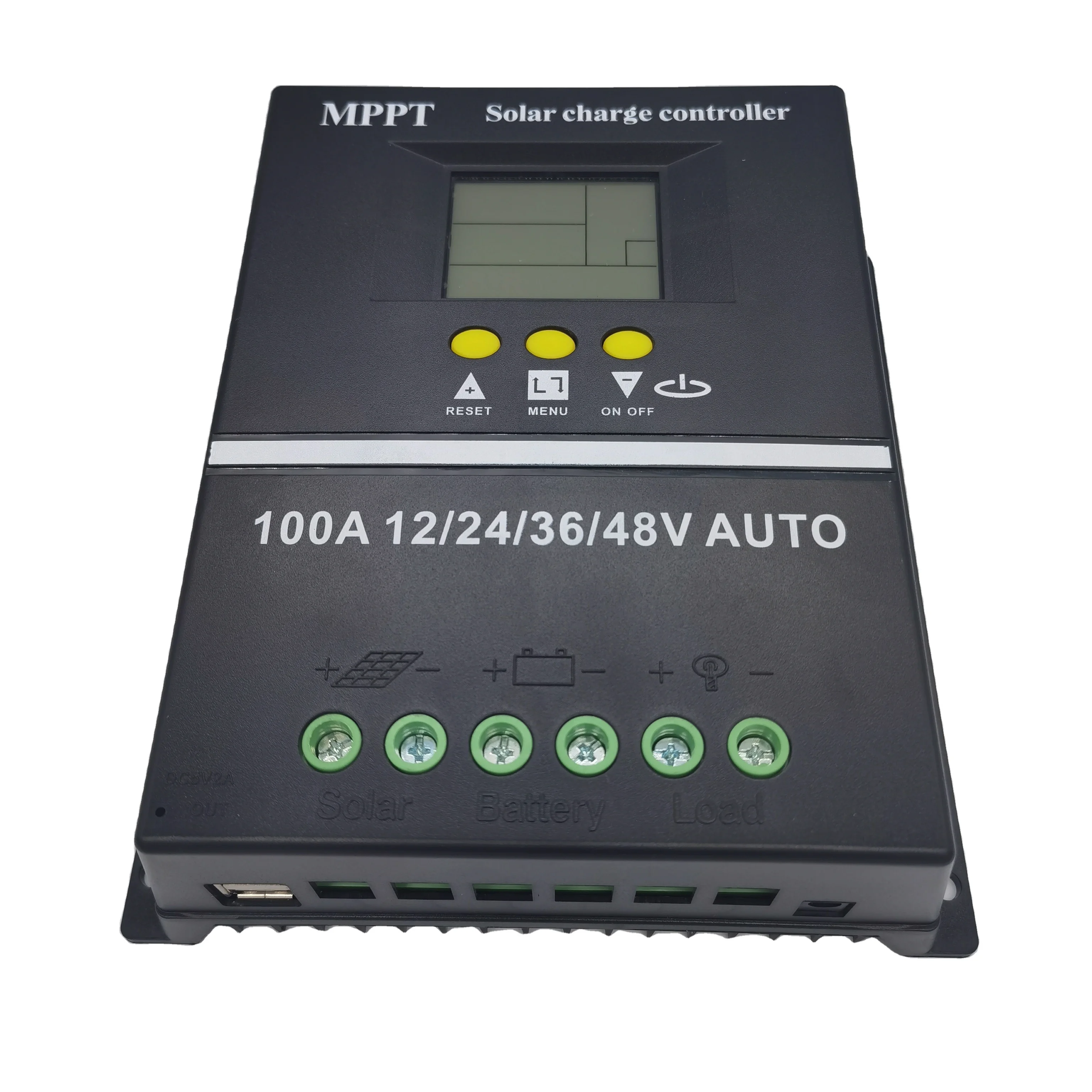

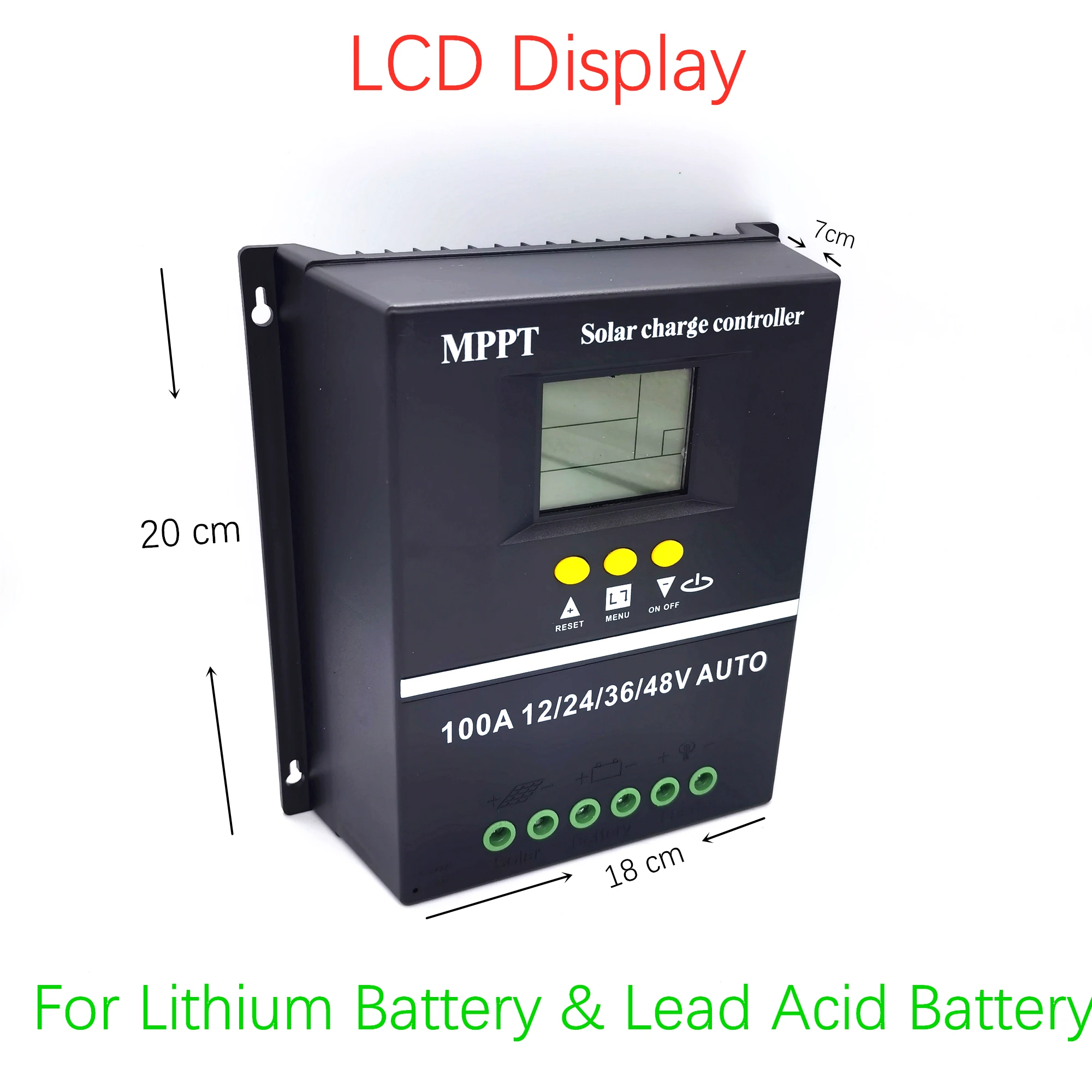

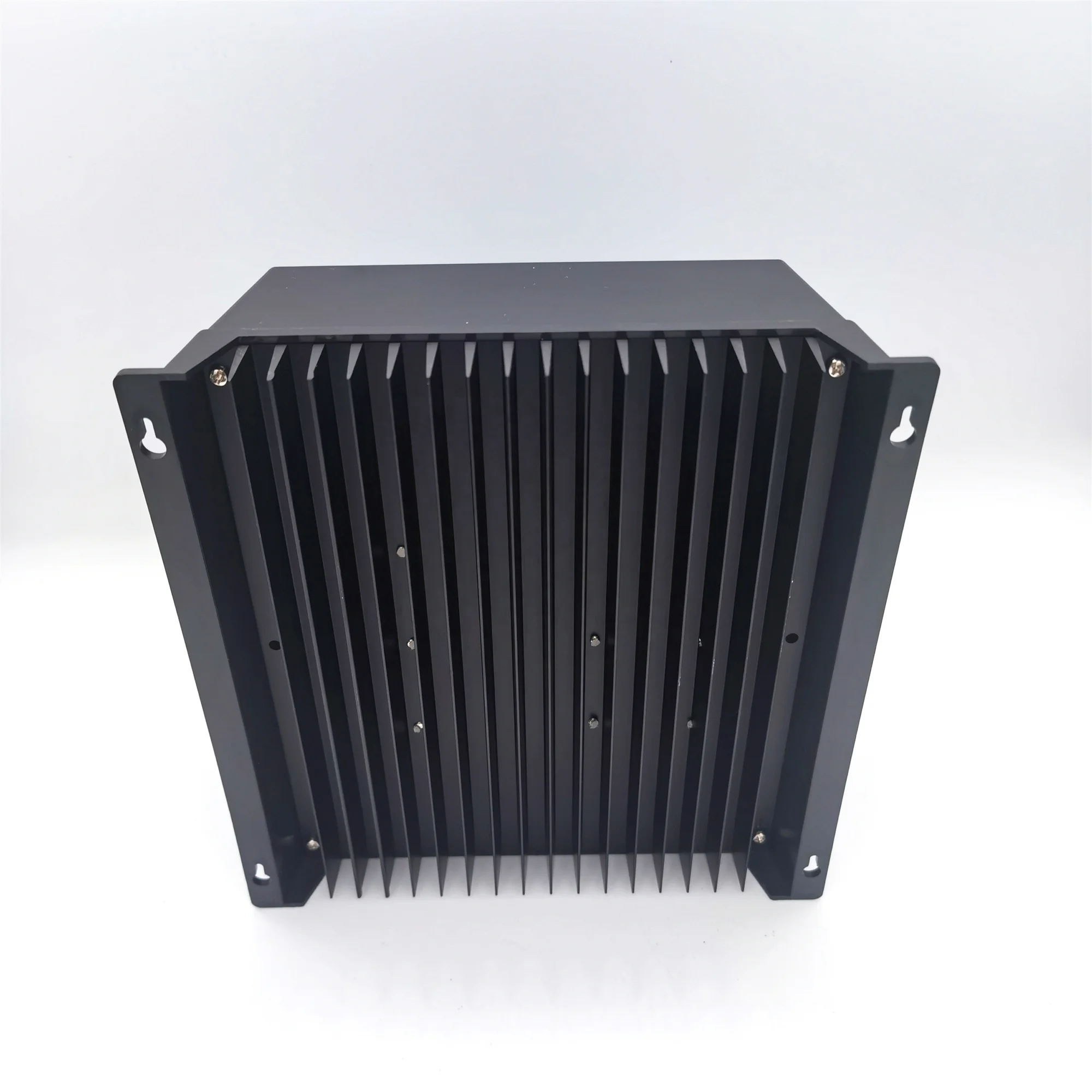

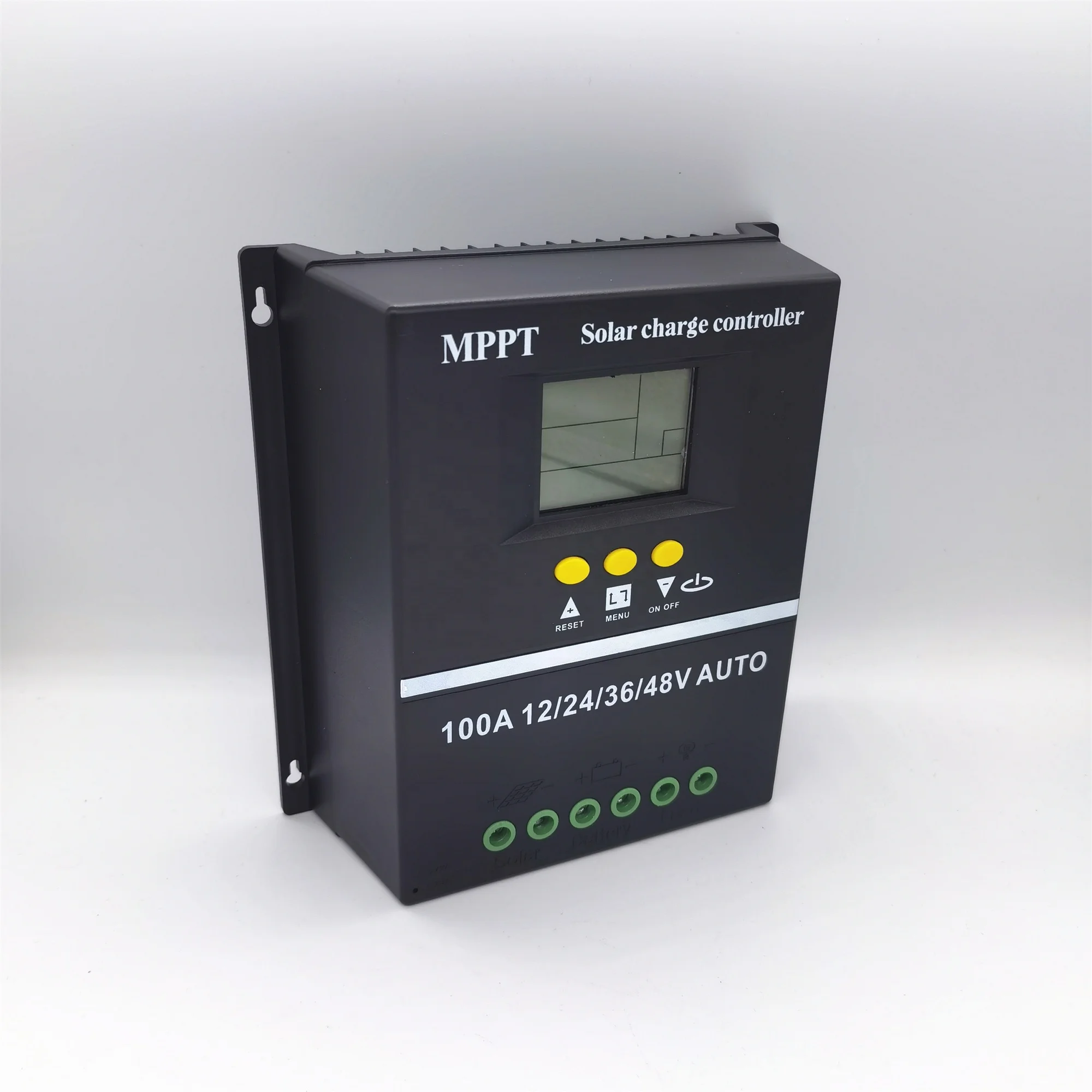

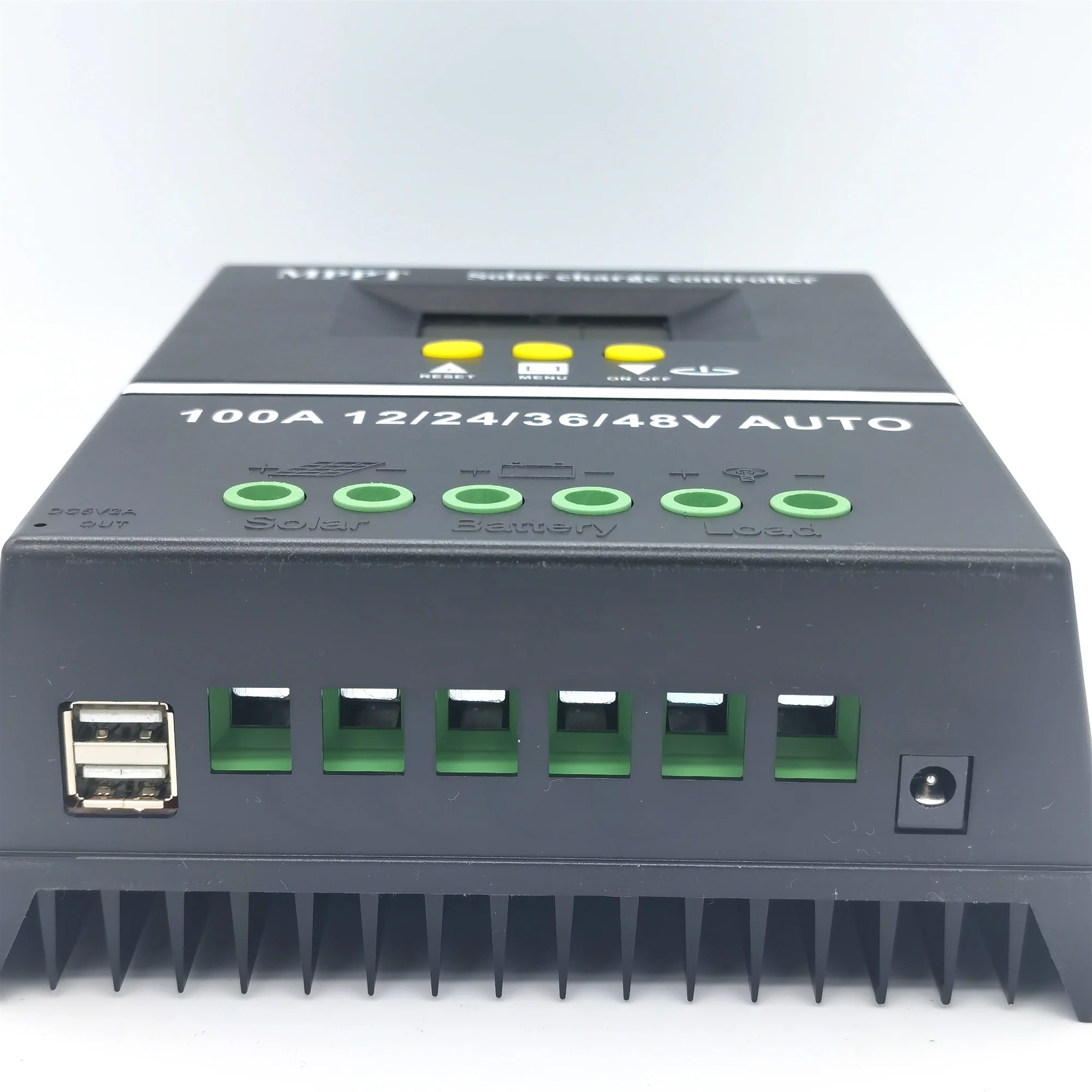

Details Images
