Product Introduction

Wobbler Feeders provide two functions in one unit: feeding material at a controlled rate, and scalping out the fines from the feed material. These feeders are especially good with wet, sticky materials where fines need to be scalped or are stuck to larger lumps. They also work well for scalping out materials with high percentages of clay. Wobbler Feeders can be used to feed and scalp material in aggregate and mineral processing applications.

Used before primary crushers, wobbler feeders excel where others fail in situations too wet and sticky for other feeders and scalpers.Thanks to the unique concept design and mode, they allow to achieve a sufficiently clean product; output products will be suitable for next crushing stage.As the transportation of the material is effected horizontally, the subsequent crusher is fed gently and constantly.

How Wobbler Feeders Work

The Wobbler Feeder consists of a frame, elliptical bars and a chain drive system used to rotate the bars. The bars are elliptical in shape and are timed at 90 degrees to the adjoining bar. The drive system connects all the bars with a double- or triple-strand chain that attaches to sprockets on each bar, maintaining the 90 degree timing. This maintains the gap, or opening, between the bars at the same dimension throughout the bar rotation. As material is moved from the feed end to the discharge end, the large lumps of material are forced up and down within the load, scrubbing against each other. This action forces any sticky material, such as clay, to be dislodged and enables it to pass through the openings between the bars. The rotation of the bars also moves the material from the feed end to the discharge end with continuous scrubbing the full distance.

Applications for Wobbler Feeders

Wobbler Feeder is used in aggregate and mining applications to sort the run-of-mine material before the primary crusher. This scalping of the feed reduces unnecessary wear on the primary crusher. Since scalping the feed reduces the amount of material going into the primary crusher, it also reduces the required size and capacity of the crusher needed. Depending on the application, they can be fed by an apron feeder or directly via trucks or loaders. They can also be used in secondary applications to separate already crushed feed material. MEKA Wobbler Feeder is available as a one or multi-stage device. Due to a modularization of the wobbler feeder length almost any sizes of separation surfaces may be realized. Plants of this type are suited for different operations in limestone, clay stone, coal, natural stone, salt, gypsum and other materials.

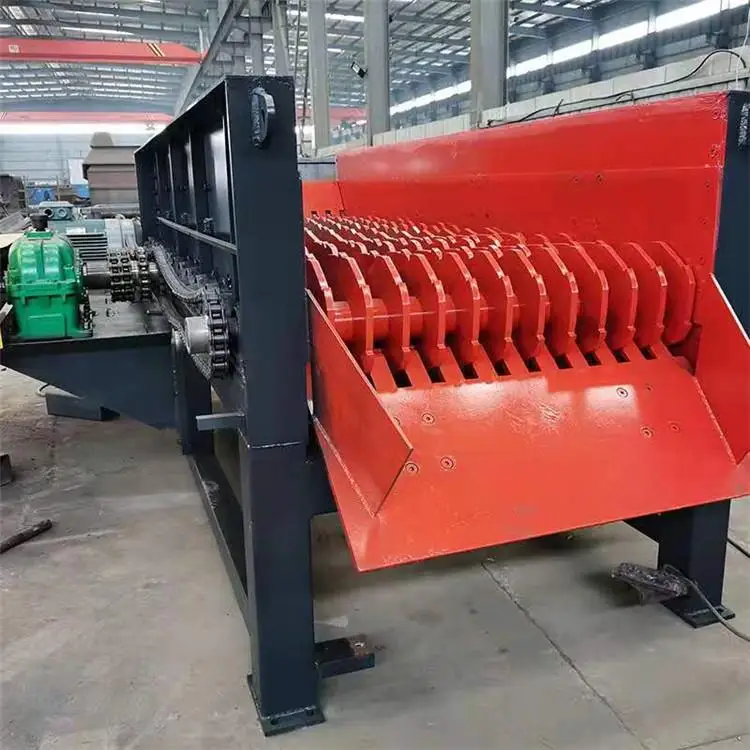

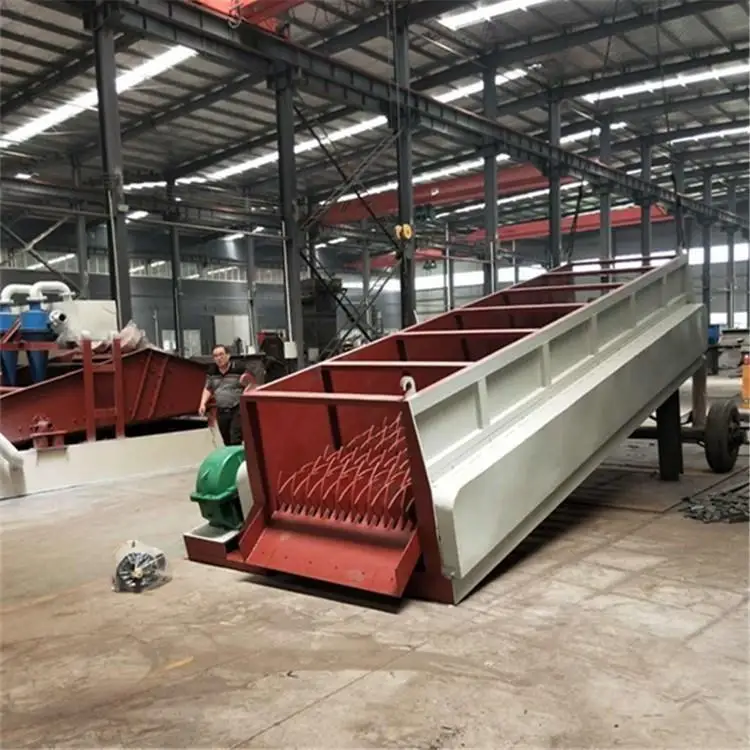

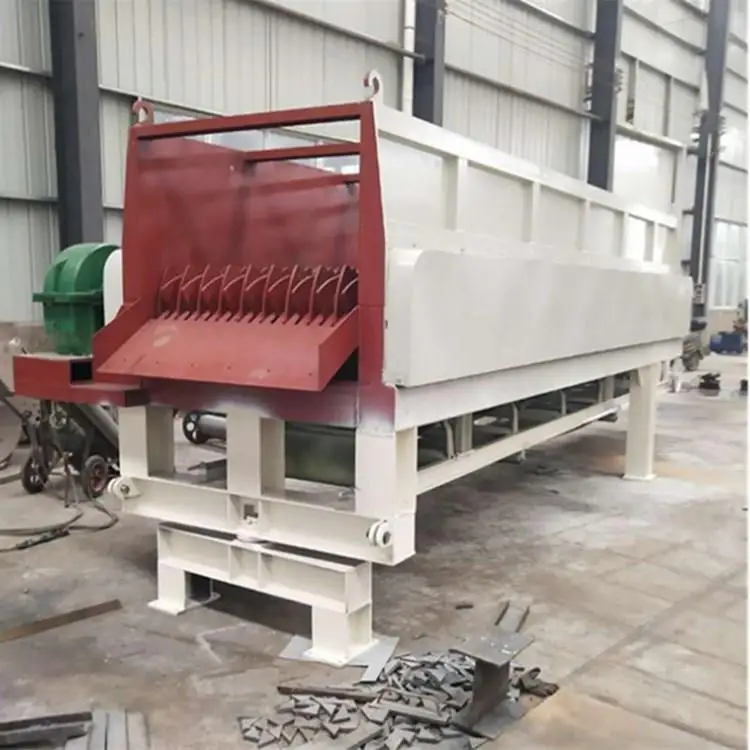

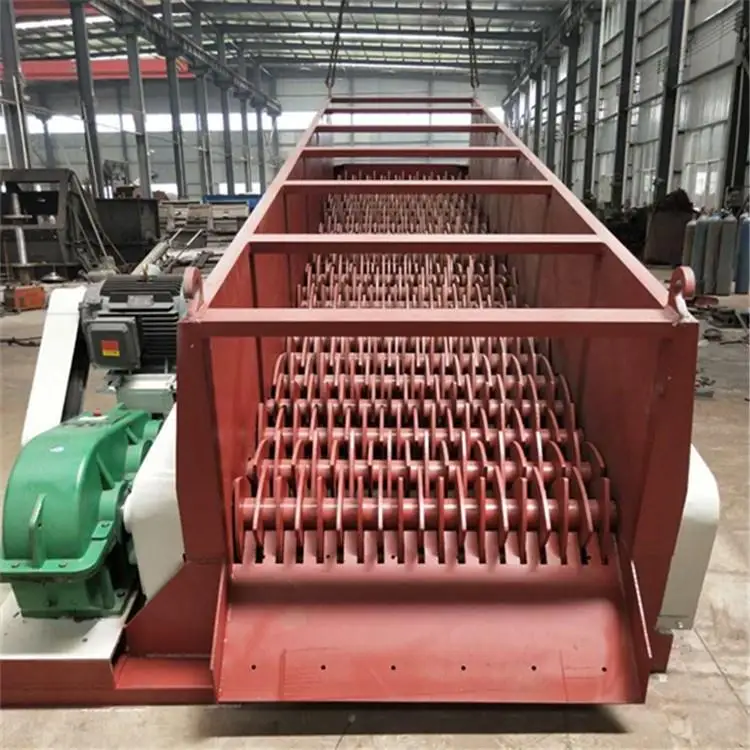

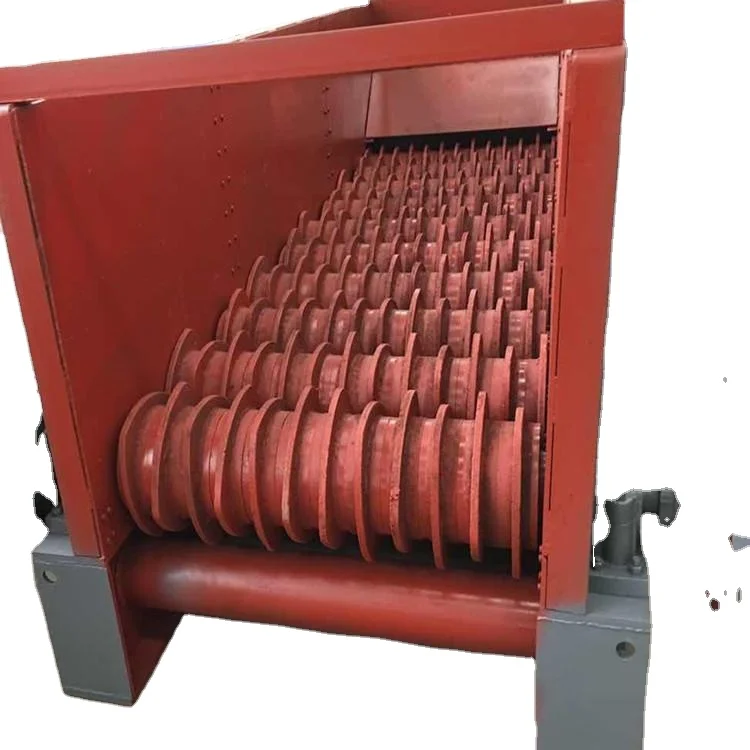

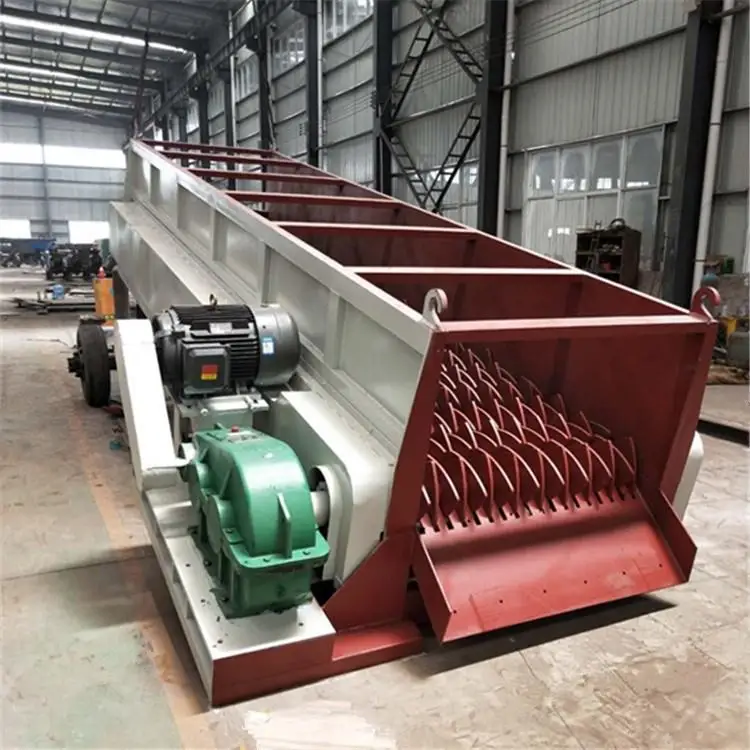

Product Display

Company Introduction

Gongyi Forui Machinery Factory is specialized in researching, manufacturing, sales and door tracking service as one of the
metallurgical mineral processing machinery enterprise, our company is engaged in the mineral processing equipment product design and production , has accumulated rich experience in design and production.
Founded in 1986, Forui machinery factory owns a over-30-year-long history of ore beneficiation and slag recovery. With its
enrichment experience, it becomes a researcher and manufacturer of new energy-saving beneficiation equipment.
With years' efforts, we have gained appreciation & praises from customers all over the world. Our products have been
successfully exported to many countries and regions, like Thailand, Laos, Myanmar, the Philippines, Indonesia, Nigeria, Namibia,South Africa,Russia and the United States, etc.

Pre-Sales Service

* Receiving clients inquiry
* Studying clients mining conditions
* Introducing our machinery
* Propose the most suitable solution

After-Sales Service

* Design outlet with 3D drawing photo
* Producing according to the design
* Inspection and testing before delivery
* Engineers installation and training service overseas

Why Chose Us?

1. 20 Years factory
2. Exported to 31 countries
3. Over 255 projects worldwide
4. All customized design
5. Ensure highest recovery rate of gold
6. Short delivery time
7. Easy to install, operate and maintain
8. Super durable heavy duty machine
9. One-stop mining solution
10. Turn-key operations

FAQ

1. Are you factory?
Yes, established in 2000 over 20 years factory
3. What equipment do you manufacture?
mineral crushing ,grinding,washing,dewatering,classification equipment,etc.

4. Whats the capacity of the gold/diamond mining equipment from 5TPH to 450TPH
5. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required
