Недорогой Дрон 16 л для сельскохозяйственного
- Категория: Agricultural Sprayer >>>
- Поставщик: Zhengzhou,Well-Known,Instrument,&,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5831.97 $* | 6123.93 $* |
| Aug-17-2025 | 5782.16 $* | 6071.41 $* |
| Jul-17-2025 | 4851.4 $* | 5094.71 $* |
| Jun-17-2025 | 5684.56 $* | 5968.41 $* |
| May-17-2025 | 4949.91 $* | 5196.83 $* |
| Apr-17-2025 | 5586.41 $* | 5865.38 $* |
| Mar-17-2025 | 5537.65 $* | 5814.17 $* |
| Feb-17-2025 | 5488.81 $* | 5762.74 $* |
| Jan-17-2025 | 5439.92 $* | 5711.33 $* |
Характеристики
Product Description

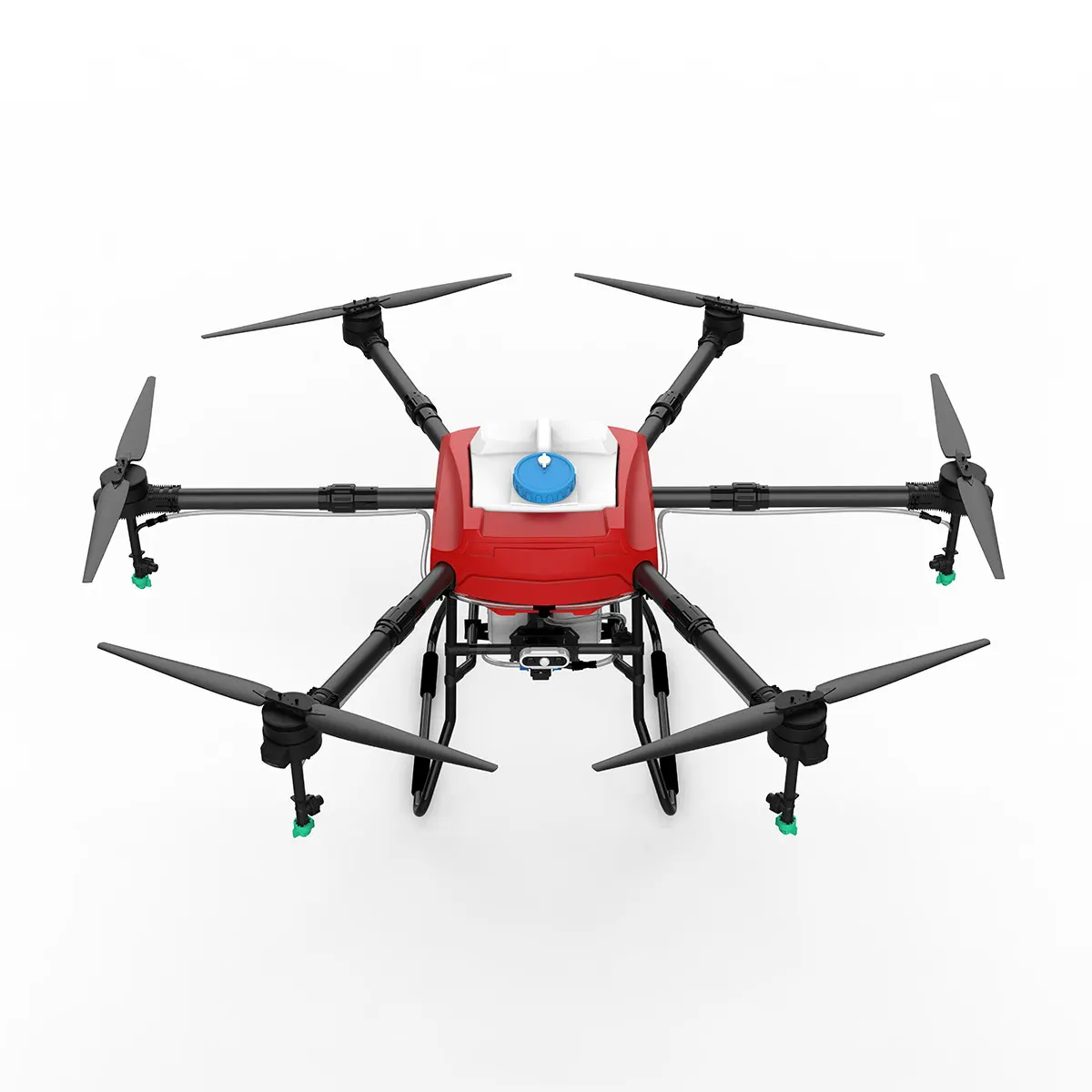

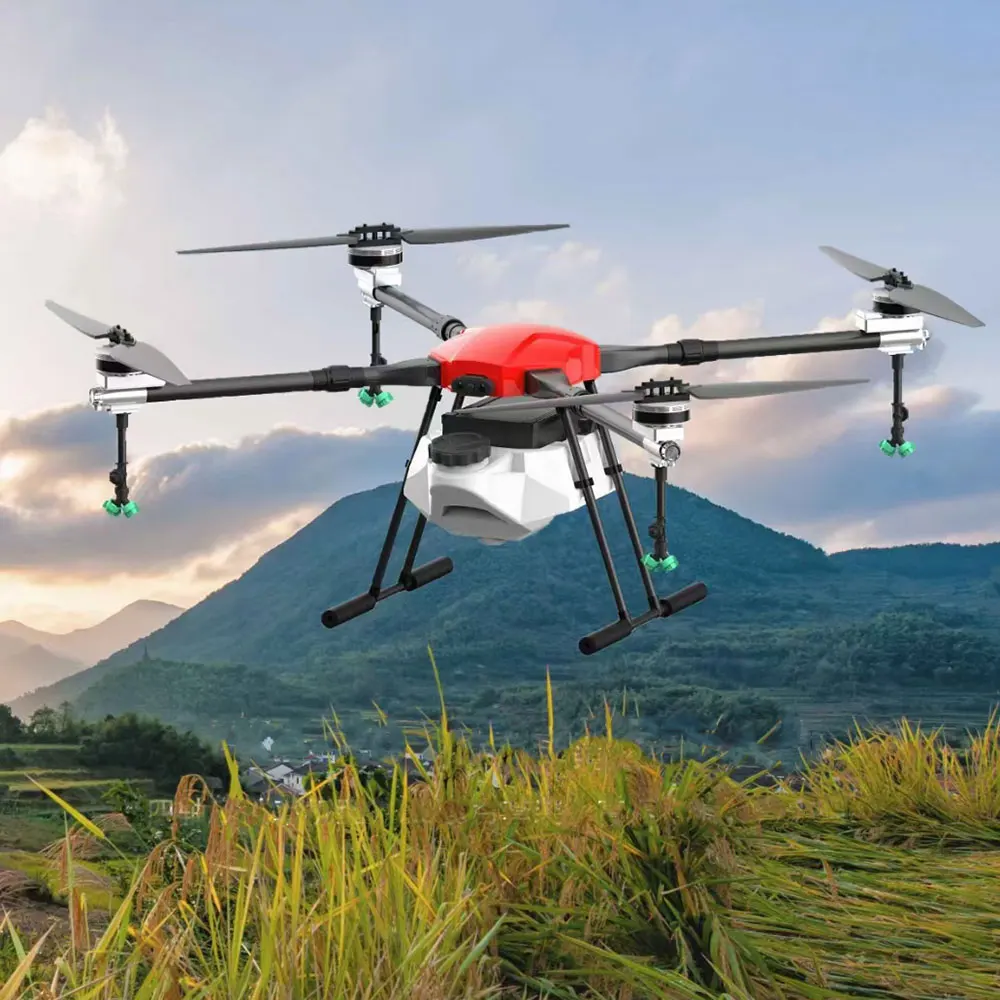

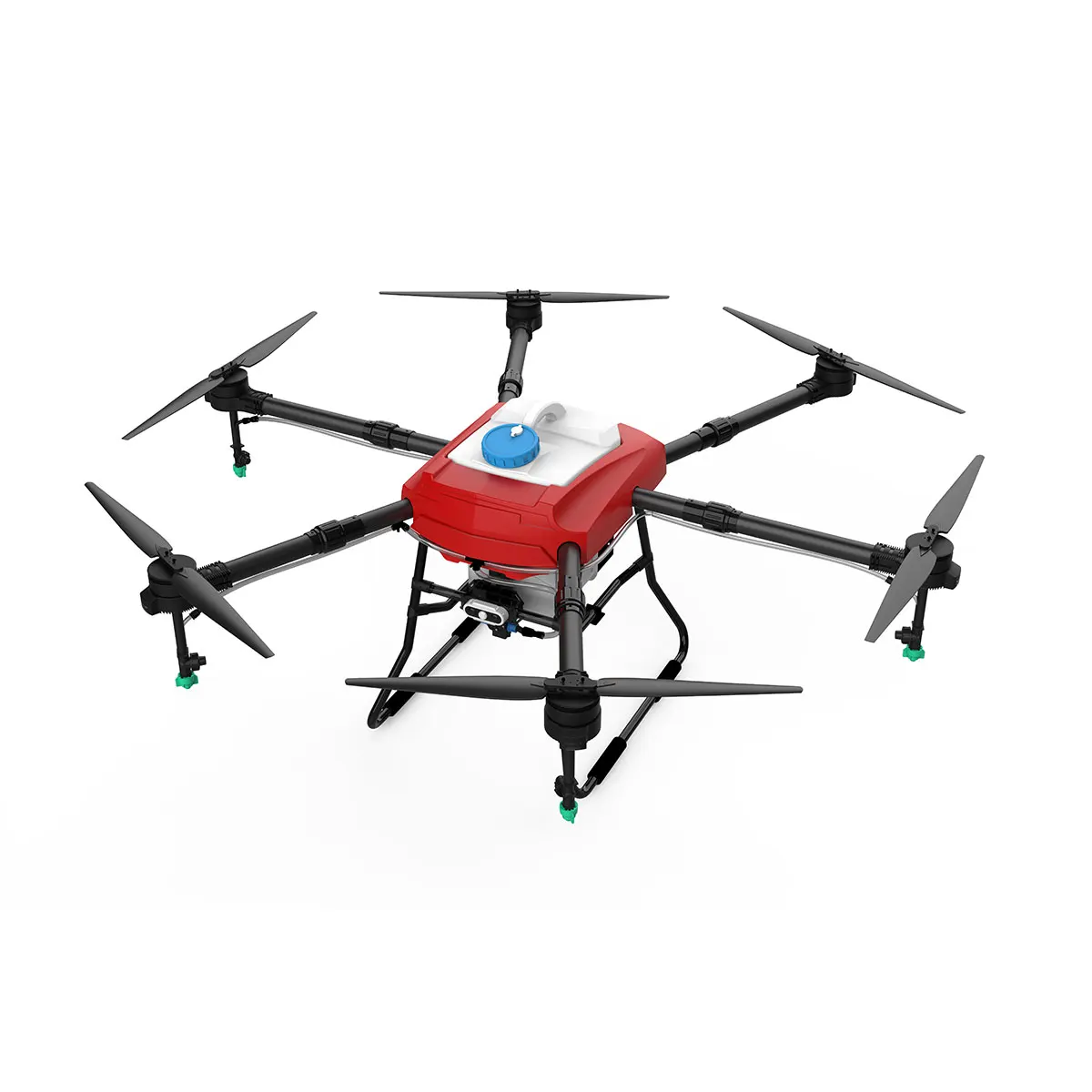

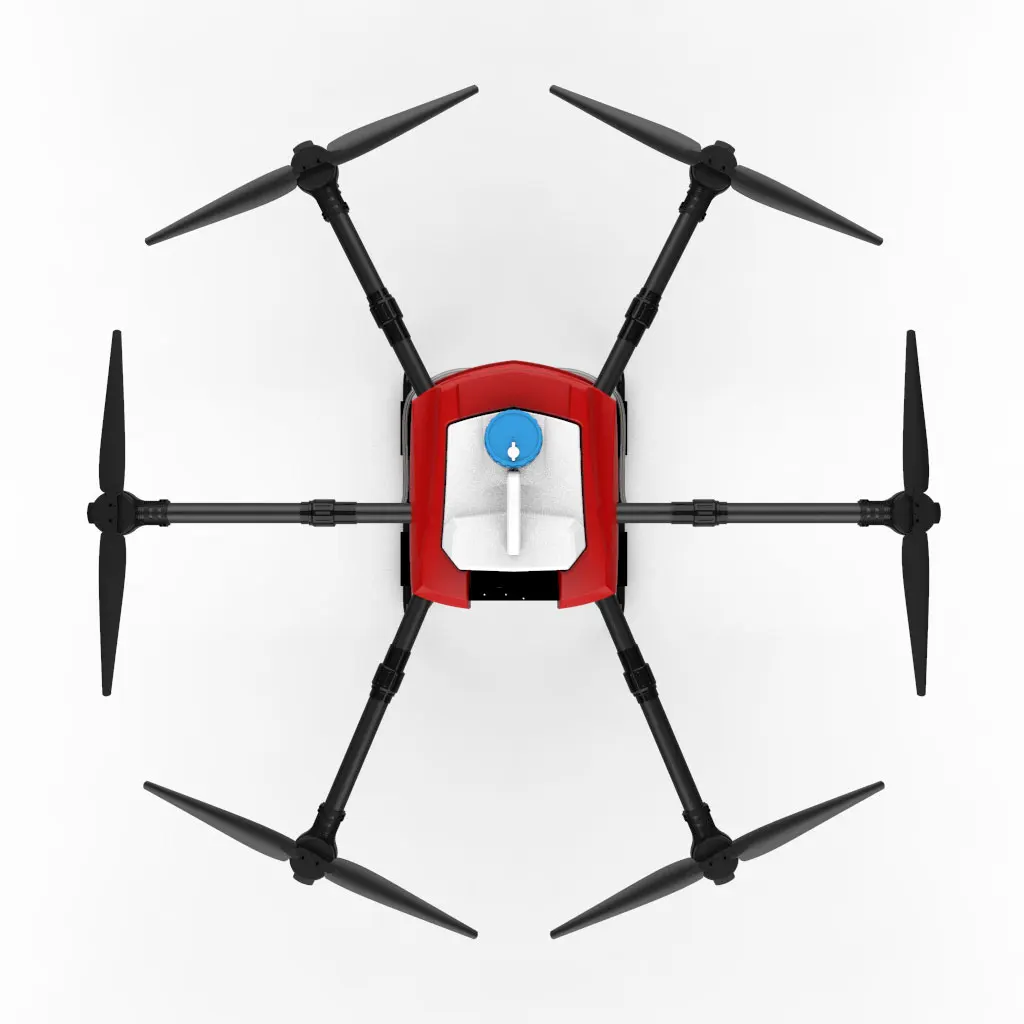

Agricultural Drone
Agriculture drone for crop spraying makes agricultural spraying easier, smarter, and safer. Crop spraying has been adopted elsewhere around the world. As agricultural drones get easier to fly and ever more automated, crop spraying by drone offers agronomists a better, more efficient, and less expensive option.
This is a high performance and intelligent precision agriculture spraying drone.It is modular, portable, and ready for any environment:,from its easy autonomous flight planning and terrain-sensing radar, to its extended flight time, high payload capacity, and off-the-grid power options.
Agricultural Drone Applications
Agricultural Drone have been widely using for crop protection, mosquito control, and public disinfection.Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.
Product Paramenters
Technical parameter | WK6-10 | WK6-16 | WK6-25 | WK6-30 |
Pesticide load | 10 Liters | 16 Liters | 25 liters | 30 liters |
Self weight | 9.7 KG | 14.8 KG | 18.5 kg | 20 kg |
Take-off weight | 25 KG | 40 KG | 60 kg | 61 kg |
Fly time | 10-28 Min | 10-28 Min | 10~28 min | 10~30 min |
Spraying efficiency | 5-6 Hectares/hour | 7-8 Hectares/hour | 8~10 Hectares/hour | 9~11 hectares/hour |
Spray width | 3-4 M | 3-5 M | 3~6 m | 3~8 m |
Spray speed | 0~8 M/S | 0~8 M/S | 0~10 m/s | 0~10 m/s |
Nozzle Number | 4 | 4 | 8 | 12 |
Battery | 16000 mAh | 22000 mAh | 25000 mAh | 25000 mAh |
Flying radius | 1000 M | 1000 M | 1000 m | 1000 m |
Spray flow | 1~1.5 L/Min | 2~2.5 L/Min | 2.5~3 L/min | 2.5~ 3 L/min |
Flying height | 0~30 M | 0~30 M | 0~30 m | 0~30 m |
Work temperature | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ |
Work humidity conditions | 0-90% | 0-90% | 0-90% | 0-90% |
Wind resistance | 10 m/s | 10 m/s | 10 m/s | 10 m/s |
Machine wheelbase (mm) | 1385 | 1650 | 1850 | 1950 |
Overall dimensions (mm) | 1280* 1460 * 570 | 1520 * 1730 *680 | 1973 * 1729 *713 | 1845 * 2125 *747 |
Product Features
1. Heavy-duty brushless motor : FOC power system, more powerful, support more stable flight
2. Electrostatic centrifugal nozzle : 50-200um small droplet size, better atomization and penetration effect. Suitable for spraying all crops and fruit trees.

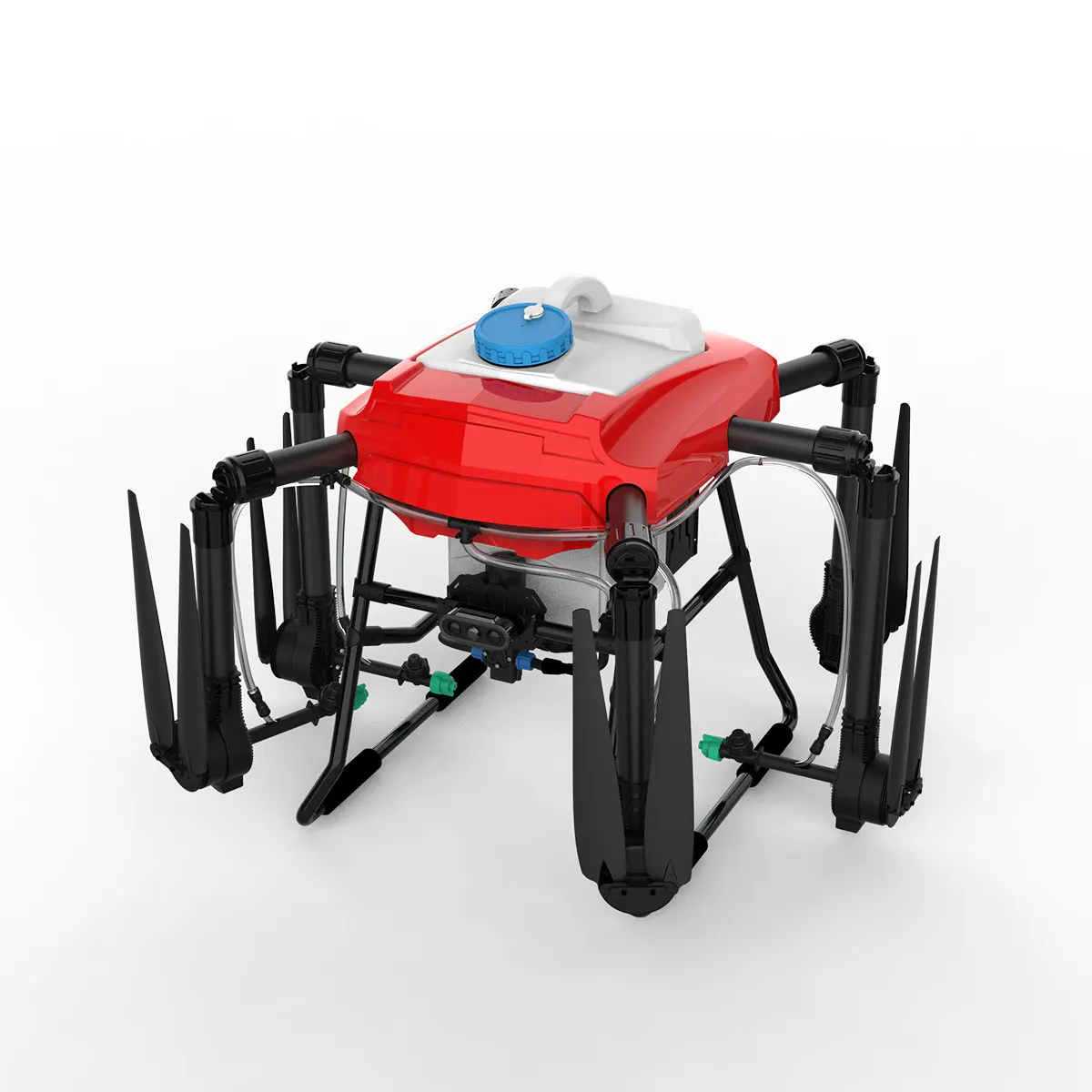

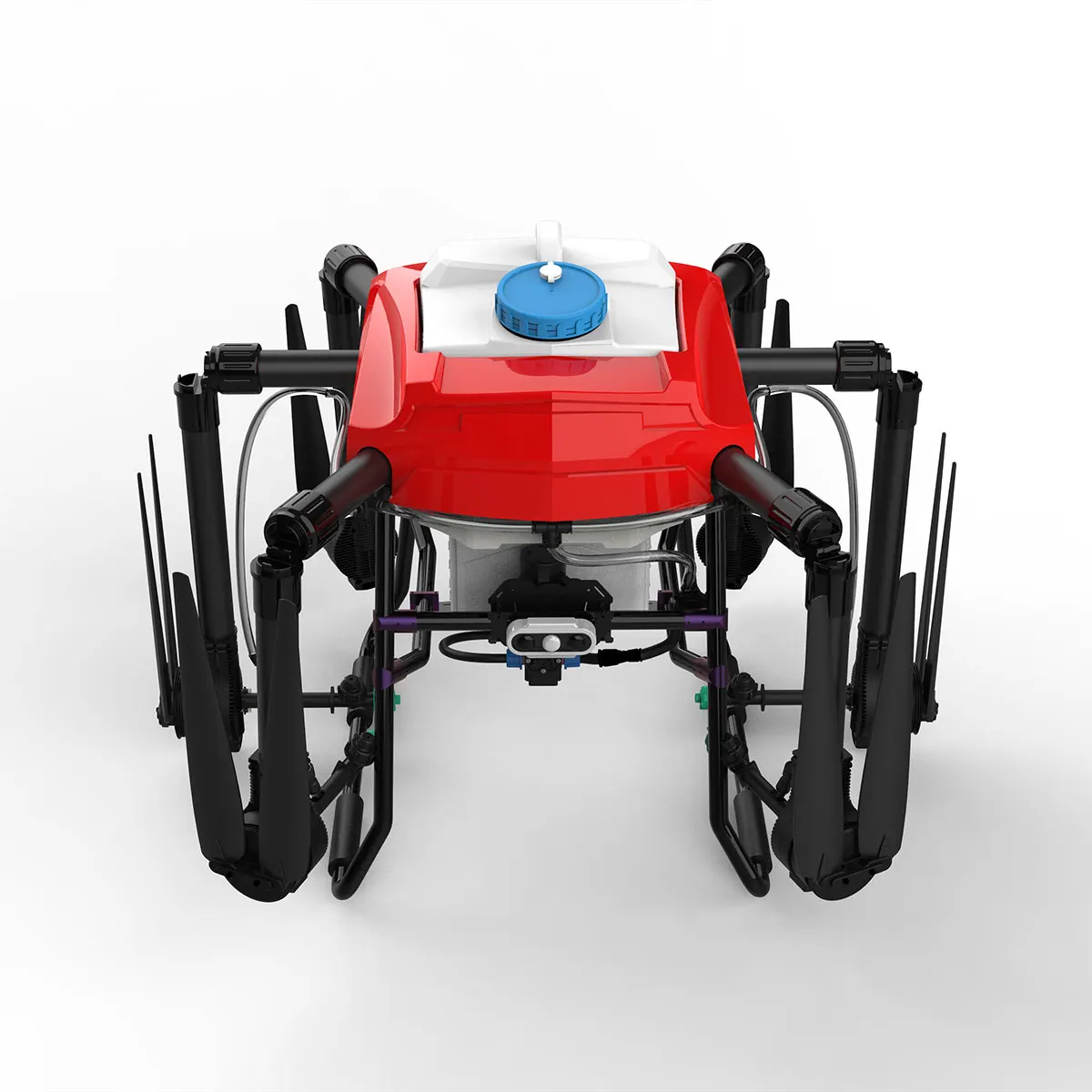

3. Folding Joint : Aviation aluminum alloy material, makes the drone frame stronger, flight is more stable.
4. Foldable carbon fiber propeller : easy to transport
5. Carbon fiber umbrella foldable frame : 3mm thick plate and 40mm diameter tube.
3. Folding Joint : Aviation aluminum alloy material, makes the drone frame stronger, flight is more stable.
4. Foldable carbon fiber propeller : easy to transport
5. Carbon fiber umbrella foldable frame : 3mm thick plate and 40mm diameter tube.
Product Show
Product Usage
Autonomous operation
The autonomous operation mode improves work efficiency. With the high-precision RTK system, centimeter-level positioning is realized, making the course of the UAV more accurate during operation.The multi-directional radar sensor enables autonomous obstacle avoidance and ground-like flight, allowing the UAV to adapt to more complex operating environments
Autonomous operation
The two point line of A and B is set by the remote control, and the UAV will spray in A straight line, which is efficient and
convenient.
convenient.
Breakpoint Turn back
The UAV is equipped with automatic mode, which has functions such as cutting off medicine, power off and continuing spraying.When the plane in autonomous operation low battery or no opportunity to record after spraying the breakpoint location and coordinates,and automatically return to land, for the ground staff to replace the battery or add liquid, only need to switch the switch, unmanned aerial vehicle (uav) automatic take-off to the breakpoint position to continue operation, can effectively avoid leakage,spray, truly seamless
Packing&Shipping
Company Introduction
Committed to the development and implantation of agricultural technology, we are smart agriculture solution provider. participated in a number of frontier agri-tech projects. Partnering with many influential international enterprises, aims to provide global farmers with the best local solutions ranging from plant protection, crop monitoring and farm management. We has successfully blazed a trail in smart and sustainable agriculture. We have sale oversea more than 20 countries.Asia: Japan, Korea, Thailand, Malaysia, Indonesia, Vietnam, Singapore, Kazakstan, ect.
America: USA, Brazil, Ecuador, Panama, Mexico, Columbia, Peru, Dominica, ect.
Europe: UK, France, Spain, Germany, New Zealand, Switzerland, Russia, Greece, Ukraine, etc.
America: USA, Brazil, Ecuador, Panama, Mexico, Columbia, Peru, Dominica, ect.
Europe: UK, France, Spain, Germany, New Zealand, Switzerland, Russia, Greece, Ukraine, etc.
FAQ
Q:What is the Minimum Order Quantity(MOQ)?
A:No quantity limited, Sample order or small order is acceptable, but the customers have to pay the sample cost and the courier cost
Q: How long is your delivery time?
A: Generally 5-10 days if goods are in stock. If not in stock, we need possible 3 working days to prepare goods.
Q:How will you deliver my goods to me?
A:Normally, we will ship the goods by air, by sea and by express.
Q:Can you print my own logo on the products?
A: Yes, of course. Not only the logo, but also the packing design and other OEM services are available.
Q:What is your product quality?
A: Our raw materials are all purchased from qualified suppliers. And we have very strict QC standard to assure our final products meet your requirements.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q:What is your warranty?
A:Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service.
Q: What method do you support to make payment?
A: We support many ways, including Western union , MomenyGram or TT.
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, both OEM and ODM. We have our own development team, sales team, and factory.
A:No quantity limited, Sample order or small order is acceptable, but the customers have to pay the sample cost and the courier cost
Q: How long is your delivery time?
A: Generally 5-10 days if goods are in stock. If not in stock, we need possible 3 working days to prepare goods.
Q:How will you deliver my goods to me?
A:Normally, we will ship the goods by air, by sea and by express.
Q:Can you print my own logo on the products?
A: Yes, of course. Not only the logo, but also the packing design and other OEM services are available.
Q:What is your product quality?
A: Our raw materials are all purchased from qualified suppliers. And we have very strict QC standard to assure our final products meet your requirements.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q:What is your warranty?
A:Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service.
Q: What method do you support to make payment?
A: We support many ways, including Western union , MomenyGram or TT.
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, both OEM and ODM. We have our own development team, sales team, and factory.
