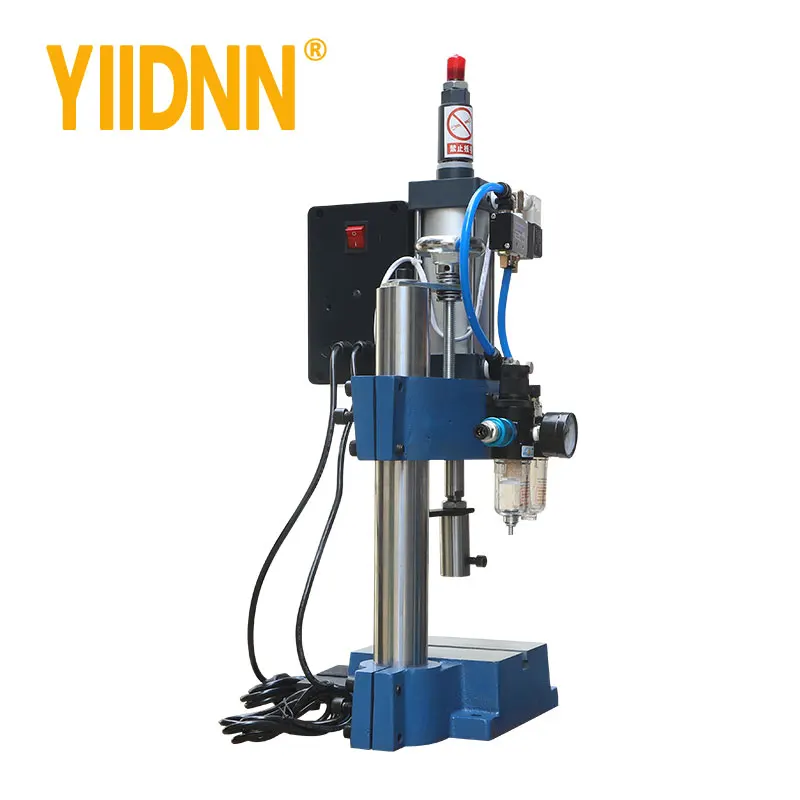

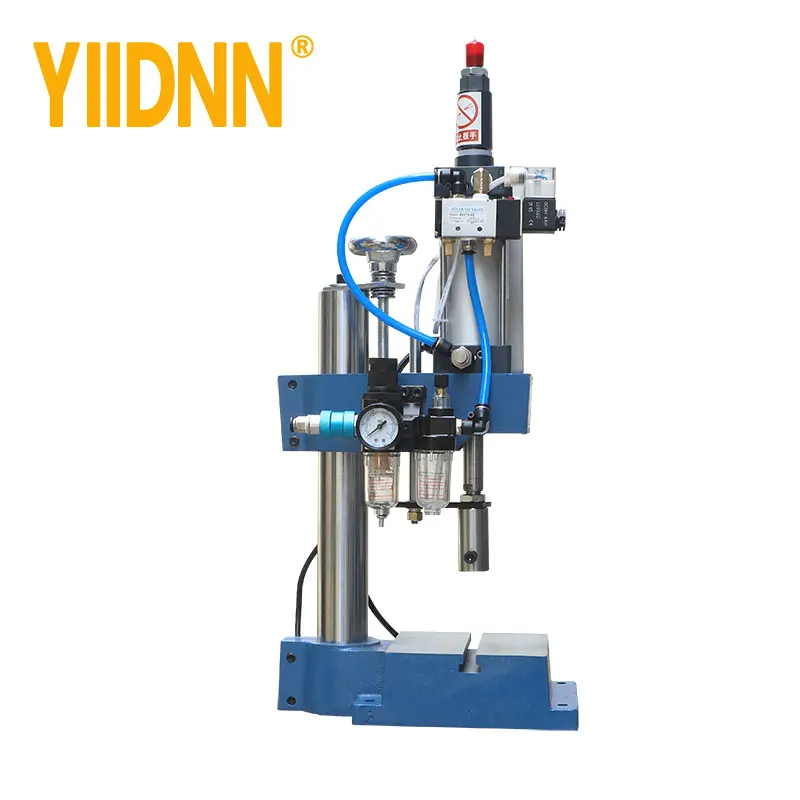

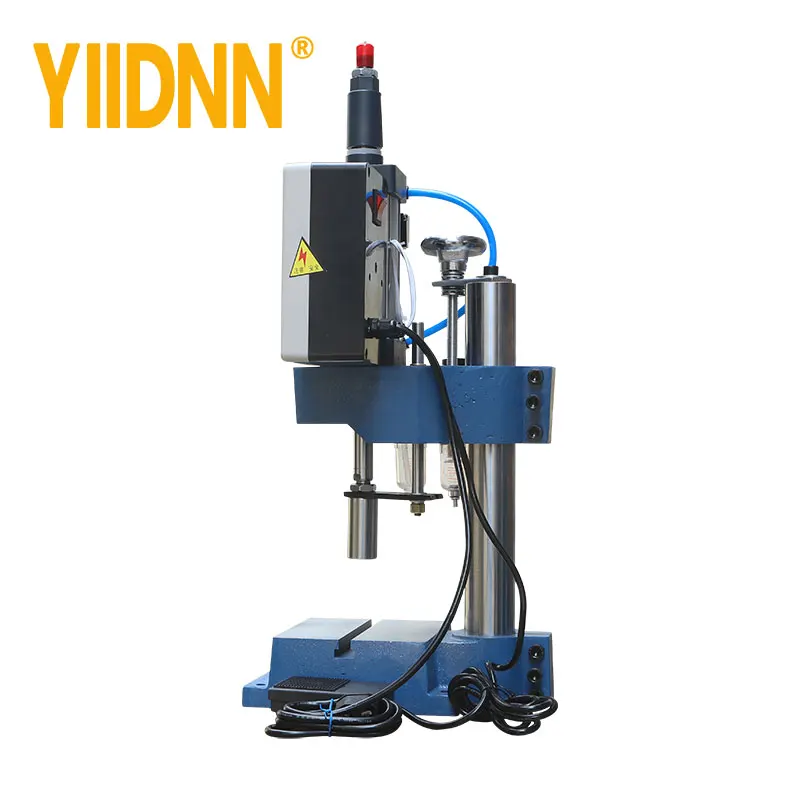

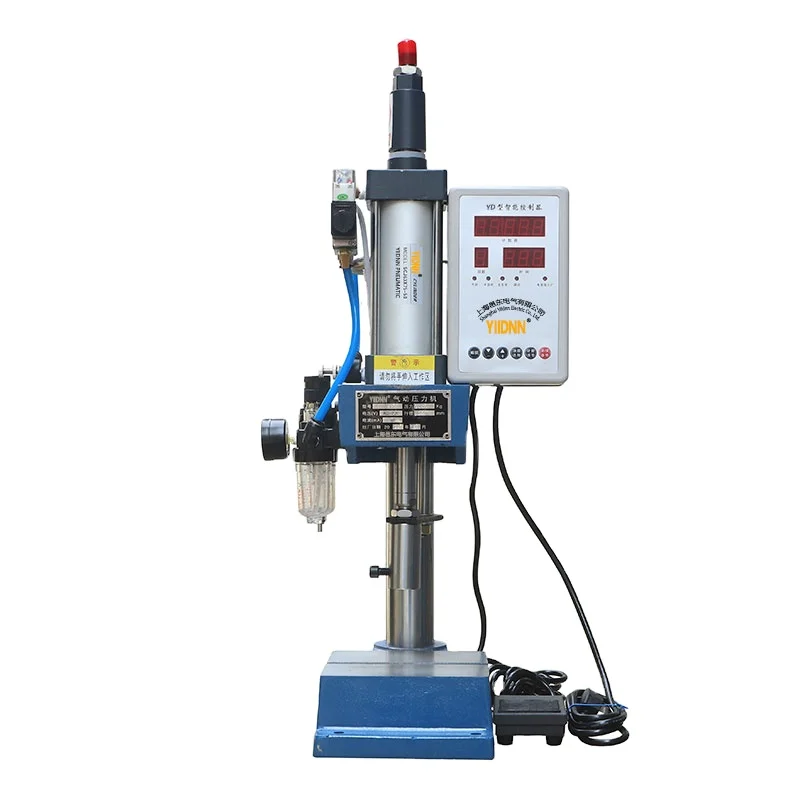

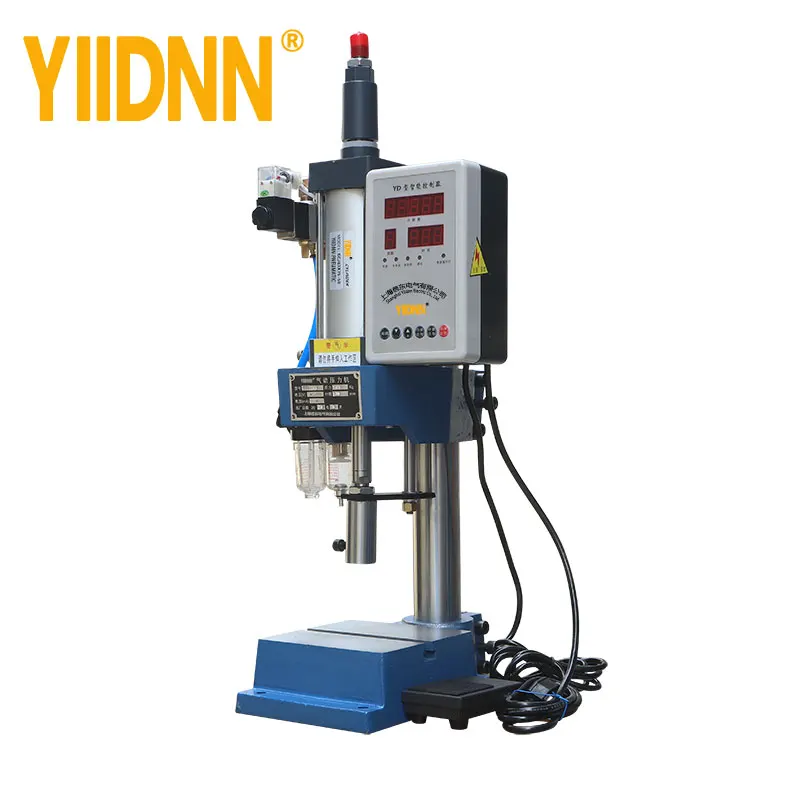

Малая пневматическая штамповочная машина 200 кг Одна колонка 63 типа настольное устройство с двумя кнопками контроллер высокая точность
- Категория: Punching Machines >>>
- Поставщик: Shanghai,Yidong,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 174.14 $* | 177.5 $* |
| Jul-19-2025 | 141.77 $* | 144.73 $* |
| Jun-19-2025 | 171.97 $* | 174.31 $* |
| May-19-2025 | 170.46 $* | 173.33 $* |
| Apr-19-2025 | 136.93 $* | 139.39 $* |
| Mar-19-2025 | 167.71 $* | 170.1 $* |
| Feb-19-2025 | 166.15 $* | 169.45 $* |
| Jan-19-2025 | 164.60 $* | 167.84 $* |
Характеристики
Products Description
Please kindly read the following tips before purchasing. If any problem please feel free to contact with us.
1.Please leave us a message in the order reminding us what kind of the voltage and the plug you need for an electric equipment. As you know different countries use different standard plugs and different voltage.
2.If you choose " seller's shipping method", please note that this shipping fee only suitable for some parts country,so after you pay it,please contact to us,we will confirm with you.
3. When the package arrives at your local customs, please pay the tax and take the package away, we do nottake any responsibility customs duties or import taxes, if customsclearance fails due to the buyer's reasons, and the goods are returned or destroyed, we will not refund any money.
If you choose " seller's shipping method", we will choose the corresponding sea shipping method according to the region. When cargo is transported by sea, the status of the cargo will not be updated. After arriving locally, the product status will be updated. Please contact customer service for details.
Note: If your address is a remote area, we will contact you, you need to add 35 USDadditional delivery service fee, but if you do not reply to us in time and pay, we will choose other The shipping method is free for you, I think you can understand. For example: Spain's Canary Islands; most of Lithuania; Philippines-Bohol del Carmen; Greece, Crete, etc.
4. For general products, we use express delivery, such as DHL, UPS, TNT, EMS, FedEx.
If you are a Russian customer, we will also ship via express channels ( including tax).
If you are a customer in other countries/regions, we can also ship b y sea/air+express.
For heavy cargo, we can also ship by sea or air. But this is not a door-to-door service, you need to clear customs and pay customs duties.

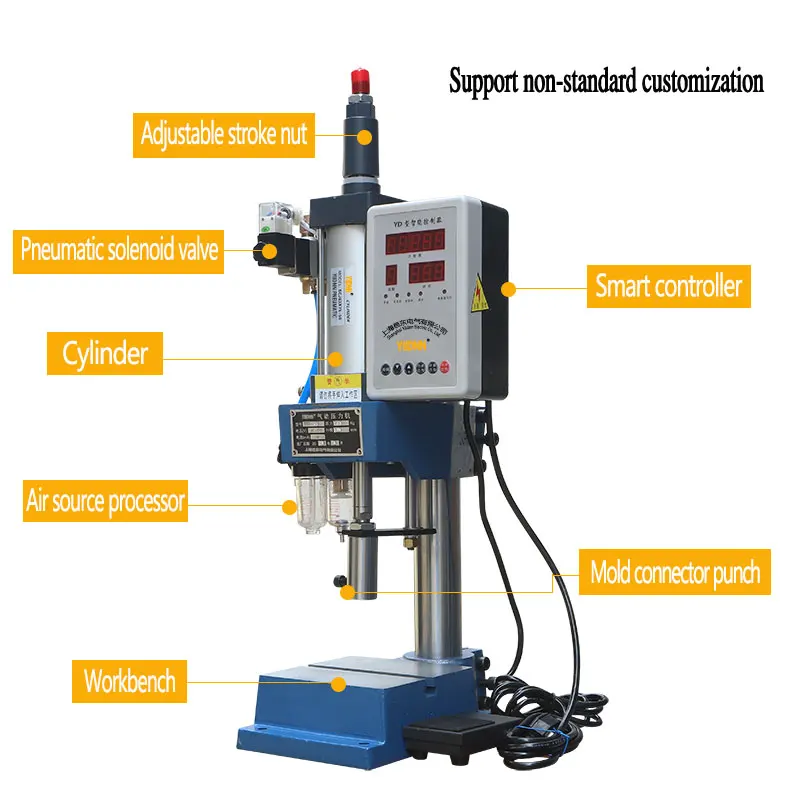

Technical parameter | ||
Model | YD-63A | |
Connecting seat (Adjustable) | 190mm | |
Maximum working height | 230mm | |
Cylinder specifications | φ63×75mm | |
Adjustable stroke of cylinder | 50mm | |
Table area | 150×150mm | |
Power | AC220V 50-60Hz | |
Operating pressure | 0.4-0.7MPa | |
Operating pressure | Theoretical pressure | Weight | ||||||||
MPa | Kg/cm² | Psi | N | Kg | 28kg | |||||
0.4 | 4 | 110 | 1121 | 185 | ||||||
0.5 | 5 | 120 | 1402 | 231 | ||||||
0.6 | 6 | 130 | 1682 | 278 | ||||||
0.7 | 7 | 140 | 1962 | 200 | ||||||
The actual output is about 80% of theoretical output. | ||||||||||
Product Model | YD-63 type | YD-63A type | YD-80 type | YD-80A type |
Pressure | 200kg | 200kg | 300kg | 300kg |
Cylinder Specification | 63×75-50 | 63×75-50 | 80×100-50 | 80×100-50 |
Workbench Dimensions | 150×135mm | 150×150mm | 150×150mm | 200×200mm |
Maximum working height | 200mm | 230mm | 240mm | 250mm |
Punch Bore | φ16mm | φ16mm | φ20mm | φ20mm |
Intake Pipe | 8×5 | 8×5 | 10×6.5 | 10×6.5 |
Weight | 17kg | 28kg | 32kg | 40kg |
Control Method | Pneumatic electric control | Pneumatic electric control | Pneumatic electric control | Pneumatic electric control |
Product Model | YD-100 type | YD-125 type | YD-125 Double Cylinder type | YD-160 type |
Pressure | 500kg | 800kg | 1600kg | 1300kg |
Cylinder Specification | 100×100-50 | 125×100-50 | 125×100-50 | 160×100-50 |
Workbench Dimensions | 200×200mm | 260×260mm | 260×260mm | 260×260mm |
Maximum working height | 250mm | 250mm | 250mm | 250mm |
Punch Bore | φ20mm | φ25mm | φ25mm | φ25mm |
Intake Pipe | 10×6.5 | 12×8 | 12×8 | 12×8 |
Weight | 48kg | 80kg | 85kg | 95kg |
Control Method | Pneumatic electric control | Pneumatic electric control | Pneumatic electric control | Pneumatic electric control |
Product Model | A | B | C | D | E | F | G | H |
YD-63 type | 690 | 135 | φ30 | 350 | 135-215 | 150 | 230 | 35 |
YD-63A type | 690 | 135 | φ30 | 350 | 135-215 | 150 | 230 | 35 |
YD-80 type | 750 | 160 | φ45 | 400 | 140-220 | 150 | 280 | 75 |
YD-80A type | 750 | 160 | φ45 | 400 | 140-220 | 150 | 280 | 75 |
YD-100 type | 950 | 200 | φ60 | 450 | 240-320 | 200 | 380 | 75 |
YD-125 type | 980 | 260 | φ70 | 500 | 240-320 | 260 | 460 | 75 |
YD-160 type | 980 | 260 | φ70 | 500 | 240-320 | 260 | 460 | 75 |
Company Profile
Shanghai Yiidnn Electric Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing, processing, maintenance and sales. We mainly produce pneumatic presses, pneumatic components, cable markers, stainless steel ties, electrical accessories etc, and support non-standard customization.
Our slogan is "Stand East, Connect the World", adhering to the concept of "Science and Technology Innovation, Win-Win Cooperation", with "Excellent Products, Reasonable Prices, Honesty and Trustworthiness, Service First" as our goal Efforts to provide customers with better products and services, your needs are our greatest pursuit.
Our slogan is "Stand East, Connect the World", adhering to the concept of "Science and Technology Innovation, Win-Win Cooperation", with "Excellent Products, Reasonable Prices, Honesty and Trustworthiness, Service First" as our goal Efforts to provide customers with better products and services, your needs are our greatest pursuit.
Why Choose Us
Certifications
Packing & Delivery
FAQ
Q1: Is it a factory or a trading company?
Answer: We are a comprehensive enterprise integrating R&D, production, processing, maintenance and sales, with 7 years of experience.
Q2: Does it support non-standard or customized products?
Answer: Yes, please consult our sales staff for detailed information.
Q3: Do you support OEM?
Answer: Yes.
Q4: How does the factory conduct quality control?
Answer: Quality is very important. From the beginning to the end of production, we pay attention to quality control. Before packaging and shipping, each product will be fully assembled and carefully tested.
Q5: About the delivery time?
Answer: It depends on the quantity you ordered. Conventional products are basically in stock. Some special products and large orders will be put into production again according to your order.
Q6: Can you get some samples?
Answer: Yes, sample orders can be used for quality inspection and market testing.
