LEJIANG YJ-125 круглая машина для резки ткани
US $10.00-$1000
Автоматическая Механическая ткань AOL занавеска для дивана одежды 1600 мм кожа текстиль машина вибрационной резки
- Категория: Cloth Cutting Machines >>>
- Поставщик: Jinan,AOL,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 17255.67 $* | 18118.15 $* |
| Aug-20-2025 | 17110.36 $* | 17966.86 $* |
| Jul-20-2025 | 14355.12 $* | 15073.52 $* |
| Jun-20-2025 | 16820.71 $* | 17661.8 $* |
| May-20-2025 | 14645.38 $* | 15377.43 $* |
| Apr-20-2025 | 16530.78 $* | 17357.2 $* |
| Mar-20-2025 | 16385.49 $* | 17204.84 $* |
| Feb-20-2025 | 16240.32 $* | 17052.6 $* |
| Jan-20-2025 | 16095.63 $* | 16900.23 $* |
Характеристики
industrial key point
AOL automatic mechanical fabric curtain sofa garment 1600mm leather textile of vibration cutting machine
1.There are many personalized customization, the styles of sofas are complex and changeable, and the efficiency of manual revision is too low.
2.Manual drawing, cutting efficiency is too low, not accurate
3.There are too many styles, it takes up space to choose a waste of time
4.Manual typesetting, the utilization rate of raw materials is too low, which will increase the cost
5.Professional cutting workers are highly paid and difficult to recruit.
6. High risk factor of manual cutting
Solution

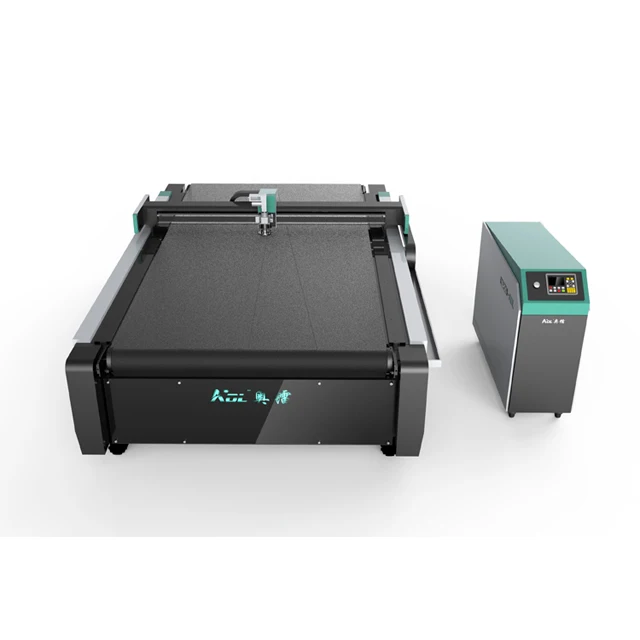

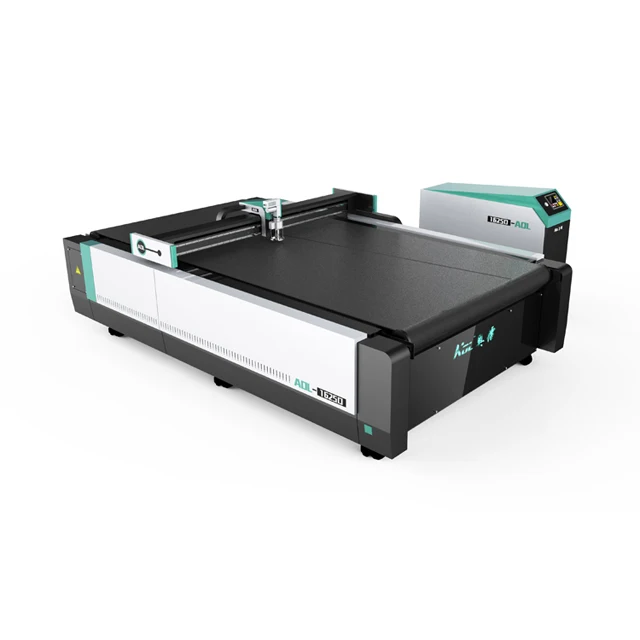

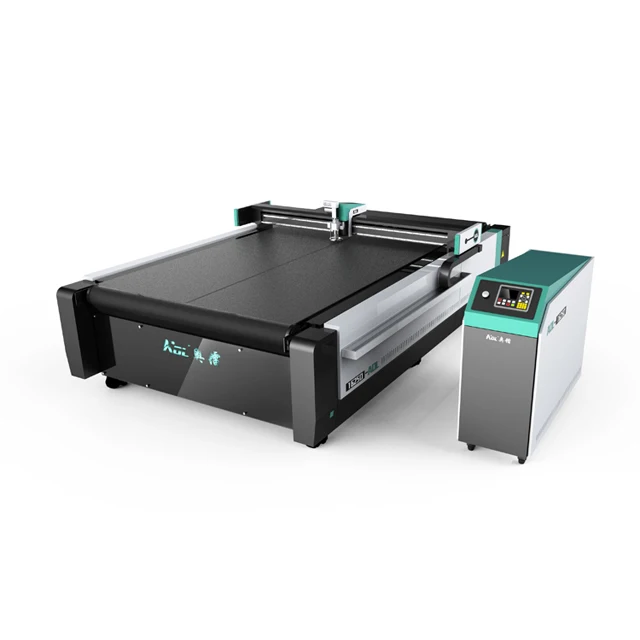

Jinan AOL automatic mechanical fabric curtain sofa garment 1600mm leather textile of vibration cutting machine
| Model | AOL-1625 | AOL-1825 |
| Working area | 1600*2500mm | 1800*2500mm |
| Pomp power | 7.5kw/9kw | |
| Fixed mode | Flate plate table /auto feding plate optional | |
| Cutting speed | maximum to 1600mm/s | |
| cutting thickness | ≤22mm(according to different cutting materials) | |
| material | Flexible material | |
| Multifunctional heads optional | Vibration knife Circular knife Punching knife Oblique knife Pen Punch roller Milling knife Projector and camera optional | |
Jinan AOL automatic mechanical fabric curtain sofa garment 1600mm leather textile of vibration cutting machine
| Technical parameter: |
| 1) 8 zones for worktable , can be regional absorbtion. |
| 2)Rated power: 11KW. gear rack transmission |
| 3) Safety device: Using infrared sensors and emergency device |
| 4) translational velocity: 800-1600mm/s |
| 5)Cutting speed: 200-1200mm/s(according to different cutting materials) |
| 6)Cutting thickness: ≤22mm (according to different cutting materials) |
| 7)Cutting materials:Cardboard, Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber . |
| 8)Repeated accuracy: ≤0.1mm |
| 9) Capacity: 2GB |
| 10) Transmission system: imported(Digital servo motor, linear guide, USA Carlisle belt) |
| 11)Instruction system: HP-GL compatible format |
| 12) Voltage: 415V±10% |
13) Total machine warranty period is 3 years. |
Product Description
AOL automatic mechanical fabric curtain sofa garment 1600mm leather textile of vibration cutting machine
1.AOLCUT self-developed software can achieve one lick import and an average worker can operate proficiently in two hours.
2.Super composing software,material utilization rate shall be increased by more than 10%.
3.Taiwan linear guide rail transmission system ,the accuracy can reach ±0.1mm
4.Panasonic servo system from Japan, the production efficiency is increased more than five times.
5.AOL's unique tool exchange system, cutting, punching, and marking automatic.
6.Automatic material feeding and transmission, save time and effort.
7.Save more than 500,000 labor and raw materials cost every year, Greatly improved the product’s competitiveness.
| Main parts | 1)Servo motor and driver: Panasonic | |||||
| 2)Conveyor belt: Ammeraal Beltech from netherland. | ||||||
| 3)Square rail: Taiwan PMI | ||||||
| 4)9kw vacuum pump: Chinese Greenco 415V | ||||||
| 5)Belt: America Gates | ||||||
| 6)touch Controller | ||||||
| 7)Limited switch: Omron | ||||||
| 8)AOL CUT sofware | ||||||
| 9) Touch panel controller | ||||||
| 10)each 20 pcs blades for cutting tool | ||||||
| Application | It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc. It's equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different requirements. The heavy duty drag knife tool is available for special materials of the sign making industry. | |||||
Packaging & Shipping
Jinan AOL automatic mechanical fabric curtain sofa garment 1600mm leather textile of vibration cutting machine
![KO1ABKH8]1}602Z2XMSFBT](http://sc03.alicdn.com/kf/H204831c4fafa418081f89df02f840a55n/224387106/H204831c4fafa418081f89df02f840a55n.png)
| step 1. Machine cleaning | ||||||
| step 2. Wrap all the machine parts with bubble film & plastic film. Insert necessary anti friction & collision pad at the corner. Set all the small parts on the machine bed to save space | ||||||
| step 3. Trailer the full set machine to packing place. Forklift it on the fumigated wooden case. Fix the sticks on the bottom plywood. Customize wood case according to each model, special groove design, the bottom of the machine and the top metal structure of the tray is stuck perfectly and prevent the machine from sliding in the wooden case. Reinforce steel wire outside the wooden case to prevent deformation of the wooden case. Wrap waterproof cloth outside the wooden box. Prevent wooden case from water and the machine to be rusty |
Company Information
Jinan AOL automatic mechanical fabric curtain sofa garment 1600mm leather textile of vibration cutting machine
1. Ten years of professional CNC production research and development
2. The service team has more than 30 employees
3. R&D and production base more than 20,000 square meters
