HB-B3M-220 трехфазный шаговый мотор драйвер для Пакетоделательная машина заменить HB-B3HL HB-B3C

Описание и отзывы

Трекер стоимости

Характеристики

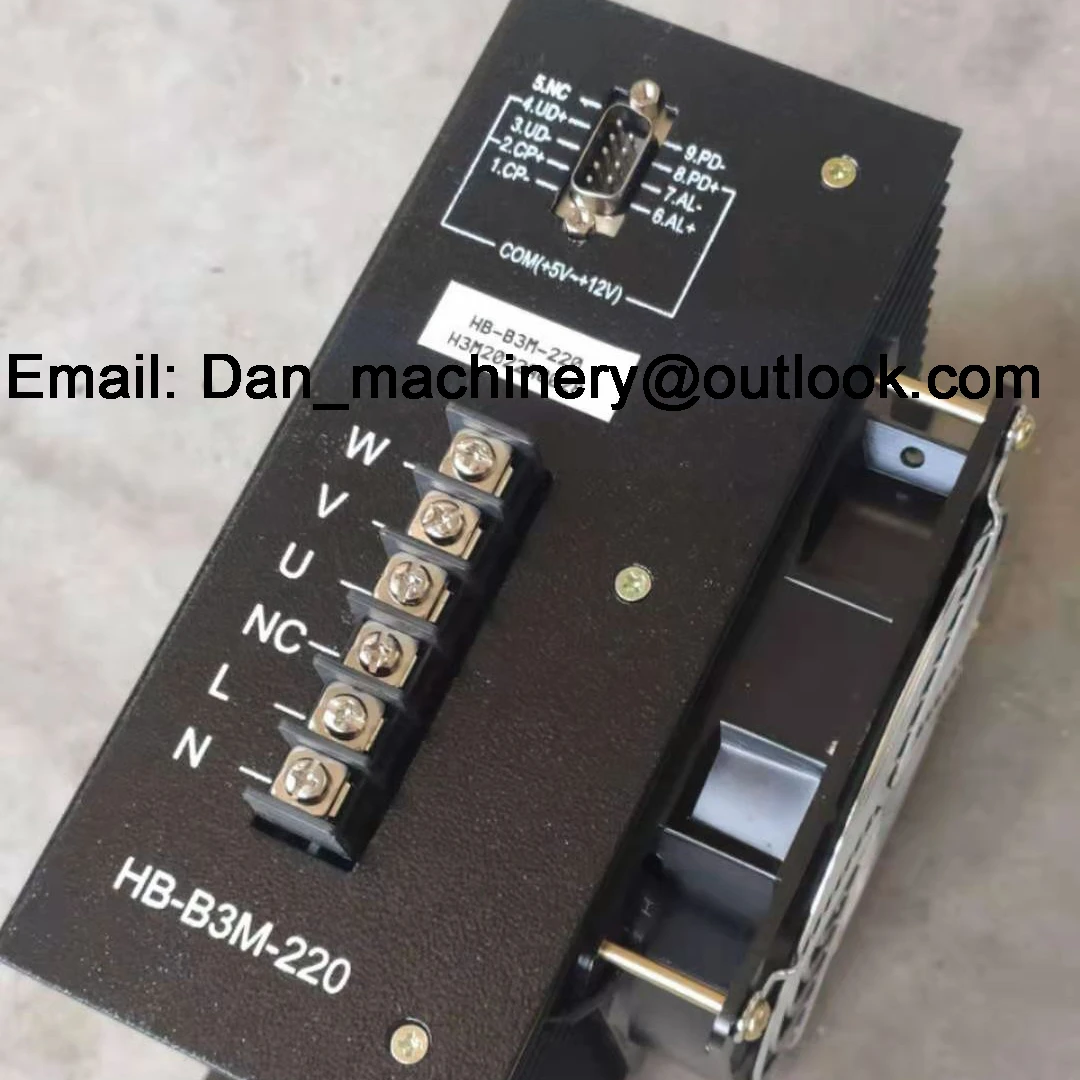

HB-B3M-220  Three Phase Stepper Motor Driver for Bag Making Machine replace HB-B3HL HB-B3C HB-B3CE



HB-B3HL driver adpots original imported module. Can be high speed chopping. Constant current driver, good perfermance of anti-interference; control signal and inner signal, realize optoelectronic isolation, it has the function of self - protection when it is over-current,over-voltage,overheating,etc.  Operate steadily, good reliability, output current can reach 11A , Make the motor output the more higher power and torque , is the update of old model No. HB-B3CE, the function and wiring is the same as model No. HB-B3CE. So that it HB-B3HL Step Motor Driver can replace HB-B3CE Step Motor Driver.







Phrase Current	5A	6A	10A	11A
I1	OFF	OFF	ON	ON
I2	OFF	ON	OFF	ON





Product  Feature :

Limiting        the input signal coupler internal resistance 1K,The signal common terminal

Direct access to 12V,24V each signal to be 1K resistor in series ,the current requirement

Of the system is not less than the pull-8MA ,Alarm output is open collector and Emitter ,

NPN Type

VCEmax=15VIECmax=100Ma



Wiring connection:



Three-Phase Hybrid Stepper Motor Drive
A Connect to A	A→Stepper motor 1core
B Connect to  B	B→Stepper motor 3core
C Connect to C	C→Stepper motor 5core
Grounding	NC→Grounding
Power input AC:165V-235V/50HZ	L→220V(Live wire)
	N→220V(Neutral wire)
