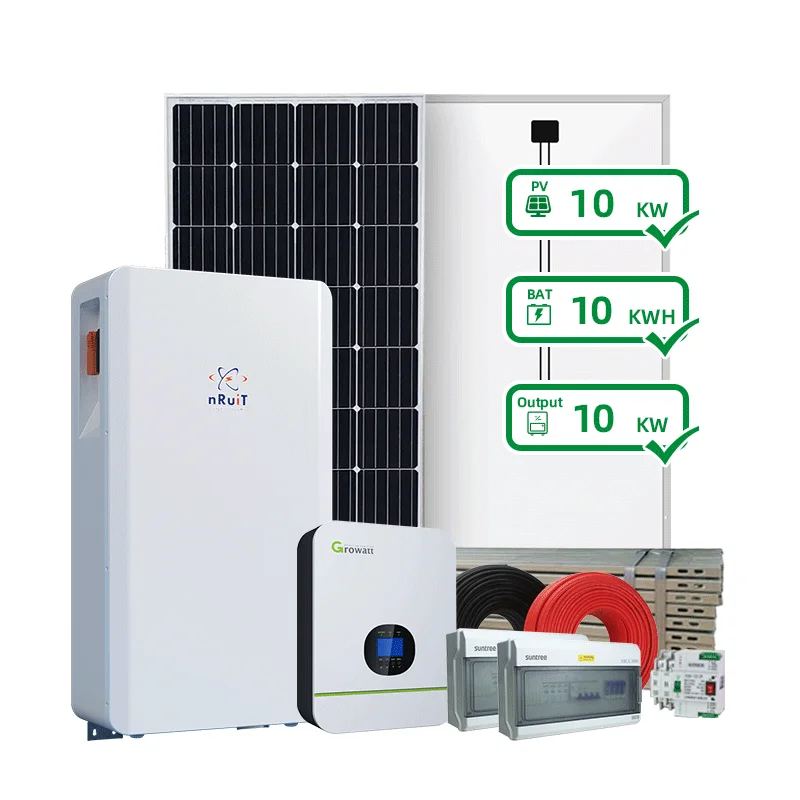

Батареи для систем солнечной энергии 10 кВтч моносолнечная панель 330 Вт Выходная мощность переменного тока 5 кВт 15 Настройка схемы
- Категория: >>>
- Поставщик: Chengdu,Langhe,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.43 $* | 0.18 $* |
| Aug-20-2025 | 0.22 $* | 0.61 $* |
| Jul-20-2025 | 0.6 $* | 0.63 $* |
| Jun-20-2025 | 0.0 $* | 0.46 $* |
| May-20-2025 | 0.50 $* | 0.3 $* |
| Apr-20-2025 | 0.17 $* | 0.79 $* |
| Mar-20-2025 | 0.19 $* | 0.92 $* |
| Feb-20-2025 | 0.16 $* | 0.22 $* |
| Jan-20-2025 | 0.33 $* | 0.16 $* |
Характеристики

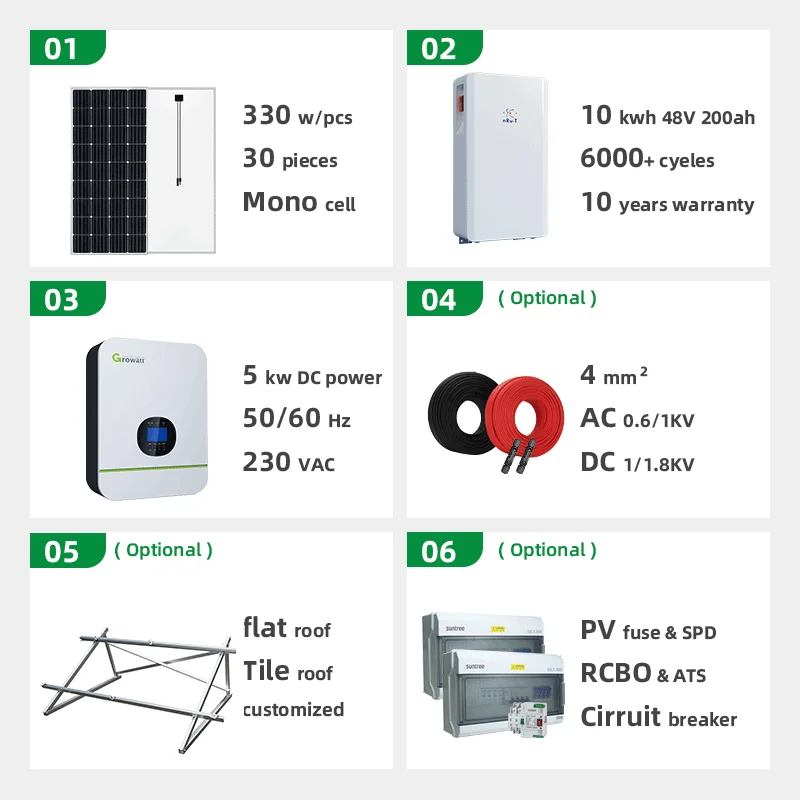

System Details
ESS-BT10-PV5-INV5 | ESS-BT10-PV10-INV10 | ESS-BT10-PV10-INV10 | ESS-BT10-PV15-INV15 | |||||
Battery: powerporter 9kwh | 1 unit 10kwh / 48V/ / 200ah | 2 unit 20kwh / 48V/ / 400ah | 3 unit 30kwh / 48V/ / 600ah | 3 unit 30kwh / 48V/ / 600ah | ||||
Solar panel: JT330w-24M | 15 pcs (5kw) 330w/pcs | 30 pcs (10kw) 330w/pcs | 30 pcs (10kw) 330w/pcs | 45 pcs (15kw) 330w/pcs | ||||
Inverter: Growatt 3000~5000TL | 1 unit Growatt 5000TL-HVM | 2 unit Growatt 5000TL-HVM | 2 unit Growatt 5000TL-HVM | 3 unit Growatt 5000TL-HVM | ||||
System max. AC output power | 5kw | 10kw | 10kw | 15kw | ||||
Combiner box | 1 set | 1 set | 1 set | 1 set | ||||
Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters | 300 meters | ||||
PV component | 1 set | 1 set | 1 set | 1 set | ||||
Contact customer service and support customization | ||||||||
Product Details
Solar panel : JT330w-24M | ||
Pmax | 330w | |
Vmp | 38.23V | |
Imp | 8.65A | |
Size | 1950x990x40mm | |
Weight | 22.86Kg | |
Cell Type | Mono 156mm x 156mm | |
Cell Arrangement | 72 cell in series | |
Battery : Powerporter 10kwh | ||
Nominal Energy | 10.2Kwh | |
Nominal Voltage | 51.2V | |
Capacity | 200Ah | |
Size | 830x460x200 mm | |
Weight | 94.17Kg | |
Battery cell | Lithium ion battery cell (CATL ) | |
Cycle life | 6000+ (Promise) | |
Installation | Wall or floor mount | |
Inverter : Growatt 3000~5000TL HVM | ||
Battery voltage | 48 VDC | |
Rated power | 3000~5000W | |
Output voltage range | 230VAC±5%@50/60Hz | |
Mppt voltage range | 30VDC~80VDC 60VDC~115VDC | |
Size | 130 x 350 x 455 mm | |
Weight | 8Kg/14.5kg | |
Combiner box | ||
PV Fuse | ||
PV Cirrcuit Breaker | ||
PV SPD | Surge Protective Device | |
Genset output | ||
AC SPD | ||
ATS | Automatic Transfer Switch | |
RCBO | Residual current circuit breaker with over current protection | |
Inverter Output | ||
PV component | ||
Kabel DC & MC4 Konektor | ||
PV Cirrcuit Breaker | ||
Palang Bagian | 4mm2-6mm2-Opsional | |
Nilai Tegangan | 600VDC(UL)/1000VDC(TUV) | |
PV Shelf Material | Al 6005-T5 | |

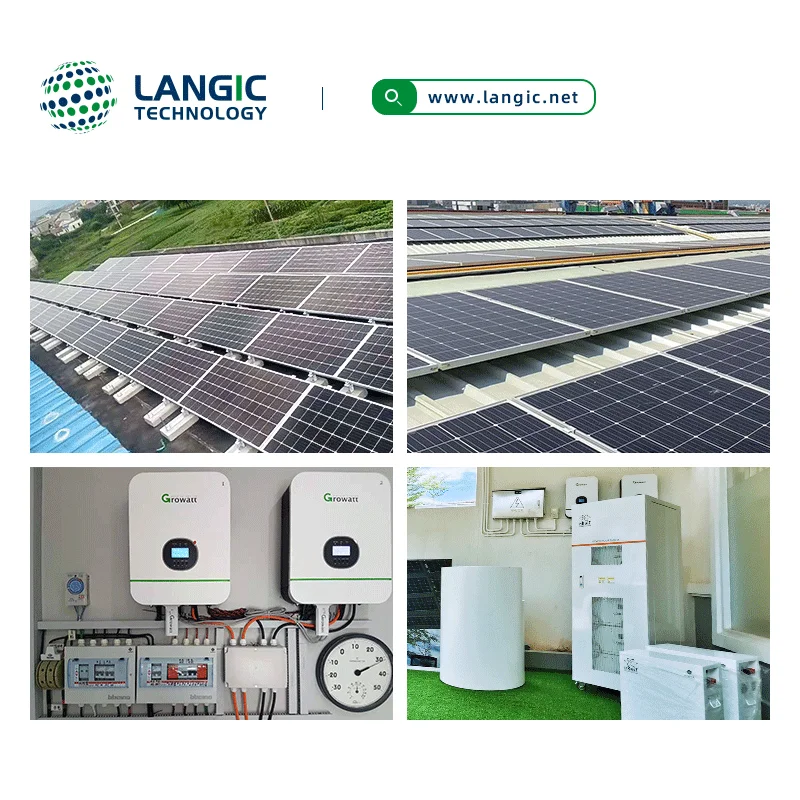

Applications

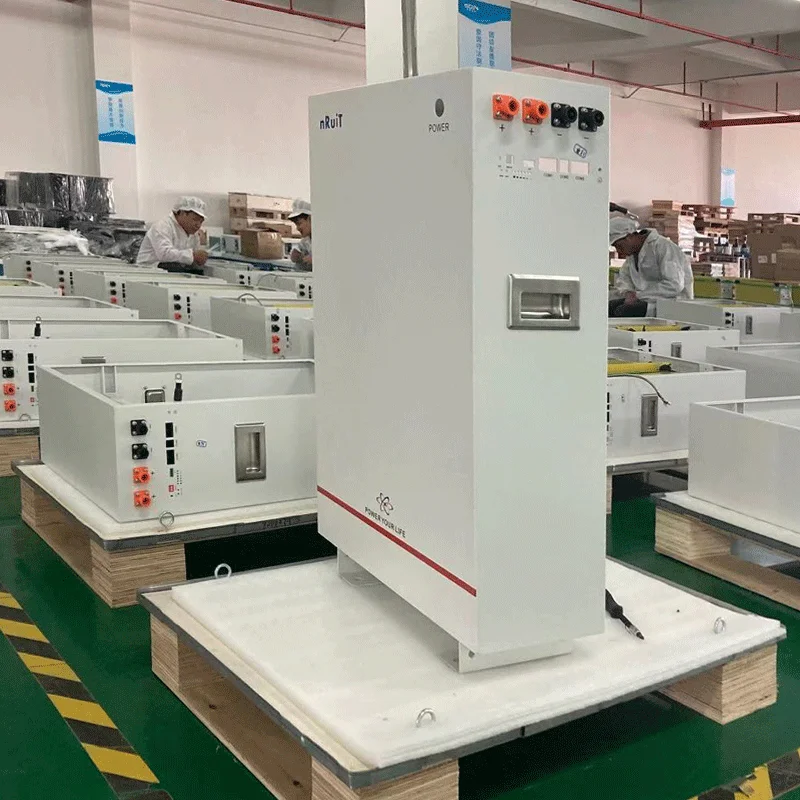

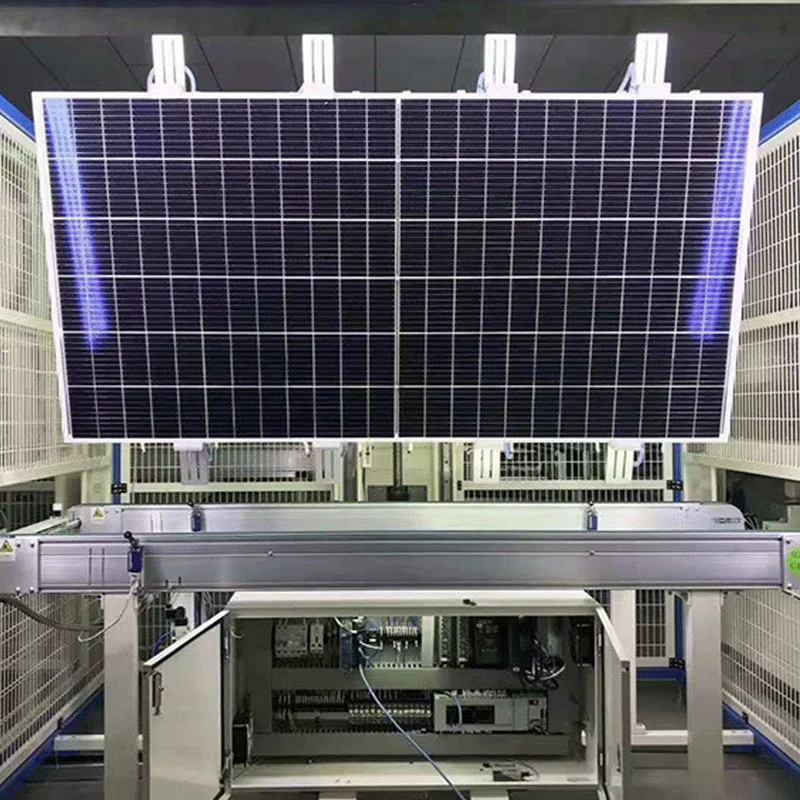

Factory production
Company Profile
Chengdu Langhe Technology Co., Ltd.
Adhering to the entrepreneurial spirit of professionalism, innovation and pioneering to build an energy Internet of Things platform, our company collaborates with upstream and downstream supply chains in the industry, expand the boundaries of business models, organize a global new energy data collection network, and provide digital infrastructure for global new energy project construction and push forward of the application development of clean energy .
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
