Горизонтальная Машина Для Сушки Осадка Сточных Вод
US $15000-$350000
Хорошая цена лотоса корень пасты ролик скребок
- Категория: Rotary Drying Equipment >>>
- Поставщик: Liaoyang,Wanda,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 23800.8 $* | 24990.64 $* |
| Aug-16-2025 | 23600.48 $* | 24780.76 $* |
| Jul-16-2025 | 19800.72 $* | 20790.81 $* |
| Jun-16-2025 | 23200.44 $* | 24360.22 $* |
| May-16-2025 | 20200.21 $* | 21210.9 $* |
| Apr-16-2025 | 22800.18 $* | 23940.63 $* |
| Mar-16-2025 | 22600.72 $* | 23730.84 $* |
| Feb-16-2025 | 22400.55 $* | 23520.23 $* |
| Jan-16-2025 | 22200.31 $* | 23310.29 $* |
Характеристики
Roller Scraper Drum Dryer
HG rotatary scraper roller drying machine is a kind of rotating continuous drying equipment with internal heating conducting-style.Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the paddle, and are conveyed, collected and packed.
Scope of application
It is suitable for drying liquid raw material or sticky material in chemical industry, dyestuff industry, pharmaceutical
industry,foodstuff industry, and metallurgy industry and so on.
industry,foodstuff industry, and metallurgy industry and so on.
Features
1. High thermal efficiency. The principle of heat transfer of rotary dryer is heat conduction which heat conducting direction
keeps identical with operation cycle. Except cap heat dissipation and radiation loss, all heat energy can be used for evaporating wet materials on the wall of roller. Thermal efficiency could reach 80%-90%.
2. Large operation elasticity and wide application. Various drying factors of the rotary drier can be adjusted, such as density of feeding materials, thickness of materials film, temperature of heating medium, rotating speed of roller etc, which can change drying speed. As these factors have no interrelations with each other, it brings great convenient to dry operation, and makes it applicable to suit various materials and to meet different requirement of production.
3. Short drying period. The drying period of material is normally 10 to 15 seconds, so it is suitable for heat-sensitive material.It can be also working under less pressure condition if it is put in vacuum device.
4. Drying rate is very quick. As material film coated on the wall of roller is very thin. Normally thickness is 0.3-1.5 mm, plus
heat and mass transfer direction are identical, the evaporation capacity on the surface of film can keep at 15-70kg.H2O/m2.h.
keeps identical with operation cycle. Except cap heat dissipation and radiation loss, all heat energy can be used for evaporating wet materials on the wall of roller. Thermal efficiency could reach 80%-90%.
2. Large operation elasticity and wide application. Various drying factors of the rotary drier can be adjusted, such as density of feeding materials, thickness of materials film, temperature of heating medium, rotating speed of roller etc, which can change drying speed. As these factors have no interrelations with each other, it brings great convenient to dry operation, and makes it applicable to suit various materials and to meet different requirement of production.
3. Short drying period. The drying period of material is normally 10 to 15 seconds, so it is suitable for heat-sensitive material.It can be also working under less pressure condition if it is put in vacuum device.
4. Drying rate is very quick. As material film coated on the wall of roller is very thin. Normally thickness is 0.3-1.5 mm, plus
heat and mass transfer direction are identical, the evaporation capacity on the surface of film can keep at 15-70kg.H2O/m2.h.
Product Parameters
The above data is just for reference.all should be subject to the final decision | ||||||||
Working Principle
The liquid or slurry material forms a film on the surface of the drum heated by water vapor or other heat media. The drying is finished in the process of turning a circle. The product is scraped down with a scraper, and the exposed surface of the drum contacts with the raw material again and forms a film for drying.

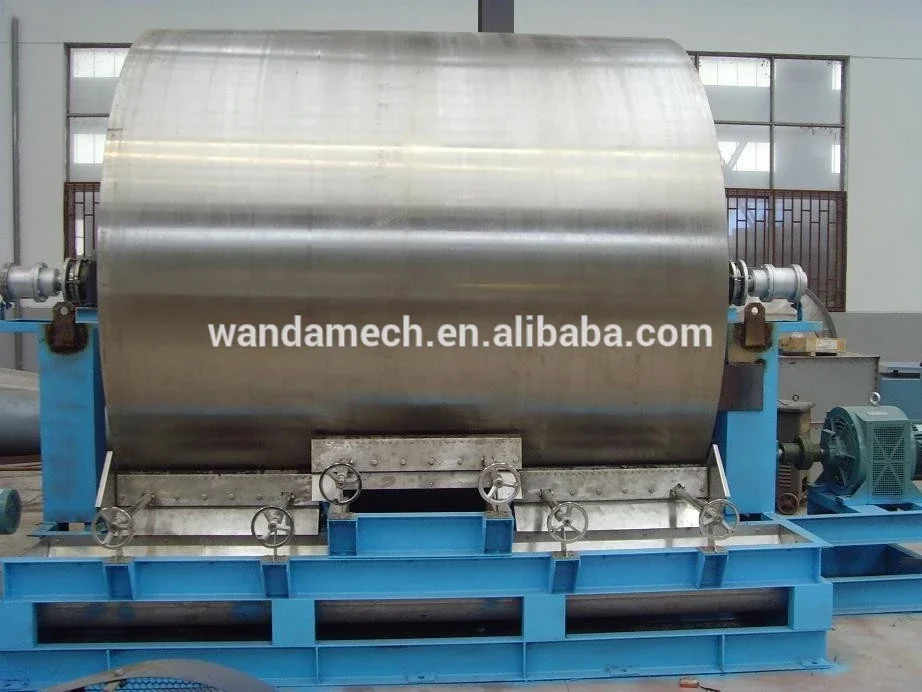

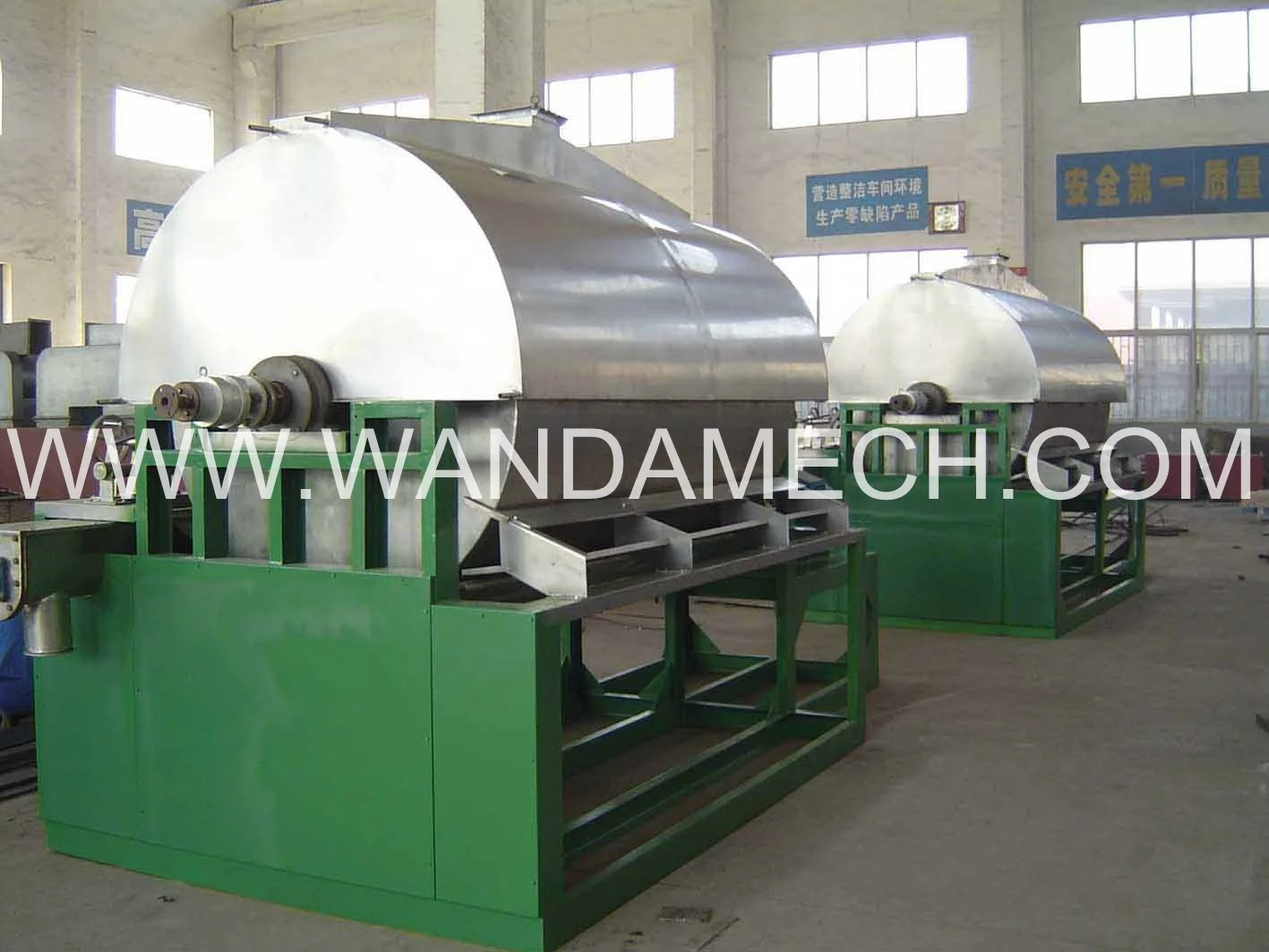

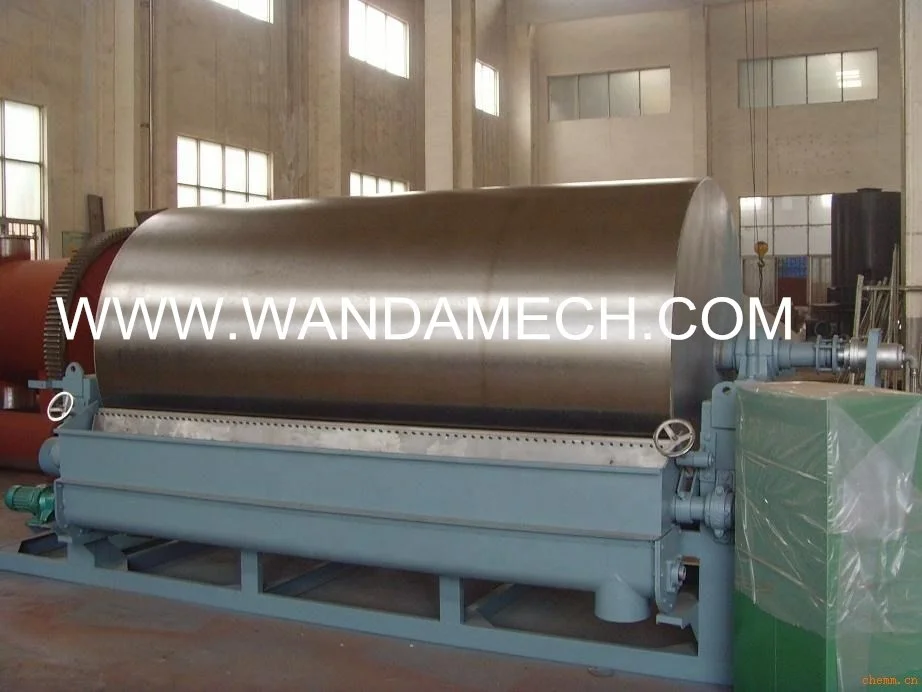

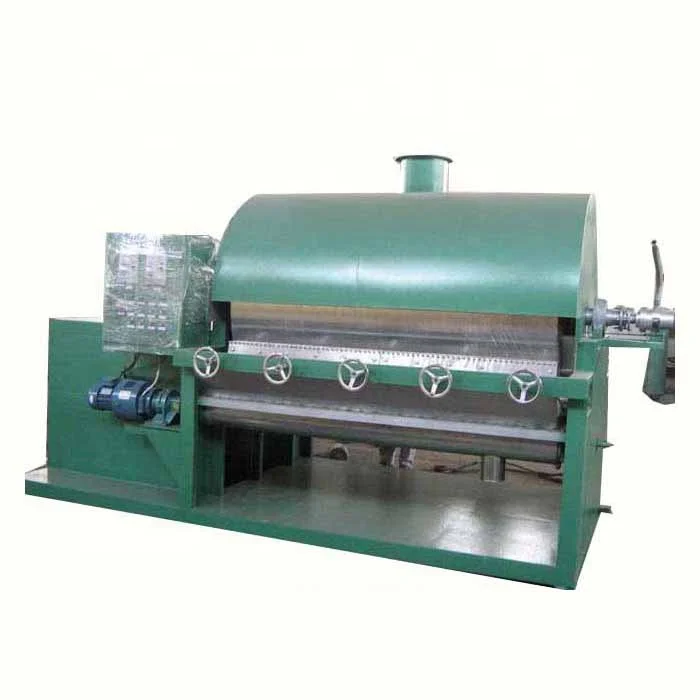

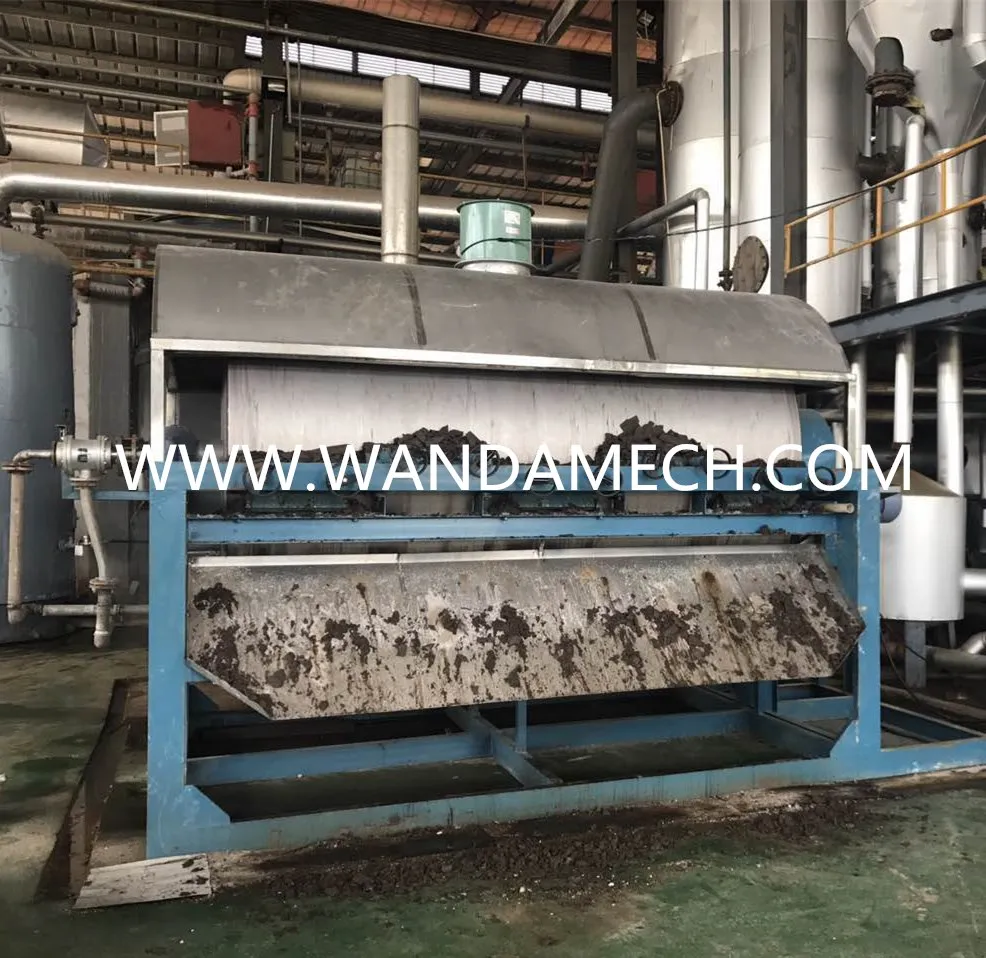

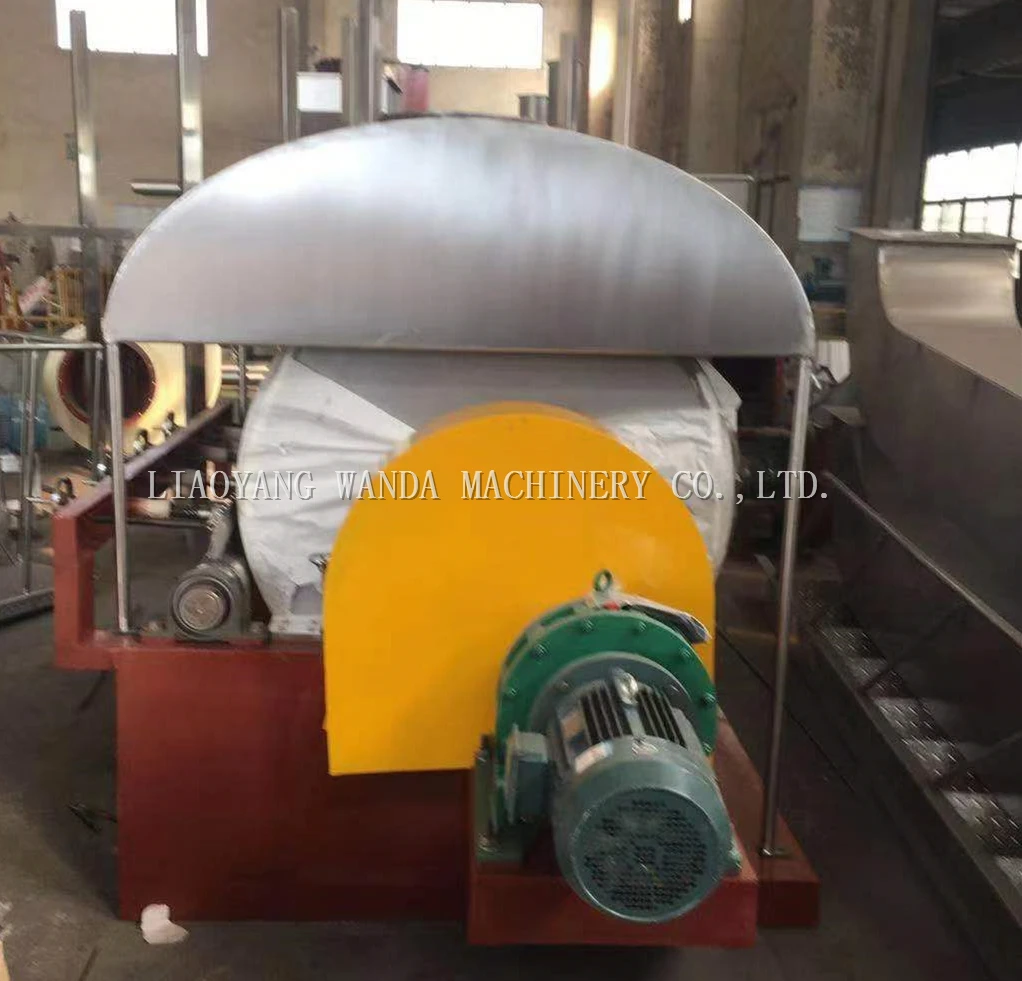

Product More Pictures
