Автоматическая Вакуумная сушилка для фруктов машина удаления листьев томатов и
- Категория: Vacuum Drying Equipment >>>
- Поставщик: Jiangyin,Brightsail,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 10829.48 $* | 11370.26 $* |
| Aug-18-2025 | 10738.73 $* | 11275.84 $* |
| Jul-18-2025 | 9009.62 $* | 9459.19 $* |
| Jun-18-2025 | 10556.18 $* | 11084.68 $* |
| May-18-2025 | 9191.2 $* | 9651.46 $* |
| Apr-18-2025 | 10374.86 $* | 10893.19 $* |
| Mar-18-2025 | 10283.67 $* | 10797.58 $* |
| Feb-18-2025 | 10192.47 $* | 10702.21 $* |
| Jan-18-2025 | 10101.3 $* | 10606.90 $* |
Характеристики
Automatic fruit vacuum drying tomato stevia leaf dehydrator machine
Product Description
The stevia leaf dehydrator machine is the mass transfer operation in which the moisture present in a substance, usually a wet solid, is removed by means of creating a vacuum. Vacuum drying is generally used for the drying of substances which are hygroscopic and heat sensitive, and is based on the principle of creating a vacuum to decrease the chamber pressure below the vapor pressure of the water, causing it to boil. With the help of vacuum pumps, the pressure is reduced around the substance to be dried. This decreases the boiling point of water inside that product and thereby increases the rate of evaporation significantly.
The materials to be dried are kept on the trays inside the stevia leaf dehydrator machine and pressure is reduced by means of vacuum pump. The dryer door is tightly shut and steam is passed through the space between trays and jacket so that the heat transfer occurs by conduction. Water vapors from the feed is sent into the condenser and after drying vacuum pump is disconnected and the dried product is collected from the trays.
The materials to be dried are kept on the trays inside the stevia leaf dehydrator machine and pressure is reduced by means of vacuum pump. The dryer door is tightly shut and steam is passed through the space between trays and jacket so that the heat transfer occurs by conduction. Water vapors from the feed is sent into the condenser and after drying vacuum pump is disconnected and the dried product is collected from the trays.
Specification
Detailed images:

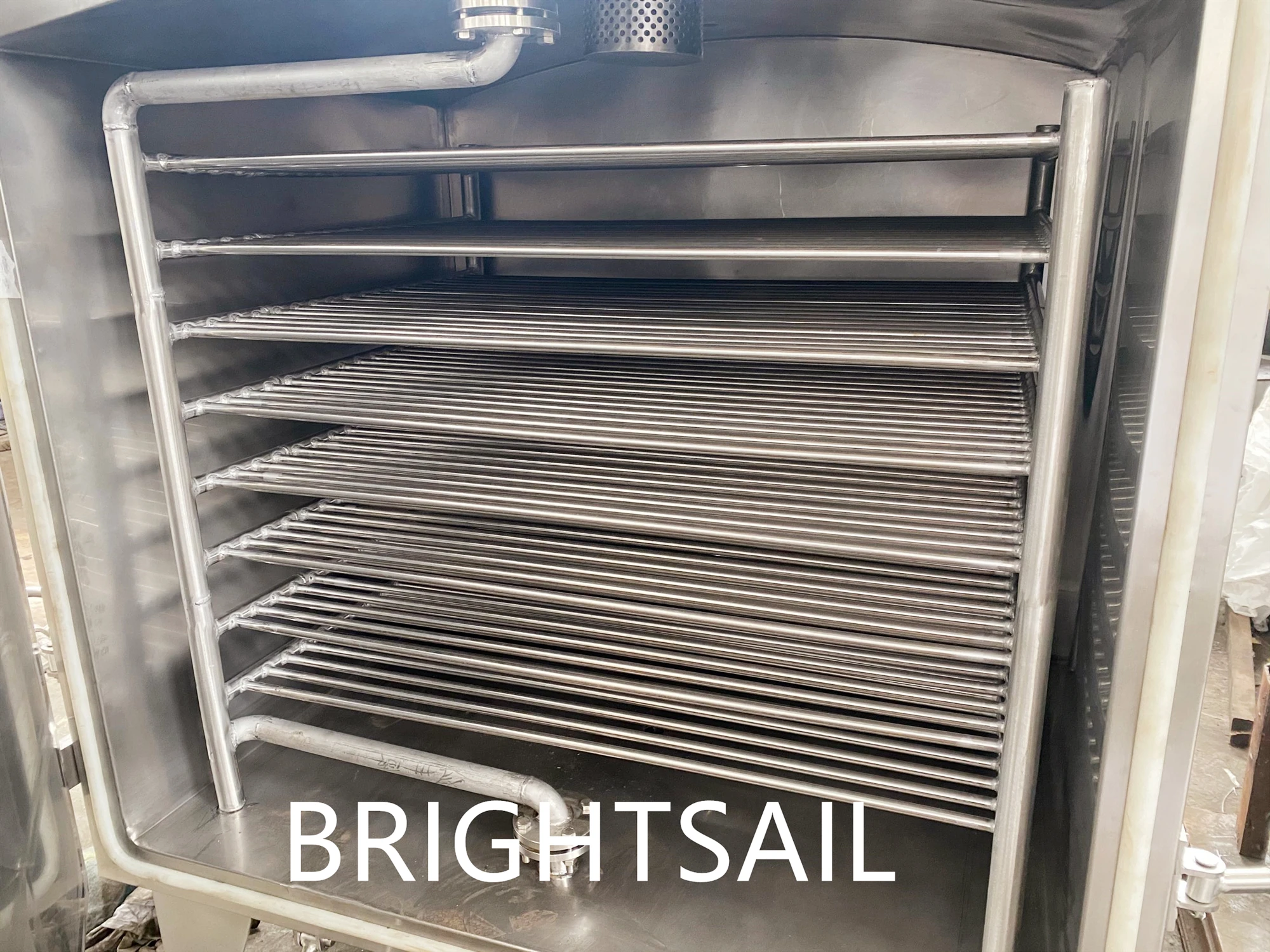

drying chamber drying shelf
Main features:
1) The heating sources are optional, you can use steam or electricity.
2) It is beneficial to maintain the initial form of the material, intermittent operation, and can adjust the process conditions at any time.
3) With an arched structure on the top, can effectively overcome the problem of condensed water dripping back and further improve the drying efficiency.
4) The exclusive design adopts a four-point vacuum structure to ensure the uniformity of drying of materials.
5) Especially suitable for materials that are afraid of oxidation and easy to decompose during the drying process.
1) The heating sources are optional, you can use steam or electricity.
2) It is beneficial to maintain the initial form of the material, intermittent operation, and can adjust the process conditions at any time.
3) With an arched structure on the top, can effectively overcome the problem of condensed water dripping back and further improve the drying efficiency.
4) The exclusive design adopts a four-point vacuum structure to ensure the uniformity of drying of materials.
5) Especially suitable for materials that are afraid of oxidation and easy to decompose during the drying process.
Applications:
Company Profile
Brightsail Machinery has found nearly 15 years, who designs and manufactures overall powder processing solutions for the Chemical, Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries, like powder grinding machines, mixing machines, drying machines...etc.
Brightsail is constantly committed to develop new advanced techniques and methods on the machines, since our goal is to be your trusted provider of creative and value added process solutions.
Brightsail is constantly committed to develop new advanced techniques and methods on the machines, since our goal is to be your trusted provider of creative and value added process solutions.
Buyer feedback
Our Services
Packing & Delivery
*Usually small machine (stevia leaf dehydrator machine) will be packed in the wooden case, and we can also pack it according to customers special request.
*If machine is big (stevia leaf dehydrator machine), we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
*If machine is big (stevia leaf dehydrator machine), we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
FAQ
