Product Overview
DA8KM22A-650CA-14RCA OBC + DC-DC Converter
DA8KM22A-600C-14RC is a liquid-cooled, specifically designed for pure electric vehicles, AC-DC chargers and DC-DC converters integrated digital power supply. Charger adopts advanced resonance technology, high efficiency, high power, small size, reliable work, charging mode using constant power and constant voltage automatic state transition, effectively saving the charging time. Wide input and output voltage range with active power factor correction, zero pollution to the grid. Using CAN2.0B communication protocol, with intelligent charging function, intelligent monitoring fault alarm, protection, with remote detection, programming, fault inquiry and other functions. Built-in 14V battery management system wake-up signal power. DC-DC high and low voltage converter using advanced substrate technology, modular design, high power density, small size, reliable, with constant current and constant pressure automatic state conversion. Using CAN2.0B communication protocol (CAN communication function optional), with intelligent charging function, with intelligent monitoring fault alarm, protection (with CAN communication function).
The power supply is specially designed for high voltage battery charging and buck conversion of new energy vehicles. Reduce the number of vehicle wiring harness connector and split the power supply installation of the trouble, the power supply using liquid-cooled design, and world-class automotive power supply manufacturers fully synchronized, is the world's highest power density products, the performance indicators have reached or exceeded the international counterparts Horizontal, trouble-free operation longer.
The power supply is specially designed for high voltage battery charging and buck conversion of new energy vehicles. Reduce the number of vehicle wiring harness connector and split the power supply installation of the trouble, the power supply using liquid-cooled design, and world-class automotive power supply manufacturers fully synchronized, is the world's highest power density products, the performance indicators have reached or exceeded the international counterparts Horizontal, trouble-free operation longer.
FEATURES AT A GLANCE
OBC part
Constant power and constant voltage state
Constant power and constant voltage state
Active power factor correction≥0.99
Input over/under-voltage protection
Output over/under-voltage protection
Output over-current protection
Output short circuit protection
Output reverse connection protection
Over temperature protection
CAN communication intelligent fault alarm and protection function
Small volume, large power density
DC-DC part
Constant current and constant voltage automatic conversion, effectively save charging time
Input over/under-voltage protection
Output over-voltage protection
Output over-current protection
Output short circuit protection
Over temperature protection
CAN communication intelligent fault alarm and protection function
Small volume, large power density
Intelligent charge control function
Output over-voltage protection
Output over-current protection
Output short circuit protection
Over temperature protection
CAN communication intelligent fault alarm and protection function
Small volume, large power density
Intelligent charge control function

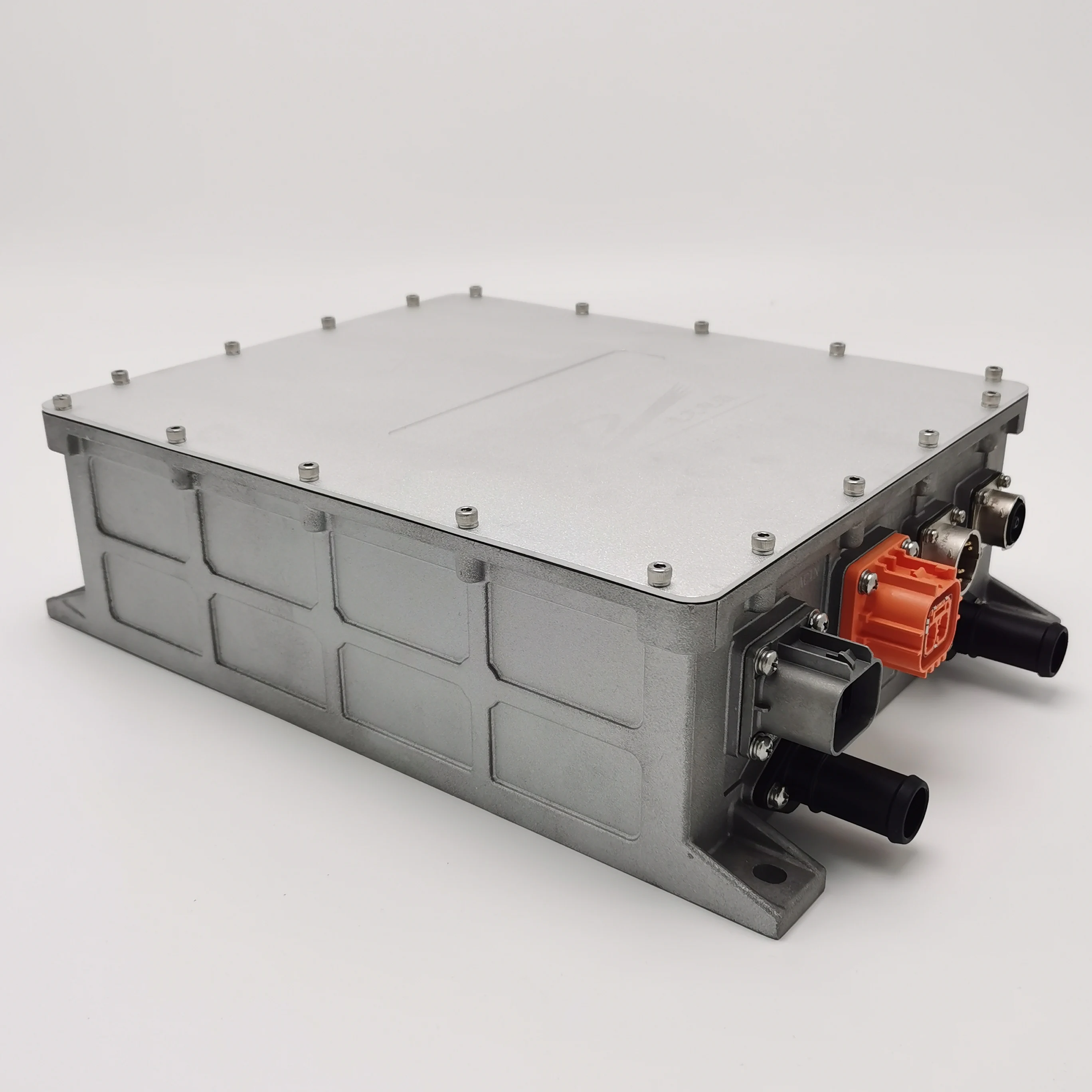

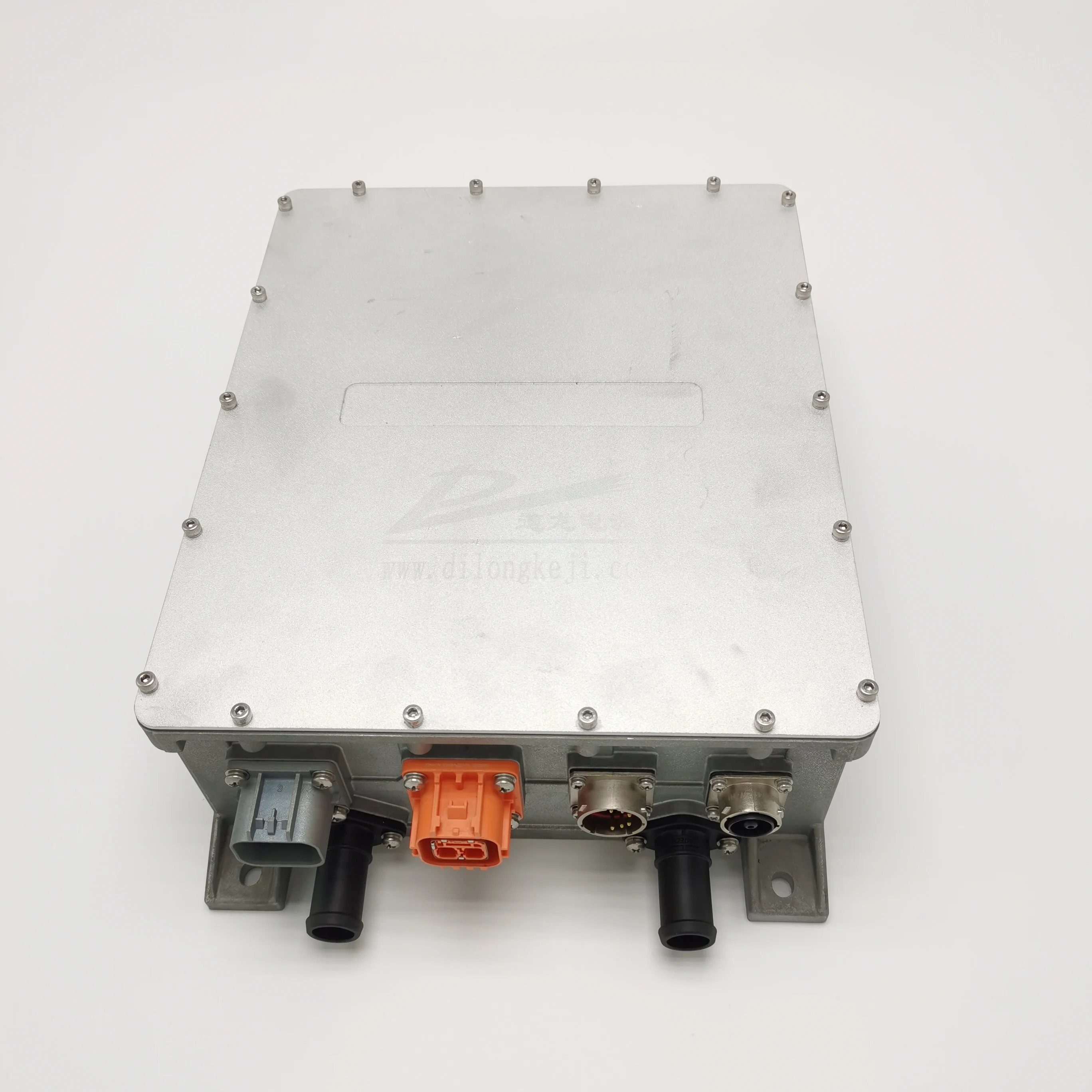

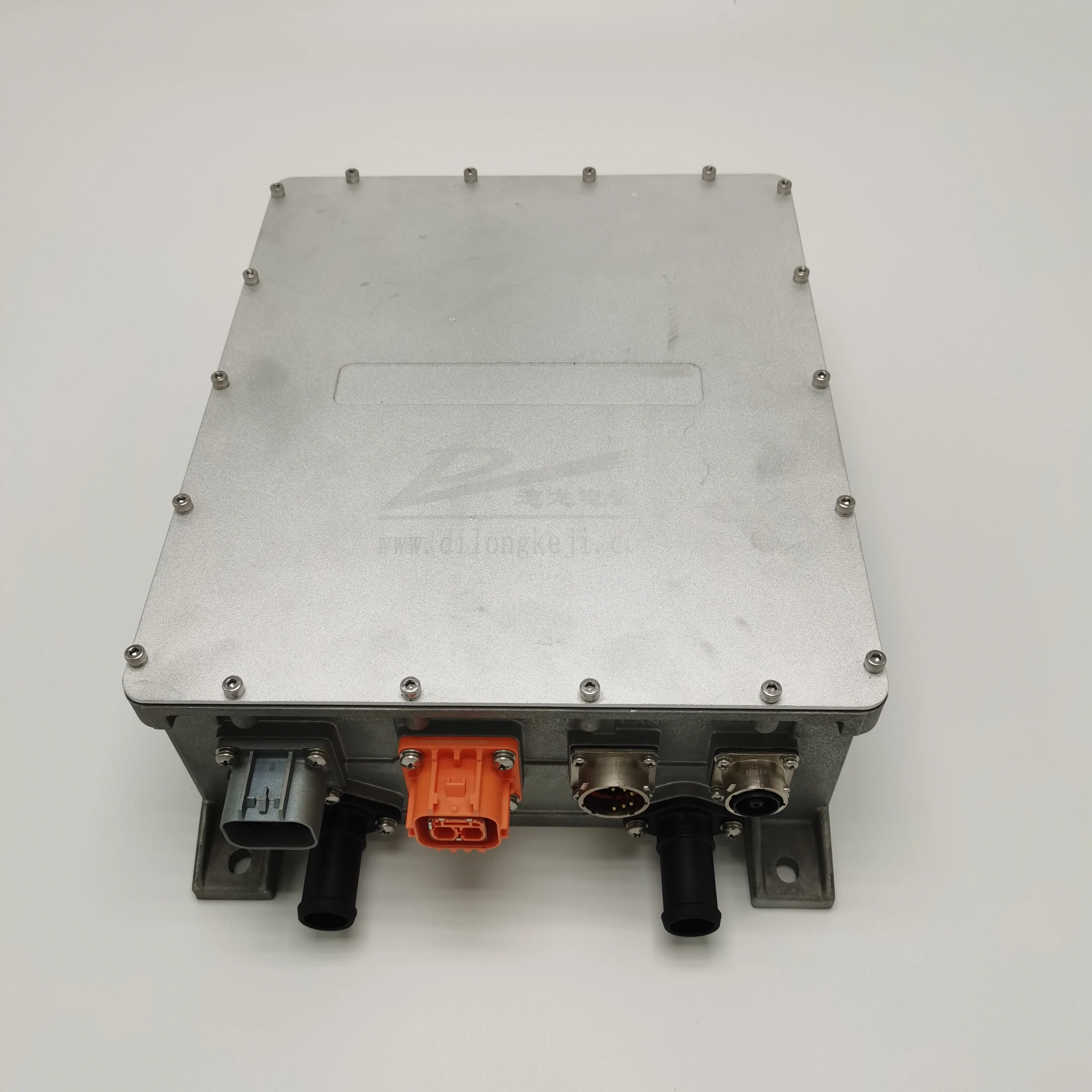

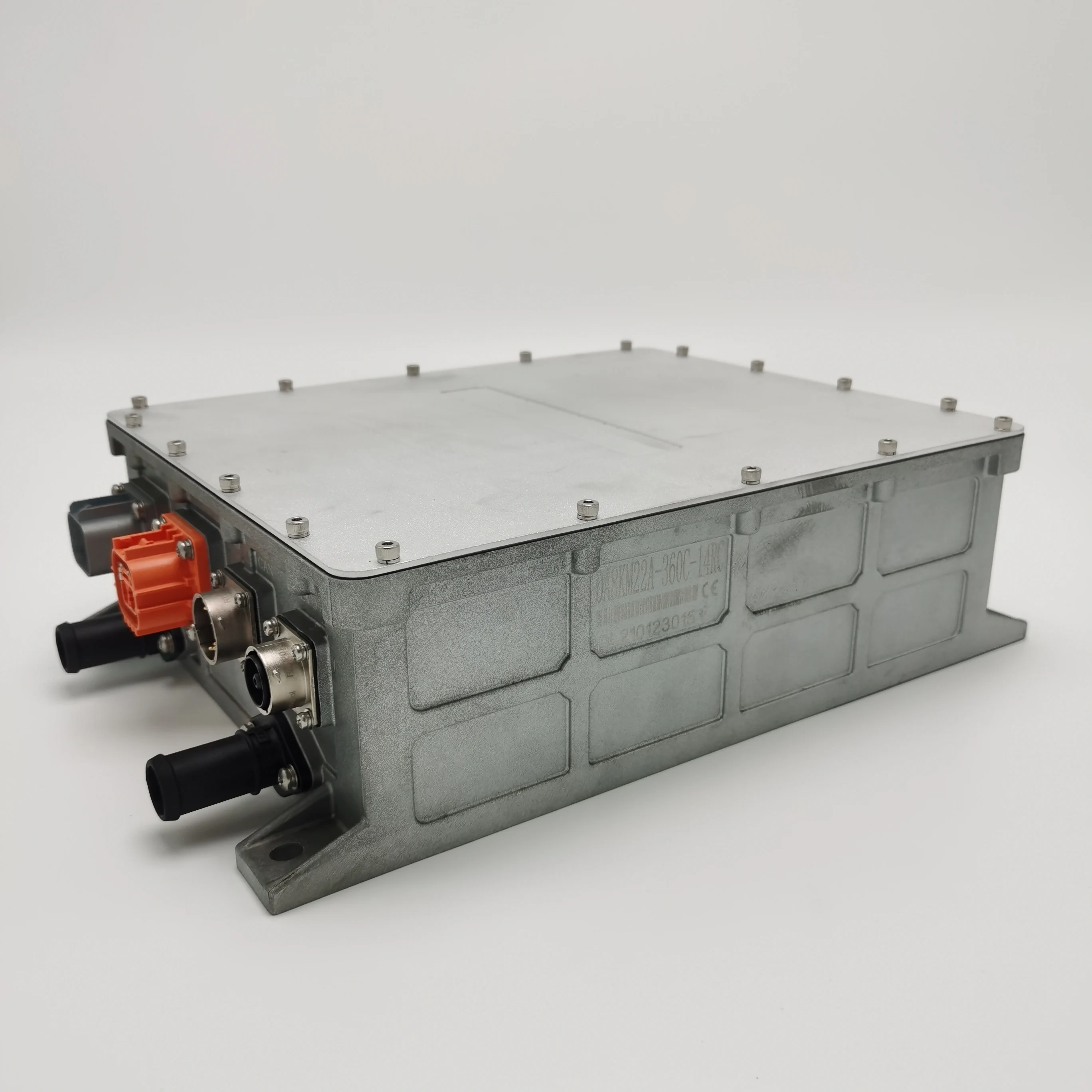

Side elevation

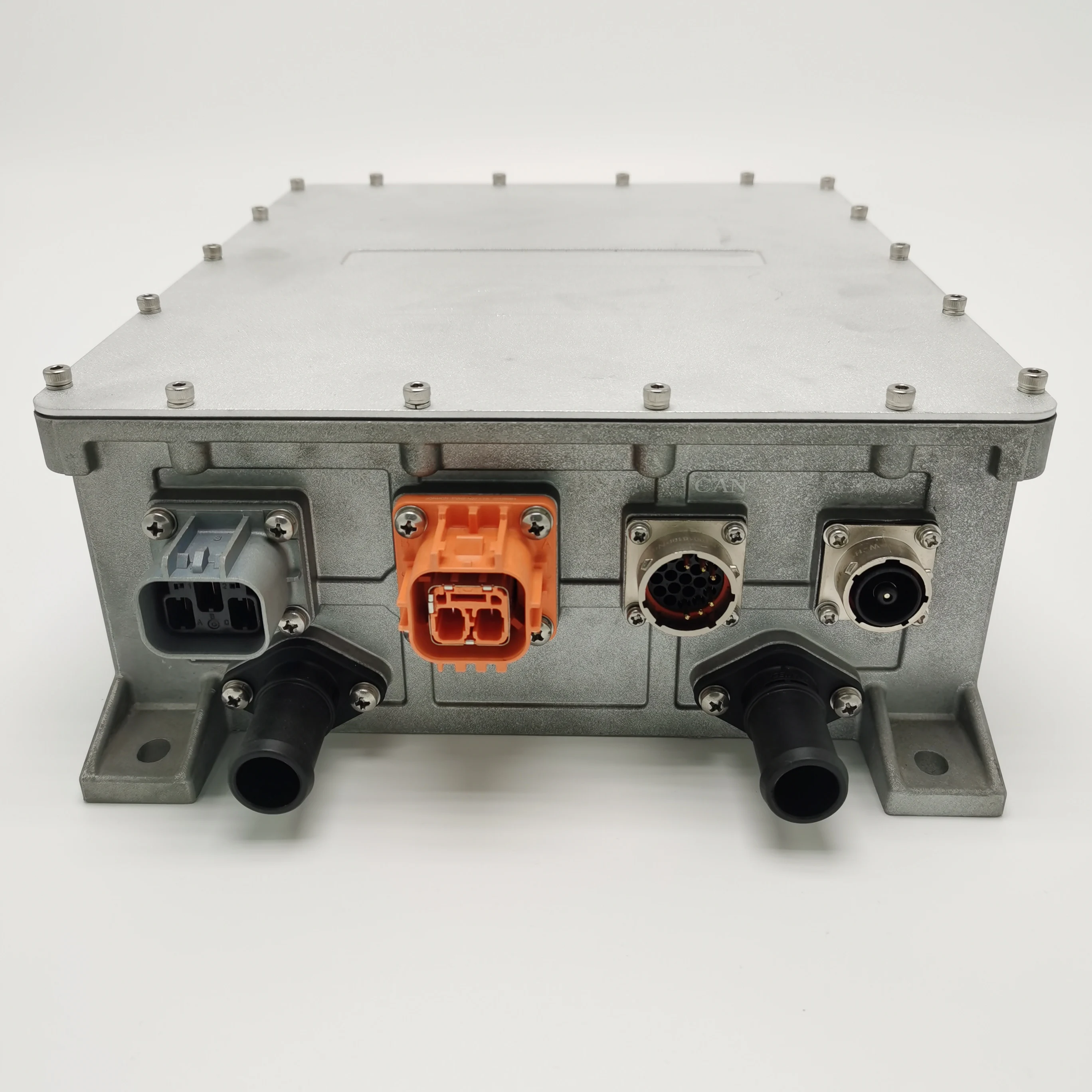

Front elevation
Back elevation
PRODUCT SPECIFICATIONS
No | OBC part | Data | DC-DC part | Data |
1 | Power | 6600W | Power | 1200W |
2 | Input | 220Vac 47~63Hz | Input | 500Vdc to 850Vdc |
3 | HV Output | 600Vdc | LV Output | 14Vdc |
4 | Output Voltage Range | 500V to 850V | Output Current | 86A |
5 | Max Output Current | 11A | Efficiency | ≥90% |
6 | Efficiency | ≥92% | Control | CAN or Enable |
7 | Control | CAN | Cooling | Air-cooled |
8 | CAN Communication | 125kbps/250kbps/500kbps |
