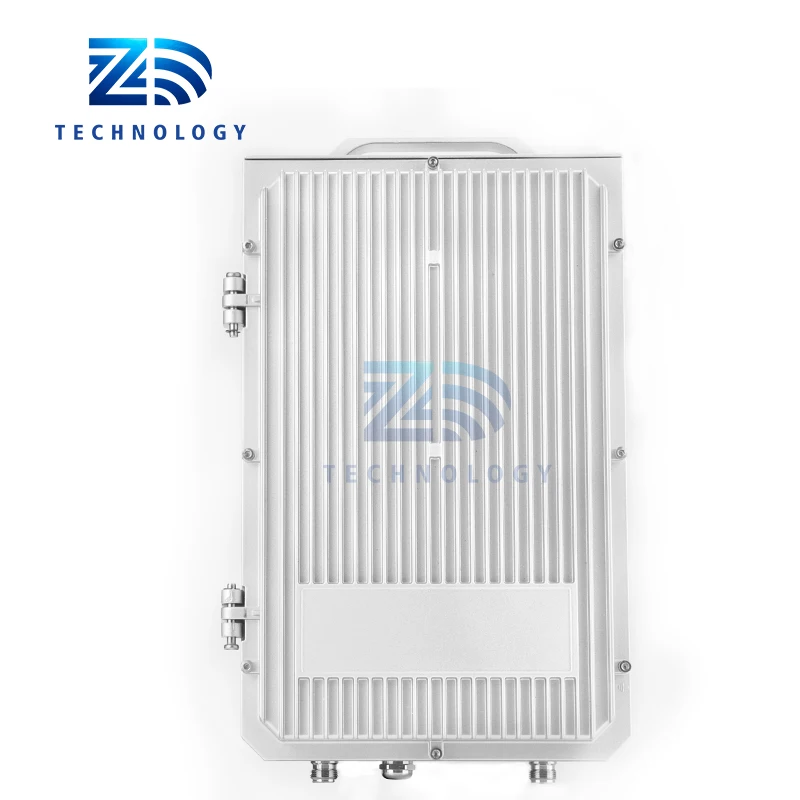

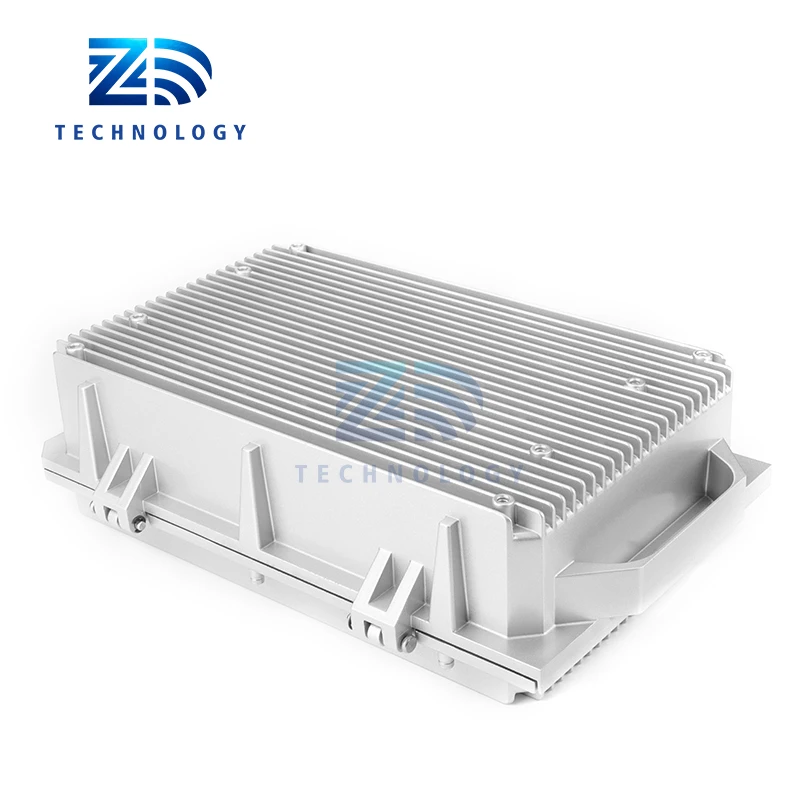

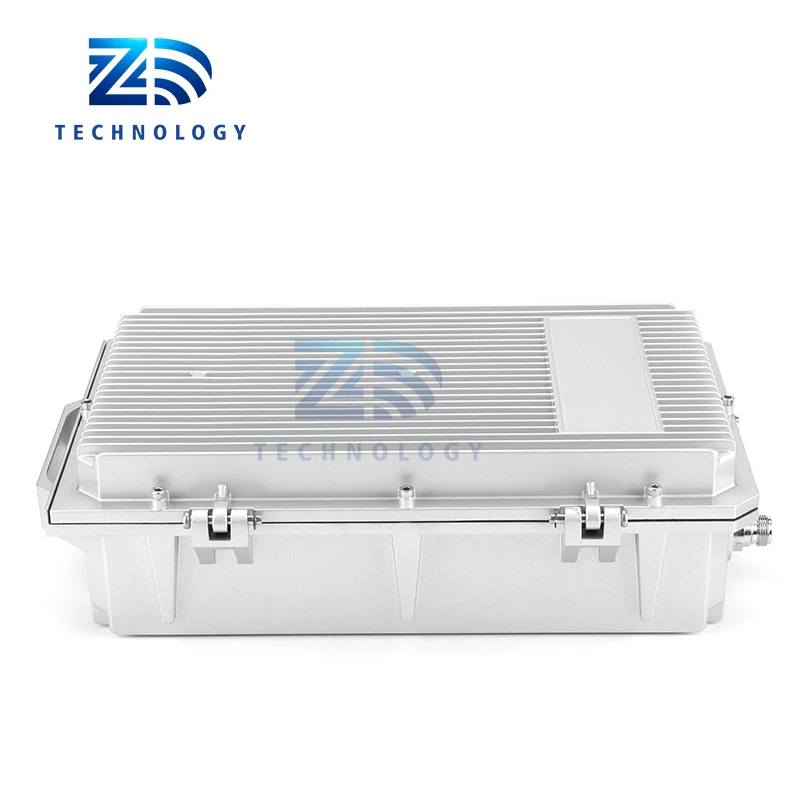

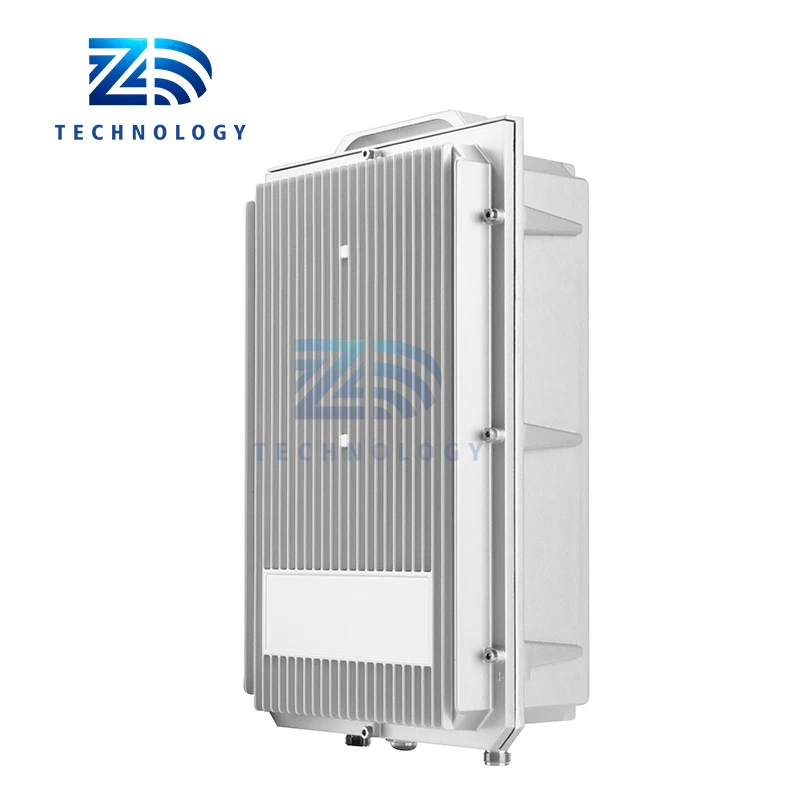

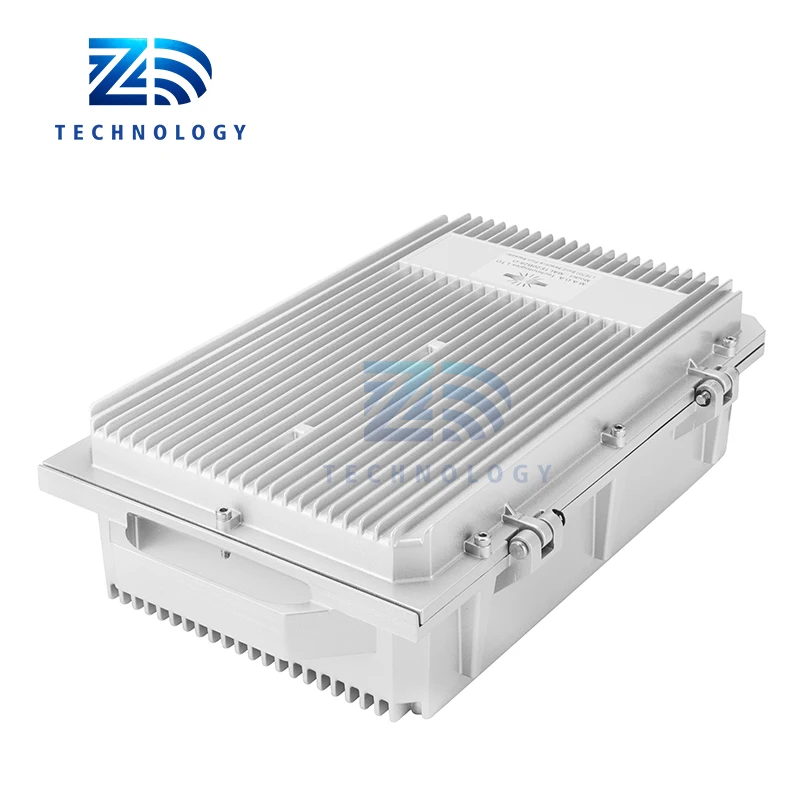

Однодиапазонный ретранслятор (для использования вне помещений) 20 ~ 23 дБм усиление 65 70
- Категория: >>>
- Поставщик: Shenzhen,ZD,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.1 $* | 0.66 $* |
| Aug-17-2025 | 0.15 $* | 0.51 $* |
| Jul-17-2025 | 0.94 $* | 0.63 $* |
| Jun-17-2025 | 0.40 $* | 0.28 $* |
| May-17-2025 | 0.97 $* | 0.1 $* |
| Apr-17-2025 | 0.93 $* | 0.13 $* |
| Mar-17-2025 | 0.4 $* | 0.31 $* |
| Feb-17-2025 | 0.24 $* | 0.91 $* |
| Jan-17-2025 | 0.25 $* | 0.91 $* |
Характеристики
Single Band Repeater(outdoor) 20~23dBm Power, 65~70dB Gain
Specifications: | |||
Items | Uplink | Downlink | |
Frequency Range | LTE700 (Band 28) | 718 ~ 728MHz | 773 ~ 783MHz |
Operation Bandwidth (-3dB) | Wide Band | ||
Maximum Gain | ≥65dB | ≥70dB | |
Output Power | ≥17dBm | ≥20dBm23dBm | |
MGC (Manual Gain Control) | 31dB range/1dB step | ||
AGC (Automatic Gain Control) | ≥50dB | ||
Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |
1GHz~12.75GHz | ≤ -30dBm | ||
Noise Figure | ≤ 6dB | ||
VSWR | ≤ 2.0 | ||
Group Delay | ≤1μs | ||
LED Alarm | Power LED | DC ON/OFF | |
ISO LED | Alarm Red/When output power over 3dBm | ||
RF Connector | N-Female | ||
Impedance | 50Ω | ||
Power Consumption | 8W | ||
Power Supply | Input: AC 110~240V | ||
Operating Temperature | -10℃~50℃ | ||
Environment Conditions | IP65 | ||
Dimensions (D x W x H ) | 230*150*60mm | ||
Weight | ≤3KG | ||
Accessories:1.software with user manual
2.installation bracket
