Product Description

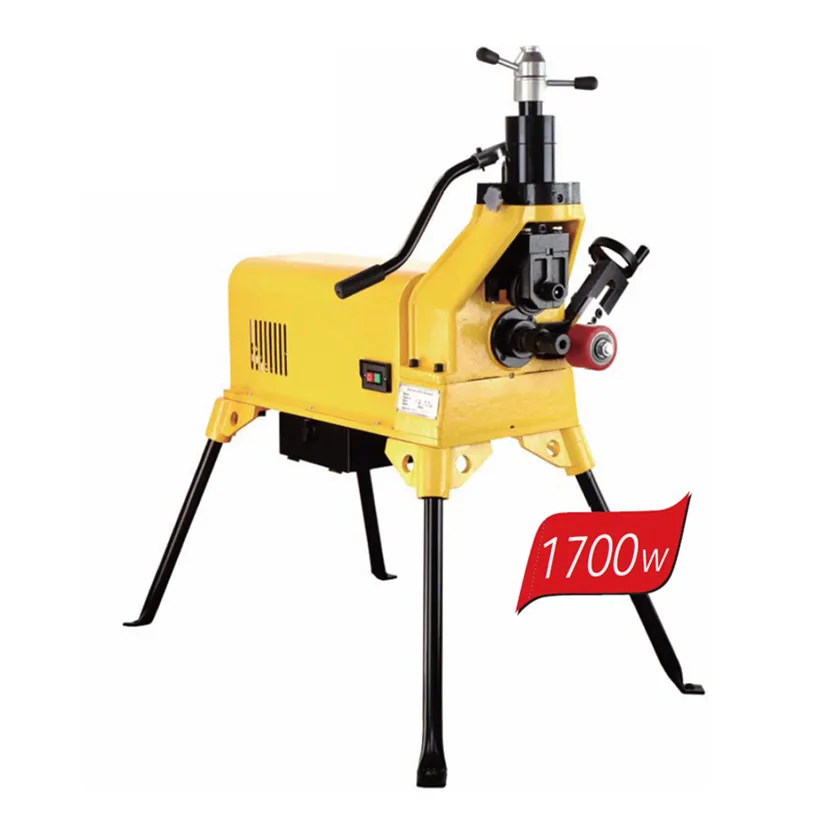

YG12F Hydraulic Roll Grooving Machine 2"-12"
* The Model YG12F hydraulic roll groover, equips updated hydraulic pump, with convenient depth adjusting function, powered by 1700W induction motor, is capable of grooving up to 12” Sch 40 standard wall pipes.
* “Separate knurling roller” design of drive shaft for convenient replacement changing.
* The YG12F comes with standard support legs, the unit can be set up quickly.
* The induction motor ensures steady and quiet working.
* “Separate knurling roller” design of drive shaft for convenient replacement changing.
* The YG12F comes with standard support legs, the unit can be set up quickly.
* The induction motor ensures steady and quiet working.
* HS Code of YG12F Roll Groover: 8462490000
Technical Specifications:
• Motor : 1700W induction, 50/60Hz
• Switch : ON/OFF heavy duty switch.
• Spindle Speed : 24 RPM
• Capacity: 2”-12” Sch. 10/ 40 steel, stainless steel
• Weight : 190 kg
• Switch : ON/OFF heavy duty switch.
• Spindle Speed : 24 RPM
• Capacity: 2”-12” Sch. 10/ 40 steel, stainless steel
• Weight : 190 kg
Standard Equipment:
• Model YG12F grooving machine.
• One 2”-6” Schedule 10/40 Roll Set for steel.
• Model YG12F grooving machine.
• One 2”-6” Schedule 10/40 Roll Set for steel.
• One 8”-12” Schedule 10/40 (8“Schedule 40) Roll Set.
• Model 658C Pipe Support Stand.
• Model 658C Pipe Support Stand.
• One Tool Box

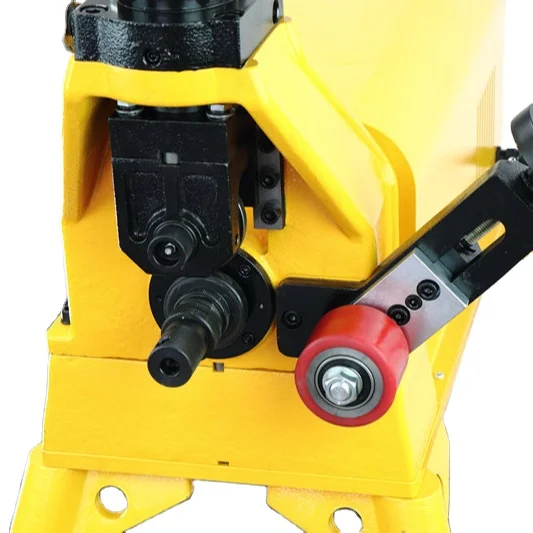

Detailed Images
Roller 2"-6"
Roller 8"-12"
Knurling Roller 2"-3"
Knurling Roller 4"-6"
Knurling Roller 8"-12"
- Add shield to protect when working.
- High strength groove assembly
- Simple assembly and disassembly
Ordering Information
Catalog No. | Model No. | Description | N.W.(kg) |
502209 | YG12F | Hydraulic Roll Groover,110V-60HZ | 190 |
502210 | YG12F | Hydraulic Roll Groover,220V-50HZ | 190 |
Related products
YG12A roll groover
Switch: ON/OFF heavy duty switch.
Spindle Speed: 24 RPM
Capacity: 2"-12" Sch. 10 steel, stainless steel.
2"-8" Sch. 40 steel, stainless steel.
Weight:120 kg
Switch: ON/OFF heavy duty switch.
Spindle Speed: 24 RPM
Capacity: 1"-12" Sch. 10 steel, stainless steel.
1"-6" Sch. 10/40 steel, stainless steel.
Weight:140 kg
Switch: ON/OFF heavy duty switch.
Spindle Speed: 24 RPM
Capacity: 2"-12" Sch.10 steel, stainless steel.
2"-6" Sch.10/40 steel, stainless steel.
Weight:140 kg
Switch: ON/OFF heavy duty switch.
Spindle Speed: 24 RPM
Capacity: 2"-12" Sch.10 steel, stainless steel.
2"-6" Sch.10/40 steel, stainless steel.
Weight:120 kg
After Sales Service
1. Professional customer service guidance
Pre-sales customer service can answer your professional machine knowledge
2. Full technical support
Professional maintenance and after-sales personnel provide services
3.One year warranty
Packing&Shipping
Package | Length | Width | Heigth | Gross Weight | Net Weight |
YG12F | 94mm | 44.5mm | 87mm | 200.5kgs | 190kgs |
