SHENNAI брендовая линия по производству арматуры арматурный стержень квадратная стержней производственная
- Категория: Rolling Mill >>>
- Поставщик: Luoyang,Shennai,Import,And,Export,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 77350.23 $* | 81218.32 $* |
| Aug-19-2025 | 76700.92 $* | 80535.35 $* |
| Jul-19-2025 | 64350.34 $* | 67568.87 $* |
| Jun-19-2025 | 75400.10 $* | 79170.49 $* |
| May-19-2025 | 65650.96 $* | 68933.17 $* |
| Apr-19-2025 | 74100.25 $* | 77805.35 $* |
| Mar-19-2025 | 73450.48 $* | 77123.26 $* |
| Feb-19-2025 | 72800.28 $* | 76440.20 $* |
| Jan-19-2025 | 72150.7 $* | 75758.78 $* |
Характеристики
Product Details
SHENNAI Brand Rebar Production Line Rebar Angel Bar Square Rod Line Rebar Steel Production Line

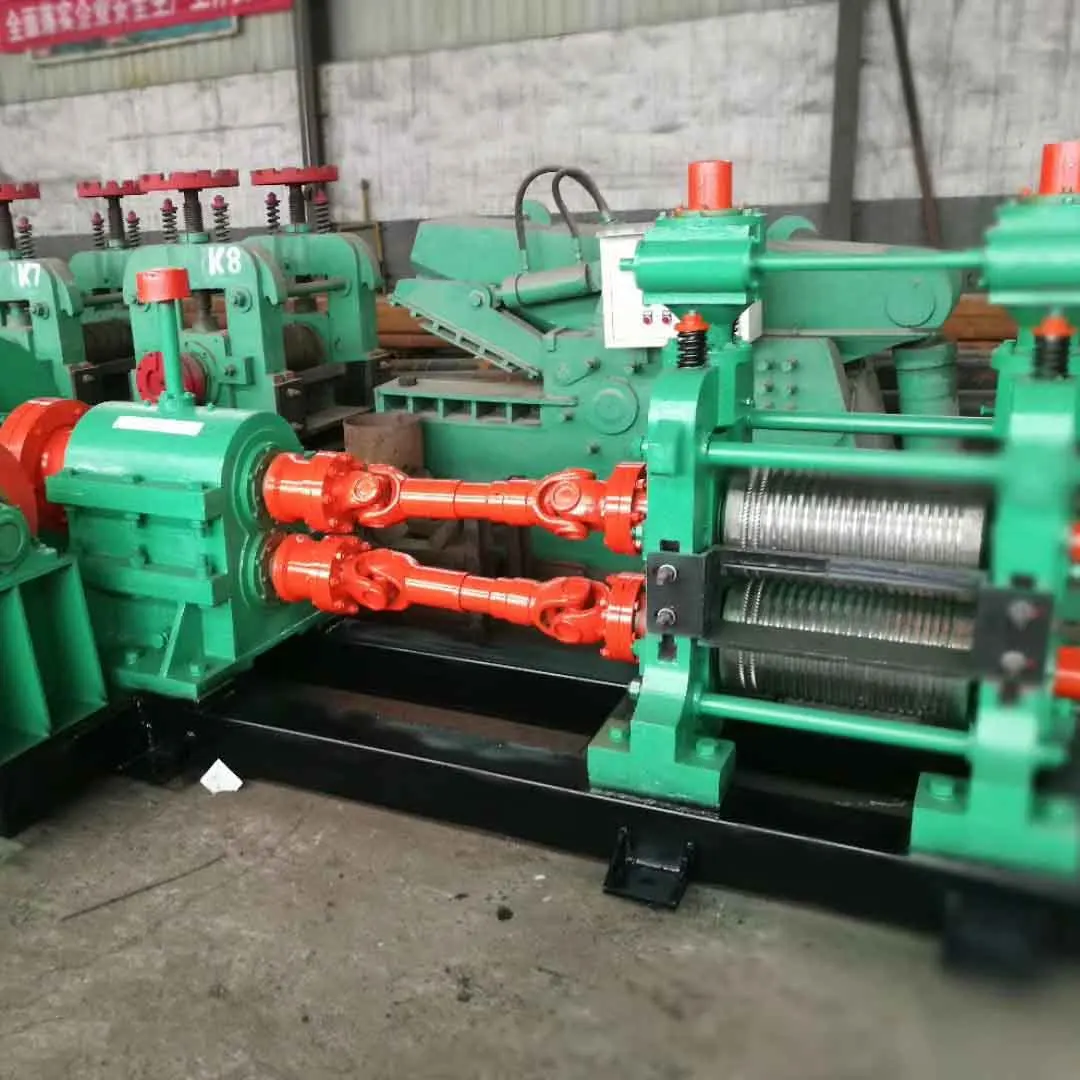

The steel roughing mill stand is used to reduce the thickness of the steel while extending the overall length. The rack of the rough rolling mill is an important part of the steel frame. The rack is equipped with a roll chock and a roll adjustment device. The rolling mill stand must have sufficient strength and rigidity to withstand the rolling force.
We can manufacture and provide complete rolling mills for rolling rebar/wire rod/structural steel (such as angle steel, I-beam, channel steel, steel plate, etc.).
| Model | φ550 | φ450 | φ350 |
| The diameter and length of barrel(mm) | φ425-φ660×80 | φ320-φ485×700 | φ280-φ390×600 |
| Roller neck size(mm) | φ280 | φ200 | φ180 |
| The Max rolling force (t) | 200-280 | 150 | 105 |
| Rollaxial adjustment | ±3mm | ±3mm | ±3mm |
| Max Opening size(mm) | 425~685 | 340~495 | 290~400 |
| Roll gap adjustment method | Hydraulic | Hydraulic | Hydraulic |
As a professional Steel Roughing Rolling Mill Stand manufacturer in China, we can supply designing, manufacturing, installation, and commission of the equipment with "turn-key" service. We can also design, manufacture and revamp other non-standard equipment according to the requirements of users.
Special Features of Steel Roughing Mill Stand:
- Fully automatic operation and heavy duty
- High strength and stiffness.
- Durable design which is suitable enduring heavy load.
- Complete stand of the Mill Stand is stress relieved and fully machined.
- Very convenient to change rolls quickly and easy maintenance, avoid more downtime.
- Bearing long life.
Service:
- We can provide foundation layout and arrangement diagram.
- Trustworthy after-sales service, we will send engineers to your factory to install and debug the machines.
- Competitive price & excellent quality.
- Our machines are easy operation and maintenance.
- Lower investment.
- Steady performance.
- Products are customized for different needs.
- Production capability can be adjusted according to customers' request.
- Low energy consumption.
Manufacturing Proces
| Melting & Casting & Rolling Process |
 | Steel Iron metal Scrap iron and steel are usually used as raw materials for production lines. |  |
 | Melting furnace Steel and iron metals and other scrap metal materials are mixed and melted into molten steel at high temperatures to form components in the required proportions. |  |
 | Continuous casting machine The molten steel made by the steelmaking furnace is cast by the continuous casting machine to obtain the continuous casting billet. |  |
 | Rolling mill The rolling mill is mainly composed of several sets of rolls. The rolls are a pair of rolls that rotate in opposite directions. A gap or hole of a certain shape is formed between the two rolls. The steel billet passes through the roll to become a steel of a certain shape. |  |
 | Final product After hot rolling, water is penetrated immediately, the surface is controlled to cool, and then the core residual heat is used to complete the tempering treatment of the finished steel bar. |  |
