BESCO делая умелое производство алюминиевой фольги контейнер пресс
- Категория: Punching Machines >>>
- Поставщик: Dongying,Besco,Machine,Tool,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 29750.42 $* | 31238.57 $* |
| Aug-17-2025 | 29500.36 $* | 30975.6 $* |
| Jul-17-2025 | 24750.72 $* | 25988.16 $* |
| Jun-17-2025 | 29000.82 $* | 30450.51 $* |
| May-17-2025 | 25250.29 $* | 26513.86 $* |
| Apr-17-2025 | 28500.48 $* | 29925.13 $* |
| Mar-17-2025 | 28250.70 $* | 29663.26 $* |
| Feb-17-2025 | 28000.88 $* | 29400.93 $* |
| Jan-17-2025 | 27750.40 $* | 29138.87 $* |
Характеристики
Product Description
Performance Characteristic of BESCO Aluminum foil container making machine
(1). This machine adopts Siemens CPU216 programmable logic container (PLC) as the controlling system. It is reliable. The feeding length, producing speed and other parameters are easily set through the touch screen. It is integration of Penumatic & Electrical, centralized control, auto lubrication, automated production.
(2). Feeding, punching, scrap collecting is running automatically.
(3).The accurate press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch to clutch-on-off,rigid over-load protector to protect the press. In short, this is a high accuracy and reliability press.
(4). Feeding is controlled by stepper system, the feeding length is accurate and can be adjusted from 20mm to 99999mm.
NO | Name | BLA21-45T | BLA21-60T |
1 | Nominal force(KN) | 450 | 60 |
2 | Slide Block Stroke (mm) | 240mm (10.24") | 240mm (10.24") |
3 | Slide stroke per minutes (time/minute) | 70-50 | 70-50 |
4 | Maximum Die Set Height (mm) | 400 (15.74") | 450 (17.71") |
5 | Die set height adjustment (mm) | 60mm (2.36") | 70mm (2.76") |
6 | Slide Bottom Size (mm) | 410*340mm (16.14"*13.39") | 480*400mm (18.90"*15.75") |
7 | Stemhole size (mm) | 60*60mm (2.36"*2.36") | 60*65mm (2.36"*2.56") |
8 | Bolster surface size (mm) | 990*750mm (38.98"*29.53") | 1000*800mm (39.37"*31.50") |
9 | Total power (KW) | 5.5 | 7.5 |
10 | Dimension (mm) | 1550*1150*2500mm (61.02"*45.28"98.43") | 1800*1300*2700mm (70.87"*51.18"106.30") |

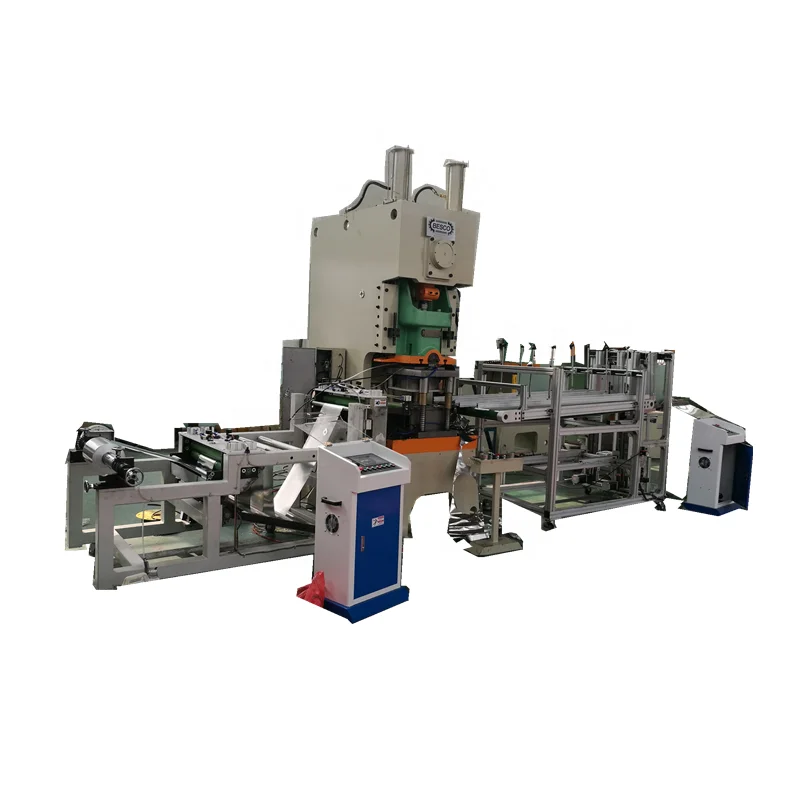

Takeaway Aluminium Foil Container Making Machine
Adopt imported Seimens motor, PLC and Schneider electronic componets to make sure the machine's top quality,

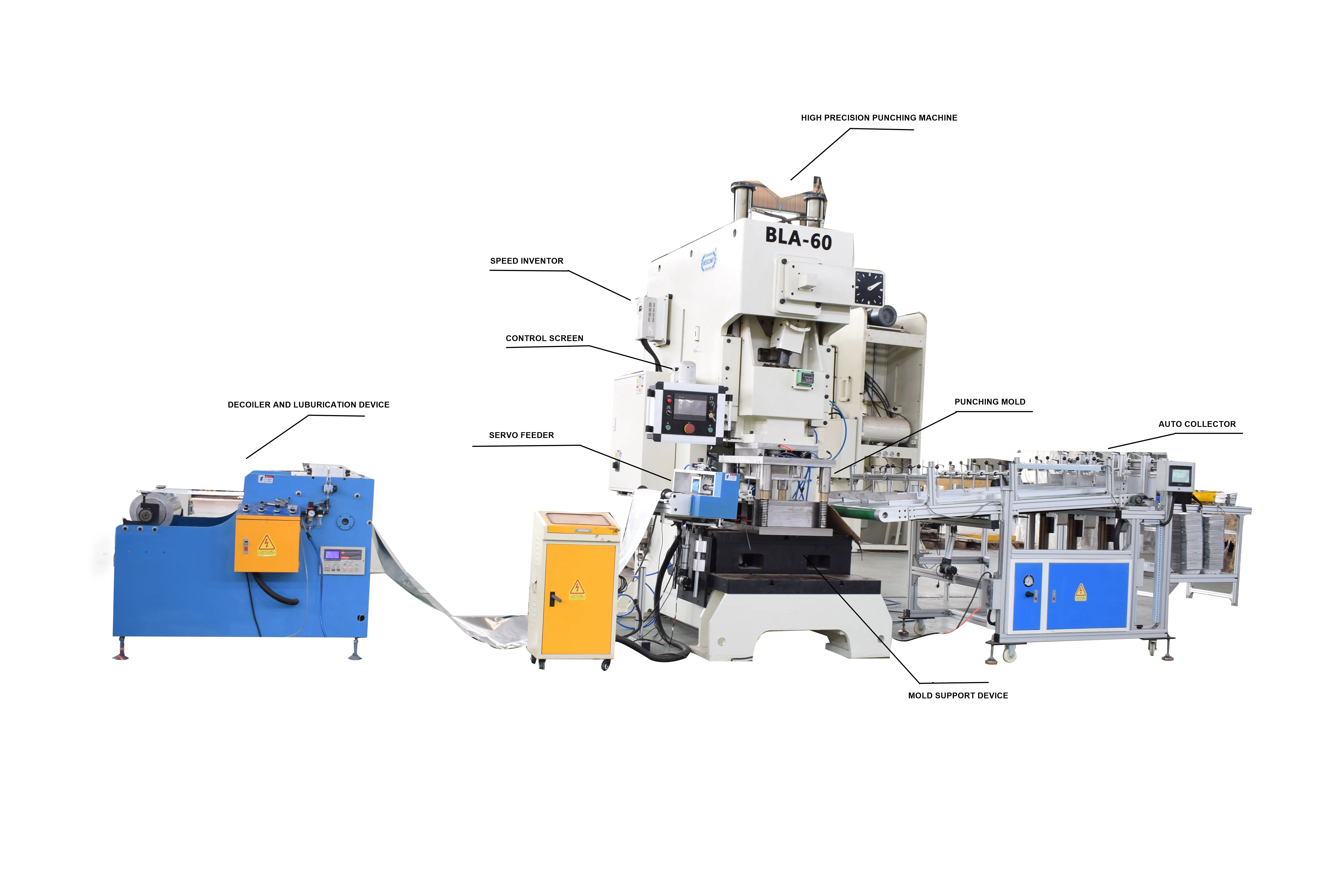

The whole line include below machine:
Auto-lubricated feeder -- control panel -- length controller-- 45T-110T pneumatic press --mould-- full-automatic stacker-Scrap Presser
Auto-lubricated feeder -- control panel -- length controller-- 45T-110T pneumatic press --mould-- full-automatic stacker-Scrap Presser
Aluminium Foil Container Making Machine Main Features
The advantages are as below:
1.Top Safety and long lifetime,high precision control of feeding step and speed.
2.The replacement of the mould is convenient and easy to change.
3.The machine has memory function for each mould.
4.It's suitable for large size single cavity,medium and small size multi-cavity moulds.
5.The height of ram is electrically adjustable to satisfied multiple request of different moulds with diverse shapes and sizes.
6.Novel design for the roller of stacker,to assure the stronger stability.
7.Emergency stop with the automatic detection.
8.The width of the lanes can be adjustable to fit different size containers stacking.
9.CNC machining center, and its machining accuracy is very high.
1.Top Safety and long lifetime,high precision control of feeding step and speed.
2.The replacement of the mould is convenient and easy to change.
3.The machine has memory function for each mould.
4.It's suitable for large size single cavity,medium and small size multi-cavity moulds.
5.The height of ram is electrically adjustable to satisfied multiple request of different moulds with diverse shapes and sizes.
6.Novel design for the roller of stacker,to assure the stronger stability.
7.Emergency stop with the automatic detection.
8.The width of the lanes can be adjustable to fit different size containers stacking.
9.CNC machining center, and its machining accuracy is very high.
Detailed Images
Auto Feeding machine
Separate Type Decoiler with Ubrication and NC Feeder System Feature:
Our feeding machine is the automatic feeding device which is the ancillary equipment for punching equipment. A machine can realize automatic lubrication, automatic feeding, automatic tracking features, which automatically feeding 20-999 mm in length, the length of an
arbitrary set, it provide accurate positioning and widely adjusting range.
arbitrary set, it provide accurate positioning and widely adjusting range.

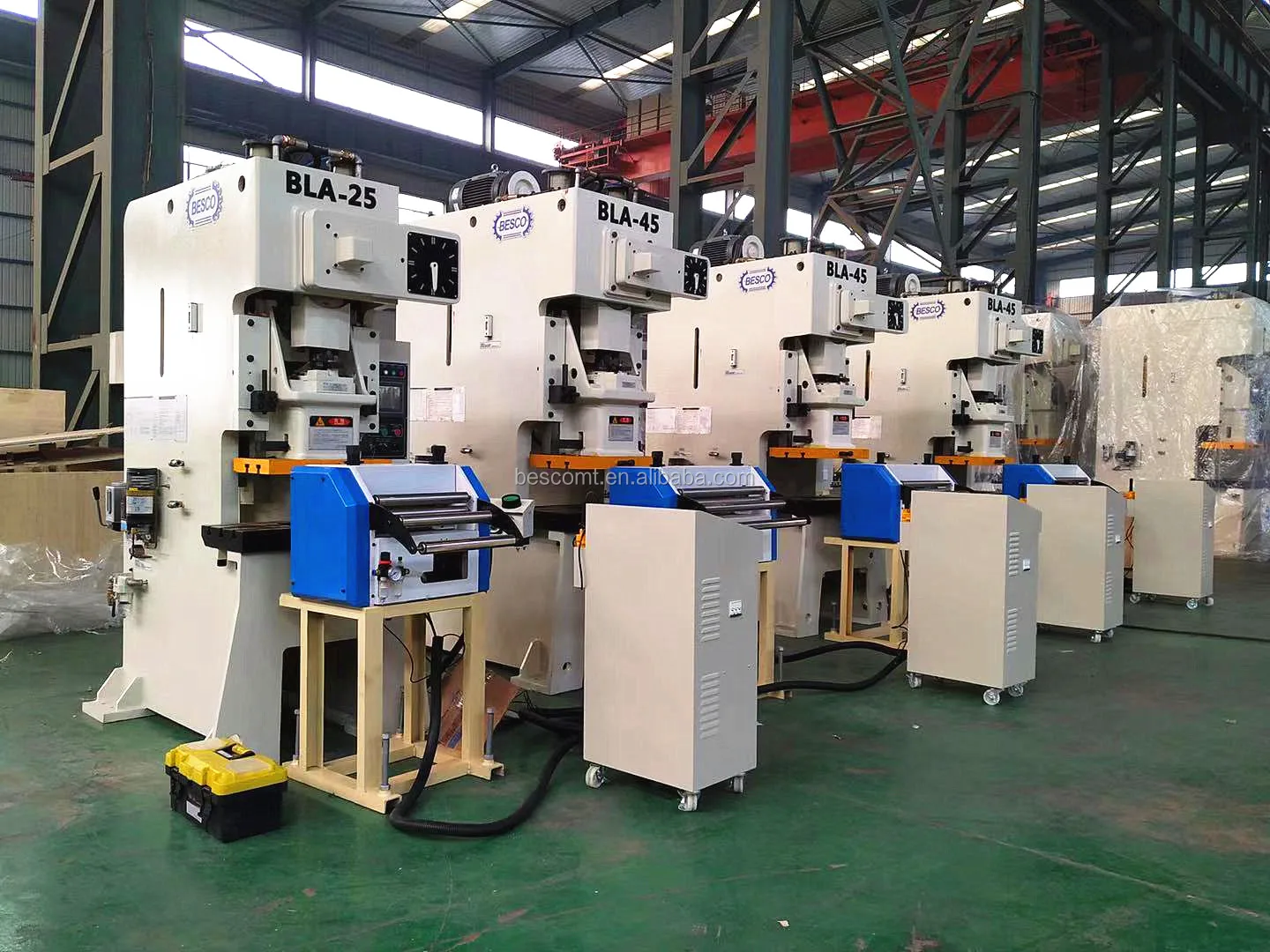

BLA Series High Precision Pneumatic punching machine
Feature:
High precisoon and better perforamnce than noraml JF series traditional pneumatic punching machine .BLA has better structure and
stability than old model JF punching machine.
The accurate press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch to
clutch-on-off,rigid over-load protector to protect the press. In short, this is a high accuracy and reliability press.
High precisoon and better perforamnce than noraml JF series traditional pneumatic punching machine .BLA has better structure and
stability than old model JF punching machine.
The accurate press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch to
clutch-on-off,rigid over-load protector to protect the press. In short, this is a high accuracy and reliability press.

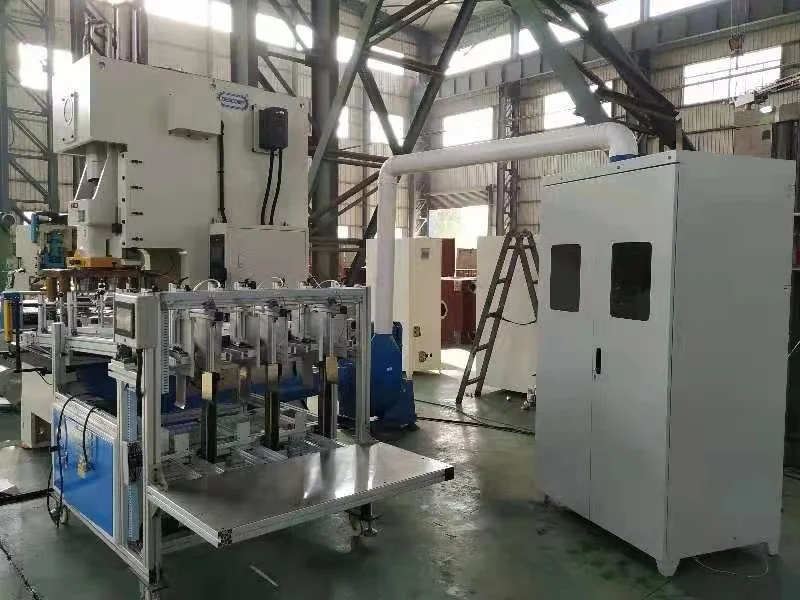

Full-automatic stacker to collect containers
Feature:
1.Frequency control speed adjustment of conveyor. Auto-counting function ;
2.Container platform anticollision function;
3.It can connect production line linkage or single ;
4.It use adopt touch screen and PLC computer control.
1.Frequency control speed adjustment of conveyor. Auto-counting function ;
2.Container platform anticollision function;
3.It can connect production line linkage or single ;
4.It use adopt touch screen and PLC computer control.
Conveyor Belt (optional)
Function:
It is Served For Collecting The Aluminium Foil Container
During The Production in order To Prevent The Products Being off the Making Line.
It is Served For Collecting The Aluminium Foil Container
During The Production in order To Prevent The Products Being off the Making Line.
Waste Collector (optional)
Function:
As a Part of production line , scrap collector play an important role in it. Its primary role is to collect the Excess aluminum foil .
The vacuum adsorb collect system system collects the scrap in a bin and then will compact the aluminium scrap
into bales.
Product Features：
Use Vacuum Adsorb Collect system , Easier to collect the
Al-foil .
Low Coise , More Greener. Reduce Noise Pollution.
Use Round knife And Flat Cutter To Cut The Materials.
As a Part of production line , scrap collector play an important role in it. Its primary role is to collect the Excess aluminum foil .
The vacuum adsorb collect system system collects the scrap in a bin and then will compact the aluminium scrap
into bales.
Product Features：
Use Vacuum Adsorb Collect system , Easier to collect the
Al-foil .
Low Coise , More Greener. Reduce Noise Pollution.
Use Round knife And Flat Cutter To Cut The Materials.
Baler Machine (optional)
Feature:
As a part of production line , scrap collector play an important role in it. Its primary role is to collect the Excess aluminum
foil .
The vacuum adsorb collect system system collects the scrap in a bin and then will compact the aluminium scrap into bales.
As a part of production line , scrap collector play an important role in it. Its primary role is to collect the Excess aluminum
foil .
The vacuum adsorb collect system system collects the scrap in a bin and then will compact the aluminium scrap into bales.

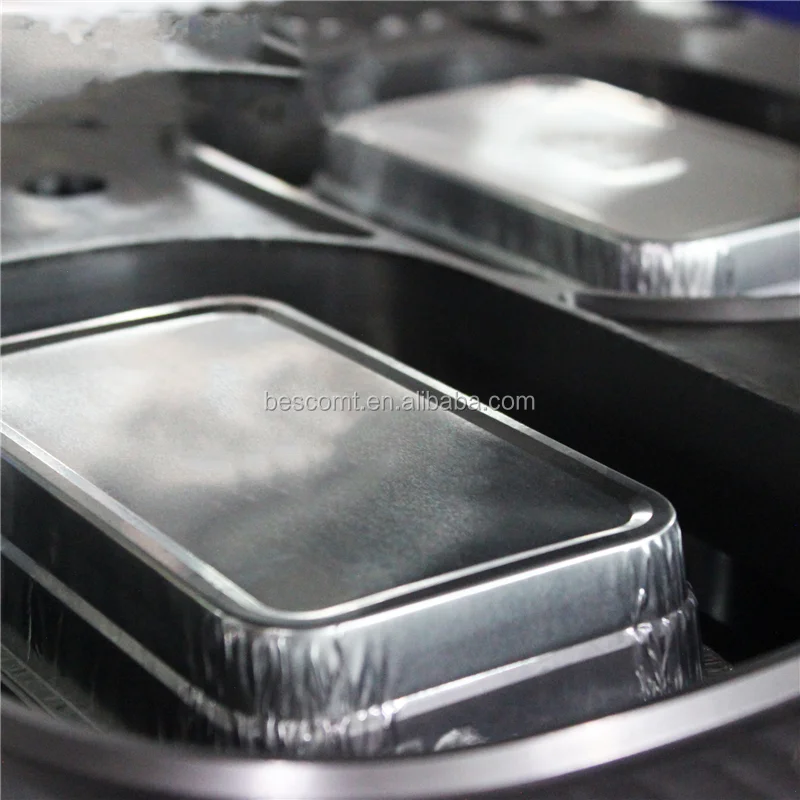

Long Life Container Making Mould
Mold Material:
Mold Carrier And Mold Core DC-53 ,SKD11 etc.
Pruning Wound DC-53 , SKD11 From Japan
Mold Life Time: 20000000 Times
Mold Carrier And Mold Core DC-53 ,SKD11 etc.
Pruning Wound DC-53 , SKD11 From Japan
Mold Life Time: 20000000 Times
In Short, We can Provide You both products And Molds in Best
Quality.
All of our Products And Molds Are 100% Designed And Made in Our
factory.
We Are Confident To Satisfy Our Customers With Best Value Of Mold
Making Workmanship
Quality.
All of our Products And Molds Are 100% Designed And Made in Our
factory.
We Are Confident To Satisfy Our Customers With Best Value Of Mold
Making Workmanship
Company Profile
Besco Machine Tool Limited established at 1997, located at Dongying City, Shandong Province China, is a professional machine manufacturer, and our main product includes press brake, shearing machine, bending machine, power press, hydraulic press, duct manufacture machine and so on.
Our company annual manufacture value is above 80000000 RMB, in which more than 25000000 Yuan are for exporting. Our company has perfect after sales service system, and there are total 14 sales and after sale service agencies in different big cities, 26 technicians special for after sale service and machine maintenance. At oversea market, our company is going to establish departments at European and Middle Asia to enlarge our service area.
All the times we put the machine quality at the first position, focusing on the machine development and update, which keep our company with a fast development speed and getting good reputation from customers. Our long-term cooperation company include: Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company makes satisfying the customers as our target, and we hope to create the best future with old and new customers.
Our company annual manufacture value is above 80000000 RMB, in which more than 25000000 Yuan are for exporting. Our company has perfect after sales service system, and there are total 14 sales and after sale service agencies in different big cities, 26 technicians special for after sale service and machine maintenance. At oversea market, our company is going to establish departments at European and Middle Asia to enlarge our service area.
All the times we put the machine quality at the first position, focusing on the machine development and update, which keep our company with a fast development speed and getting good reputation from customers. Our long-term cooperation company include: Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company makes satisfying the customers as our target, and we hope to create the best future with old and new customers.
Our Customers
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Shandong, China, start from 2014,sell to Eastern Europe(30.00%),Domestic Market(30.00%),Western Europe(10.00%),South America(5.00%),Mid East(5.00%),South Asia(5.00%),North America(2.00%),Africa(2.00%),Oceania(2.00%),Eastern Asia(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%),Southeast Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pneumatic Press,Mechanical Press,Hydraulic Press,Servo Feeder,Punch Mold
4. why should you buy from us not from other suppliers?
Our long-term cooperation company include: Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make satisfy the customers as our target, hope to create the best future with old and new customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2014,sell to Eastern Europe(30.00%),Domestic Market(30.00%),Western Europe(10.00%),South America(5.00%),Mid East(5.00%),South Asia(5.00%),North America(2.00%),Africa(2.00%),Oceania(2.00%),Eastern Asia(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%),Southeast Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pneumatic Press,Mechanical Press,Hydraulic Press,Servo Feeder,Punch Mold
4. why should you buy from us not from other suppliers?
Our long-term cooperation company include: Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make satisfy the customers as our target, hope to create the best future with old and new customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
