Датчик тока с эффектом Холла Acrel открытым контуром сплит-сердечник вход постоянного 0-500 А выход 5 В/4 в источник питания 15
- Категория: Transformers >>>
- Поставщик: Acrel,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.4 $* | 0.31 $* |
| Aug-18-2025 | 0.3 $* | 0.93 $* |
| Jul-18-2025 | 0.12 $* | 0.49 $* |
| Jun-18-2025 | 0.59 $* | 0.52 $* |
| May-18-2025 | 0.90 $* | 0.44 $* |
| Apr-18-2025 | 0.4 $* | 0.16 $* |
| Mar-18-2025 | 0.75 $* | 0.95 $* |
| Feb-18-2025 | 0.12 $* | 0.61 $* |
| Jan-18-2025 | 0.20 $* | 0.70 $* |
Характеристики
Product Description

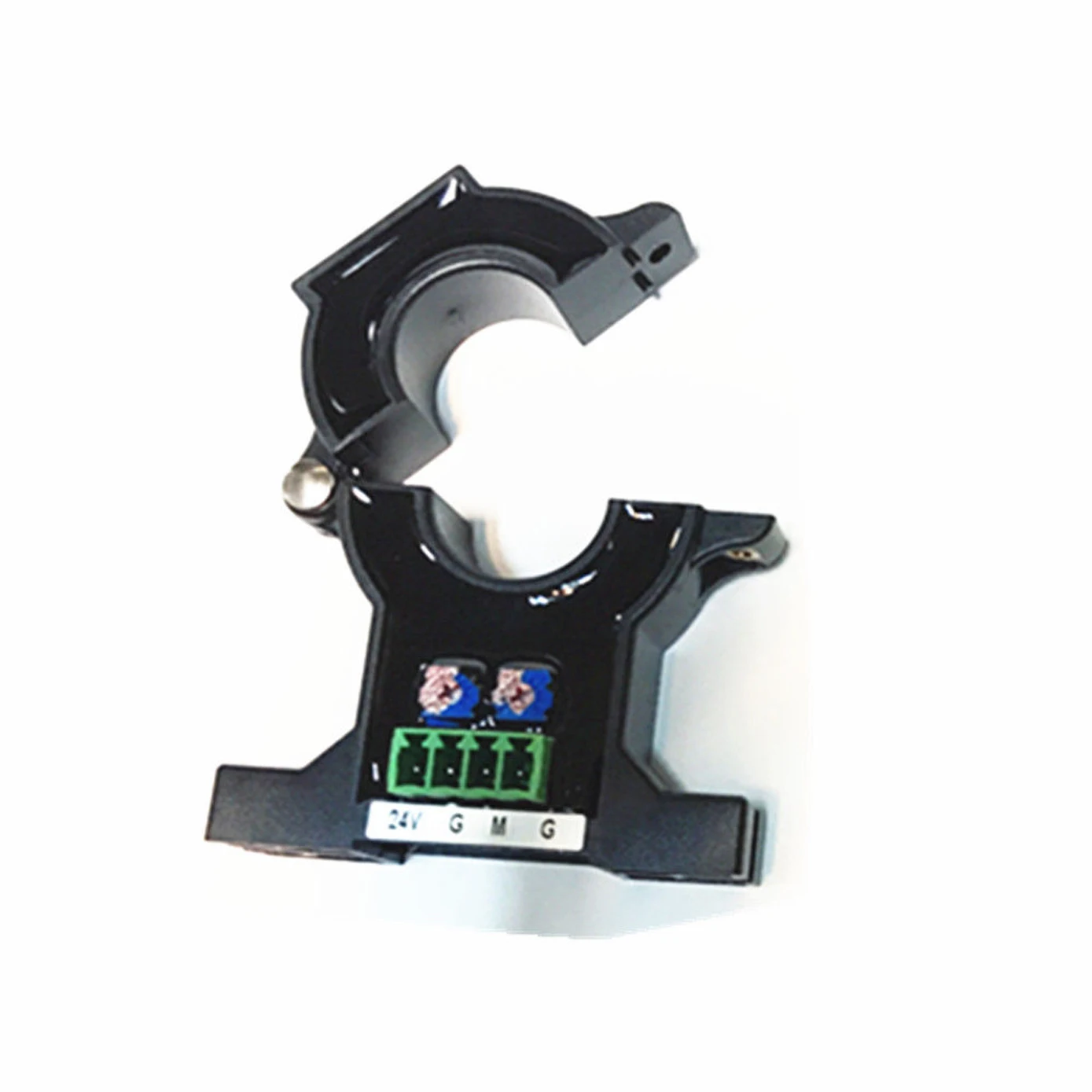

AHKC-EKA split core hall effect current sensor
Hall current sensor is mainly used for isolated conversion of complex signals such as AC, DC and pulse.Through the principle of hall effect, the transformed signal can be directly collected and accepted by AD, DSP, PLC, secondary instrument and other devices.
AHKC-EKA
Rated input current：0~(50-500)A
Rated output voltage：5V/4V
Measuring Aperture：20mm
Power supply：±15V
Warranty：2 Years
Dimension

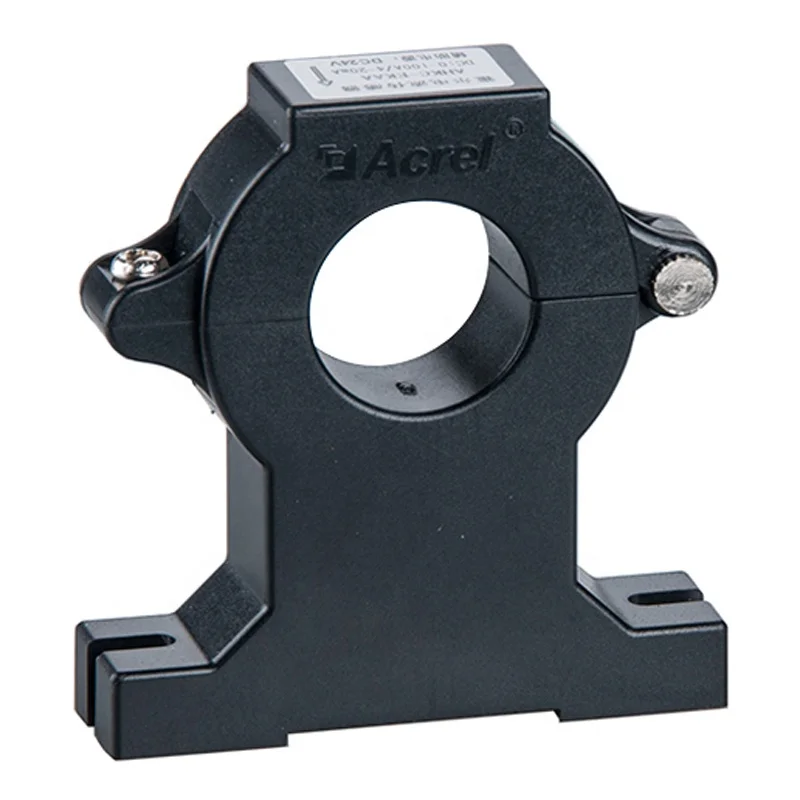

Split core hall effect current sensor
Specification
Parameters | Indicators |
Measuring Aperture | 20mm |
Size / Dimension | 60*64*16mm |
Rated input current | 0~(50-500)A |
Rated output voltage | 5V/4V |
Accuracy | 1.0 |
Power supply | ±15V |
Zero offset voltage | ±20mV |
Offset current drift | ≤±2.0mV/ºC |
Linearity | ≤0.2%FS |
Response time | ≤5us |
Frenquency | 0~20kHz |
Insulation voltage | 2.5kV/50Hz/1min |
Working temperature | -40ºC~85ºC |
Storage temperature | -40ºC~85ºC |
Power consumption | ≤0.5W |

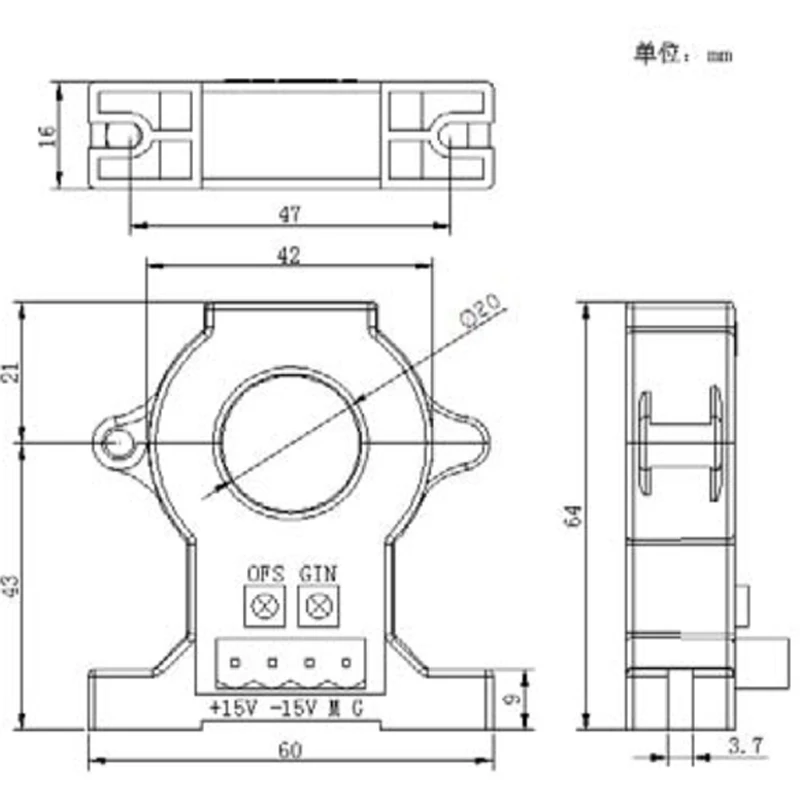

Dimensions

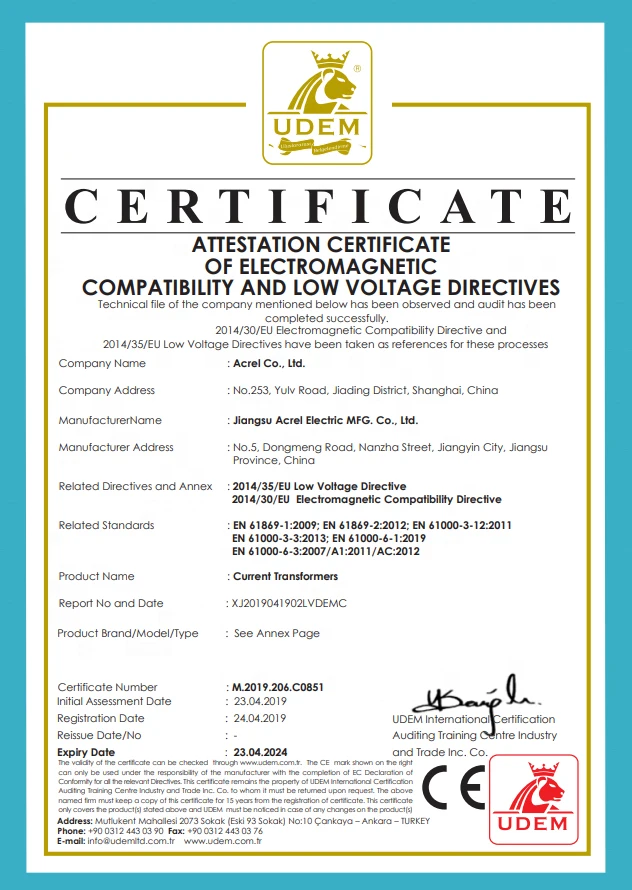

Certificates
Company Profile
FAQ
Q:Where is your company located?
A:Our headquarter is in Shanghai, our factory locates in Jiangyin,Jiangsu Province,China.It takes about 1 hour by car from
Shanghai Hongqiao International Airport to our factory. As it is low labor cost here in Jiangsu,we can offer a better price with high quality.
Q:What’s your lead time?
A:Sample time 1-3days,mass production 10~20days for order more than 500pcs
Q:Payment terms?
A:Usually,TT,credit card,western union,in cash and so on.You can also choose to pay 30% as deposit and the balance before shipment or against copy of B/L if the order is large.
Q:Can other logo be put on your products(OEM)?
A:Yes,but MOQ for OEM will be at least 100pcs.We also need you provide logo Ai Format or EPS.
For more questions, please mail me to elena@acrel.cn or call me +86 18702109693
A:Our headquarter is in Shanghai, our factory locates in Jiangyin,Jiangsu Province,China.It takes about 1 hour by car from
Shanghai Hongqiao International Airport to our factory. As it is low labor cost here in Jiangsu,we can offer a better price with high quality.
Q:What’s your lead time?
A:Sample time 1-3days,mass production 10~20days for order more than 500pcs
Q:Payment terms?
A:Usually,TT,credit card,western union,in cash and so on.You can also choose to pay 30% as deposit and the balance before shipment or against copy of B/L if the order is large.
Q:Can other logo be put on your products(OEM)?
A:Yes,but MOQ for OEM will be at least 100pcs.We also need you provide logo Ai Format or EPS.
For more questions, please mail me to elena@acrel.cn or call me +86 18702109693
