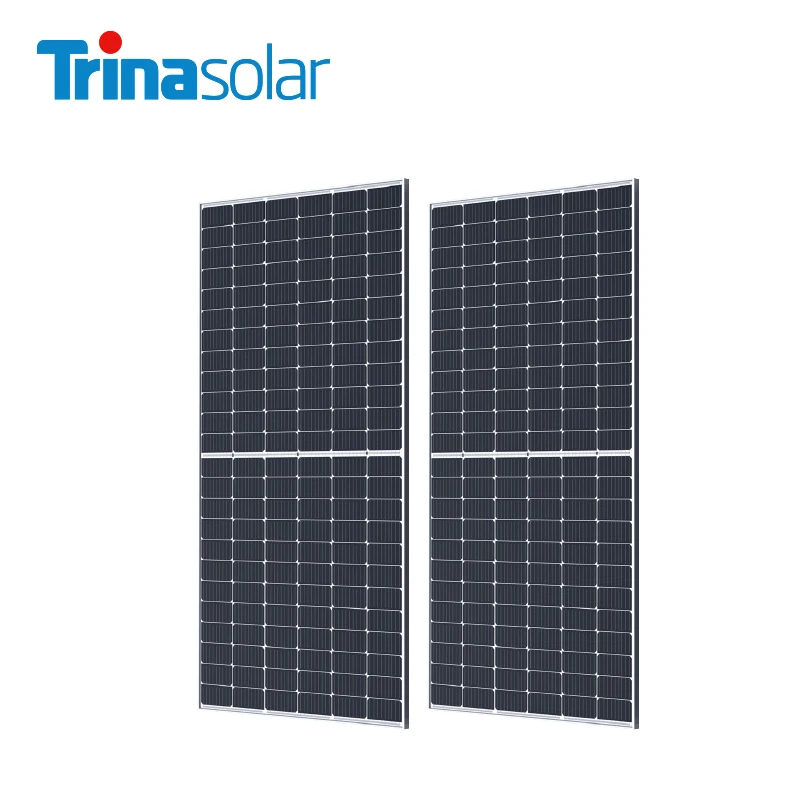

Монокристаллическая солнечная панель Китай 400 Вт 450 500 trina моно etfe от solar limited в наличии
- Категория: Solar Energy Products >>>
- Поставщик: BLUESUN,Outdoor,Energy,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.38 $* | 0.15 $* |
| Aug-17-2025 | 0.83 $* | 0.53 $* |
| Jul-17-2025 | 0.46 $* | 0.22 $* |
| Jun-17-2025 | 0.67 $* | 0.67 $* |
| May-17-2025 | 0.96 $* | 0.44 $* |
| Apr-17-2025 | 0.95 $* | 0.88 $* |
| Mar-17-2025 | 0.46 $* | 0.49 $* |
| Feb-17-2025 | 0.19 $* | 0.84 $* |
| Jan-17-2025 | 0.58 $* | 0.42 $* |
Характеристики
Company Introduction
Bluesun solar provides a variety of high-quality tier 1 branded solar panels to overseas customers, we are committed to offer you the best service
Products Description
Advanced Technology
Multi-busbar technology
Multi-busbar, with the capability to increase light absorption, perfectly matches the large-area cell. Technology integration ,enables solar modules to achieve higher power and power generation capacity per watt.
Non-destructive cutting technology
Non-destructive cutting technology is adopted to achieve the best cell bending strength and section appearance, resulting in the best performance for the minimum cell unit.
High density encapsulation technology
Reduce cell spacing and improve module efficiency by 0.2~0.3%
Product Paramenters
ELECTRICAL DATA (STC) | ||||||||||

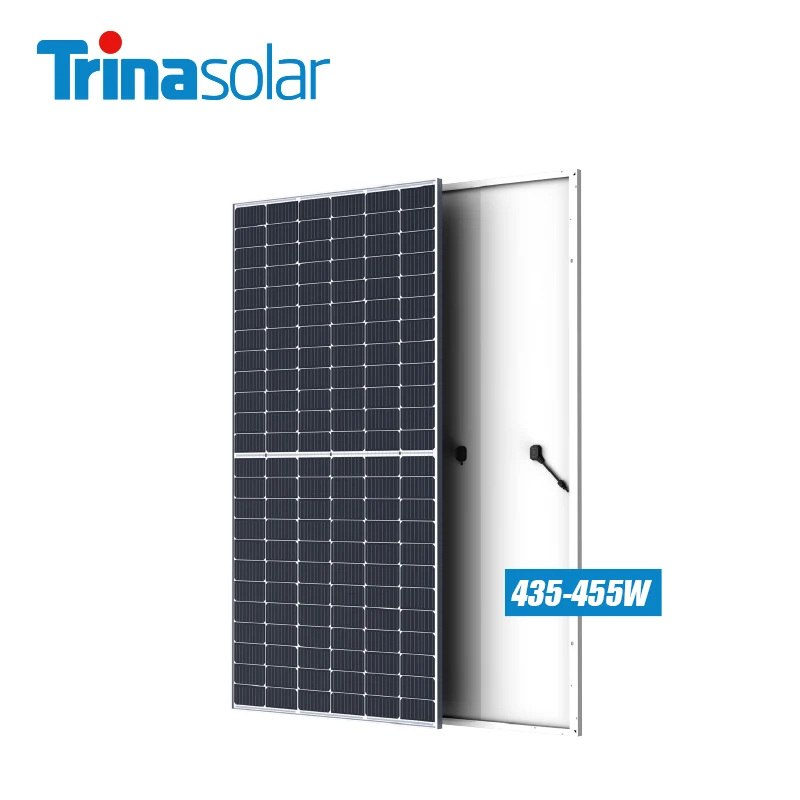

Peak Power Watts-Pm ax (Wp)* | 435 | 440 | 445 | 450 | 455 | |||||
Power Tolerance-PMAx (W) | 0~+5 | |||||||||
Maximum Power Voltage-VMPP (V) | 40.5 | 40.7 | 40.8 | 41.0 | 412 | |||||
Maximum PowerCurrent-lMPP (A) | 10.74 | 10.82 | 10.90 | 10.98 | 11.06 | |||||
Open Circuit Voltage-Voc (V) | 49.0 | 49.2 | 49.4 | 49.6 | 49.8 | |||||
Short Circuit Current-lsc (A) | 1131 | 1139 | 11.46 | 11.53 | 11.61 | |||||
Module Efficiency qm(%) | 19.9 | 20.1 | 20.4 | 20.6 | 20.8 | |||||
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5 | ||||||||||
ELECTRICAL DATA (NMOT) | ||||||||||
Maximum Power-Pm ax (Wp) | 329 | 333 | 336 | 340 | 344 | |||||
Maximum PowerVoltage-VMPp(V) | 38.2 | 38.4 | 38.5 | 38.7 | 38.9 | |||||
Maximum PowerCurrent-lMPP (A) | 8.61 | 8.68 | 8.73 | 8.80 | 8.86 | |||||
Open Circuit Voltage-Voc (V) | 46.3 | 46.4 | 46.6 | 46.8 | 47.0 | |||||
Short Circuit Current-lsc (A) | 9.11 | 9.17 | 923 | 928 | 935 | |||||
NMOT: Irradiance at 800W/m2, AmbientTemperature 2O°C, Wind Speed Im/s. | ||||||||||
Certifications
IEC61215/IEC61730/IEC61701/IEC62716
ISO 9001: Quality Management System
ISO 14001: Environmental Management System
ISO45001: Occupational Health and Safety Management System
ISO 9001: Quality Management System
ISO 14001: Environmental Management System
ISO45001: Occupational Health and Safety Management System

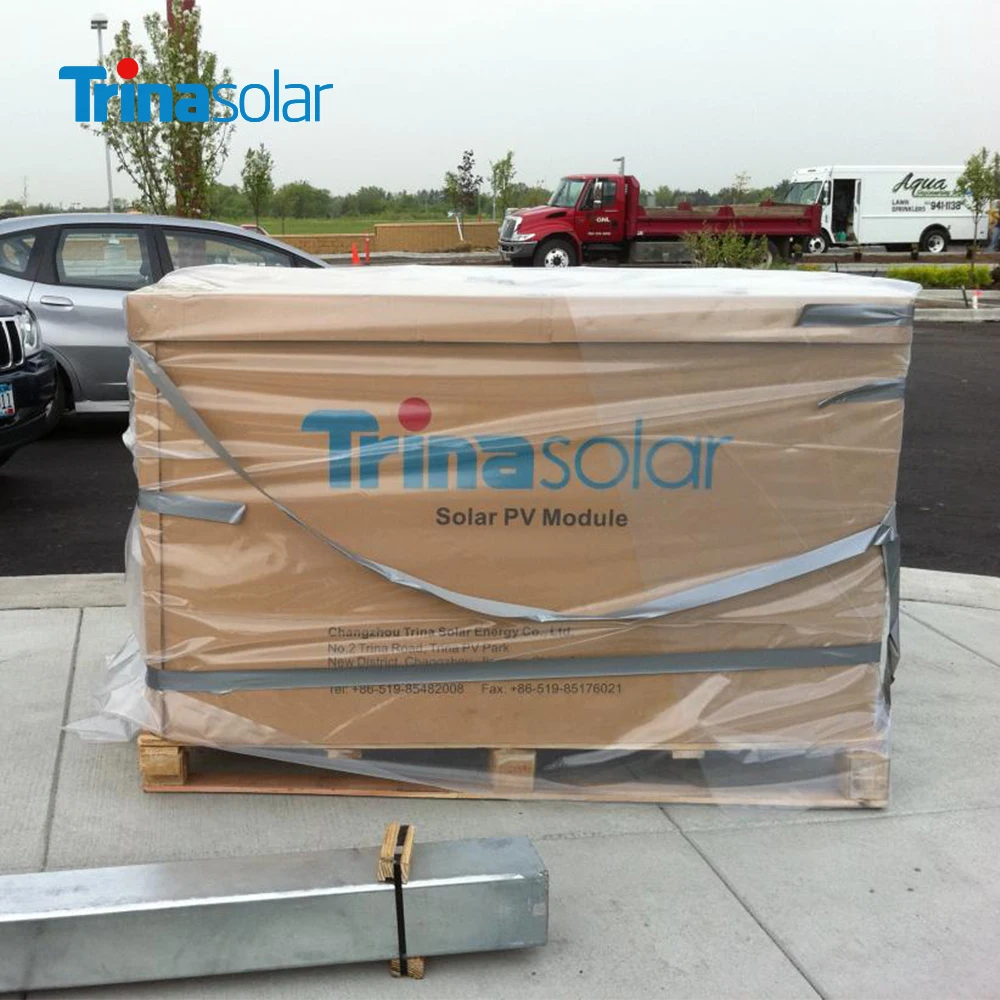

Packing&Delivery
PACKING CONFIGURATION | ||
Module per pallet | 30pcs/pallet | |
Module per 40'HQ container | 660pcs/40hq | |

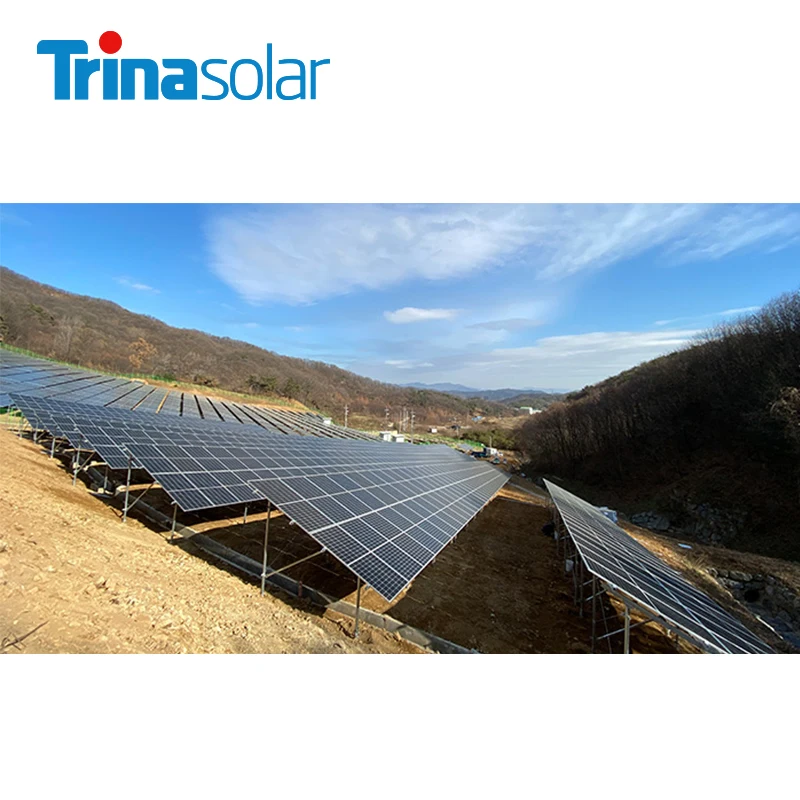

Project
Payment
Payment Term | T/T | EXW | |||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Paypal | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Contact us
