Дорожный дорожный знак Дорожные Знаки маркер дорожная краска
- Категория: Road Marking Machines >>>
- Поставщик: Shenzhen,Nokin,Traffic,Facilities,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1547.51 $* | 1624.43 $* |
| Aug-19-2025 | 1534.66 $* | 1611.72 $* |
| Jul-19-2025 | 1287.33 $* | 1351.41 $* |
| Jun-19-2025 | 1508.62 $* | 1583.45 $* |
| May-19-2025 | 1313.91 $* | 1379.3 $* |
| Apr-19-2025 | 1482.37 $* | 1556.49 $* |
| Mar-19-2025 | 1469.88 $* | 1542.69 $* |
| Feb-19-2025 | 1456.68 $* | 1529.75 $* |
| Jan-19-2025 | 1443.73 $* | 1515.8 $* |
Характеристики
Product Overview
Spraying speed and spraying width are accurate and convenient, performance is stable, quality is excellent, marking line thickness is uniform, edges and corners are even, with low labor intensity, fast and convenient construction.
Product Name: | Road Pavement Mark Traffic Signs Road Marker Road Paint Machine |
Engine: | 6.5hp Zongshen gasoline engine |
Line width range: | 8-25cm |
Maximum working pressure: | 8-16mpa |
Maximum scribing speed: | 130 m / min |
Support nozzle (inch): | 1708 417 517 |
Flow: | 3.8l/m |
Boundary dimension: | 1.12 * 0.79 * 0.95 |
Weight: | 60kg |
Engine: | 6.5hp Zongshen gasoline engine |
Line width range: | 8-25cm |
Maximum working pressure: | 8-16mpa |
Maximum scribing speed: | 130 m / min |
Support nozzle (inch): | 1708 417 517 |
Flow: | 3.8l/m |
Boundary dimension: | 1.12 * 0.79 * 0.95 |
Weight | 70kg |
Engine: | 6.5hp Longxin 170 |
Line width range: | 3-30cm |
Maximum working pressure: | 8-16mpa |
Maximum scribing speed: | 130 m / min |
Support nozzle (inch): | 217 417 517 |
Flow: | 4.2l/m |
Boundary dimension: | 100 * 80 * 90cm |
Weight: | 80kg |
Engine: | 5.5HP |
Dimension: | 1600*800*1200mm |
Weight: | 120kg |
Thickness of spray: | 0.2-0.4mm |
Operation mode: | Hydraulic drive |
Workpressure: | 8-12MPa |
Flowofspray: | 4.8L/min (Single Gun) 8L/min (Double Gun) |
Max Marking Width: | 100-300mm (Single Gun) 100-450mm (Double Gun) |
Plunger Pump: | Electronic commutation (Single Gun) Automatic reciprocating reversion (Double Gun) |
Package: | 1.6CBM, 213KGS, 130*105*116C |
Application
Cold spray marking machine

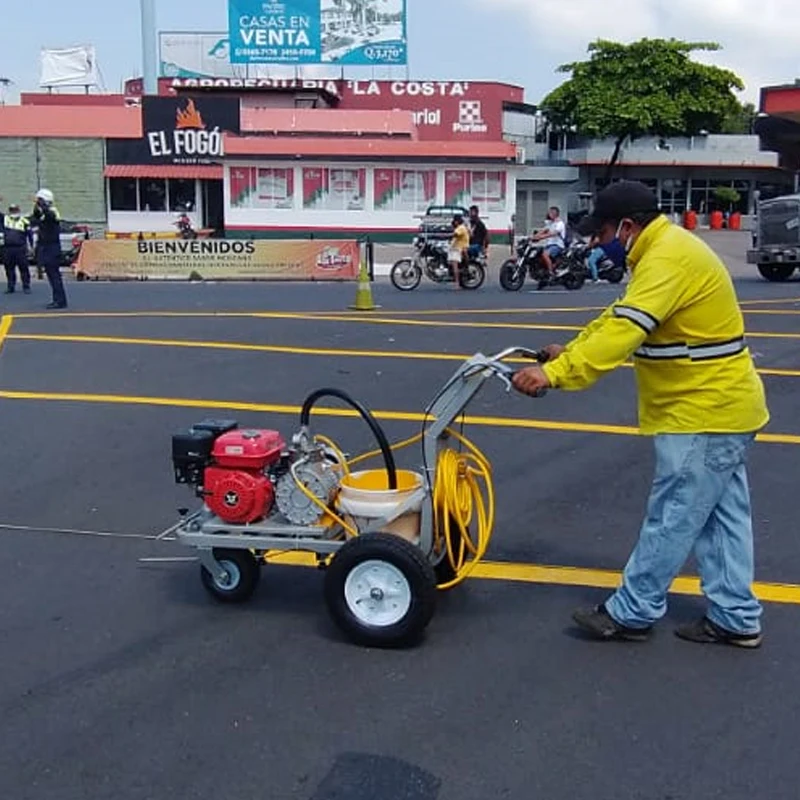

Cold spray marking machine is a special equipment for marking construction at normal temperature. It is mainly used for painting straight line, dotted line, curve, zebra crossing, text, arrow, graphic sign and so on in highway, parking lot, airport, gas station, company factory area, etc.
Products Description
Boost Vehicle, high-end equipment with high construction, high marking quality, high safety and high environmental protection
