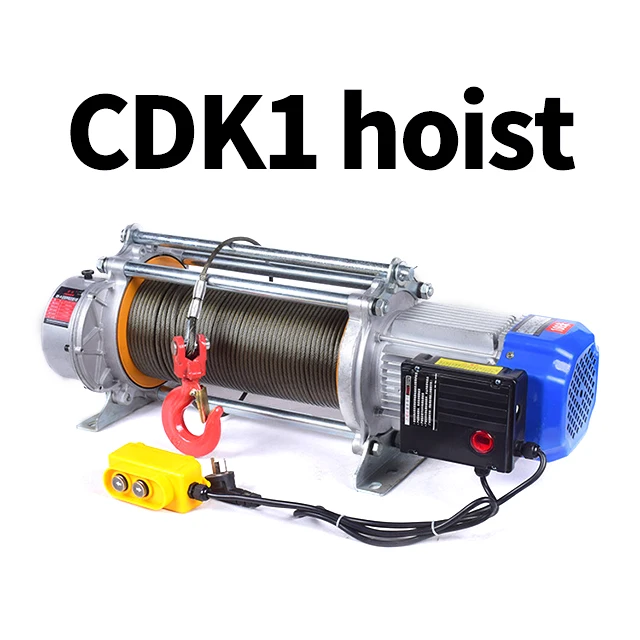

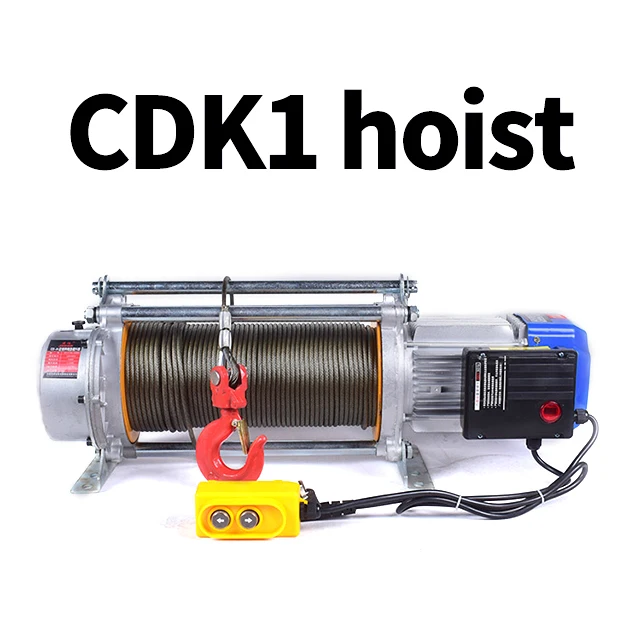

Однофазный Электрический подъемник cdk1 400 кг 800 750 1500
- Категория: Hoists >>>
- Поставщик: Hebei,Huachen,Hoisting,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.29 $* | 0.80 $* |
| Aug-18-2025 | 0.93 $* | 0.9 $* |
| Jul-18-2025 | 0.80 $* | 0.75 $* |
| Jun-18-2025 | 0.29 $* | 0.17 $* |
| May-18-2025 | 0.33 $* | 0.49 $* |
| Apr-18-2025 | 0.49 $* | 0.37 $* |
| Mar-18-2025 | 0.66 $* | 0.93 $* |
| Feb-18-2025 | 0.43 $* | 0.22 $* |
| Jan-18-2025 | 0.40 $* | 0.14 $* |
Характеристики
Product Description

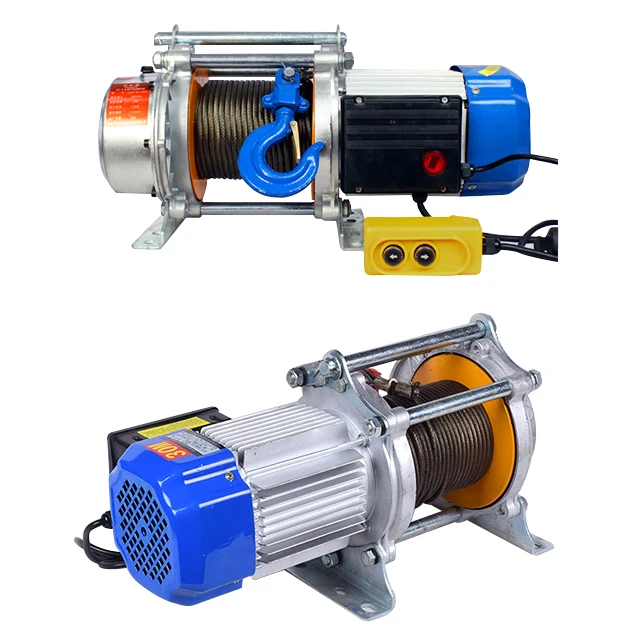

single phase 220V 800kg gear reducer mini electric hoist
Model | Way of use | Capacity (kg) | Lifting speed (m/min) | Lifting height (m) | Voltage (v) | Power (kw) | Dia of cable (mm) | N/W (kg) |
KCD800 | single hook | 400 | 12 | 60 | Single phase 220v,50hz | 2.2 | 6.3 | 40 |
double hook | 800 | 6 | 30 |
Note:
1. We can supply voltage-changing service available.This type the voltage is single phase. Usually it is 220v,50hz.
2. Rope length can be customized
3.Anti-rotation rope to prevent heavy objects from rotating in the air
4. Can lifting material and also can pull goods such as boat
5. We can supply the remote control
Other model of KCD multifunctional mini electric hoist
Model | KCD600 | KCD800 | KCD1000 | KCD1500 | KCD2000 |
Capacity | 300/600kg | 400/800kg | 500/1000kg | 750/1500kg | 1000/2000kg |
Lifting height | 30/15meters 60/30meters | 30/15meters 60/30meters | 30/15meters 60/30meters 100/50meter | 30/15meters 60/30meters 100/50meter | 30/15meters 60/30meters 100/50meter |
Diameter of rope | 5mm | 6.3mm | 6.3mm | 8mm | 11mm |
Lifting speed | 14/7m per min | 14/7m per min | 16/8m per min | 16/8m per min | 16/8m per min |
Voltage | 380v/440v | 240v/110v | 380v/440v | 380v/440v | 380v/440v |
Phase | Three | single | Three | Three | Three |
Motor power | 0.6Kw | 2.2Kw | 1.5Kw | 1.5Kw | 1.5Kw |
Net weight | 30kg 34kg | 34kg 40kg | 46kg 52kg 57kg | 68kg 74kg 87kg | 140kg 150kg 170kg |
Detailed Images
100% pure copper motor
1.more durable
2.More energy efficient
3.More silent
Delicate appearance
1.This machine adopts powder coating treatment,
2. The electric hoist body material is increased and thickened.
3. The safety factor is greatly improved
Powerful cooling fan
1.Good heat dissipation
2. High performance stability
3. Increase productivity by 20%
Anti-rotation wire rope
1.Anti-rotation design, safer
2.Strong bearing capacity and more wear resistance\\
3. 3 times longer life
Large hole oil hole
1.Please add gear oil to the gearbox before use.
2.It is strictly forbidden to add oil, liquid oil
The color of the mini electric hoist can be customized according to your requirements
Other important parts of the mini electric hoist
Application of the electric hoist
Workshop show
Packing & Delivery
1.Check the goods
2.Check the sign
3.Packing
Wooden carton
