Недорогой режущий плоттер 720 высокоточные
- Категория: Graph Plotter >>>
- Поставщик: Shanghai,Lingyi,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.26 $* | 0.55 $* |
| Aug-17-2025 | 0.8 $* | 0.13 $* |
| Jul-17-2025 | 0.74 $* | 0.65 $* |
| Jun-17-2025 | 0.50 $* | 0.1 $* |
| May-17-2025 | 0.68 $* | 0.68 $* |
| Apr-17-2025 | 0.68 $* | 0.0 $* |
| Mar-17-2025 | 0.4 $* | 0.14 $* |
| Feb-17-2025 | 0.93 $* | 0.94 $* |
| Jan-17-2025 | 0.2 $* | 0.2 $* |
Характеристики

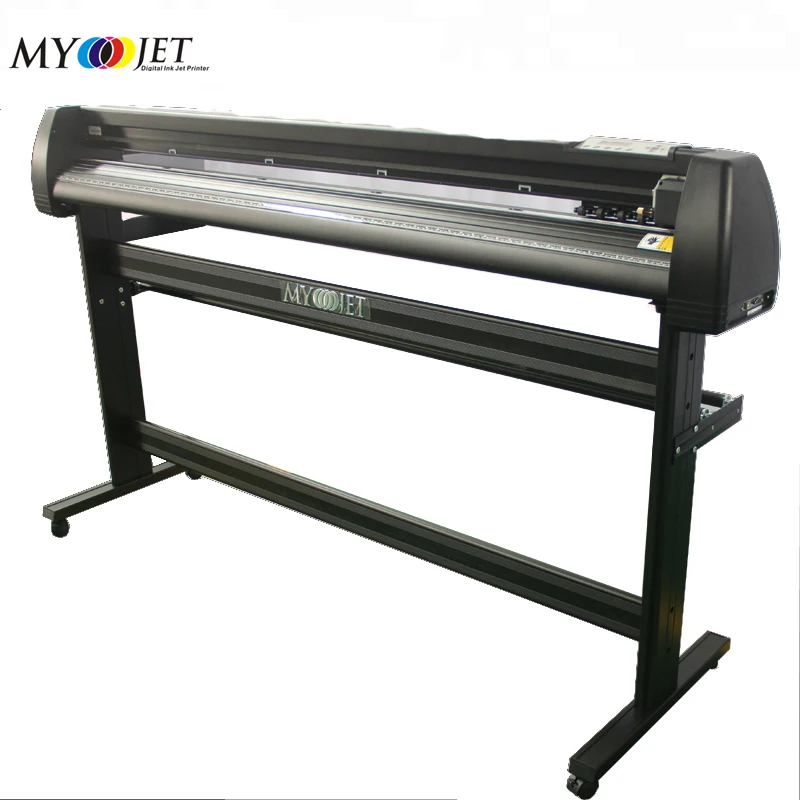

2019 High precision multi-function 721 vinyl cutting plotter for germany market
Product details
| Model | MJ-721XE |
| Max Paper Width | 720mm |
| Max Plotting Width | 630mm |
| Max Cutting Speed | 800mm/s |
| Max Plotting Force | 500g |
| Buffer | 1M (4M Optional) |
| Software | Anycut semi-auto, Flexistarter12, Artcut (purchase optional) |
| Power Supply | Switch power supply |
| Carriage | Single cutter position carriage( laser eye optional) |

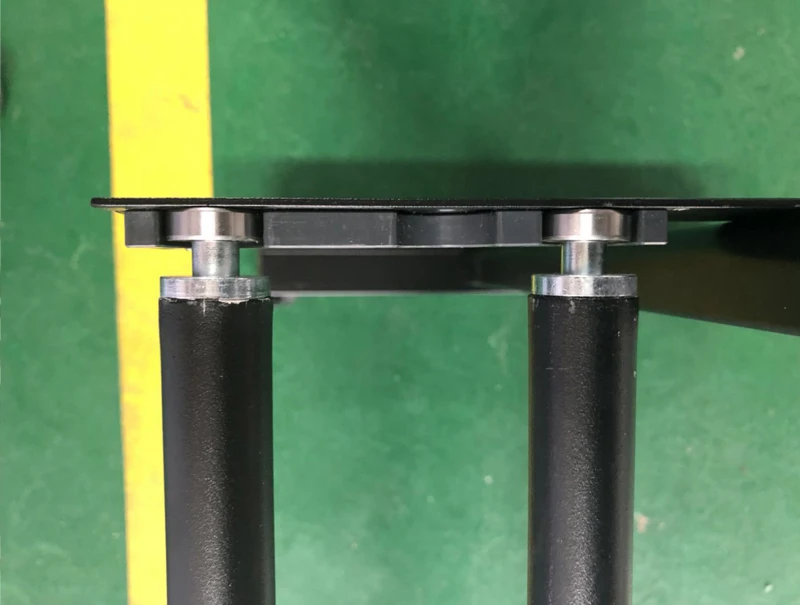

| Stand | Aluminum stand |
| Common Set | DMPL&HPGL |
| LCD | Yes |
| Working Voltage | AC90V~240V |
| Gross Weight | 18kg |
| Packing Dimension | 95*34*42cm |
Main Component Introduction:
Feature:
1.Characteristic design, real-time adjusting of cutting force and plotting speed;

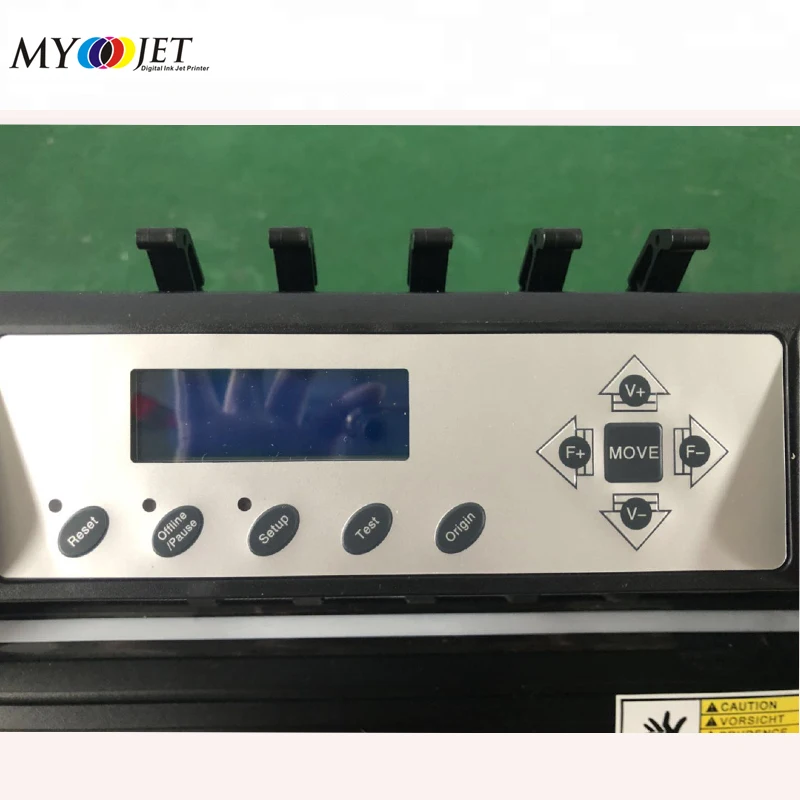

2.Original blue screen LED offers visual display;
3.Laser positioning carriage as an option, provides contour cutting function.;
4.USB 2.0 and RS-232C standard interface ;
5.Adopting global command set, which is compatible with the major popular plotting software;
6.Unique blade soft landing function attribute to various material cutting and extending the service life of blade;
7.Compatible operating system :Windows XP, Windows Vista, Windows7/8 (32bit & 64bit),MAC.
Application:
MYJET Cutting Plotter Machine is suitable for cutting All adhesive stickers.
Applied to: packaging proofing, clothing plate, making car beautiful industry, making signs for shop windows, cars and vans, cutting labels, heat pressing logos and slogans onto T-shirts.
Suitable materials: vinyl adhesive sticker, craft paper, sandblast membrane, wallpaper, heat transfer film, PET, PP, PVC, PC, etc.(MAX. THICKNESS: LESS THAN 1MM)
Packaging & Shipping
Company Information

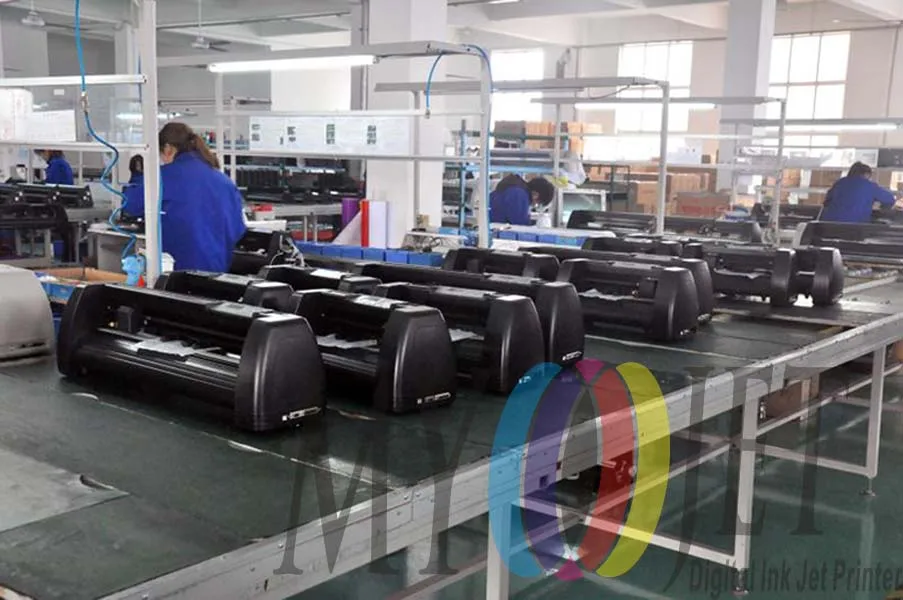

Shanghai Lingyi International Trading Co., Ltd.
Developed from Kanger Image Equipment Co., Ltd, a senior marketing company of Chinese advertising industry, Shanghai Lingyi International Trading Co. Ltd successively cooperating with British XAAR, Japanese Konica and American FUJI FILM DIMATIX. We have formed a strong strategic cooperation alliance, and keep on introducing and developing advanced inkjet technology and producing idea, has become the leader in advertising industry quickly.
Till now, Lingyi has created 3 series brands, MYJET, DIE CAI and SAI DI. And we have built the first-level distribution network in more than 20 regions of China and 40 countries of the world. We took the lead in passing ISO9001 and CE authentication by professional and authorized institutions, which laid a strong foundation for the 20 years global stratagems of Lingyi.
MYJET digital ink jet printer has won very good praise from the public. It is recognized to be the most stable and famous brand of digital ink jet printers which satisfied each customer with the best quality, most considerate service, completed approaches and fastest-rising. On the American ISA Exhibition, Shanghai International Sign Show, European Sign Show and Dubai Sign Graphic Imaging Show, MYJET is the focus once its printers are shown to the public. The excellent quality and great power of Huangjian technology were performed with great passion.
Lingyi will continue to adopt advanced technology all over the world in inkjet printing industry. Nearly 100 employees supply a full range of solvent-based inkjet printer R&D, production, sales, service, technical support worldwide each day for our customers.
Lingyi - decides to build Chinese top-level products! MYJET- print superb images for the visual world!
FAQ
1. Why the letter deforms or incompletes?
A. Blade tip too long, cutting force too high, the plate too dirty (left sticker residue), or sticker too
soft.
B. Software setting is incorrect. (For example, tool compensation function is open and the value is
too high).
C. Metal roller screw or motor gear loose; metal roller or carriage can't move along the motor and
cause deformation.
D. Letter is only incomplete, usually is the close compensation value too low.
2. Why machine draw abnormally?
A. Software setting improperly; select correct command set in plotter type (select DMPL / HPGL command set); If the file format is a little large, and need to open tool compensation, you need
to tick the delay output selection for 10 milliseconds.
B. File been interrupted while signal transmitting.
C. Plotter software is damaged or virus in the computer.
D. Wireless station or other power tool nearby will cause interference (parallel transmission is
sensitive to this interference, we recommend to use serial port to transmit).
E. Adopt unsuitable voltage-stabilized source, like household breaker type regulated power
supply, it will generate severs interference in relay on-off moment, bring error to communication
data.
F. Chips on the motherboard are damaged (WS628128LLPG, MAX232CPE, STC90C52RC,
ATF16V8B).
3. Why machine run out of position?
A. Vinyl do not place in position: if 60cm width vinyl deviates 0.6mm, every 5 meters it will have a 5mm deviation.
B. Too dirty the plate and left a vinyl residue, the friction is uneven on each side of the plotter, it finally results in deviation.
C. Pinch roller pressure is a little low, vinyl is easy to deviate by an external force.
D. Uneven pressure among the left and right pinch roller. 5, Motor miss-step causes deviation.
E. Chip A4975SBT overheat results in miss-step.
4. Why motor run miss-step?
A. Material is a thick and high strength, the plotter motor power is not strong enough to drive it.
B. Control driver IC chip is abnormal and causes motor miss-step.
C. Knurling is dirty or left grease film on the surface which causes a small friction coefficient between material and metal roller finally result in miss-step.
5. Why machine cut irregularly, somewhere is off the backing layer, but somewhere is still
not cut?
A. Strip has been carved to a groove, or a new strip is uneven and forms a slope.
B. Guide rail parallelism is indifference.
C. The protruding length of the blade tip is incorrect. The right way: adjust the tip length to 2/3 of vinyl thickness, make sure not to cut the backing layer with big pressure, then lower the pressure to ensure all areas will be cut well.
6. Want to recut the pattern one more time, but when startup the repeat function, vinyl
move forward a letter length?
Reason: Cancel automatic feed function, it can start at the previous place.
7. Why some letter cut indistinct and the corner is messy?
A. Blade tip extends too long.
B. There is an impurity in the blade holder, blade can't rotate flexible in the holder, messy corner will appear.
C. Tool compensation too high in Artcut software.
8. Why 3 indicator light on the control panel bright persistently?
A. Chips on motherboard WS628128LLPG, STC90C52RC, ATF16V8B broken.
B. CQ24.000 crystal oscillator is broken.
C. A4975SBT drive chip broken.
9. Why the carriage bracket does not lift when turns on the power?
A. TIP122 audion,TIP127 audion, LM324N/TL084CN audion broken.
B. Circuit between carriage and motherboard do not work.
C. Carriage wire damaged.
10. When turn on the power, 3 light on the control panel do not flash, only the bottom fan work?
Reason: 5V power does not input, wire may be damaged.
11. When starting the machine, the LCD is light up but no letters show?
Reason: ATF16V8B, SN74LS245N, STC90C52RC, CQ24.000, or wire between LCD and motherboard maybe broken.
12. When turning on the power, the carriage does not reset, or the carriage/metal roller moves with unusual noise.
A. A4975SBT or SN74HC374N chip
B. X axis or Y axis motor breakdown.
13. When turning on the power, the bottom fan does not work and the machine does not act?
Reason: check the fuse first, if it is ok, that maybe result from power supply failure.
