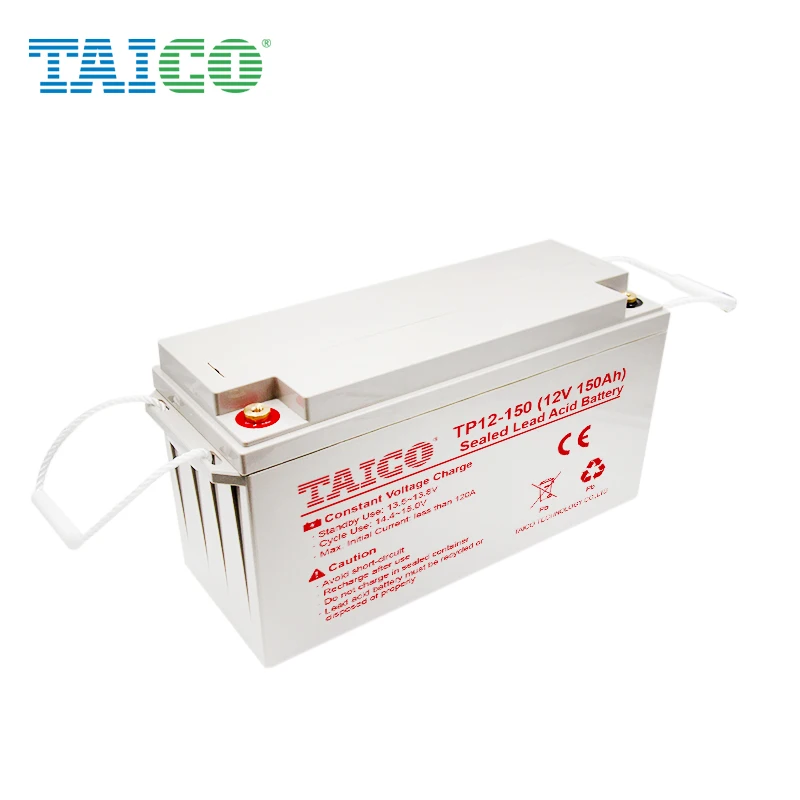

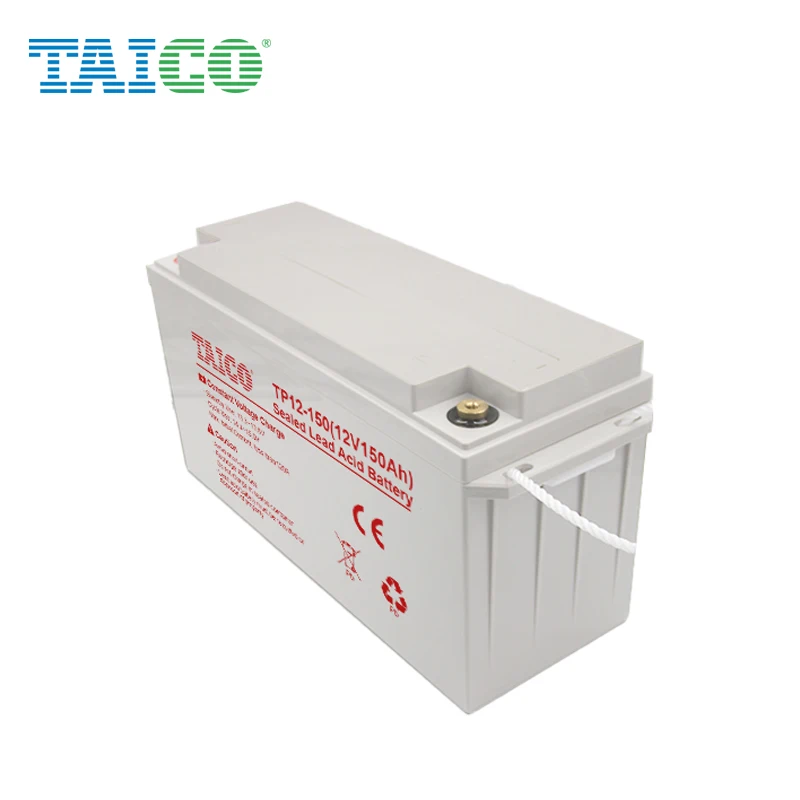

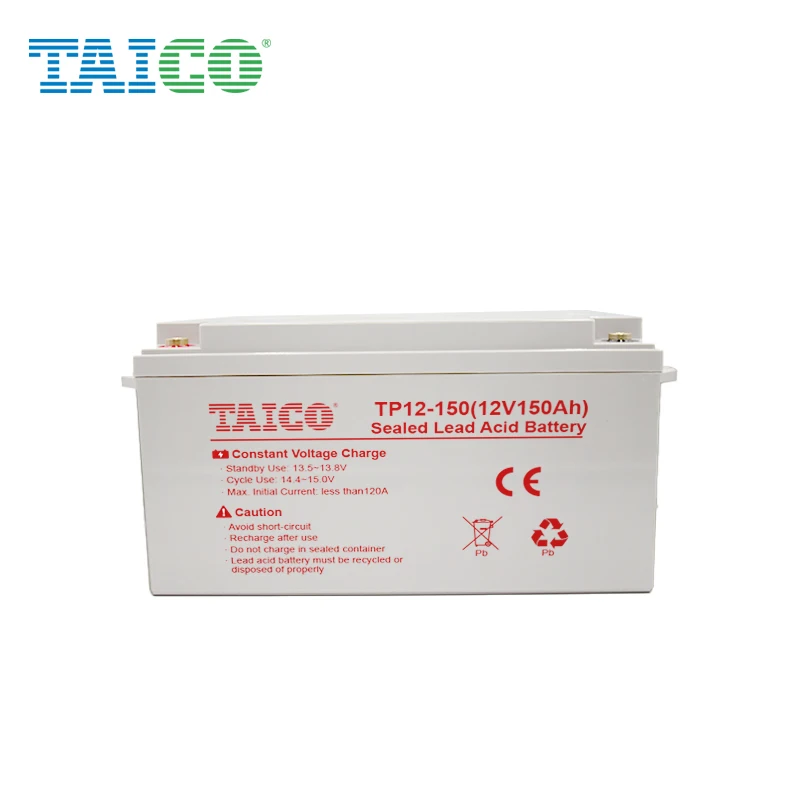

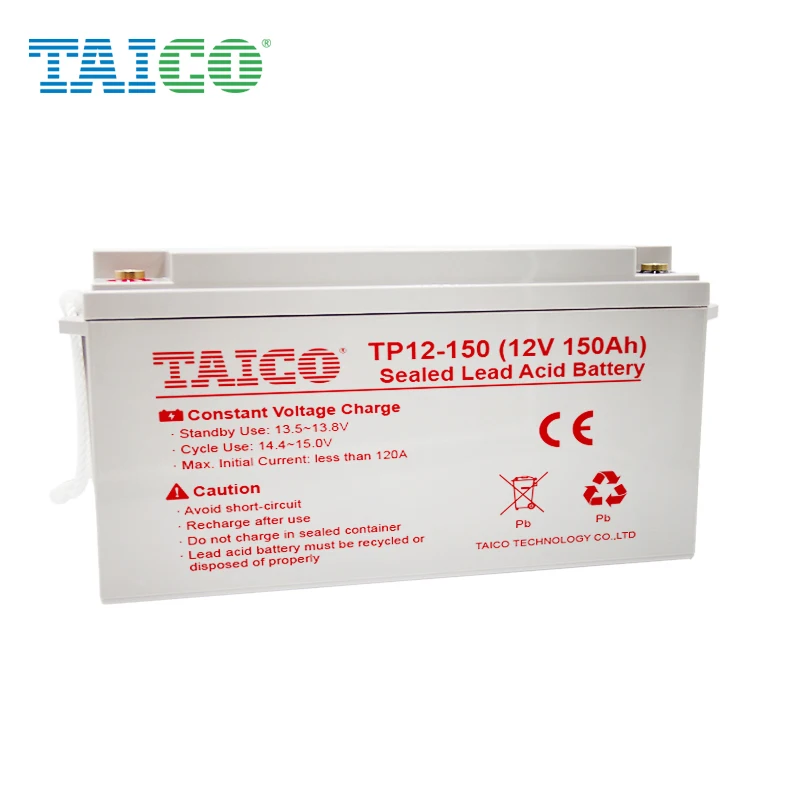

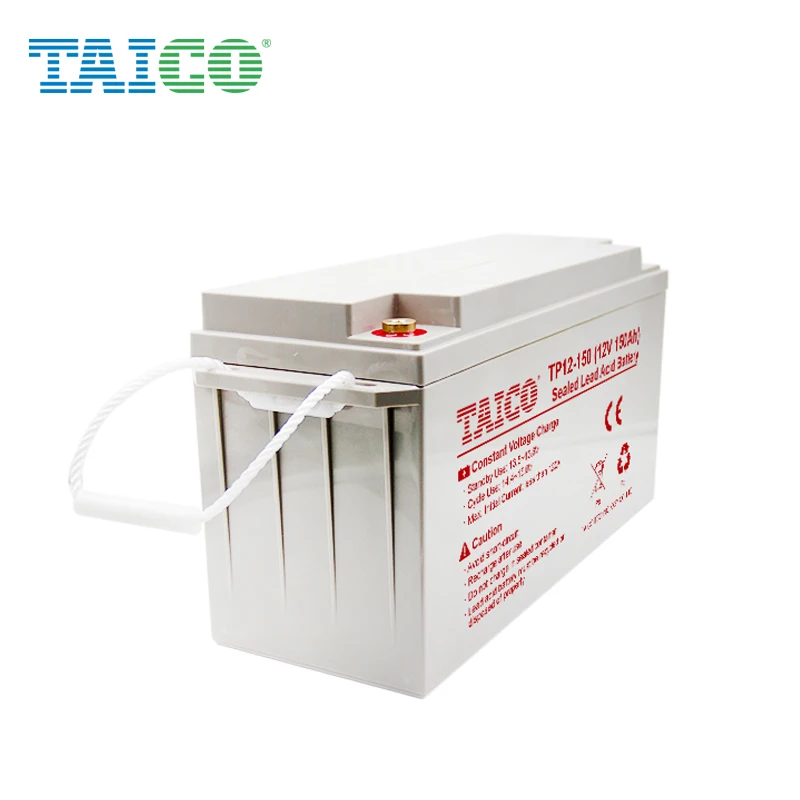

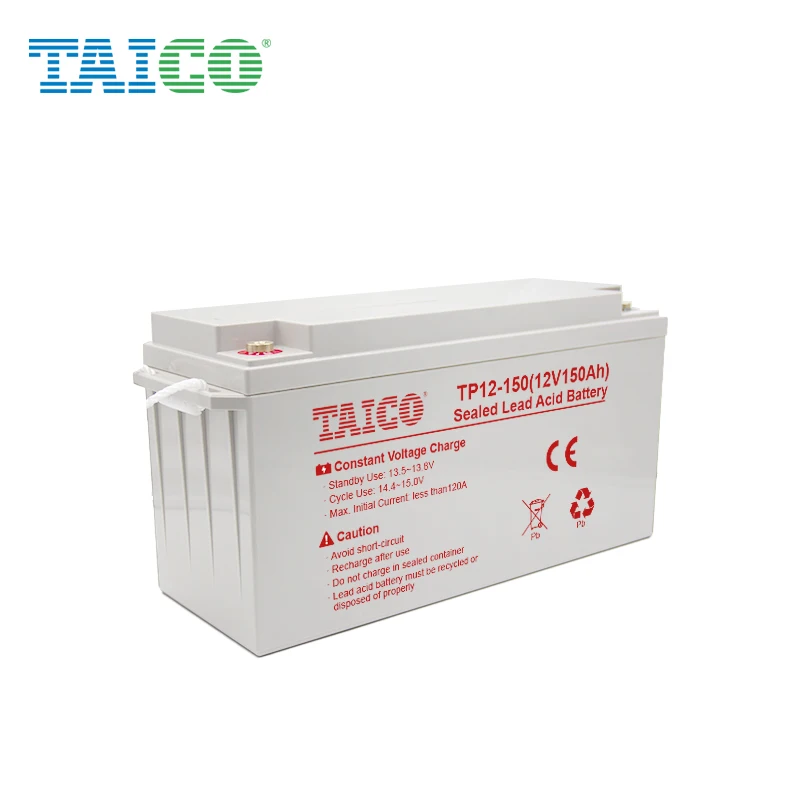

Аккумуляторная батарея глубокого цикла 12 В 150 Ач гелевая свинцово-кислотные
- Категория: >>>
- Поставщик: Shenzhen,Taico,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 169.97 $* | 172.14 $* |
| Jul-16-2025 | 137.45 $* | 140.39 $* |
| Jun-16-2025 | 166.40 $* | 169.35 $* |
| May-16-2025 | 165.51 $* | 168.39 $* |
| Apr-16-2025 | 132.50 $* | 135.71 $* |
| Mar-16-2025 | 162.0 $* | 165.43 $* |
| Feb-16-2025 | 161.24 $* | 164.70 $* |
| Jan-16-2025 | 160.74 $* | 163.27 $* |
Характеристики
Customized Capacity and Voltage
Model | TP12-150 |
Cells Per Unit | 6 |
Voltage Per Unit | 12V |
Capacity | 150Ah@20hr-rate |
Weight | Approx. 41.5Kg (Tolerance±1.5%) |
Internal Resistance | Approx. 5.2 mΩ |
Terminal | F16(M8)/F10(M8) |
Design Life | 15 years (floating charge) |
Maximum Charging Current | 30A |
Float Charging Voltage | 13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell |
Cycle Use Voltage | 14.2 V~14.4 V @ 25℃ Temperature Compensation: -4mV/℃/Cell |
Operating Temperature Range | Discharge: -40℃~60℃ Charge: -20℃~50℃ Storage: -40℃~60℃ |
Normal Operating Temperature Range | 25℃±5℃ |
Self Discharge | Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charged batteries before using. |
Container Material | A.B.S |
Scope of application
product detailed information
Packing & Delivery
support custom shell size and capacitor size, please consult customer service staff
MoDEL | VOLT | CAPACITY | WEIGHT | SIZE |
TP12-1.3 | 12V | 1.3Ah | 570g | 97*43*56mm |
TP12-4.5 | 12V | 4.5Ah | 1.45Kg | 90*70*106mm |
TP12-7 | 12V | 7Ah | 2.15Kg | 151*65*99mm |
TP12-12 | 12V | 12Ah | 3.15Kg | 151*98*99mm |
TP12-17 | 12V | 17Ah | 5.2Kg | 181*76*166mm |
TP12-20 | 12V | 20Ah | 5.48Kg | 181*76*166mm |
TP12-24 | 12V | 24Ah | 8Kg | 165*125*175mm |
TP12-33 | 12V | 33Ah | 10.2Kg | 195*130*181mm |
TP12-38 | 12V | 438Ah | 12.2Kg | 196*165*182mm |
TP12-40 | 12V | 40Ah | 12.5Kg | 196*165*182mm |
TP12-50 | 12V | 50Ah | 17.2Kg | 330*172*178mm |
TP12-55 | 12V | 55Ah | 18.3Kg | 348*168*178mm |
TP12-60 | 12V | 60Ah | 19Kg | 348*168*178mm |
TP12-65 | 12V | 65Ah | 20.5Kg | 348*168*178mm |
TP12-70 | 12V | 70Ah | 21.5Kg | 260*168*227mm |
TP12-100 | 12V | 100Ah | 29.3Kg | 329*172*243mm |
TP12-120 | 12V | 120Ah | 34Kg | 406*172*232mm |
TP12-150 | 12V | 150Ah | 41.5Kg | 483*170*240mm |
TP12-200 | 12V | 4.5Ah | 59.5Kg | 522*240*244mm |
TP12-250 | 12V | 120Ah | 73.5Kg | 520*269*249mm |
