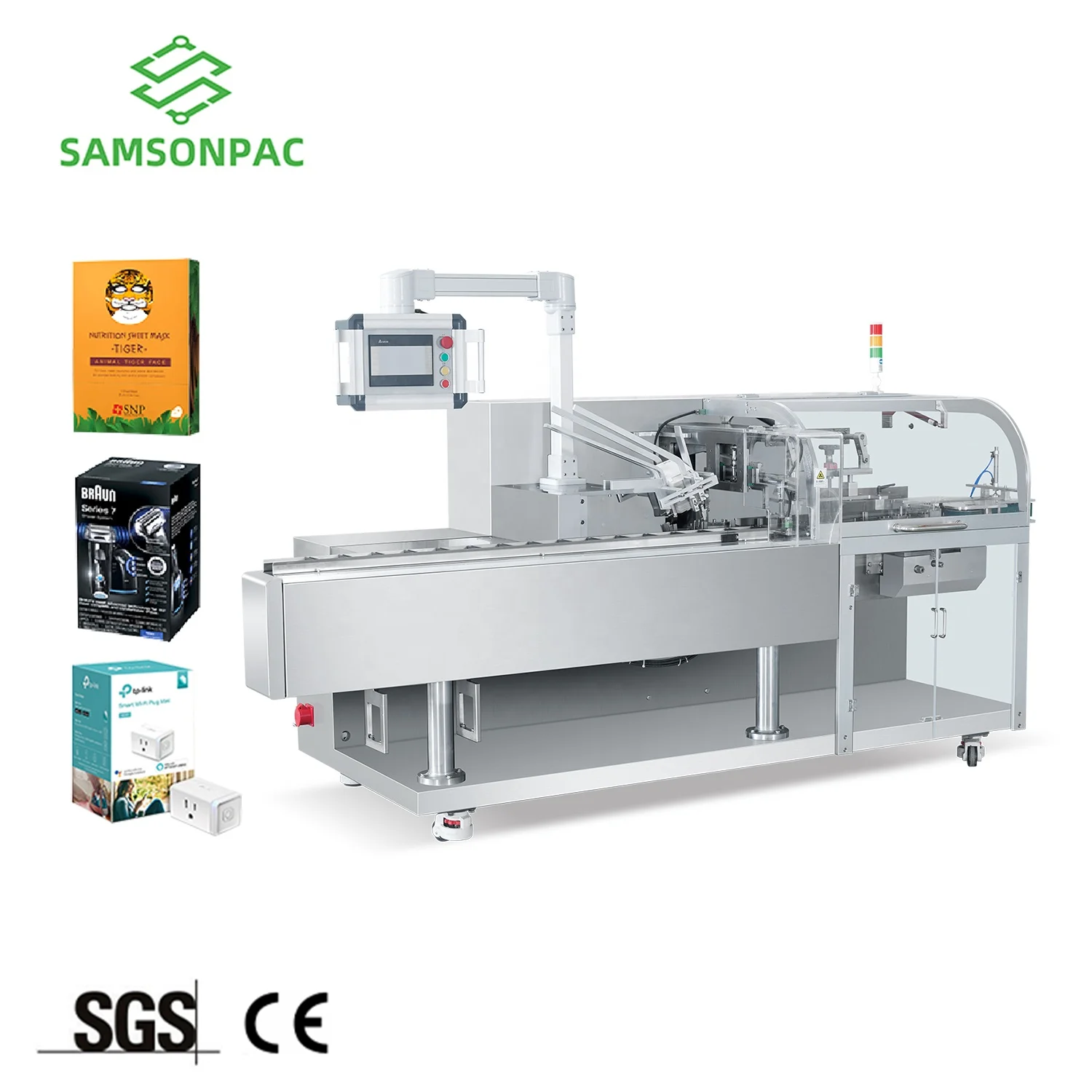

Автоматическая машина для упаковки гофрированного картона маленькая вертикальная упаковочная
- Категория: Packaging Line >>>
- Поставщик: Foshan,Senxun,Packing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.92 $* | 0.72 $* |
| Aug-16-2025 | 0.18 $* | 0.9 $* |
| Jul-16-2025 | 0.57 $* | 0.6 $* |
| Jun-16-2025 | 0.13 $* | 0.59 $* |
| May-16-2025 | 0.6 $* | 0.34 $* |
| Apr-16-2025 | 0.25 $* | 0.42 $* |
| Mar-16-2025 | 0.41 $* | 0.90 $* |
| Feb-16-2025 | 0.37 $* | 0.34 $* |
| Jan-16-2025 | 0.86 $* | 0.28 $* |
Характеристики
Product Description

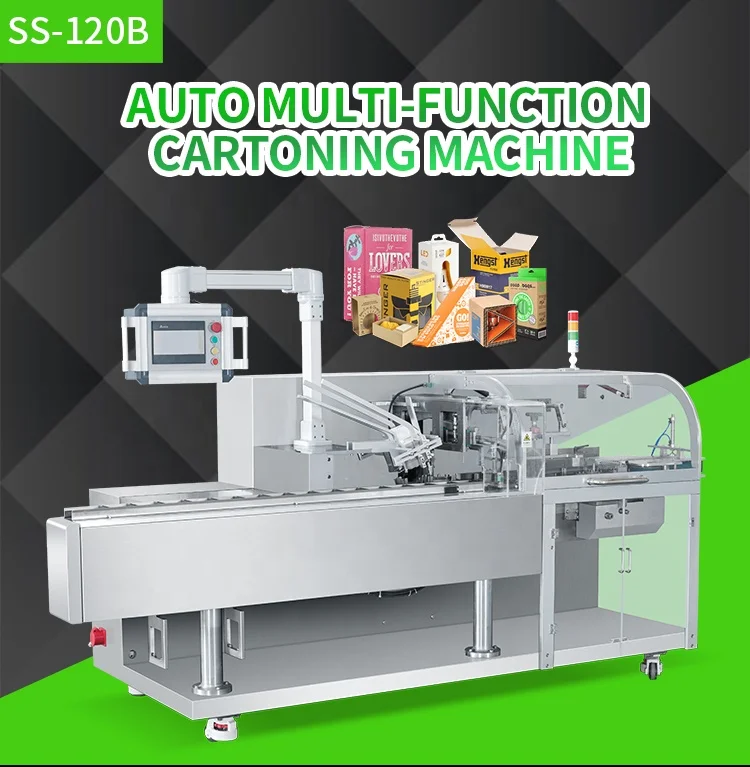

| Style No. | SS-120A | SS-120B | SS-120C | SS-120F | SS-130A | SS-130B |
| Production Capacity (boxes/min) | 15-100 | 15-80 | 10-100 | 15-80 | 10-70 | 10-50 |
| Box Maximum Size (L*W*H, mm) | 220x90x60 | 220x120x60 | 220x120x60 | 220x120x60 | 220x145x100 | 220x165x100 |
| Box Minimum Size (L*W*H, mm) | 70x20x20 | 70x20x20 | 50x25x15 | 50x20x15 | 100x80x20 | 100x80x20 |
| Packaging Materials | 300-400 | 300-400 | 250-400 | 300-400 | 250-300 | 250-300 |
| Air Consumption (m³/h) | 20 | 20 | 20 | 20 | 20 | 20 |
| Total Power (Kw) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Power Supply | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz |
| Overall Size (L*W*H, mm) | 2600L 1350W 1650H | 2600L 1350W 1650H | 3200L 1200W 1700H | 2500L 1350W 1650H | 2800L 1550W 1650H | 2800L 1550W 1650H |
| Weight (Kg) | 1200 | 1250 | 1300 | 1350 | 1300 | 1300 |
| Style No. | SS-130C | SS-130F | SS-180 | SS-200 | SS-60L | SS-M |
| Production Capacity (boxes/min) | 10-50 | 20-60 | 10-60 | 30-200 | 20-60 | 20-60 |
| Box Maximum Size (L*W*H, mm) | 220x165x100 | 220x165x100 | 300x300x260 | 200x80x70 | 250x250x110 | 250x250x110 |
| Box Minimum Size (L*W*H, mm) | 100x80x20 | 100x80x20 | 100x80x20 | 65x25x18 | 105x70x25 | 105x70x25 |
| Packaging Materials | 250-300 | 300-400 | 300-400 | 250-300 | 300-400 | 300-400 |
| Air Consumption (m³/h) | 20 | 20 | 20 | 20 | 120-200NL/h | 120-200NL/h |
| Total Power (Kw) | 1.5 | 1.5 | 1.5 | 4.1 | 3 | 3 |
| Power Supply | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz | AC380V Three phase four wire/220V 50Hz |
| Overall Size (L*W*H, mm) | 3300L 1350W 1700H | 2800L 1550W 1650H | 2800L 1550W 1650H | 4500L 1500W 1700L | 4200L 1400W 1650H | 4200L 1400W 1650H |
| Weight (Kg) | 1450 | 1300 | 1300 | 5300 | 1450 | 1450 |
| Remark: Any other customized sizes request, please contact us | ||||||
Company Information
FAQ
Q: Can you provide the installation videos?
A: Yes, we will provide.
Q: What's the production time?
A: 7-15days, it depends on your customized requirements.
Q: How long is your warranty?
A: One year of the machine, wearing parts not included.
Q: Can your company do customized machine?
A: Yes we can. We have 3 experienced engineers to support customized designs.
Q: How about your after-sales services?
A: We offer online instructions or onsite if needed.
