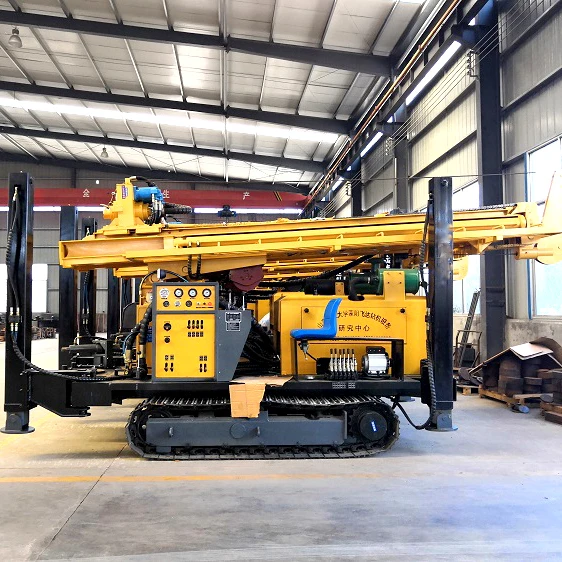

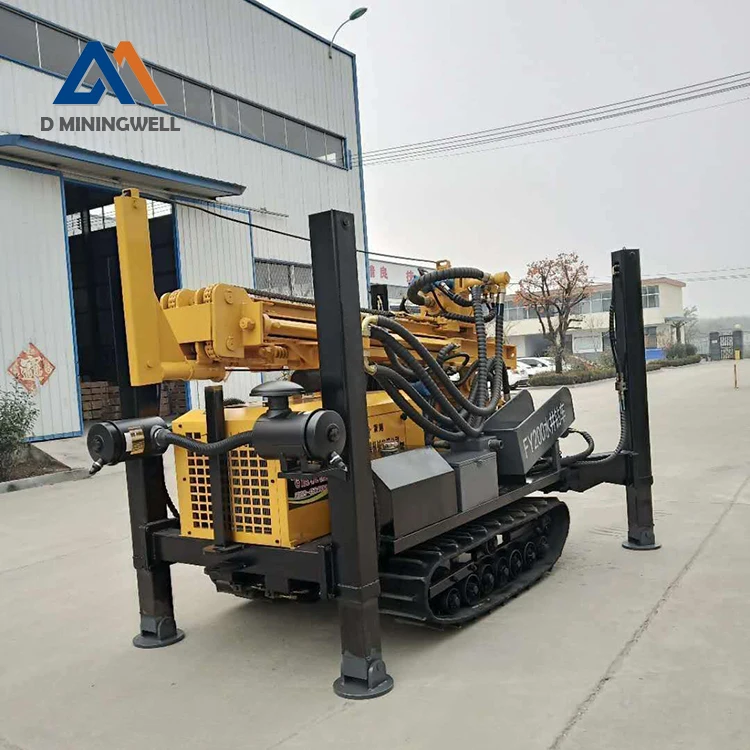

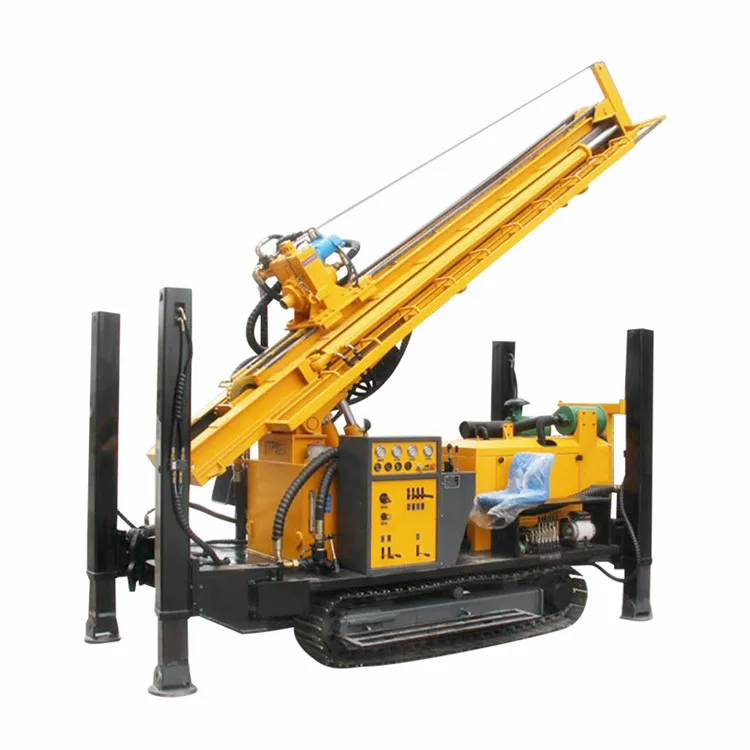

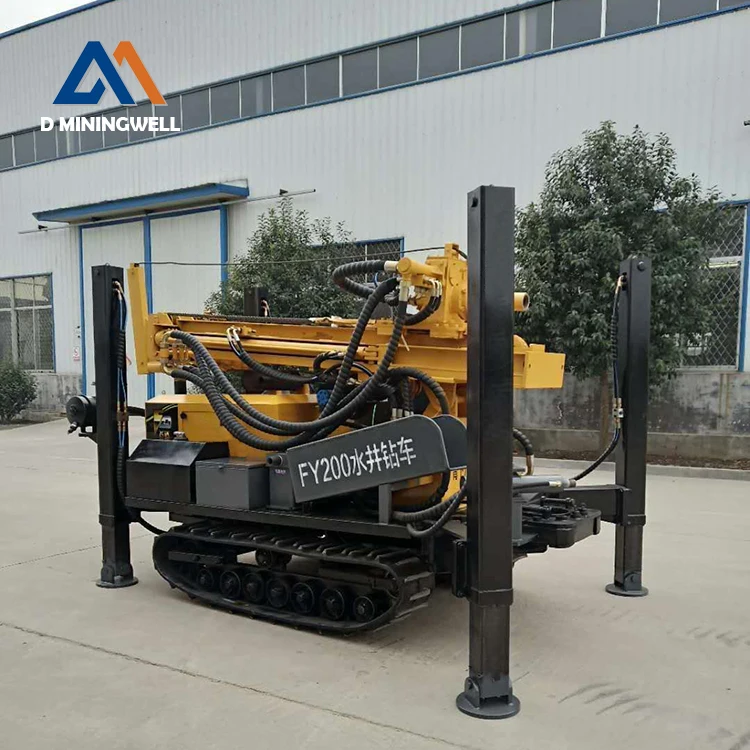

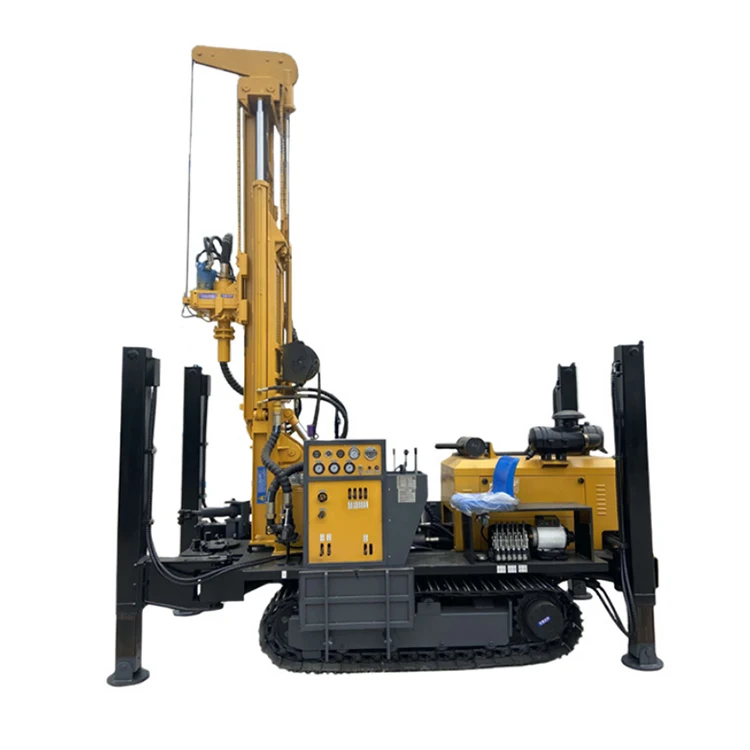

Буровая установка для бурения водяных скважин FY200 недорогая буровая DTH Hammer 200
- Категория: Mine Drilling Rig >>>
- Поставщик: Zhejiang,Miningwell,Supply,Chain,Management,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 29155.37 $* | 30613.31 $* |
| Aug-19-2025 | 28910.19 $* | 30356.92 $* |
| Jul-19-2025 | 24255.18 $* | 25468.28 $* |
| Jun-19-2025 | 28420.92 $* | 29841.19 $* |
| May-19-2025 | 24745.40 $* | 25982.65 $* |
| Apr-19-2025 | 27930.7 $* | 29327.72 $* |
| Mar-19-2025 | 27685.99 $* | 29069.21 $* |
| Feb-19-2025 | 27440.4 $* | 28812.96 $* |
| Jan-19-2025 | 27195.39 $* | 28555.39 $* |
Характеристики
Scope of application:
suitable for industrial and civil drilling
geothermal drilling, with large diameter
deep drilling
fast footage
flexible movement
wide application area and other advantages
Technical Parameters of FY200/FYX200 Crawler type water well drilling rig | |
type | FY200 |
The weight | 5.8T |
Dimension | 4000*1750*2450mm |
The hole diameter | 140-305mm |
Drilling depth | 200m |
One-time advance length | 3.3m |
Walking speed | 2.5KM/H |
Climbing angles | 30 |
Power | 65-70KW |
Using air pressure | 1.7-3.0 mpa |
Air consumption | 17-30 m3/min |
Drill pipe length | 1.5m 2.0m 3.0m |
Drill pipe diameter | 76mm,89mm, |
Rig lifting force | 15T |
Swing speed | 45-70 rpm |
Swing torque | 3500-4800 N.m |
\\
