Многофункциональная буровая установка диаметр отверстия 140-300 мм глубина 200 метра для
- Категория: Mine Drilling Rig >>>
- Поставщик: Zhengzhou,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 20230.89 $* | 21242.9 $* |
| Aug-19-2025 | 20060.32 $* | 21063.79 $* |
| Jul-19-2025 | 16830.98 $* | 17672.75 $* |
| Jun-19-2025 | 19720.80 $* | 20706.95 $* |
| May-19-2025 | 17170.92 $* | 18029.31 $* |
| Apr-19-2025 | 19380.91 $* | 20349.82 $* |
| Mar-19-2025 | 19210.39 $* | 20171.39 $* |
| Feb-19-2025 | 19040.66 $* | 19992.41 $* |
| Jan-19-2025 | 18870.49 $* | 19814.14 $* |
Характеристики
Product Description
Hole Diameter 140-300mm 200meter depth Multifunctional Drill Rig water well drill rig
KW200 200Meter Depth deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
Product Parameter
| |
The weight | 5.8T |
Drilling diameter | 140-305mm |
Drilling depth | 200m |
One-time advance length | 3.4m |
Walking speed | 2.5km/h |
Climbing angles | Max.30° |
Equipped capacitor | 65-70KW |
Using air pressure | 1.7-3.0Mpa |
Air consumption | 17-30m³/min |
Drill pipe diameter | Φ76 mm φ89mm |
Drill pipe length | 1.5m 2.0m 3.0m |
Rig lifting force | 12T |
Swing speed | 45-70rpm |
Swing torque | 3500-4800N.m |
Dimension | |
1. Advantages of KW200 pneumatic water well drilling rig:
Large Hole Diameter
Deep Drilling
High Penetration Rate, especially under pure rock condition
Flexible Movement
Wide Application Area
2.Application:
1. Civil engineering drilling
2. Geothermal drilling
3. Water well drilling

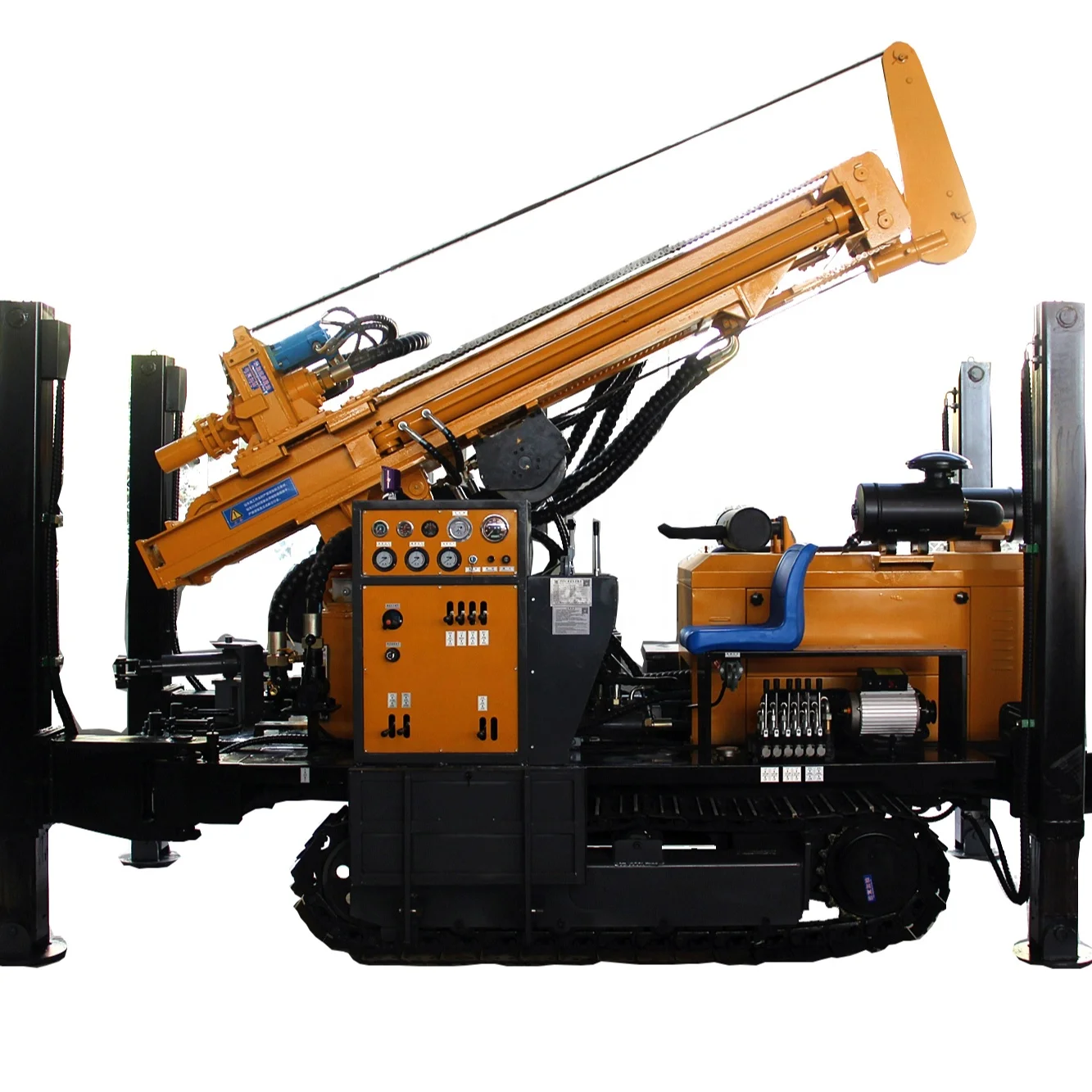

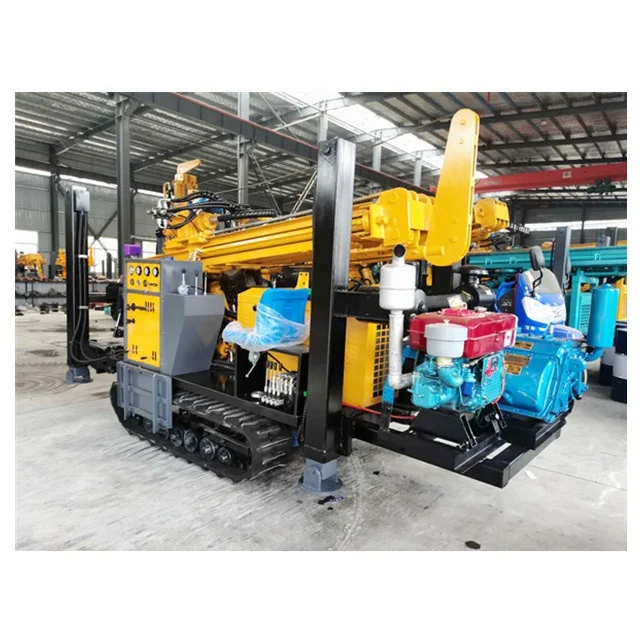

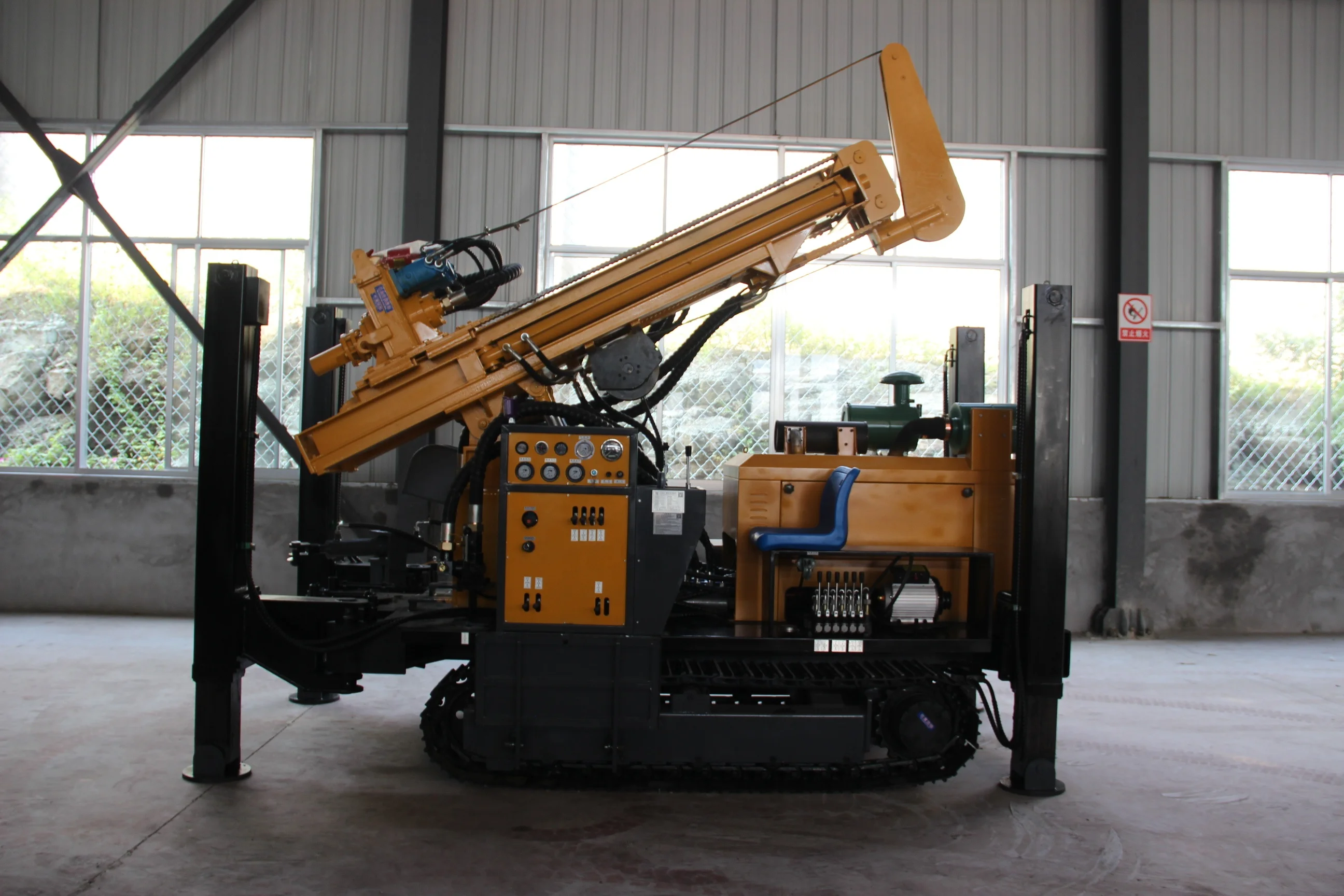

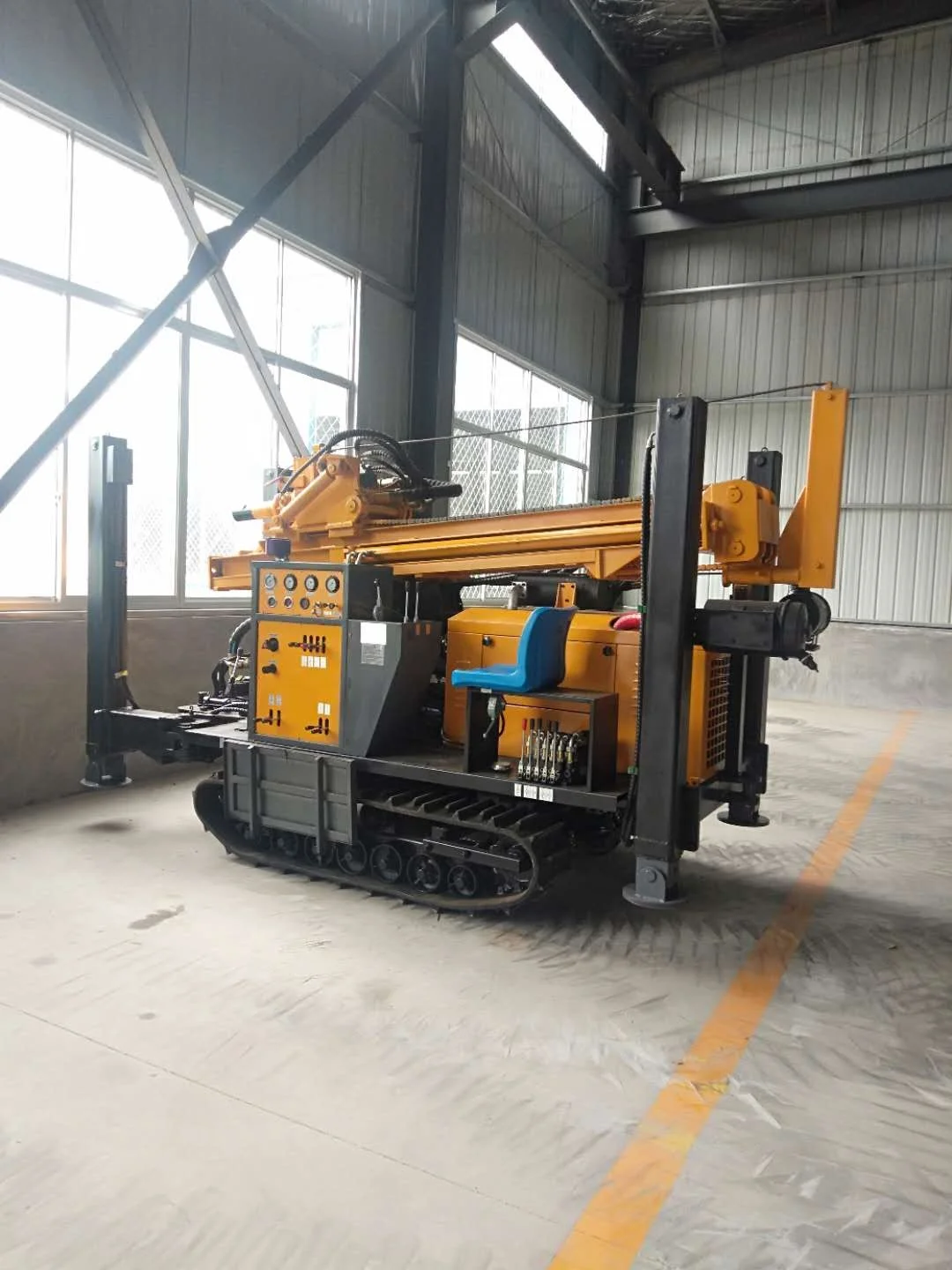

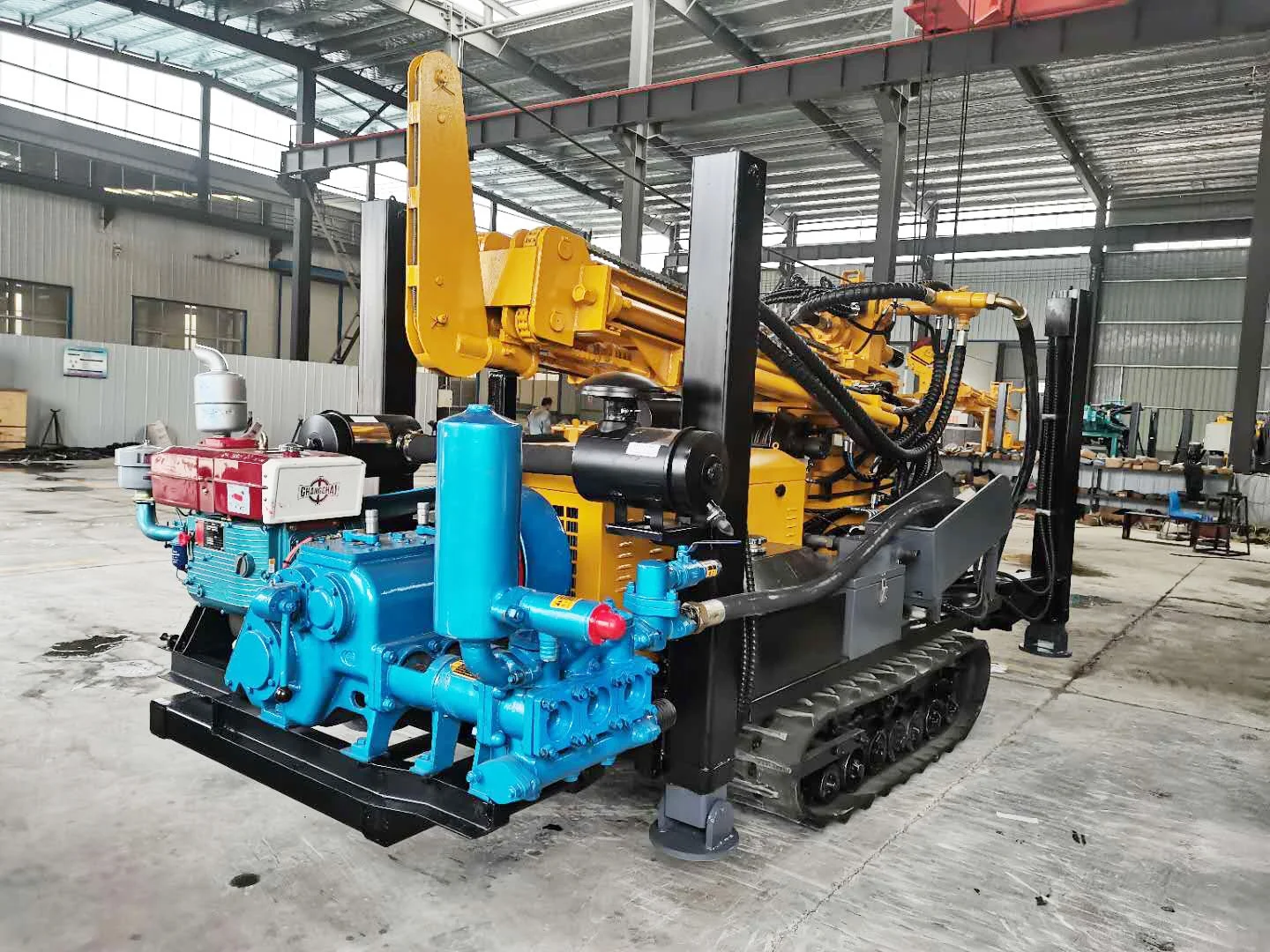

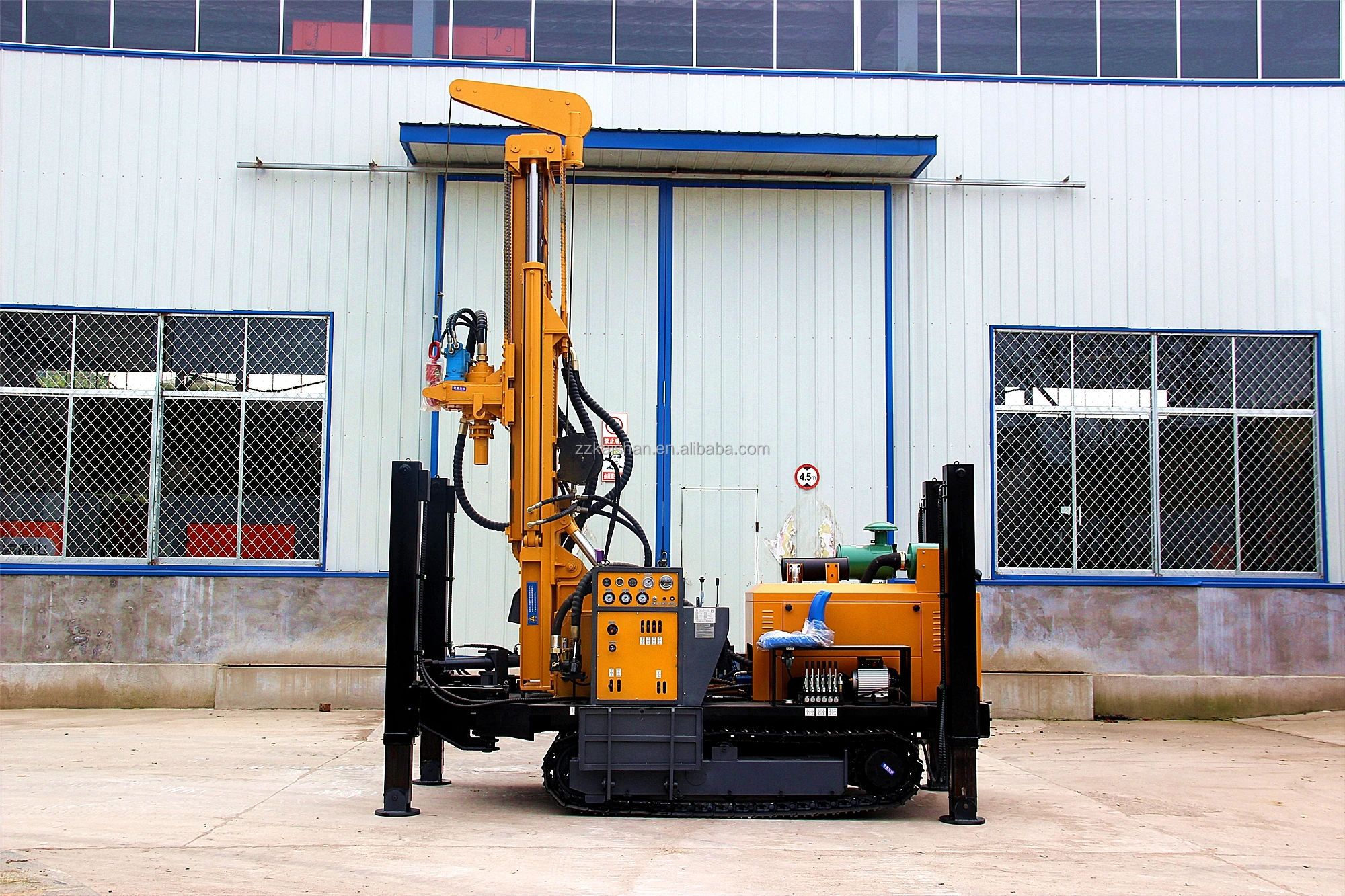

Picture:
The picture of Hole Diameter 140-300mm 200meter depth Multifunctional Drill Rig water well drill rig
Detail features:
1.Steel track adaptable to all terrains
2.High quality parts
3.Easy Used Control Panel
Spare parts for water well drilling rig:
Production Flow
Complete production process bring the top production quality:
Packaging & Shipping
1.Packing:Wooden case
2.Shipping: By sea / By air / By car / By train
Our Factory
Kaishan water well drilling rig is the largest water well drilling rig manufacturer in China. Kaishan water well drilling rig has complete vertical integration of production .Kaishan headquarters is located in Quzhou, Zhejiang Province,China, approximately 356 kilometers southwest of Shanghai, with its second largest manufacturing facility located in Shanghai, China. Kaishan Compressor currently has 7000 employees.
Exhibition & Service
Pre-Sales Service After-Sales Service
Inquiry and consulting support Training how to instal the machine,training how to use the machine.
Sample testing support Engineers available to service machinery overseas.
View our Factory
Certifications
FAQ:
Q1: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Zhejiang,China. Both OEM & ODM service can be accepted.
Q2: What's your delivery time?
A: Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
Q3: How long is your water well drilling rig warranty?
A: One year for the whole machine, except consumble spare parts.
Q4: How long could your air compressor be used?
A: Generally, more than 10 years.
Q5: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
