Пустой резервуар для жидкого азота YDZ-30 дюар Авто атмосферного давления криогенной контейнер баллоны
- Категория: Chemical Storage Equipment >>>
- Поставщик: Henan,Baihui,Cryogenic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1369.22 $* | 1437.88 $* |
| Aug-18-2025 | 1357.70 $* | 1425.24 $* |
| Jul-18-2025 | 1139.87 $* | 1196.44 $* |
| Jun-18-2025 | 1334.52 $* | 1401.47 $* |
| May-18-2025 | 1162.63 $* | 1220.8 $* |
| Apr-18-2025 | 1311.2 $* | 1377.29 $* |
| Mar-18-2025 | 1300.72 $* | 1365.49 $* |
| Feb-18-2025 | 1288.5 $* | 1352.22 $* |
| Jan-18-2025 | 1277.20 $* | 1341.25 $* |
Характеристики

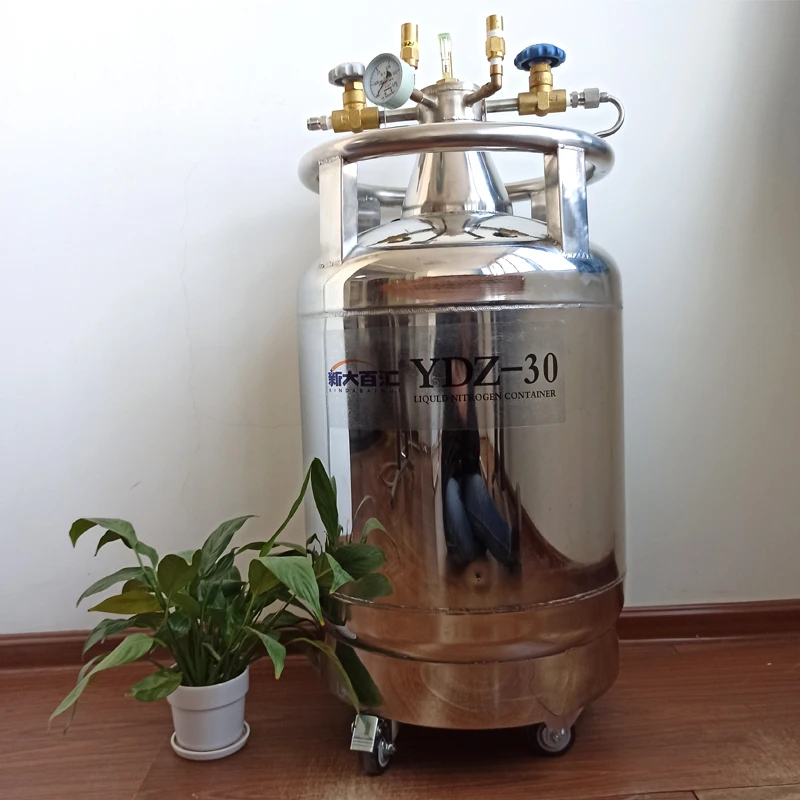

empty liquid nitrogen tank YDZ-30 dewar auto-pressurized cryogenic container self-pressurized
Product Overview
Self pressurized liquid nitrogen tank

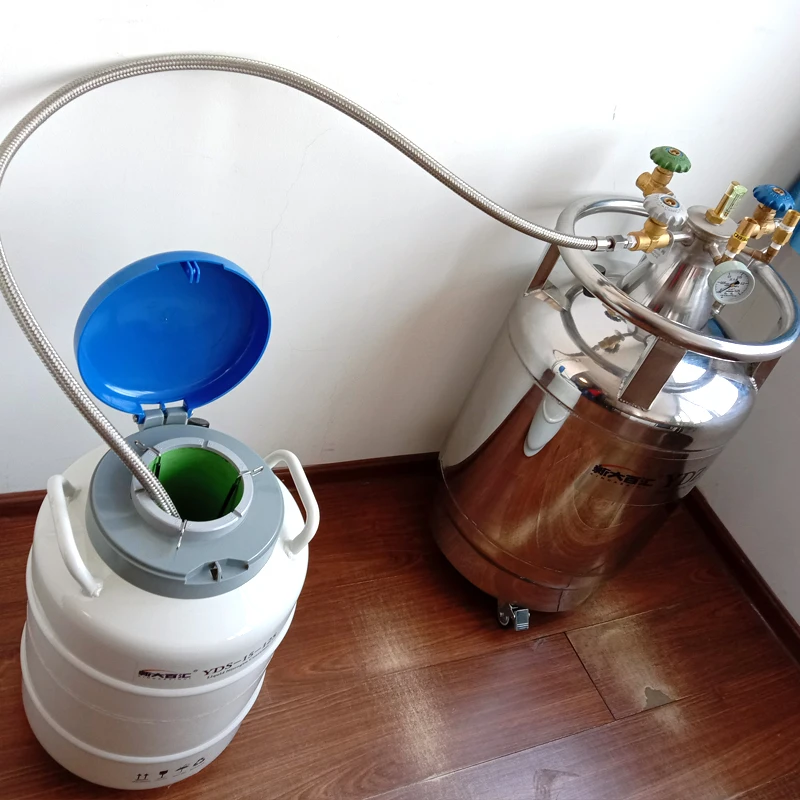

YDZ-Self-pressurized cryogenic dewar mainly used for transporting, transferring and supplementing liquid nitrogen, The container can automatically discharge liquid nitrogen, thereby supplementing other containers with liquid nitrogen.
No | Item | YDZ-30 | YDZ-100 | |
1 | Geometric volume(L) | 33 | 110 | |
2 | Effective volume(L) | 30 | 100 | |
3 | Static daily evaporation rate of liquid nitrogen(%) | 3 | 1.2 | |
4 | Infusion volume(L/min) | ≥5L/min | ≥5L/min | |
5 | Standard working pressure(Mpa) | 0.05 | ||
6 | Opening pressure of a safety valve(Mpa) | 0.099 | ||
7 | Size(mm) | 404*404*850 | 556*556*1100 | |
8 | Empty weight(kg) | 36 | 68 | |
The series of liquid nitrogen dewars have proven design and construction and provide a range of capacities to meet the storage and liquid nitrogen handling requirements of the laboratory. These Dewars combine strength, high thermal efficiency and easy handling.
*YDZ series are equipped with double safety auto-control valves and double protective measure, which are more safe to use.
*This kind of products have the feature of increasing pressure and draining the liquid continuously, which helps to effectively
fill the liquid .
*The movable wheels with high carrying capacitymake it easily move.

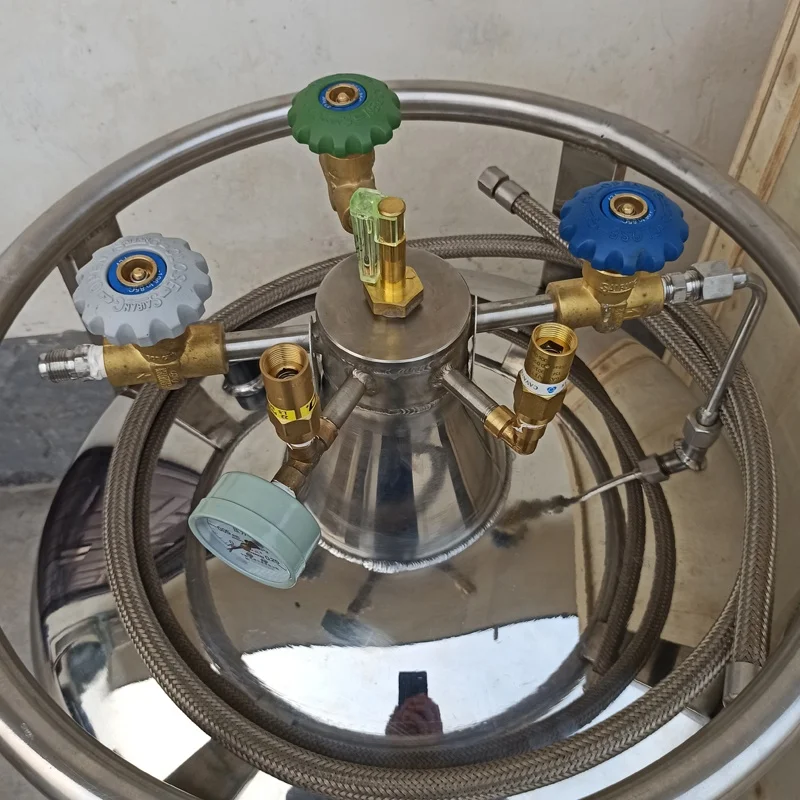

*The special ultra-low temperature cut-off valves are easier to operate.They are durable and elegant .
*This kind of products have the feature of increasing pressure and draining the liquid continuously, which helps to effectively
fill the liquid .
*The movable wheels with high carrying capacitymake it easily move.
*The special ultra-low temperature cut-off valves are easier to operate.They are durable and elegant .
self-pressurized ydz liquid nitrogen tank can be equipped with liquid nitrogen tank monitoring terminal and monitoring software, which can realize the remote transmission of liquid nitrogen level, pressure and other data, realize low liquid level, over pressure remote alarm, and can also manually remotely pressurize and control replenishment.
Company Profile
Our company has been long-term devoted into the research of cryogenic storage, vacuum insulation, cryogenic treatment and system integration. We provide technology scheme and product design of application manufacturing, including special cryogenic equipment.
