Китайская небольшая портативная гидравлическая поворотная головка Hengwang dth буровая установка для водяных скважин с грузовиком 300
- Категория: Mine Drilling Rig >>>
- Поставщик: Shandong,Hengwang,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 22848.14 $* | 23990.56 $* |
| Aug-17-2025 | 22656.78 $* | 23789.54 $* |
| Jul-17-2025 | 19008.5 $* | 19958.2 $* |
| Jun-17-2025 | 22272.95 $* | 23386.59 $* |
| May-17-2025 | 19392.17 $* | 20362.46 $* |
| Apr-17-2025 | 21888.93 $* | 22982.12 $* |
| Mar-17-2025 | 21696.77 $* | 22781.16 $* |
| Feb-17-2025 | 21504.28 $* | 22579.42 $* |
| Jan-17-2025 | 21312.85 $* | 22378.77 $* |
Характеристики
To Customers
Drilling depth: 260m
Drilling diameter: 140-300mm
Engine Power: 76Kw
Drilling diameter: 140-300mm
Engine Power: 76Kw
Competive Price
Professional After Sales Service
Product Description
Hengwang 200m truck mounted water well drilling rig machine borewell drilling rig crawler
* HQZ series drilling rig has the compact body. The fuselage width only 1.9 meters, fully suitable for farming courtyard home drilling or other narrow condition drilling. Drilling depth up to 240-300 meters.Technical Parameter
Model | HQZ260L |
Total Weight（T） | 6.4 |
Dimensions（mm） | 4100*1900*2600 |
Drilling Diameter（mm） | 140-300 |
Drilling Depth（m） | 260 |
One-time Advance Length of the Drill（mm） | 3000 |
Walking Speed（Km/h） | 2.5 |
Climbing Ability（max） | 30 |
Min. Ground Clearance（mm） | 250 |
Working Air pressure（Mpa） | 1.7-3.0 |
Air Consumption（m³/min） | 17-35 |
Main Power（kw） | 85/Yuchai |
Rotation（rpm） | 40-70 |
Rotary Torque（Nm） | 7000-9000 |
Hot Sales!!!
Model | HWY160 |
Drilling depth | 150m |
Drilling diameter | 130-203mm |
Engine Power | 42Kw |
Dimensions (L * W * H) | 2000*1200*1750mm |
Air consumption | 10-25m3/min |
Model | HQZ220L |
Drilling diameter (mm ) | 130-294 |
Drilling depth (m ) | 220 |
Air consumption (m³/min) | 15-27 |
Main machine power （kw) | Yunnei 60Kw |
Dimension (mm ) | 3800*1700*2350 |
Model | HQZ-320L |
Drilling Diameter（mm） | 140-350 |
Drilling Depth（m） | 320 |
Air Consumption（m³/min） | 23 |
Main Power（kw） | 85/Yuchai |
Dimensions（mm） | 5500*1950*2780 |
Hengwang 200m truck mounted water well drilling rig machine borewell drilling rig crawler

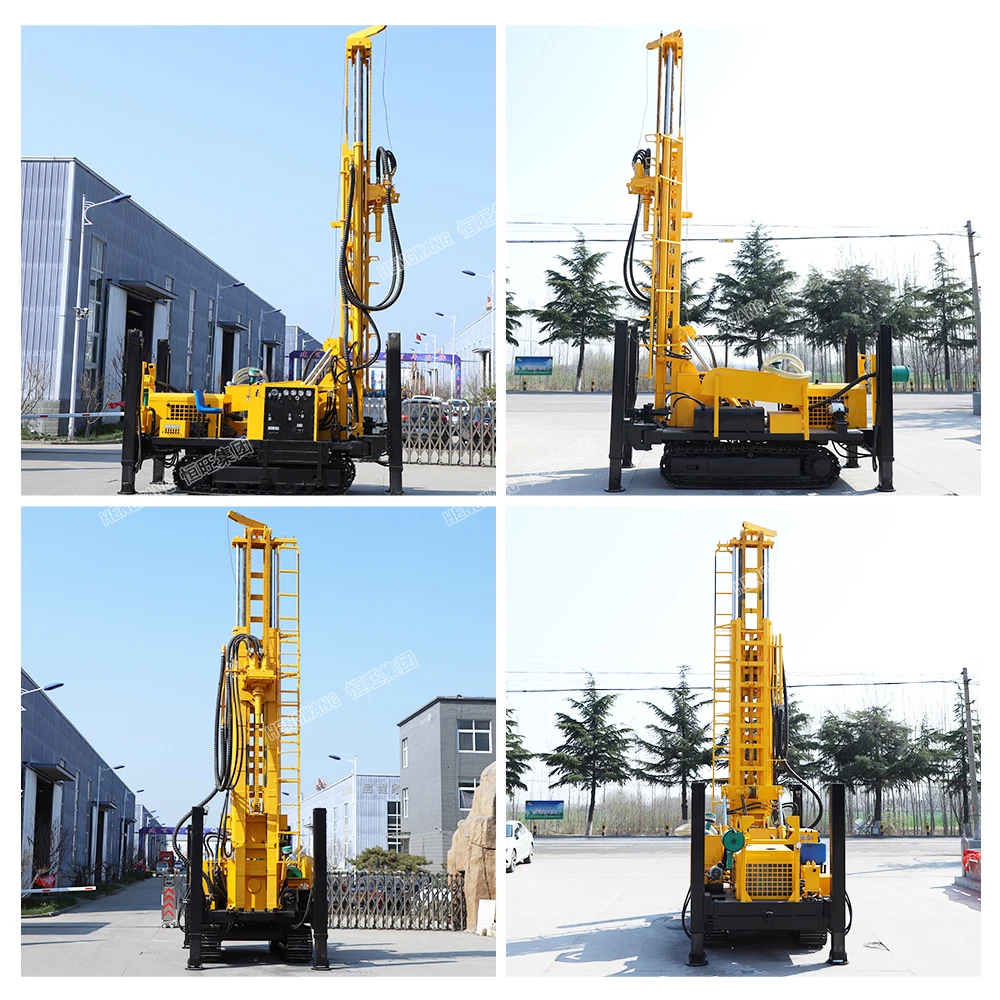

Detailed Image
Hengwang 200m truck mounted water well drilling rig machine borewell drilling rig crawler
Application
General application, any special requirements, please consult us.
Packaging & Shipping
1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;
Whole set with air compressor needs a 40GP;

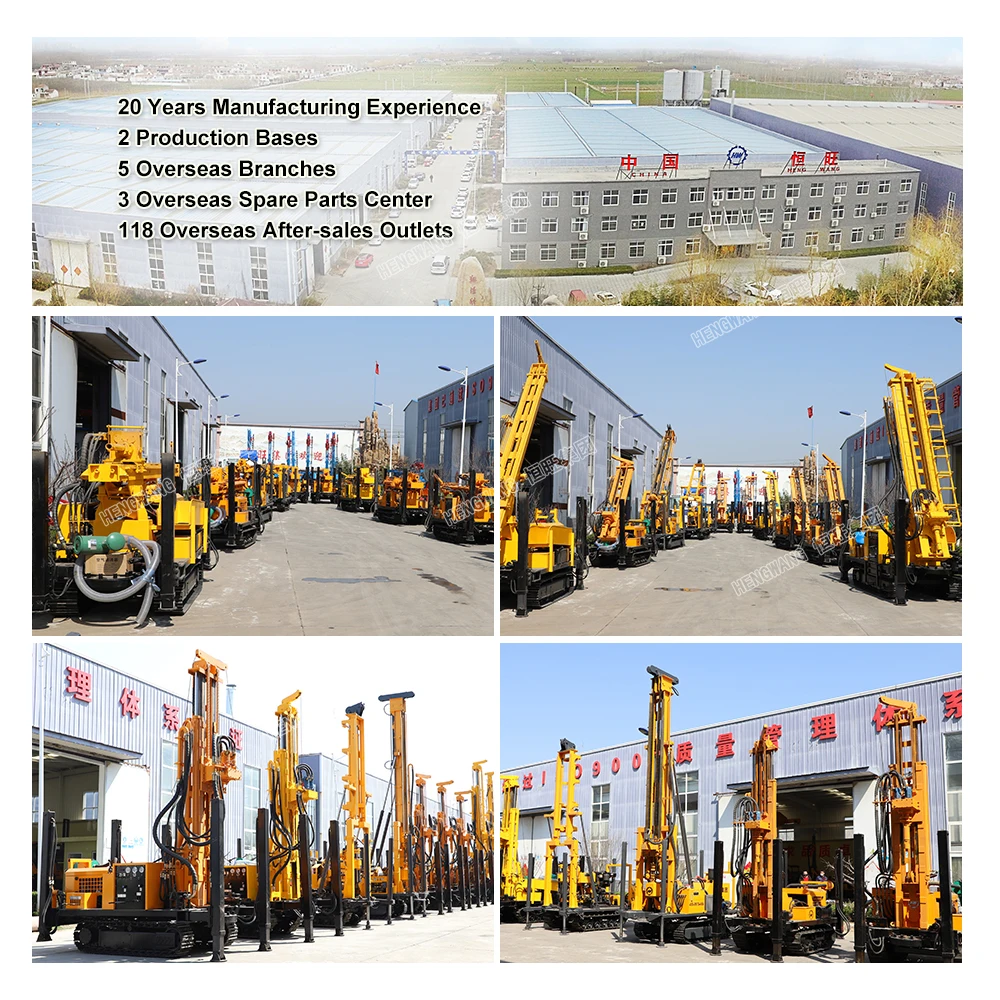

Company Introduction
Cerficate: CE
Product Name: Drilling Rig
Certificate No.: M.2019.206.C3842
Certificate No.: M.2019.206.C3842
Cerficate: CE
Product Name: Pile Driver
Certificate No.: M.2019.206.C0231
Certificate No.: M.2019.206.C0231
1. Q: Are you factory or trader?
A: We are factory, has passed ISO, contact me showing you the factory;
2. Q: What kind of drilling rigs you have?
A: We mainly did hydraulic driling rig for soils, pneumatic drilling rig for rocks, DTH drilling rig, big diameter drilling rig, engineering drilling rig, geological exploration drilling rig etc, so you can tell me your requirements, would recommend you the suitable one.
3. Q: What certificate you have?
A: CE, ISO, BV, TUV
4. Q: Do you offer training?
A: Each model we have supplementary instruction mannual, video for installation and operation, calling instruction, and working site instruction.
5. Q: How about the warranty?
A: We machine warranty is 1 year, used famous brand parts help you find locally; Also 3 spare parts center guarantee you get the spare parts in time.
2. Q: What kind of drilling rigs you have?
A: We mainly did hydraulic driling rig for soils, pneumatic drilling rig for rocks, DTH drilling rig, big diameter drilling rig, engineering drilling rig, geological exploration drilling rig etc, so you can tell me your requirements, would recommend you the suitable one.
3. Q: What certificate you have?
A: CE, ISO, BV, TUV
4. Q: Do you offer training?
A: Each model we have supplementary instruction mannual, video for installation and operation, calling instruction, and working site instruction.
5. Q: How about the warranty?
A: We machine warranty is 1 year, used famous brand parts help you find locally; Also 3 spare parts center guarantee you get the spare parts in time.
