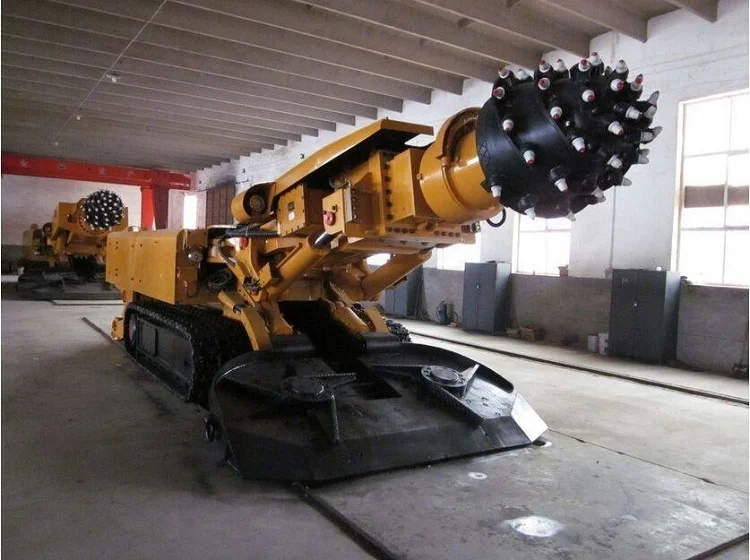

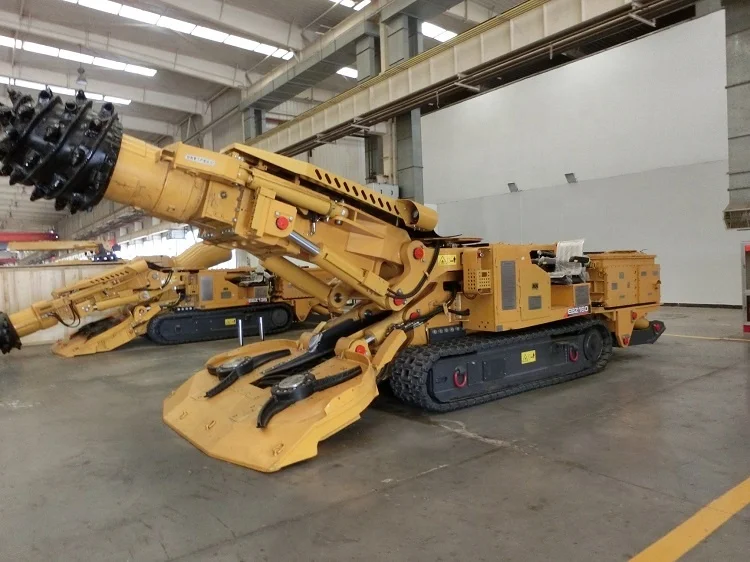

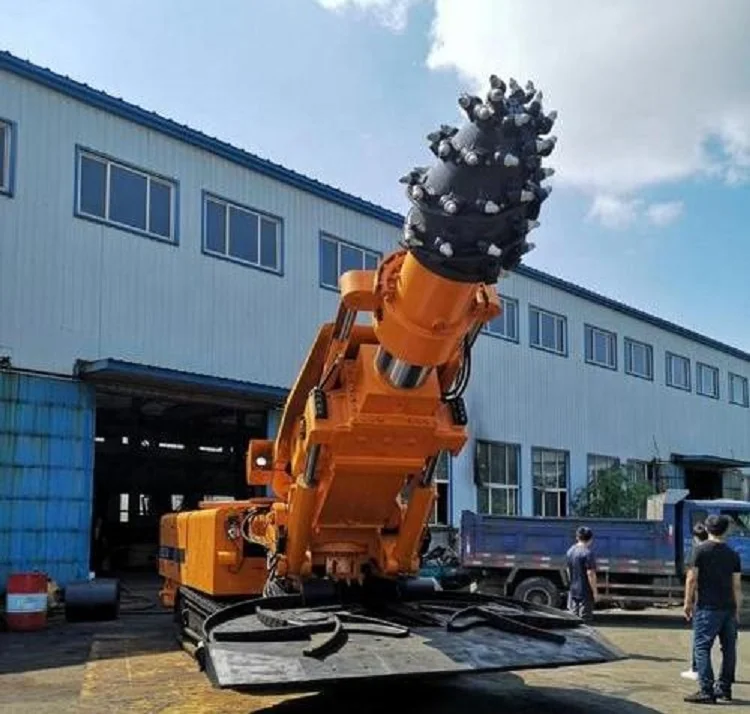

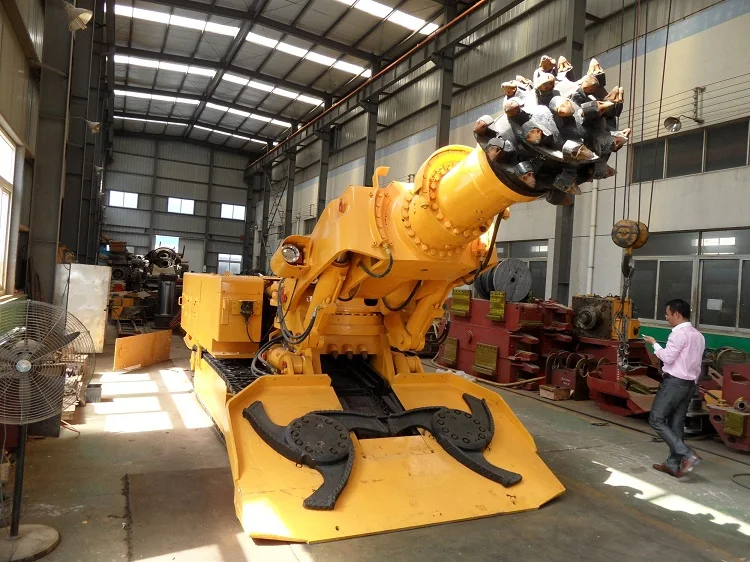

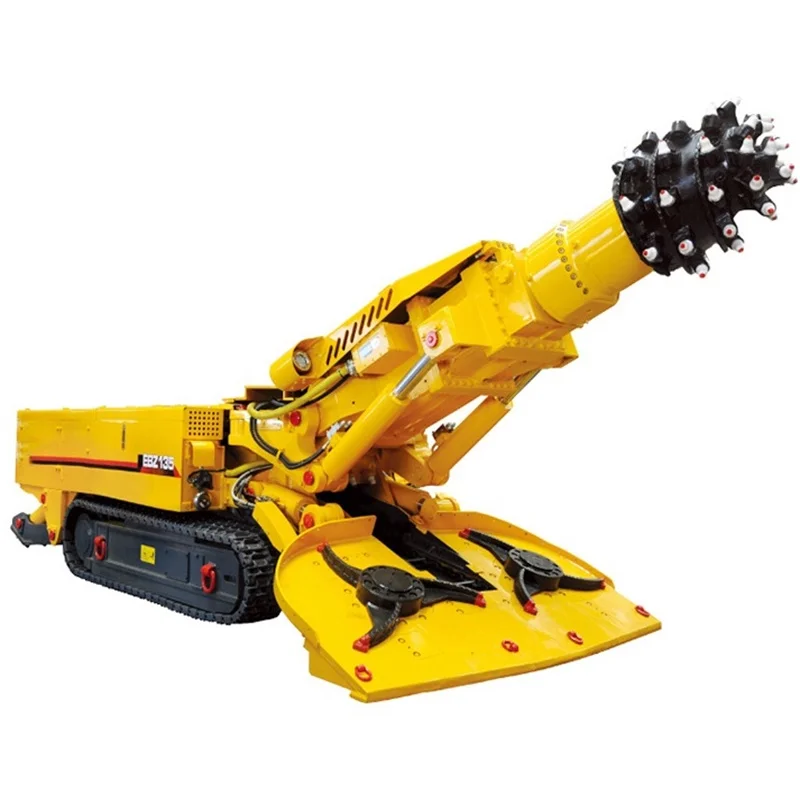

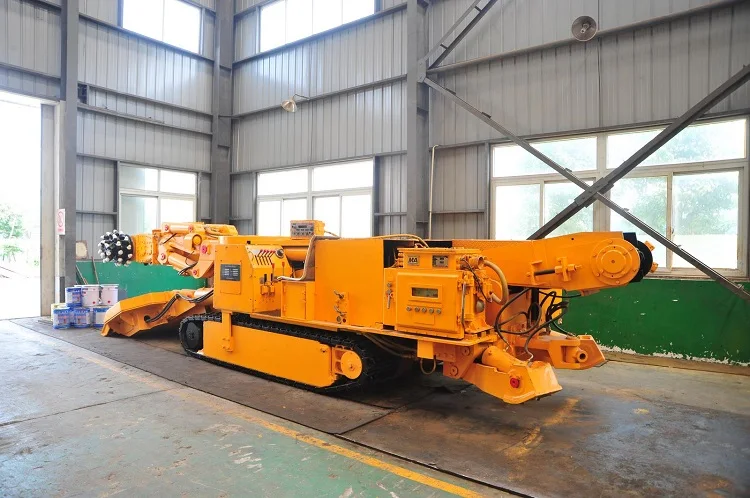

Good Price SINOMACH Mining Roadheader EBZ160 with High Quality for Sale
Judy Zhang
Mobile / Whatsapp / Facebook: +8617852035877
Wechat: +86 18874360427
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Add: Suite 1811, Block A, Yihe International, No. 10 Hong Kong Middle Road, Qingdao, China.
Web: http://www.maxizm.com
Product Description
The roadheader has narrow and short frame.The height of frame is only 1470mm,and it makes the machine more flexible and applicable to low tunnel.
The cutting unit adopts double handle operation,which makes the operation more flexible and comfortable.
Two adjustable seats are designed on the machine,the user can choose different seat according to the height of tunnel;
The LCD displaies series of dynamic parameters and fault diagnosis.
| model | EBZ135 | EBZ160 | EBZ220 |
| Overall length(m) | 9.1 | 9.42 | 10.4 |
| Overall width(m) | 2.6 | 2.9 | 3.2 |
| Overall height(m) | 1.5 | 1.65 | 1.75 |
| Gross weight(t) | 35 | 43.5 | 63.5 |
| Power feeding voltage(v) | AC1140/660 | AC1140/660 | AC1140 |
| Cutting power(kW) | 135 | 160/110 | 220/132 |
| Total power(kW) | 210 | 250 | 310 |
| Climb angle(°) | ±18 | ±18 | ±18 |
| Depth(mm) | 240 | 310 | 210 |
| Ground clearance(mm) | 200 | 200 | 200 |
| Gantry height/ Portal Frame Height(mm) | 393 | 450 | 450 |
| Tractive force(kN) | ≥175 | ≥240 | ≥367 |
| Cutting hardness(Mpa) | ≤80 | ≤80 | ≤85 |
| Cutterhead revolution(r/min) | 51.7 | 47/24 | 46/23 |
| Delivered payload capablity(m³/h) | 250 | 252 | 258 |
| Ground specific pressure(Mpa) | 0.13 | 0.15 | 0.16 |
| Track width(mm) | 520 | 520 | 600 |
| Power of hydraulic pump station(kW) | 75 | 90 | 90 |
| No-load interated noise(dB·A) | <95 | <95 | <95 |
| Located cutting height(m) | 3.9 | 4.8 | 5.4 |
| Located cutting width(m) | 5.4 | 5.1 | 5.6 |
| Located cutting length(m³) | 21 | 24.5 | 25.2 |
