Новый автоматический переключатель GEYA на Din-рейку для солнечной энергии 4P 63A AC 220 В W2R ATS
- Категория: Other Switches >>>
- Поставщик: Zhejiang,Geya,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 27.86 $* | 28.59 $* |
| Jul-20-2025 | 22.56 $* | 22.54 $* |
| Jun-20-2025 | 26.28 $* | 27.28 $* |
| May-20-2025 | 26.47 $* | 27.68 $* |
| Apr-20-2025 | 21.95 $* | 21.74 $* |
| Mar-20-2025 | 26.33 $* | 27.34 $* |
| Feb-20-2025 | 25.1 $* | 26.51 $* |
| Jan-20-2025 | 25.3 $* | 26.47 $* |
Характеристики
********This link price is for Solar-ATS-4P-100A-110V********

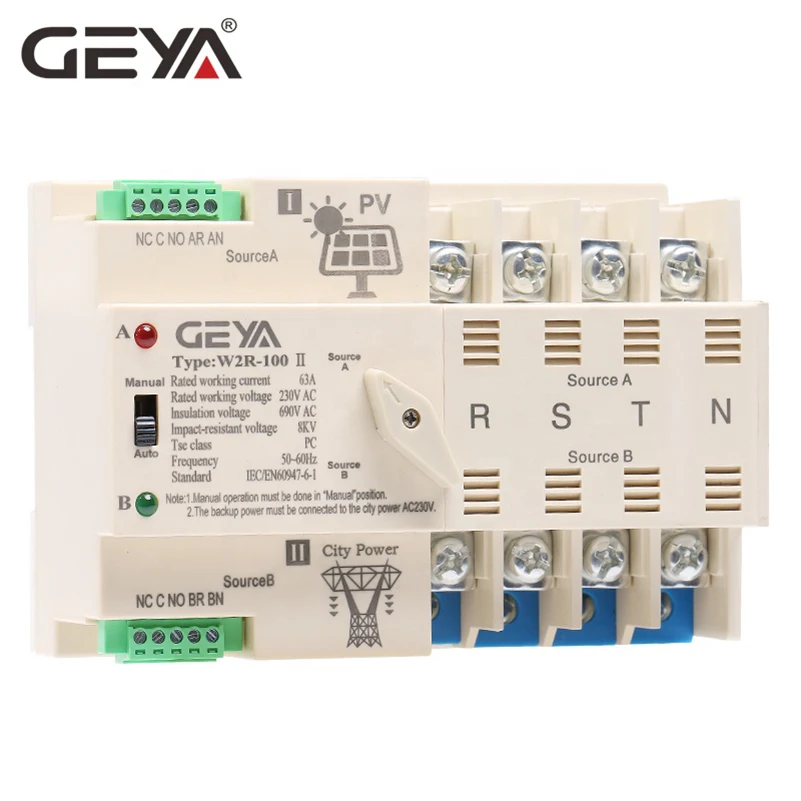

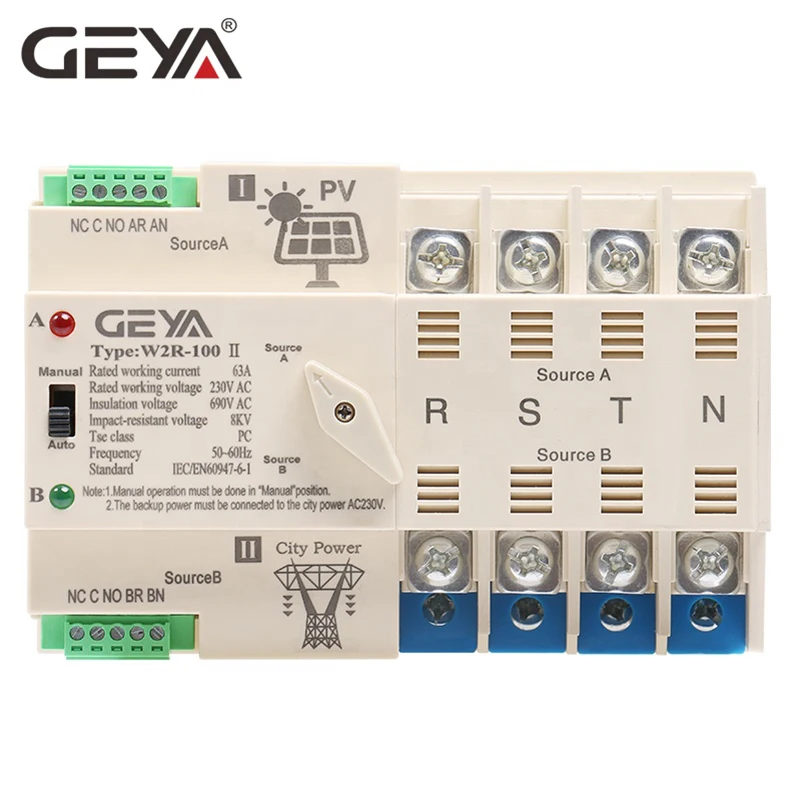

NEW GEYA Grid PV System Power Transfer to City Power Dual Power Automatic Transfer Switch Din Rail 4P 63A AC220V ATS

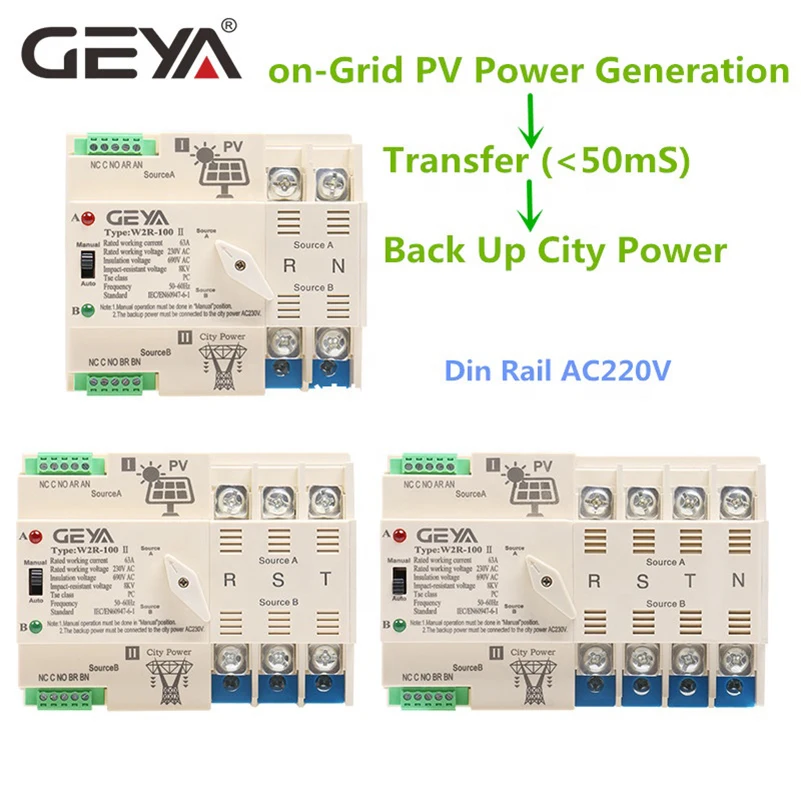

ONLY PV System Power Transfer to City Power (SPECIAL USE)
W2R series dual power automatic transfer switch is new developed micro household power transfer switch.. The switch is mainly used
for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once,
which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household
orbit-type installation and specially use in PZ30 power distribution box.
W2R series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated
400V 60A. TSE is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif
expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically
and manually.
ATSE is composed of TSE and the controller. ATSE compiles with requirements of Low-voltage Switch Gear and Control Gear specified
by GB/T14048. 11, Part 6-1 : Multiple functional equipment and transfer switch equipment.
If you want to place order, please kindlt tell us which specification do you need? Solar Type ATS 220V we have 2P 3P 4P, Current
63A
Technical Data
ITEM NO. | W2R |
Rated current Ie(A) | 16A, 20A, 25A, 32A, 40A, 50A, 63A,100A |

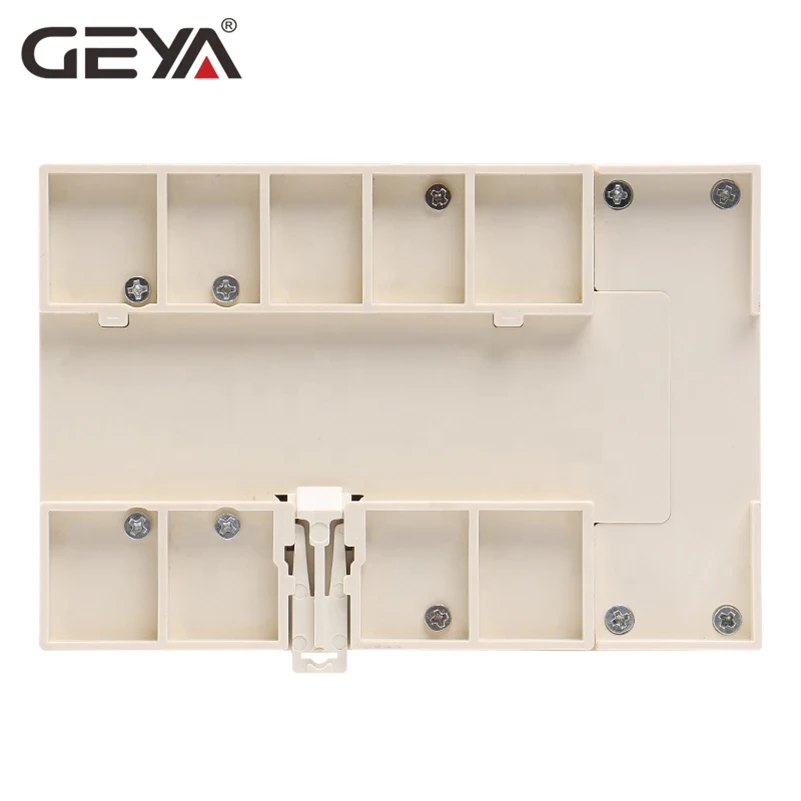

Installation | Din rail |
Rated insulation voltage Ui (V) | AC690, 50HZ |
Rated working voltage Ue (V) | AC400, 50HZ |
Rated impulse withstand voltage (KV ) | 8KV |
Poles | 2P 3P 4P |
Weight (KG) | 1.7 2.1 2.6 |
Connecting and breaking | 6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times |
Operating performance | 2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times |
Rated limited short-circuit current Iq | 50KA |
SCPD (FUSES ) | RT16-00-63A |
Control circuit | Rated supply voltage Us: AC220V, 50HZ. Working condition:85% Us~110% Us |

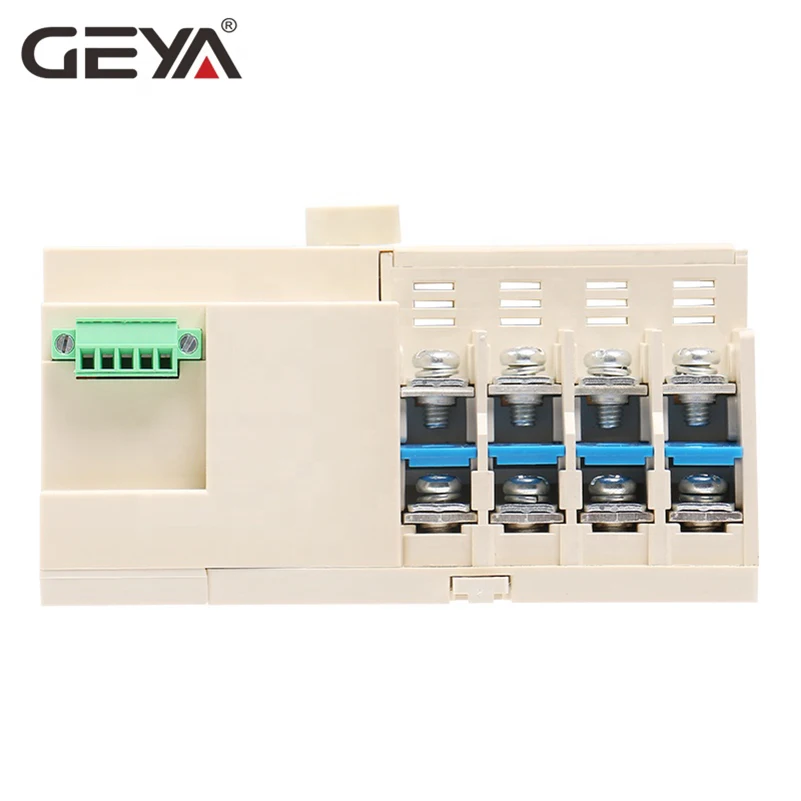

Ancillary circuit | Two isolated relays, each relay with 2 groups of passive switch contact. Contact capacity: AC220 50Hz, Ie=5A |

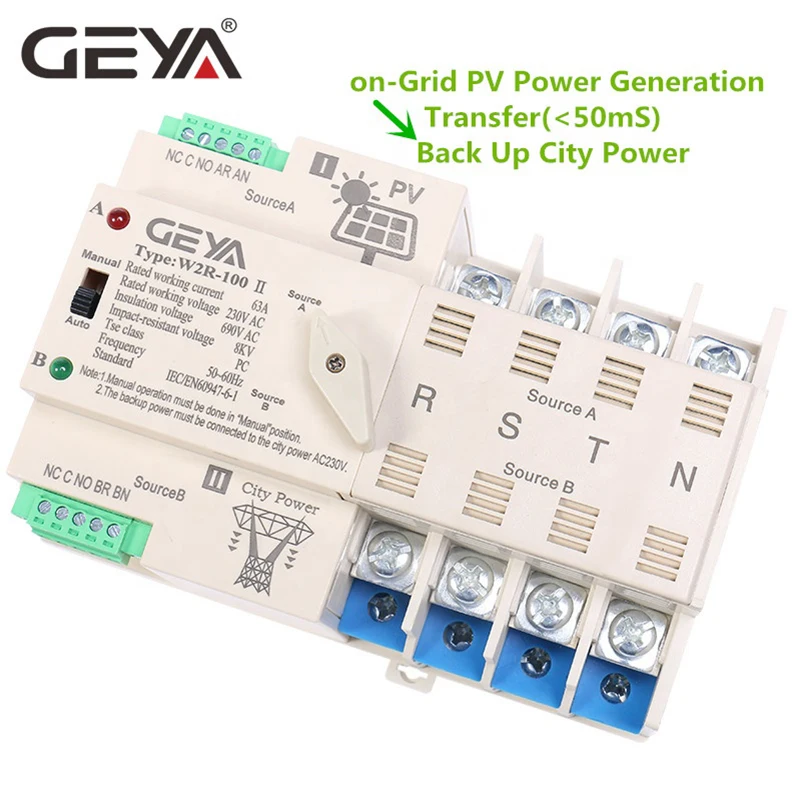

Switching time | <50ms |
Action time | <50ms |
