Introduction & Advantage:

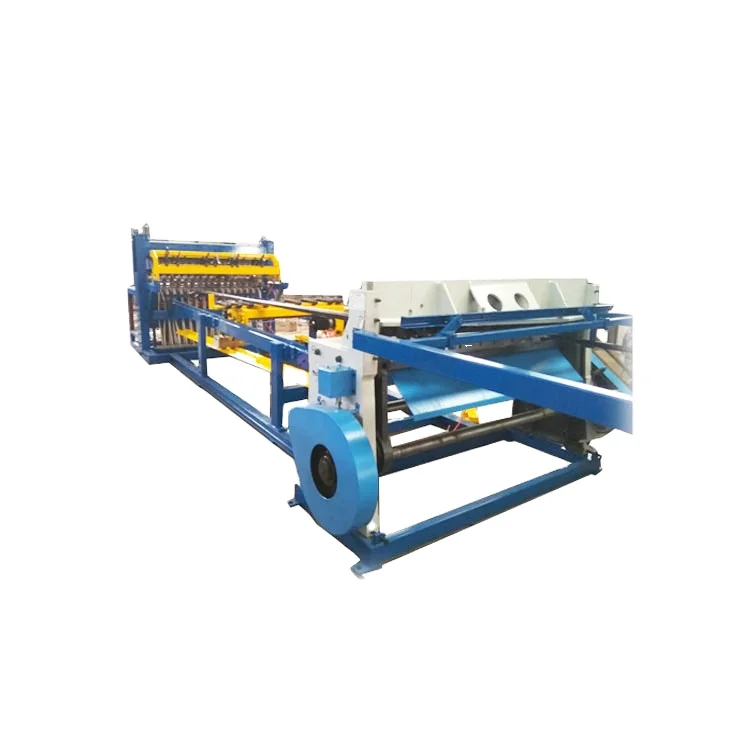

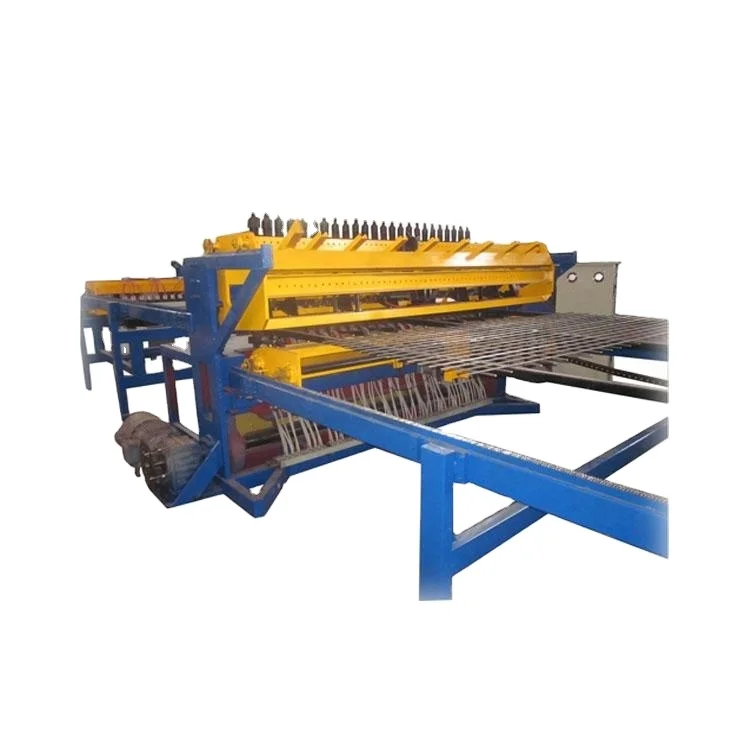

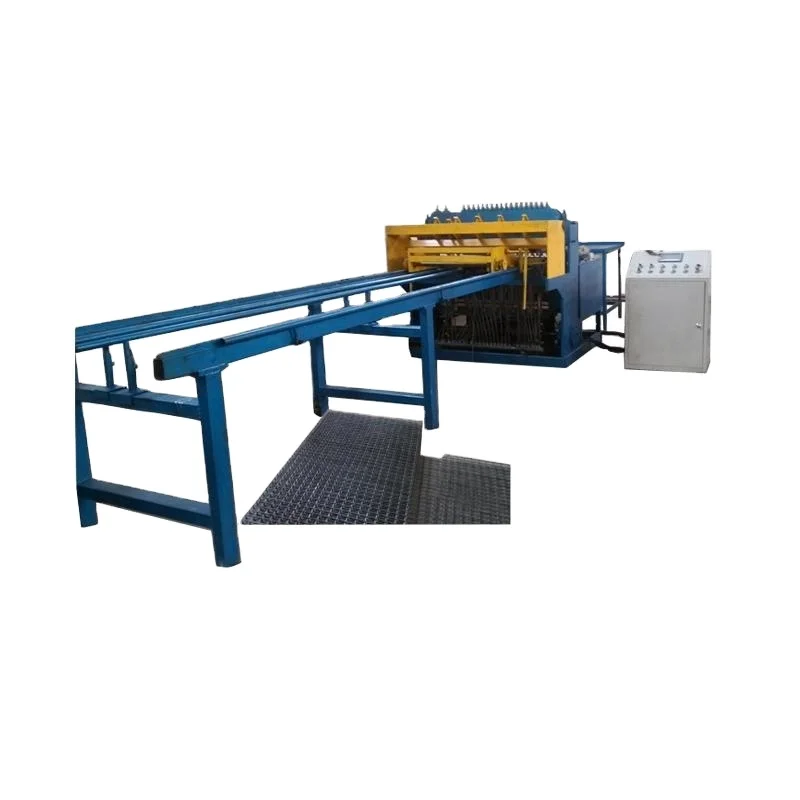

The CNC Wire Mesh Welding Machine is a complete equipment for wire mesh welding, which is manufactured by Dongfeihong based on learning foreign advanced experiences, technologies and actual production demands in the international market. This series equipment can perform high quality cross-welding for hot-rolled ribbed rebar, cold-rolled ribbed rebar and round rebar. It has many favorable features, such as high output, high precision, easy modification, low operation failure rate, strong capability in energy saving, low consumption and high quality.

1. Low noise and efficient with integral frequency conversion motor and helical gear reducer directly connect the main shaft.

2. Epoxy-cast water-cooled welding transformers can work continuously and prolong working life.

3. Panasonic servo motor plus planetary reducer drive pulling mechanism to continue pulling the net circularly ,which achieve high quality and accuracy in size of the net.

4. Unique funnel control solution: In case of no steel wire or abnormal steel wire doffing in funnel, the equipment would be suspended until it get normal.

5. Automatic landing, finished product output (Optional): Each welding net automatically falls into the output mechanism, then output after a certain number of stacks. Easy transportation and labor saving.

6. Adopt advanced brand in the world to ensure the machine operate with high quality and reliability. Panasonic used in PLC, servo motor driver; Weinview used in touch screen; JAPAN SMC used in the original pneumatic components, and other famous brand such as Schneider, Tianzheng used in other electrical appliances of the machine.





Model	FHM2500	FHM1500
Rated voltage	3phase 380V 50Hz	3phase 380V 50Hz
Longitudinal wire space	100-300mm	100-300mm
Welding diameter	5-12mm	3-10mm
Number of solder joints	24pcs	8pcs
welding speed	40-65rows/min	40-75rows/min
welding width	≤2500mm	≤1500mm
Cross wire space	50-300mm	25-300mm
Rated capacity	150Kva*13	150Kva*2
Line wire feeding	Straightening and cutting	Straightening and cutting
Cross wire feeding	Straightening and cutting	Straightening and cutting
Motor power	≥400KVA	≥150KVA
Dimension	14000*3100*2300mm	14000*2100*2300mm
Machine Weight	6500kg	3000kg
