Трансформатор переменного тока 220 В 50 Гц в постоянный ток 12 24 1 А 2 3 5 EI трансформатор для
- Категория: >>>
- Поставщик: Shenzhen,Kunyo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.1 $* | 0.26 $* |
| Aug-17-2025 | 0.47 $* | 0.58 $* |
| Jul-17-2025 | 0.71 $* | 0.25 $* |
| Jun-17-2025 | 0.50 $* | 0.39 $* |
| May-17-2025 | 0.66 $* | 0.77 $* |
| Apr-17-2025 | 0.67 $* | 0.68 $* |
| Mar-17-2025 | 0.2 $* | 0.57 $* |
| Feb-17-2025 | 0.21 $* | 0.2 $* |
| Jan-17-2025 | 0.30 $* | 0.1 $* |
Характеристики

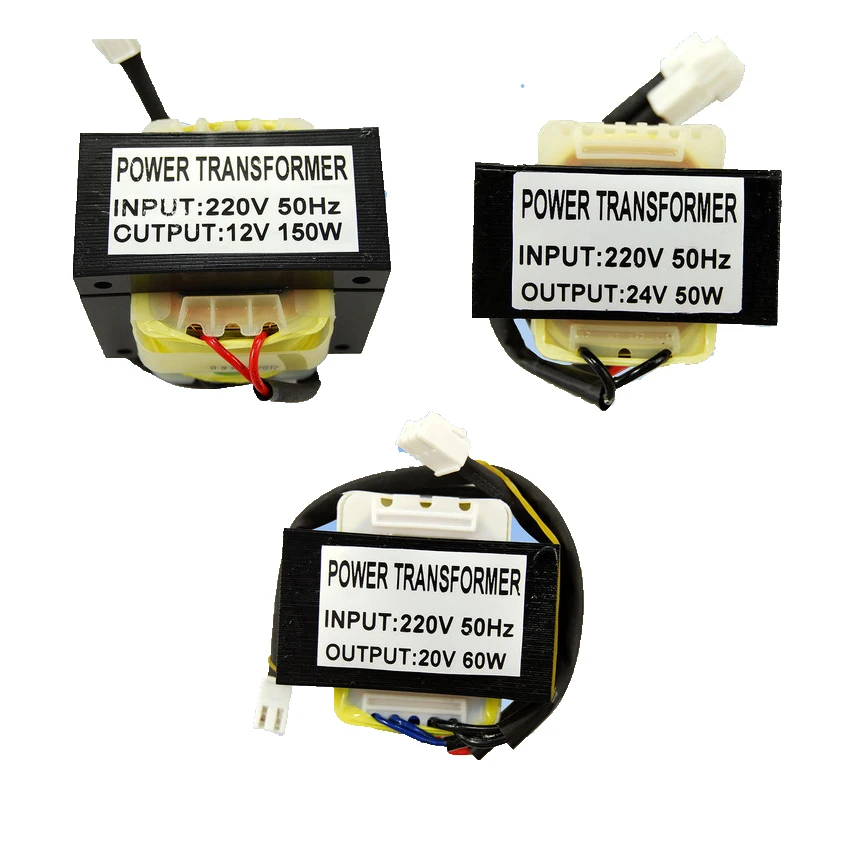

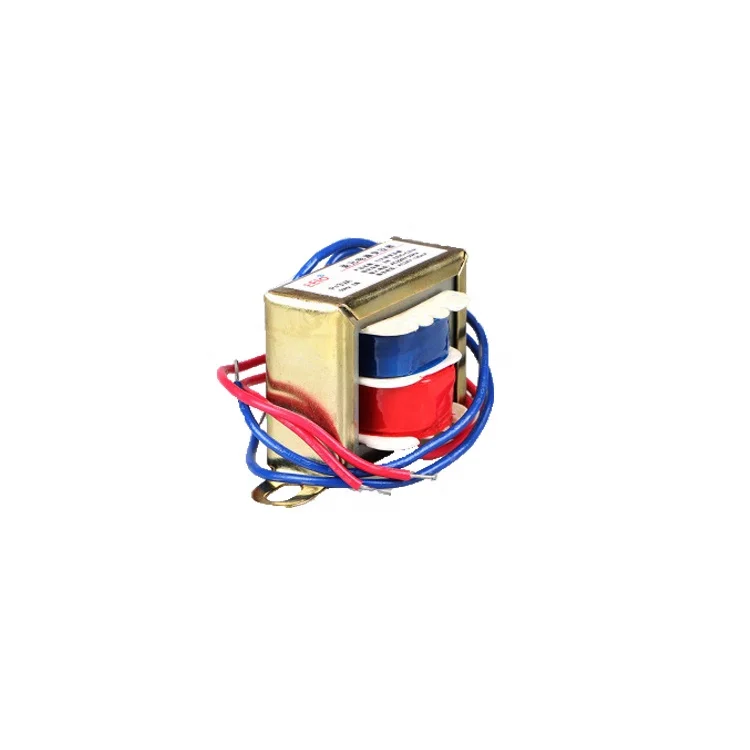

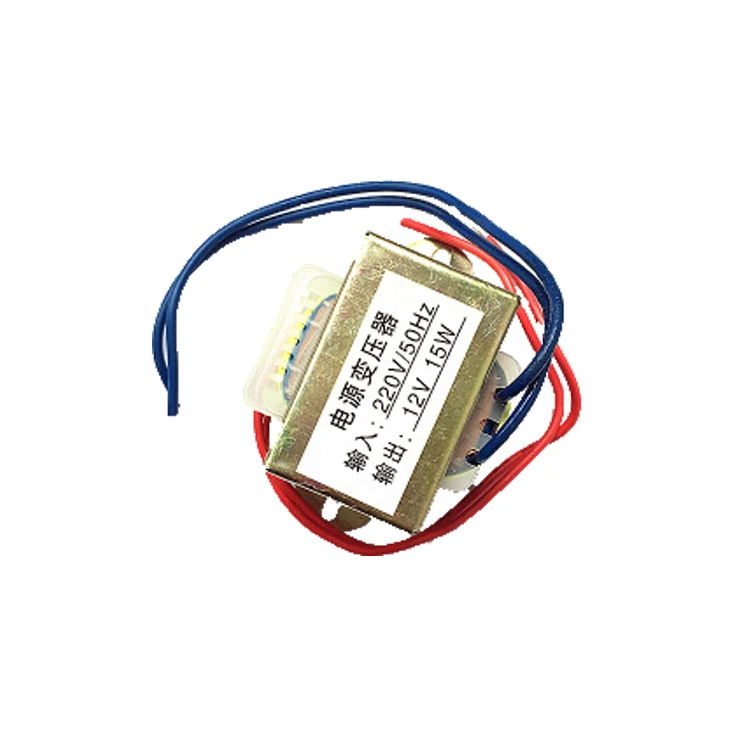

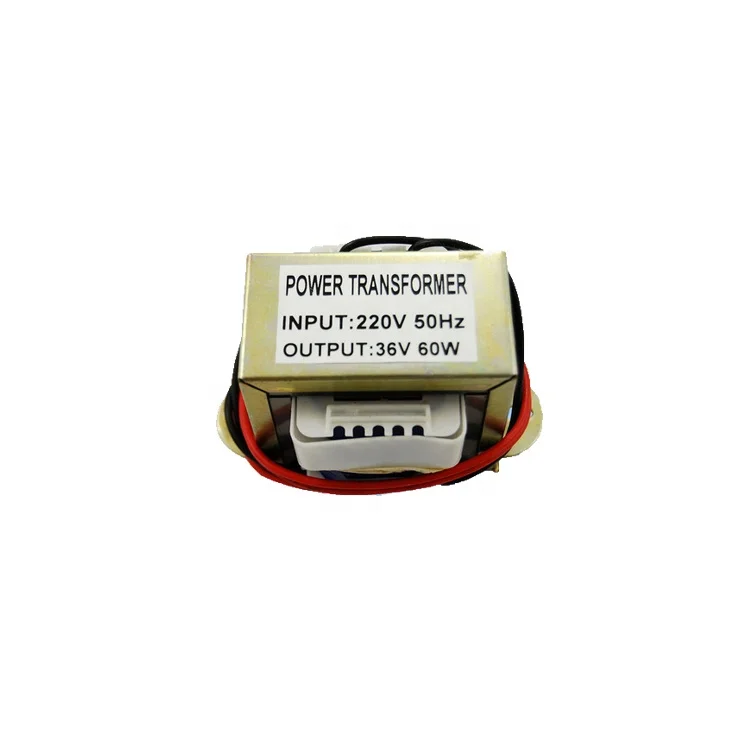

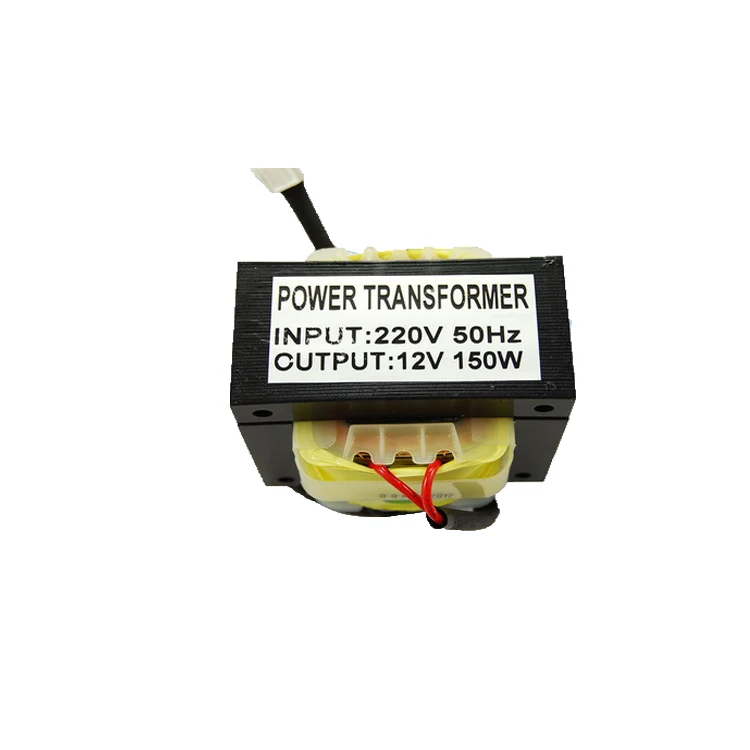

AC 220V 50Hz to DC 12V 24 V AC 1Amps 2Amps 3A 5A EI Transformadores for Air Conditioner Power Transformer
We are a professional manufacturer with rich production experience in manufacturing of magnetic passive components , switching power supplies and AC/DC power adapters. And our products include switching mode transformer,high frequency transformer, flyback transformer ,low frequency transformer,current sense transformer,pulse transformer,PFC transformer , inductor ,toroidal inductor, common mode line choke, power inductor,air coils, all kinds of switching power supply , power adapter and chargers.
We can design as customer requirement,small MOQ as 100pcs!
Samples are for free ! Send your detailed specification we'll quote to you soon!
Product Description
Special Features:
• EI laminated core
• High DC superposition characteristics
• High electrical strength, large insulation resistance,
• Good stability and high reliability under harsh environment
• Customer's specifications are welcome
• 3 year warranty
We offer a very large standard program of inductive components, but this is only the surface of how we can help... Special Design - Custom Design -
Different kinds of standard"laminated iron-core" transformers.
Some with terninals for print mounting-both encapsulated and open versions.
Some with terminal blocks and some for panel fixing.
Low frequency transformer efficiency is as high as 75% and its transformer bobbin is using flame retardant material, ensure the stability of high temperature, high magnetic flux silicon steel sheet, high pressure resistance, good insulation performance, flame retardant mara tape, high temperature resistant performance is guaranteed: high temperature resistant flame retardant wire, high pressure good performance: QA polyurethane enamelled wire, pure copper wire is heart of the transformers: the whole series of the 94 v - 0 fireproof plastic shell, can provide effective protection electric double insulation protection.
•Application:Home appliance ,Consumer electronic equipment ,telecommunication equipment, office facilities ,industrial equipment, laboratory
Type of EI core
• EI24 EI28 EI35 EI41 EI48 EI57 EI66 EI76
| Product Model | Power(w) | Dimension(mm) | finished product size(mm) | finished product weight (g) |
| 28×11 | 1.8W | 28×11×25 | 50×26×26 | 100 |
| 28×13 | 1.9W | 28×13×25 | 50×28×26 | 105 |
| 28×15 | 2W | 28×15×25 | 50×30×26 | 110 |
| 35×13.5 | 2.5W | 35×13.5×29.5 | 59×27×31.5 | 130 |
| 35×15 | 3W | 35×15×29.5 | 59×28.5×31.5 | 140 |
| 41×16 | 4W | 41×16×33 | 66×33×34 | 190 |
| 41×20.5 | 5W | 41×20.5×35 | 67×37.5×35 | 240 |
| 41×26 | 6W | 41×26×36 | 68×43×36 | 300 |
| 48×18 | 8W | 48×18×40 | 75×37×41 | 280 |
| 48×24 | 10W | 48×24×40 | 75×43×41 | 370 |
| 48×30 | 12W | 48×30×40 | 75×49×41 | 440 |
| 48×35 | 15W | 48×35×40 | 75×54×41 | 480 |
| 57×16 | 18W | 57×16×47.5 | 85×38×49 | 420 |
| 57×25 | 20W | 57×25×47.5 | 85×47×49 | 500 |
| 57×30 | 30W | 57×30×47.5 | 85×52×49 | 600 |
| 57×35 | 35W | 57×35×47.5 | 85×57×49 | 660 |
| 66×28 | 40W | 66×28×55 | 98×51×56 | 860 |
| 66×32 | 50W | 66×32×55 | 98×55×56 | 920 |
| 66×36 | 60W | 66×36×55 | 98×59×56 | 980 |
| 76×43 | 100W | 76×43×63.5 | 105×66×64 | 1700 |
| 86×43 | 150W | 86×43×71.5 | 86×79×71.5 | 2400 |
| 96×45 | 250W | 96×45×80 | 96×91×80 | 2950 |
