Характеристики
Product description

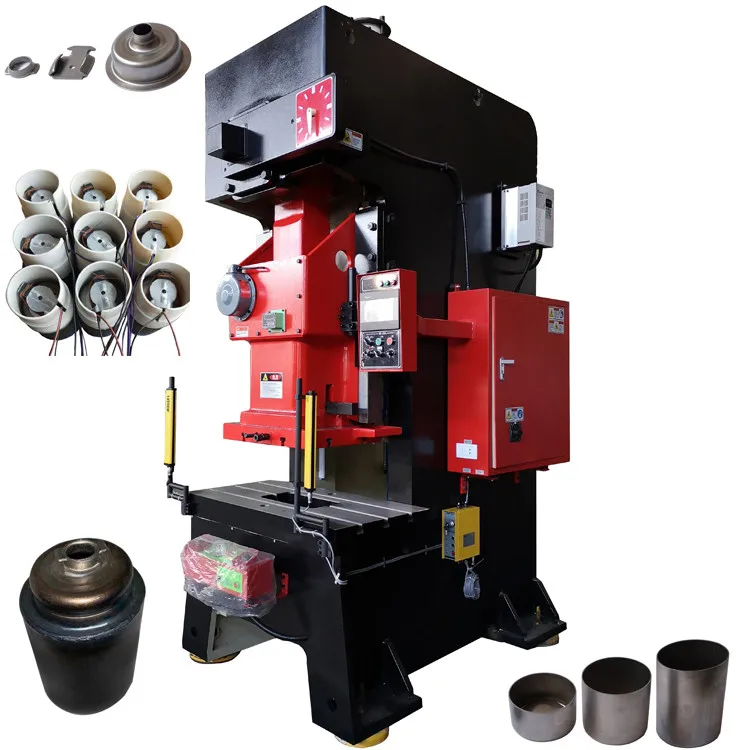

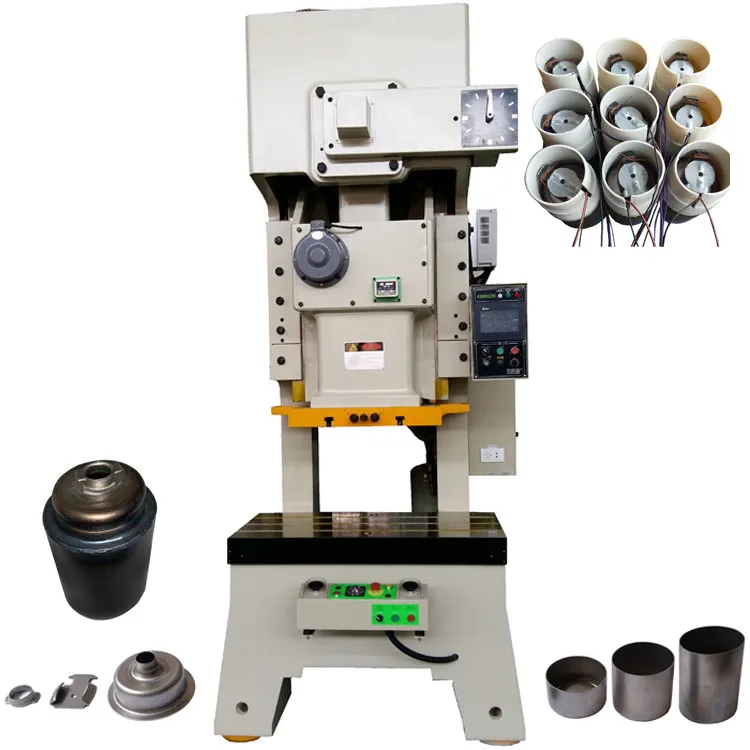

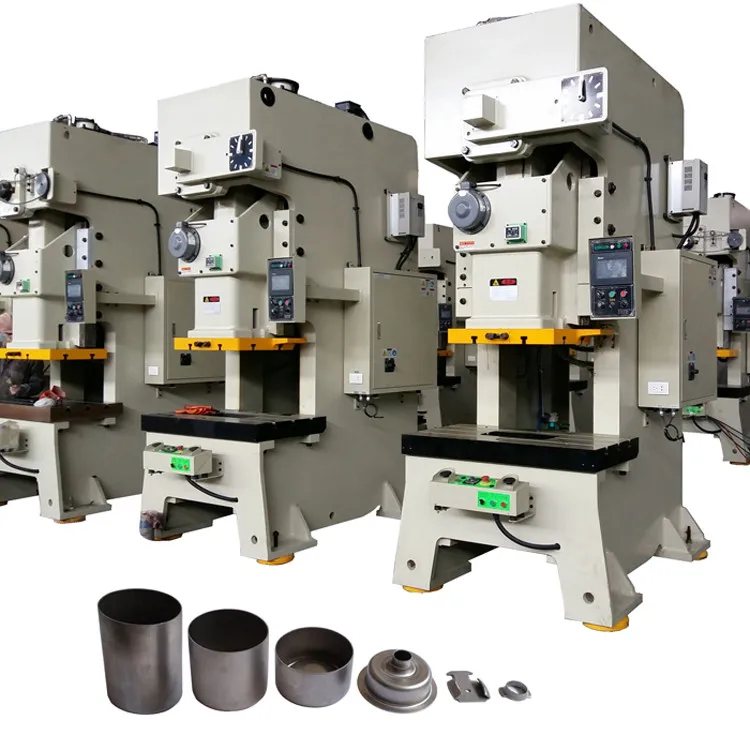

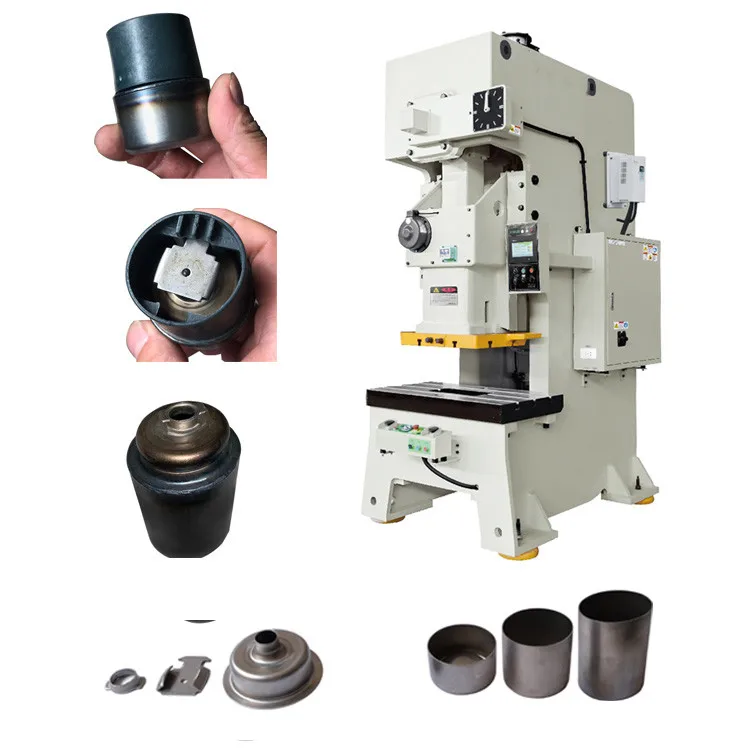

BLA single point open type power press
★The machine body is welded of quality steel sheet and treated by tension elimination,improve stability and reliability of precision of the machine.
★In order to guarantee the machine running in stable and smooth,adopts the design of symmetrical two slid borards with balancer.
★The precision of mold adjusting up to 0.1mm,safety,reliable and convenient.
★Crank,gear.connect bar are oxidized hardening and milled,having super comprehensive mechanical performance and durable function.
★Reasonable structural design,is convenient for automatic production and line production.
★Used reliable high intensity cluch/brake and twin electromagnetic vale,overloading protector can guarantee safe production all around
Product parameters
BLA single point open type power press(BLA-25T~BLA-80T)
Specification | Unit | BLA-25 | BLA-35 | BLA-45 | BLA-60 | BLA-80 | ||||
Capacity | Ton | 25 | 35 | 45 | 60 | 80 | ||||
Rate tonnage point | mm | 3.2 | 3.2 | 3.2 | 4 | 4 | ||||
Speed changing | s.p.m | 60-140 | 40-120 | 40-100 | 35-90 | 35-80 | ||||
Stable speed | s.p.m | 110 | 85 | 75 | 65 | 65 | ||||
Stroke | mm | 70 | 70 | 80 | 120 | 150 | ||||
Die height | mm | 195 | 220 | 250 | 310 | 340 | ||||
Slide adjustment | mm | 50 | 55 | 60 | 75 | 80 | ||||
Slide area | mm | 470*230*50 | 520*285*50 | 560*340*60 | 700*410*70 | 770*420*70 | ||||
Bolster area | mm | 680*300*70 | 800*400*70 | 850*440*80 | 900*500*80 | 1000*550*90 | ||||
Shan hole | mm | Φ38.1 | Φ38.1 | Φ38.1 | Φ50 | Φ50 | ||||
Main motor | kw.p | 3.7*4 | 3.7*4 | 5.5*4 | 5.5*4 | 7.5*4 | ||||
Slide adjust device | HP | manual operation | manual operation | manual operation | manual operation | electrical driving | ||||
Air pressure | kg/cm² | 6 | 6 | 6 | 6 | 6 | ||||
Presses precision | GB/JIS 1 class | |||||||||
Presses dimension | mm | 1280*850*2200 | 1380*900*2400 | 1600*950*2500 | 1600*1000*2800 | 1800*1180*2800 | ||||
Presses weight | Ton | 2.1 | 3 | 3.8 | 5.6 | 6.5 | ||||
Die cushion capacity | Ton | - | 2.3 | 2.3 | 3.6 | 3.6 | ||||
Stroke | mm | - | 50 | 50 | 70 | 70 | ||||
Die cushion effective area | mm² | - | 300*230 | 300*230 | 350*300 | 450*310 | ||||
BLA single point open type power press(BLA-110T~BLA-315T)
Specification | Unit | BLA-110 | BLA-160 | BLA-200 | BLA-260 | BLA-315 | ||||
Capacity | Ton | 110 | 160 | 200 | 260 | 315 | ||||
Rate tonnage point | mm | 6 | 6 | 6 | 7 | 8 | ||||
Speed changing | s.p.m | 30-60 | 20-50 | 20-50 | 20-40 | 20-40 | ||||
Stable speed | s.p.m | 50 | 35 | 35 | 30 | 30 | ||||
Stroke | mm | 180 | 200 | 200 | 250 | 250 | ||||
Die height | mm | 360 | 460 | 460 | 500 | 500 | ||||
Slide adjustment | mm | 80 | 100 | 110 | 120 | 120 | ||||
Slide area | mm | 910*470*80 | 990*550*90 | 1130*630*90 | 1250*700*100 | 1250*750*100 | ||||
Bolster area | mm | 1150*600*110 | 1250*800*140 | 1400*820*160 | 1500*840*180 | 1600*860*190 | ||||
Shan hole | mm | Φ50 | Φ65 | Φ65 | Φ65 | Φ65 | ||||
Main motor | kw.p | 11*4 | 15*4 | 18.5*4 | 22*4 | 30*4 | ||||
Slide adjust device | HP | electrical driving | ||||||||
Air pressure | kg/cm² | 6 | 6 | 6 | 6 | 6 | ||||
Presses precision | GB/JIS 1 class | |||||||||
Presses dimension | mm | 1900*1300*3200 | 2300*1400*3800 | 2615*1690*4075 | 2780*1850*4470 | 2910*1950*4500 | ||||
Presses weight | Ton | 9.6 | 16 | 23 | 32 | 35 | ||||
Die cushion capacity | Ton | 6.3 | 10 | 14 | 14 | 14 | ||||
Stroke | mm | 80 | 80 | 100 | 100 | 1000 | ||||
Die cushion effective area | mm² | 500*350 | 650*420 | 710*480 | 710*480 | 710*480 | ||||
Parts
All accessories are made of European and American brands, which are trustworthy, long-term and can work for a long time
NCF Servo feeder
1,suitable for different thickness and length plate
2, suitable for high speed and long size feed, improve speed and precision
3, panel operation, easy and precision
4, Pneumatic loose, long time life, no fault
5, can be mechanical loose as customer’s requirement
2, suitable for high speed and long size feed, improve speed and precision
3, panel operation, easy and precision
4, Pneumatic loose, long time life, no fault
5, can be mechanical loose as customer’s requirement
decoiler and straightener 2 in 1 feeding system
1.Decoiler and straightener two in one style can save installation space,lower transition procedure.
2.The Decoiler and straightener are controlled separately by independent electricity boxes.
3.Straightener adopts the cardan joint and gear transmission.
4.The straightening gear adopts the dial indicator and is able to find out the leveling up point rapidly.
5. The additional back pressure wheel enables the straightening result much better.
6.The additional lubrication system prolonged the machine life span.
2.The Decoiler and straightener are controlled separately by independent electricity boxes.
3.Straightener adopts the cardan joint and gear transmission.
4.The straightening gear adopts the dial indicator and is able to find out the leveling up point rapidly.
5. The additional back pressure wheel enables the straightening result much better.
6.The additional lubrication system prolonged the machine life span.
Product display
Our Company
Our company
BESCO started Production of CNC equipment began in 1997,and matched production linefrom 2002.
And all the times our company put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include:Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers" as our target, hope to create the best future with old and new customers.
And all the times our company put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include:Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers" as our target, hope to create the best future with old and new customers.
Our team
Our factory
Our customer
Certifications
Exhibitions
Praise
Our Service
Our Service
1. Pre sales service:
On line 24 hours a day, respond to customers' needs in time, recommend suitable machines according to customers' needs, provide
more product information, let customers know more about machines and help customers choose.
2.after-sale service:
Follow up orders, deliver on time, arrange technicians to help customers debug, video at any time, listen to customers'
opinions,and help customers solve various problems in the process of using products
On line 24 hours a day, respond to customers' needs in time, recommend suitable machines according to customers' needs, provide
more product information, let customers know more about machines and help customers choose.
2.after-sale service:
Follow up orders, deliver on time, arrange technicians to help customers debug, video at any time, listen to customers'
opinions,and help customers solve various problems in the process of using products
Packing&Delivery
FAQ
☆How much is the deposit？
30% deposit, the remaining 70% paid before shipment。
☆How long can it be shipped?
about 45-60 days.
☆ who are we?
We are based in Shandong, China, start from 2019,sell to Eastern Europe(15.00%),South America(15.00%),Southeast
Asia(15.00%),Northern Europe(10.00%),North America(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Africa(10.00%),Mid
East(5.00%). There are total about 51-100 people in our office.
☆ how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
☆what can you buy from us?
PUNCHING MACHINE,POWER PRESS,PRESS BRAKE,SHEARING MACHINE,HYDRAULIC PRESS
☆ why should you buy from us not from other suppliers?
machine in stock. lowest price. best service. fast delivery time. full production line design.
☆ what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French,Russian,Korean
☆How long can it be shipped?
about 45-60 days.
☆ who are we?
We are based in Shandong, China, start from 2019,sell to Eastern Europe(15.00%),South America(15.00%),Southeast
Asia(15.00%),Northern Europe(10.00%),North America(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Africa(10.00%),Mid
East(5.00%). There are total about 51-100 people in our office.
☆ how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
☆what can you buy from us?
PUNCHING MACHINE,POWER PRESS,PRESS BRAKE,SHEARING MACHINE,HYDRAULIC PRESS
☆ why should you buy from us not from other suppliers?
machine in stock. lowest price. best service. fast delivery time. full production line design.
☆ what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French,Russian,Korean
