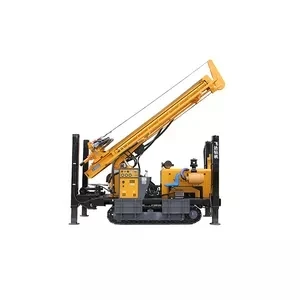

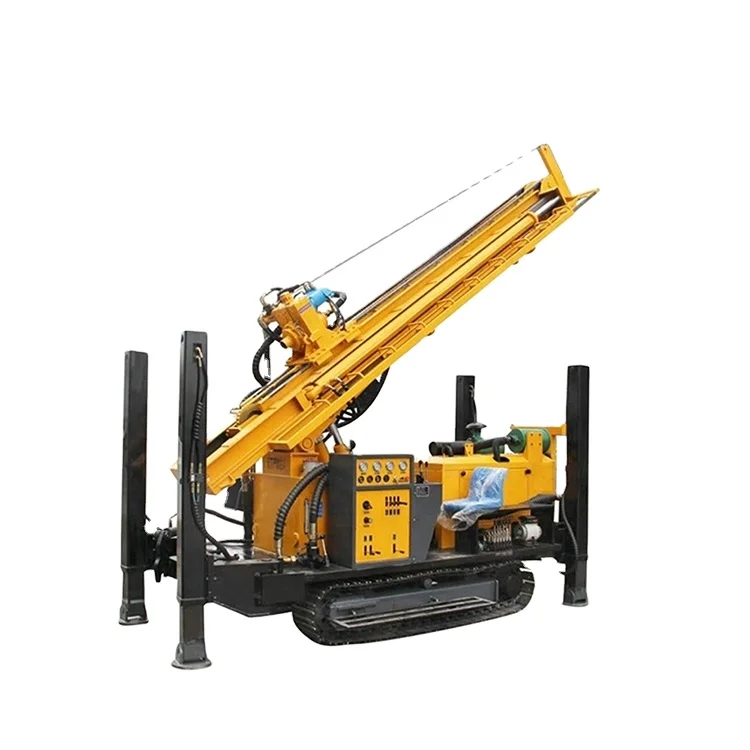

Стальное гусеничное резиновое сверлильное оборудование FY300 глубина 300 м бурение
- Категория: Mine Drilling Rig >>>
- Поставщик: Zhejiang,Miningwell,Supply,Chain,Management,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 28798.86 $* | 30238.83 $* |
| Aug-15-2025 | 28556.89 $* | 29984.6 $* |
| Jul-15-2025 | 23958.52 $* | 25156.60 $* |
| Jun-15-2025 | 28072.8 $* | 29476.24 $* |
| May-15-2025 | 24442.2 $* | 25664.10 $* |
| Apr-15-2025 | 27588.51 $* | 28967.59 $* |
| Mar-15-2025 | 27346.54 $* | 28713.60 $* |
| Feb-15-2025 | 27104.7 $* | 28459.99 $* |
| Jan-15-2025 | 26862.84 $* | 28205.83 $* |
Характеристики
Scope of application:
suitable for industrial and civil drilling
geothermal drilling, with large diameter
deep drilling
fast footage
flexible movement
wide application area and other advantages
echnical Parameters of FY300 Crawler type water well drilling rig | |
type | FY300 |
The weight | 9T |
Dimension | 4100*1950*2600mm |
The hole diameter | 140-325mm |
Drilling depth | 300m |
One-time advance length | 6.6m |
Walking speed | 2.5KM/H |
Climbing angles | 30 |
Power | 85KW |
Using air pressure | 1.7-3.3MPA |
Air consumption | 17-35 |
Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
Drill pipe diameter | 89mm,102mm, |
Rig lifting force | 20T |
Swing speed | 55-115rpm |
Swing torque | 6200-85000N.m |
\\
