Products Description

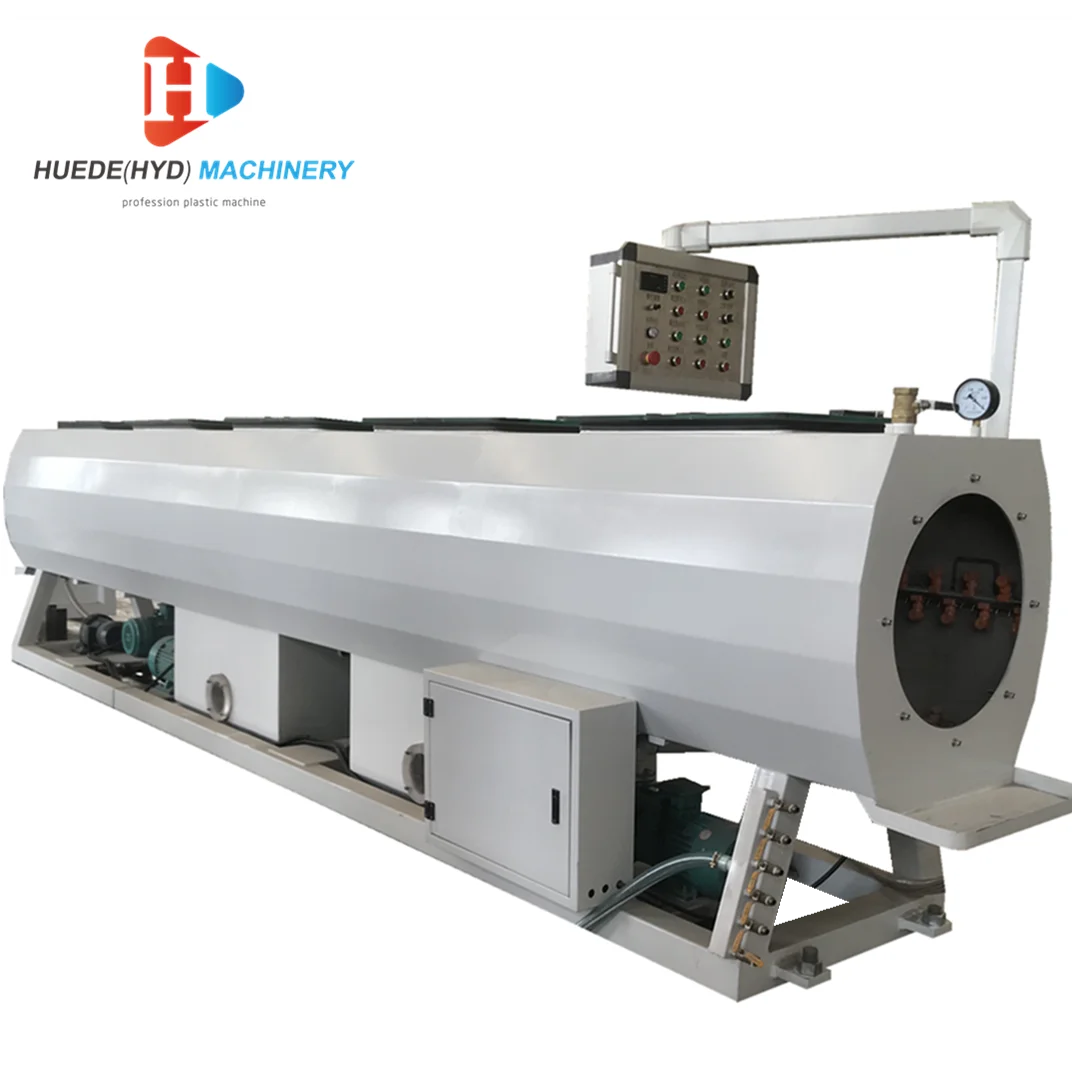

Pipe Vacuum Forming Tank

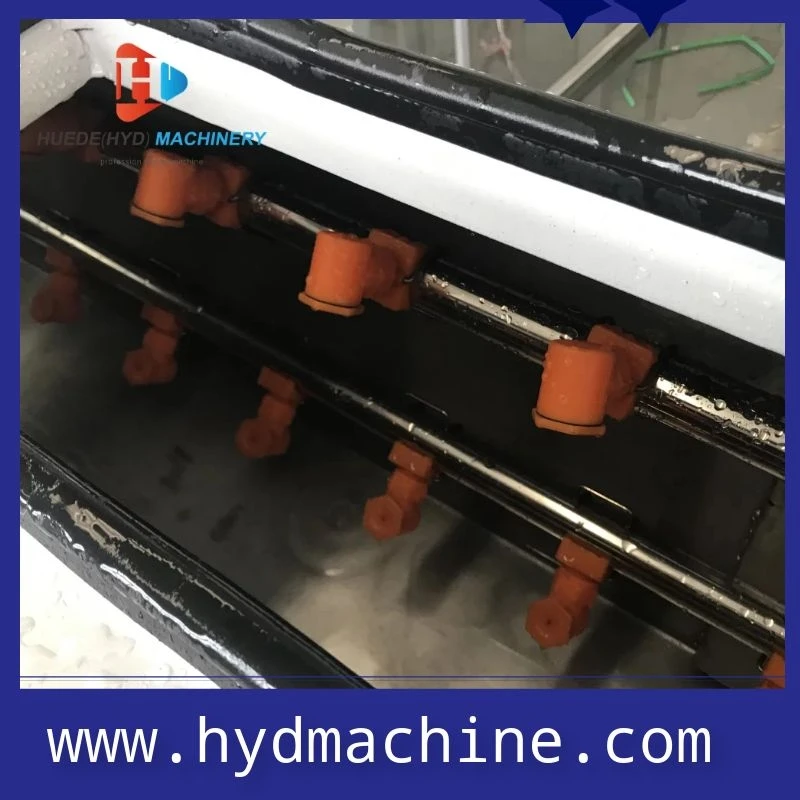

1.Our Vacuum Calibration Tank features a dual water filtration system, an optimized vacuum controller, and a specially designed nozzle (which can spray 90oC of solid water), so that the pipe can be cooled evenly. The Pipe Vacuum Forming Tank degree can reach -0.08mpa, which is the guarantee of ideal calibration.
2.The position of the tank can be moved in four directions to facilitate operation.
2.The position of the tank can be moved in four directions to facilitate operation.
Technical Data
Model | Pipe Diameter(MM) | Vacuum Pump(KW) | Water Pump(KW) | Length(MM) |
GF32*4 | Φ16-Φ32 | 4.0×1 | 1.5×1 | 4500 |
GF63*2 | Φ16-Φ63 | 4.0×2 | 4.0×2 | 5000 |
GF-160 | Φ50-Φ160 | 5.5×1 | 4.0×2 | 6000 |
GF-250 | Φ63-Φ250 | 5.5×1 | 5.5×2 | 6000 |
GF-400 | Φ160-Φ450 | 5.5×2 | 5.5×2 | 6000 |
GF-630 | Φ315-Φ630 | 7.5×2 | 7.5×2 | 9000 |

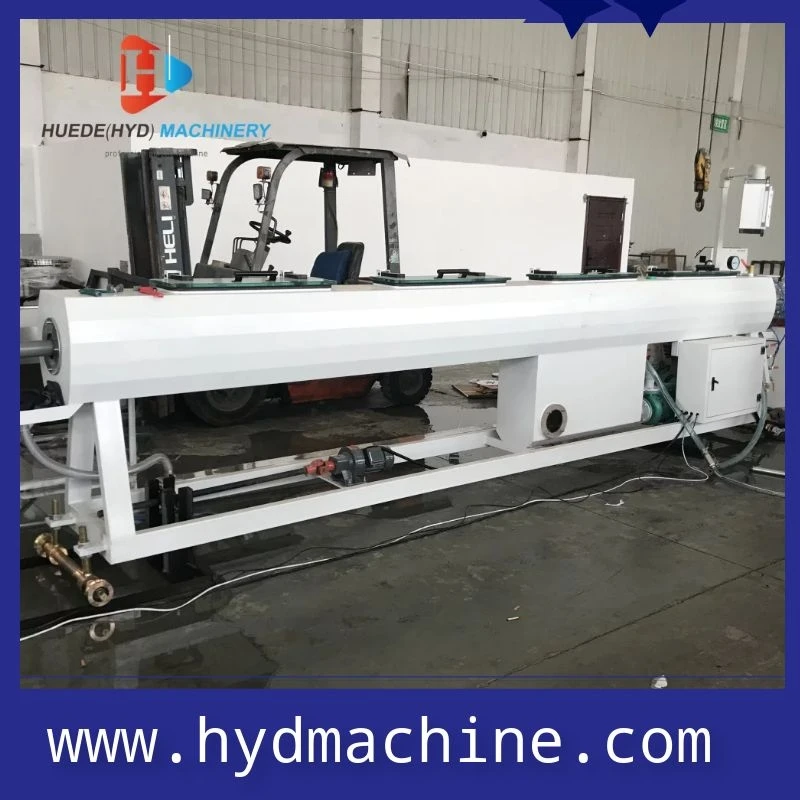

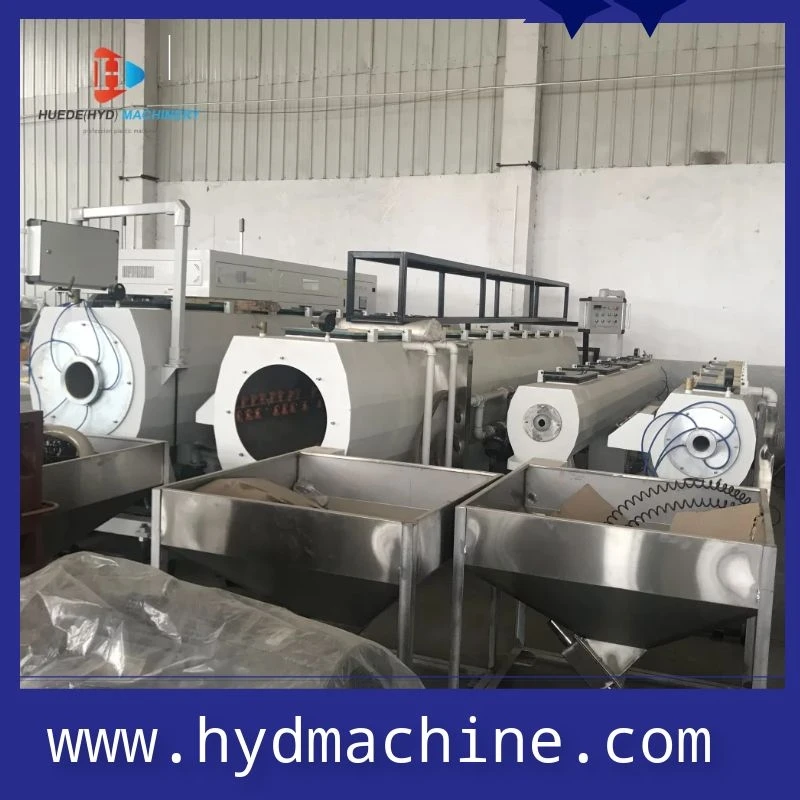

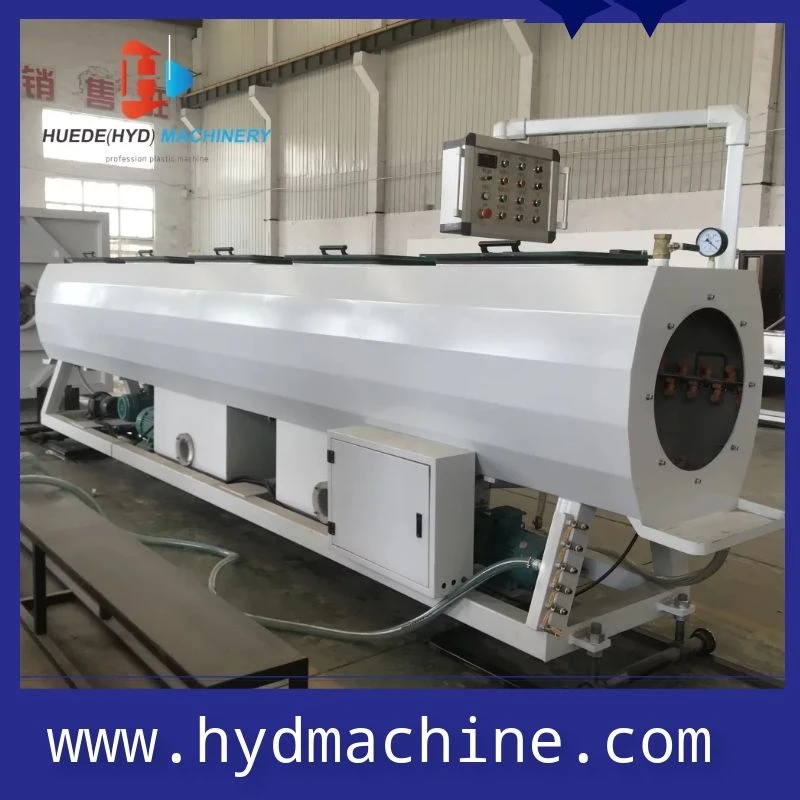

Details Images
Plastic Pipe Machine Features
Plastic Pipe Machine
1) PVC pipes of various diameters and wall thicknesses are used for agricultural and construction pipelines, cable protection, etc.
2) The production line is composed of conical twin-screw extruder, vacuum forming machine, traction machine, cutting machine, etc. The twin-screw extruder and traction machine are equipped with brand-name AC frequency conversion control devices. High-quality products are used for vacuum pumps and motors. The traction machine works with 2, 3, 4 or 6 caterpillars.
3) Two cutting methods: saw blade cutting or planetary cutting. Length measuring device and intensifying device can be attached.
4) Stable performance and high production efficiency.
5) Optional equipment: pipe end expanding device, spiral muffler pipe making device, core foaming pipe making device.
2) The production line is composed of conical twin-screw extruder, vacuum forming machine, traction machine, cutting machine, etc. The twin-screw extruder and traction machine are equipped with brand-name AC frequency conversion control devices. High-quality products are used for vacuum pumps and motors. The traction machine works with 2, 3, 4 or 6 caterpillars.
3) Two cutting methods: saw blade cutting or planetary cutting. Length measuring device and intensifying device can be attached.
4) Stable performance and high production efficiency.
5) Optional equipment: pipe end expanding device, spiral muffler pipe making device, core foaming pipe making device.
