Автоматическая ручная машина для выдувания

Категория: Stretch Blow Moulding Machines >>>
Поставщик: Zhejiang,Hanyu,Mould,Technology,Co.,Ltd.

Цена:18 000,00 $ - 20 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	21420.93 $*	22491.50 $*
Aug-16-2025	21240.69 $*	22302.94 $*
Jul-16-2025	17820.45 $*	18711.41 $*
Jun-16-2025	20880.6 $*	21924.87 $*
May-16-2025	18180.67 $*	19089.62 $*
Apr-16-2025	20520.74 $*	21546.39 $*
Mar-16-2025	20340.89 $*	21357.93 $*
Feb-16-2025	20160.83 $*	21168.16 $*
Jan-16-2025	19980.48 $*	20979.19 $*

Характеристики

Product Description

Product Application

HY-S2 is the fastest liner blow molding machine in mainland of China by now. HY-S2reaches around 1500 BPH for 350ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
HY-S2 automatic stretch blow molding machine is equipped with patented preform loading system, which consists of two manipulators: rectilineal manipulator and overturning manipulator. The rectilineal manipulator moves preform with neck up to the preform holder, after heating, the overturning manipulator grips heated preform and overturn 180 put preform to blow station with neck down. After stretching and blowing, the bottle is taken off by overturning manipulator. The specially designed preform loading & bottle discharging system avoid possible damage to preform & bottle during transportation.
HY-S2 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. HY-S2 consists of three main parts: preform loading system, Heater channel & blow station.HY-S2 is the fastest liner blow molding machine in mainland of China by now. HY-S2reaches around 1500 BPH for 350ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
HY-S2 automatic stretch blow molding machine is equipped with patented preform loading system, which consists of two manipulators: rectilineal manipulator and overturning manipulator. The rectilineal manipulator moves preform with neck up to the preform holder, after heating, the overturning manipulator grips heated preform and overturn 180 put preform to blow station with neck down. After stretching and blowing, the bottle is taken off by overturning manipulator. The specially designed preform loading & bottle discharging system avoid possible damage to preform & bottle during transportation.
HY-S2 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. HY-S2 consists of two main parts: Heater channel & blow station.


CONTAINER	Max.Container Volume	L	5
		Cavity		2
		Theoretical Output	BPH	1300-1500
ELECTRICAL	Heating Power	KW	42
		Installed Power	60KW	48
		Clamping Force	KN	400
COMPRESSEDAIR	Operating Power	MPA	0.7
		Air Consuming	L/MIN	1400
		Blowing Pressure	MPA	3.0
		Air Consuming	L/MIN	3000-4000**）
CHILLED WATER	Pressure	MPA	0.3-0.5
		Temperature	C	10-12
		Flow Rate	L/MIN	30
MACHINE	Size(LWH)	M	4.02.02.03
MACHINE		Weight	KG	3500

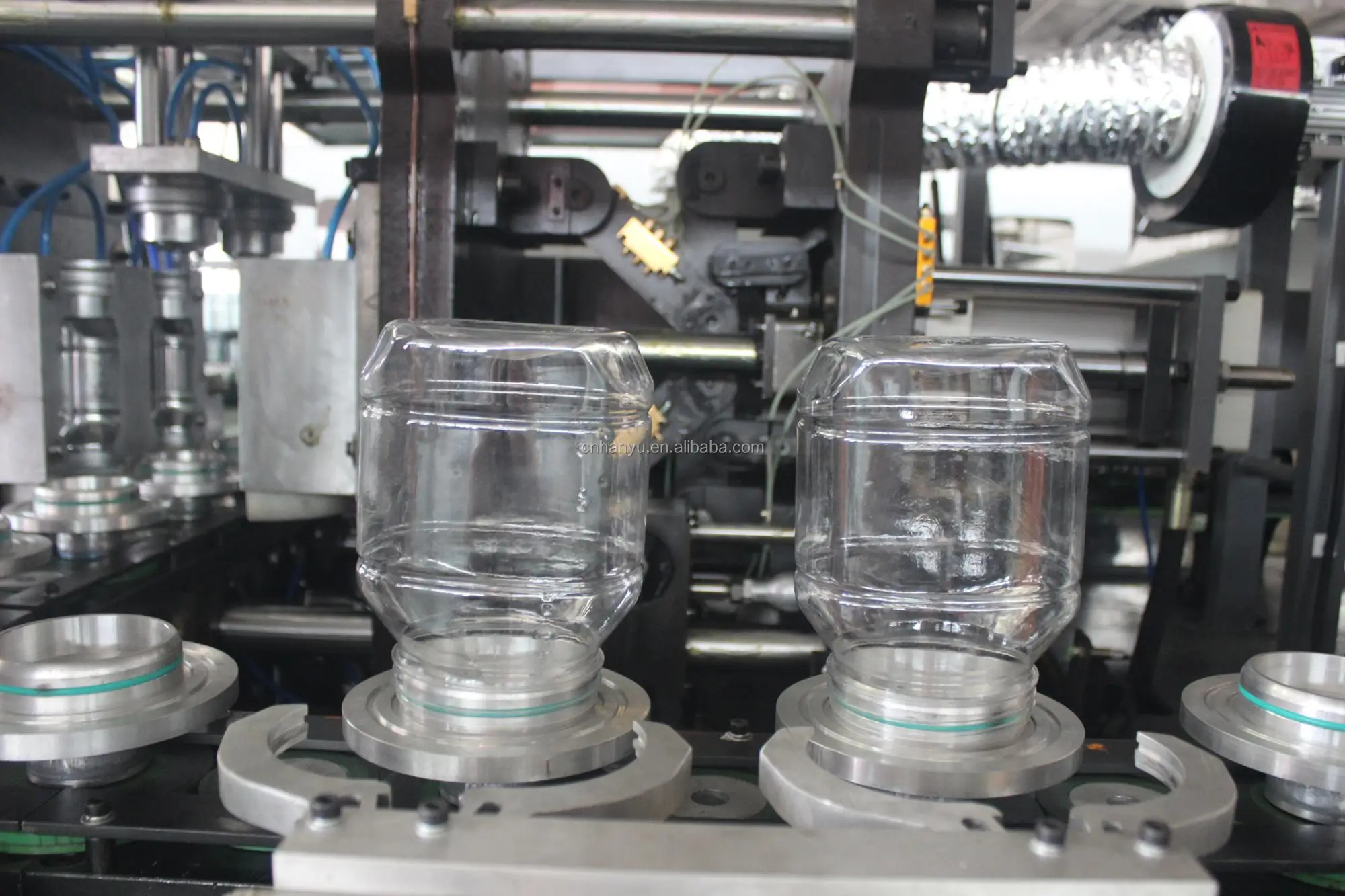

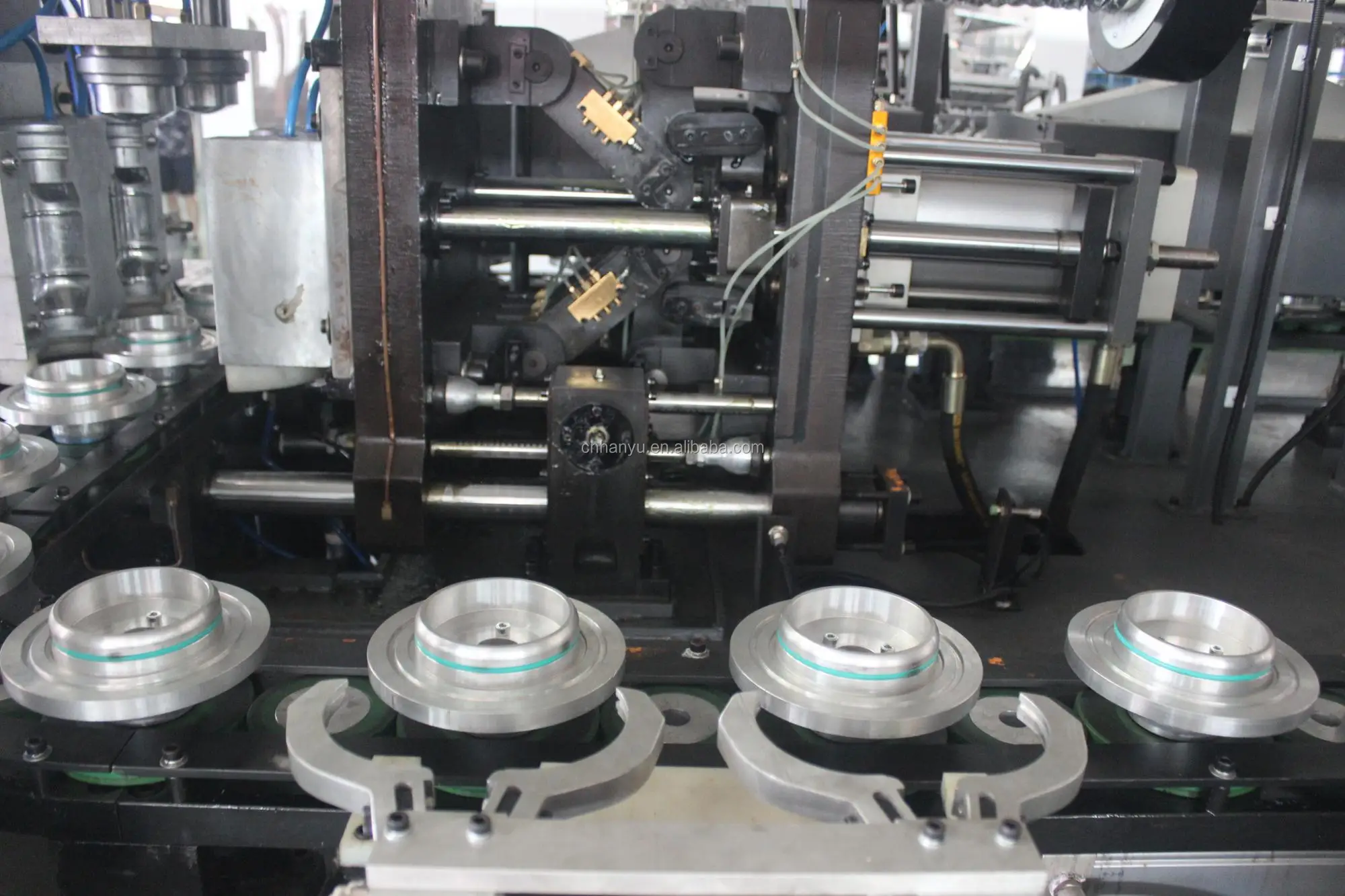

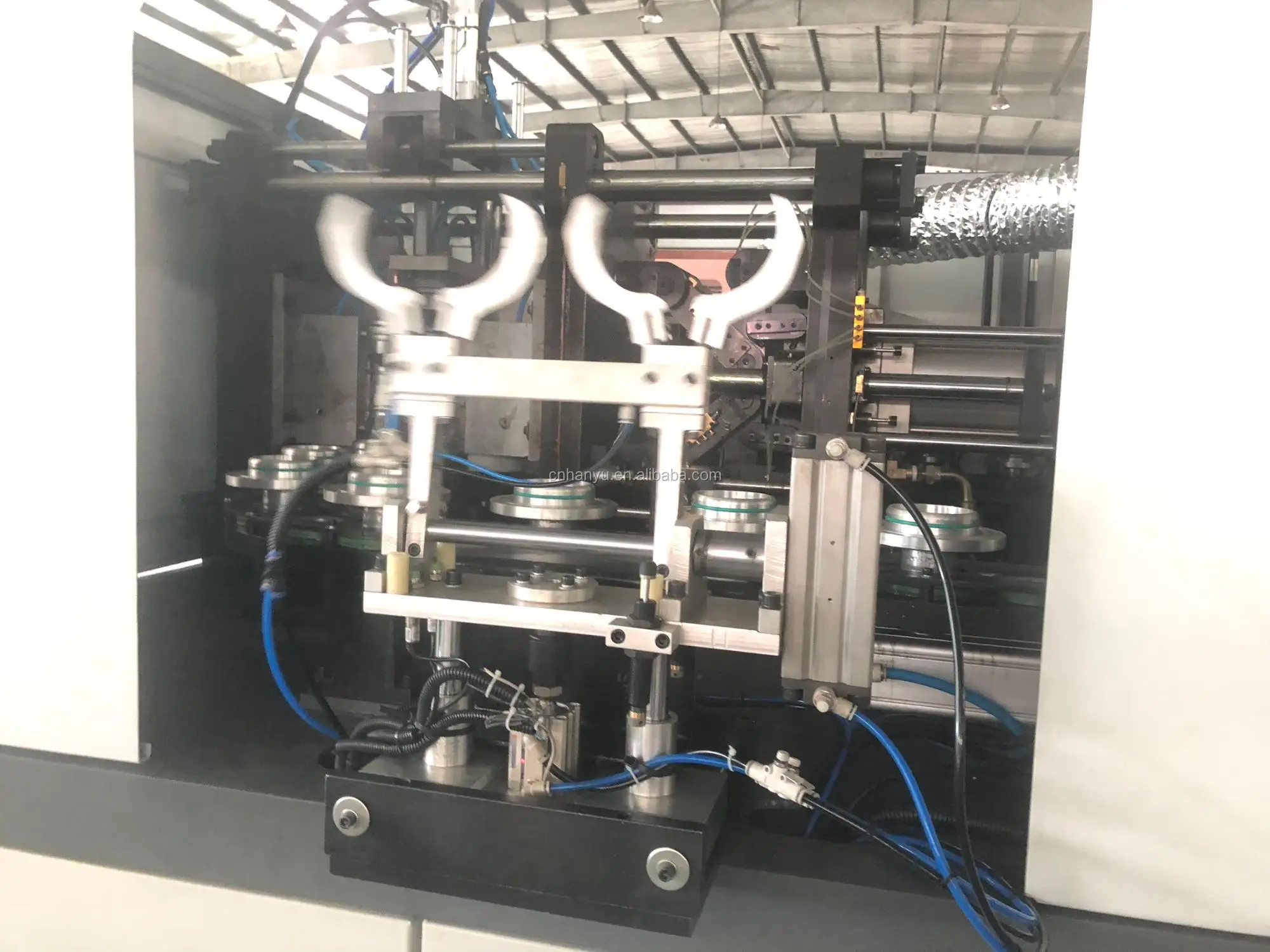

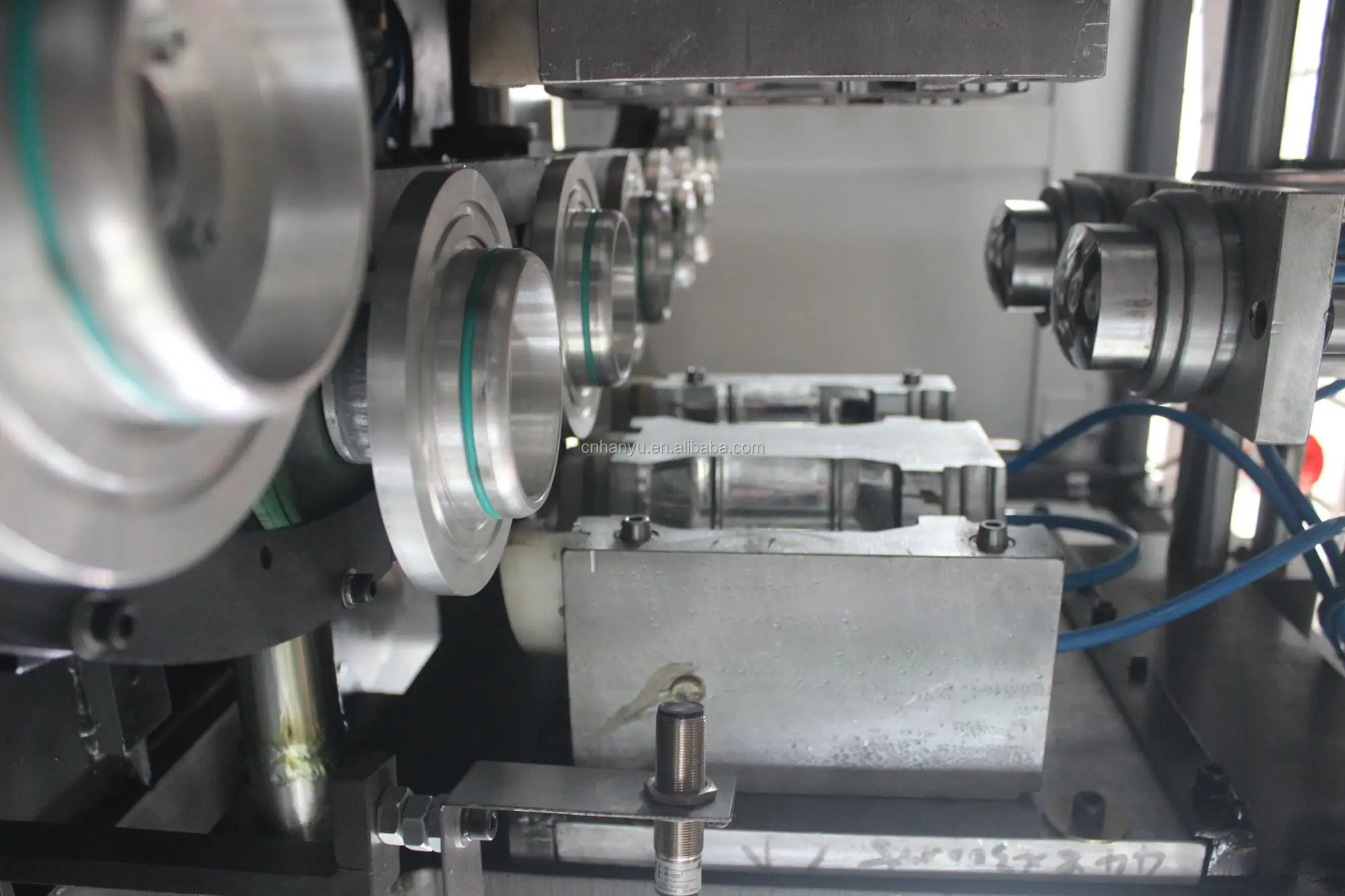

Detailed Images

Our Factory

Packing & Delivery

Packaging
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
