Горячая Распродажа портативная цифровая Индукционная паяльная машина с мягким

Горячая Распродажа портативная цифровая Индукционная паяльная машина с мягким

Категория: >>>
Поставщик: Zhengzhou,Daqing,Automation,Equipment,Co.,Ltd.

Цена:6 750,00 $ - 7 200,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	8033.68 $*	8435.67 $*
Aug-19-2025	7965.82 $*	8363.47 $*
Jul-19-2025	6683.91 $*	7017.0 $*
Jun-19-2025	7830.42 $*	8222.46 $*
May-19-2025	6818.82 $*	7159.44 $*
Apr-19-2025	7695.4 $*	8080.91 $*
Mar-19-2025	7628.6 $*	8009.3 $*
Feb-19-2025	7560.31 $*	7938.87 $*
Jan-19-2025	7493.47 $*	7868.34 $*

Характеристики

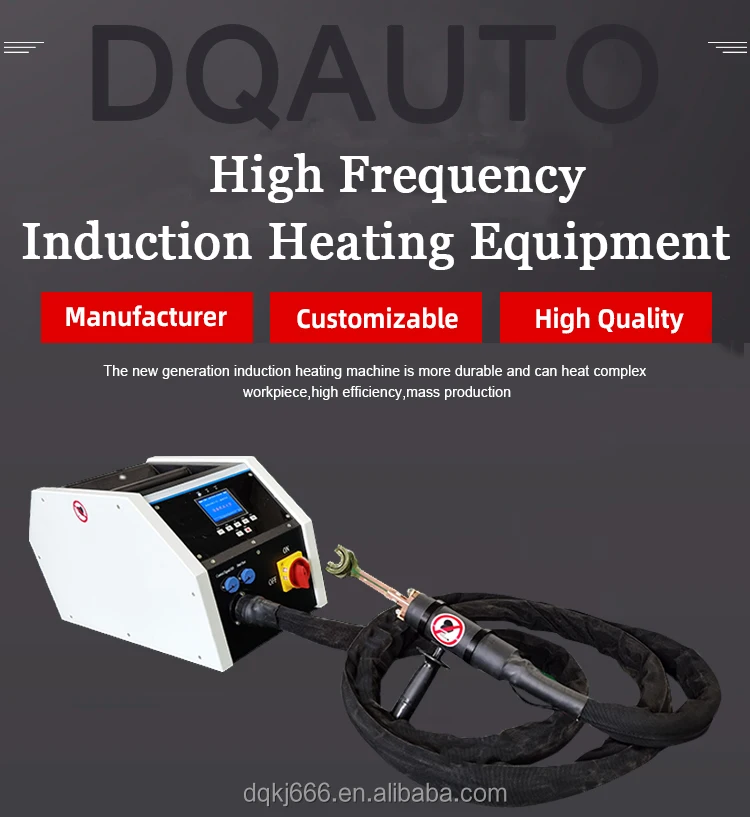

Hot sale portable handheld digital induction brazing machine with soft cable

Induction brazing machine:

The composing of the induction heating brazing machine:
1. All-digital handheld induction heating equipment
2. Robotic arm (coaxial soft cable and the handheld part)
3. Inductor
4. Water cooling system(optional)

Hand-held induction heating machine series:

Heating head’s leading wire is 2-10 meters long. The device’s power is 10-100KW, frequency is 20-80KHZ.

Application of handheld induction welding machine:
The device can be used for copper tube welding, surface heating, surface coating, mechanical local maintenance and other on-site heating.

Specifications and technical parameters
Model			FD-M25	FD-M40	FD-M50	FD-M60
Input power	Input voltage （50HZ）	360-420V	360-420V	360-420V	360-420V
		Continuous input current	15A	24A	30A	36A
		Intermittent input current	25A	40A	50A	60A
Power output	Continuous output power	10 KW	15 KW	20 KW	25 KW
		Max output power	15 KW	25 KW	32 KW	40 KW
		Output frequency	20-50KHZ	20-50KHZ	20-50KHZ	20-50KHZ
Cooling water parameters	Cooling water flow	2 L/min	4 L/min	6 L/min	7 L/min
		Cooling water pressure	4-8bar	4-8bar	4-8bar	4-8bar
		Max inlet water temperature	32℃	32℃	32℃	32℃
		Cooling water quality requirements	Scale free purified water	Scale free purified water	Scale free purified water	Scale free purified water
Generator parameters	Generator size	600306328mm	600306328mm	600306328mm	600306328mm
Generator parameters		Generator weight	30 kg	32 kg	38 kg	40 kg
Coaxial transformer parameters	Transformer size	φ50*160mm	φ50*160mm	φ50*160mm	φ80*160mm
		Transformer weight	2.5kg	2.6kg	2.8kg	4.5kg
		Flexible cable length	2-10m	2-10m	2-10m	2-10m

Advantages of handheld induction welding machine:

Small size, compact structure, both fixed and mobile. This is a new design and a completely new induction heating system. By integrating the frequency converter and coolant system into a single housing, it is used in a wide variety of applications, providing maximum flexibility for heating tasks in small space. It makes induction brazing, annealing, quenching, coating and stripping much easier. And our company can provide devices in different powers and specifications.
