Термоусадочная машина для склеивания и ПВХ бесформовочная форма регулируемая термоусадочная этикетка
- Категория: Packaging Forming Machines >>>
- Поставщик: Ruian,Wity,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 35462.96 $* | 37235.97 $* |
| Aug-19-2025 | 35164.29 $* | 36922.31 $* |
| Jul-19-2025 | 29502.93 $* | 30977.27 $* |
| Jun-19-2025 | 34568.32 $* | 36296.97 $* |
| May-19-2025 | 30098.35 $* | 31603.58 $* |
| Apr-19-2025 | 33972.12 $* | 35671.64 $* |
| Mar-19-2025 | 33674.20 $* | 35358.94 $* |
| Feb-19-2025 | 33376.1 $* | 35045.58 $* |
| Jan-19-2025 | 33078.66 $* | 34732.0 $* |
Характеристики
Related machine
Product Description

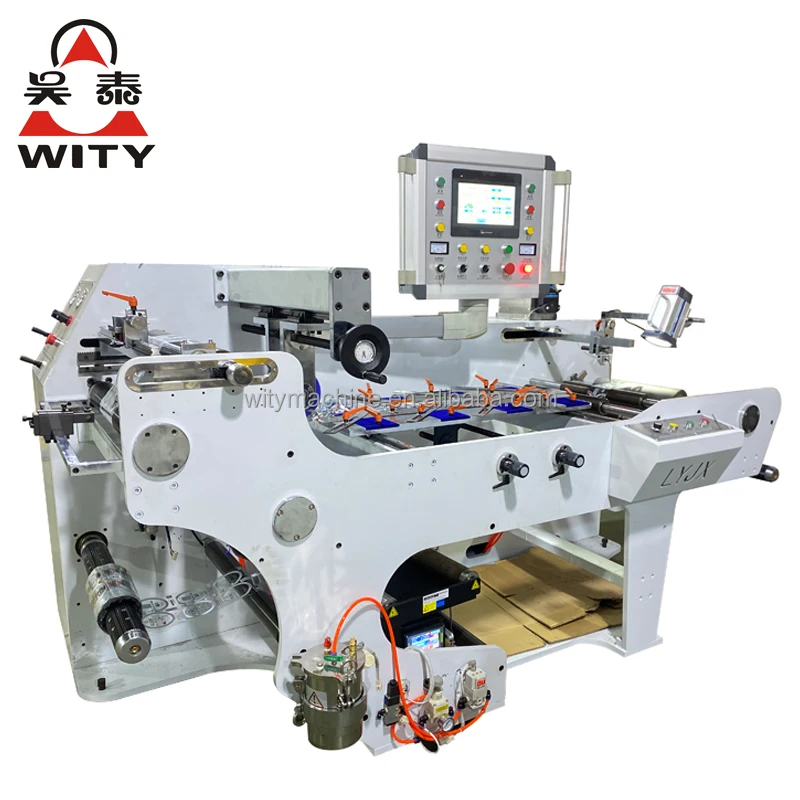

PVC/PET Shrink Label Sealing Machine
(Mold Adjustable Type)
This machine is special designed for gluing and seaming single layer PVC/PET roll to produce various shrink sleeve label such as beverage label, battery sleeve, pens sleeve, etc.
Machine Details

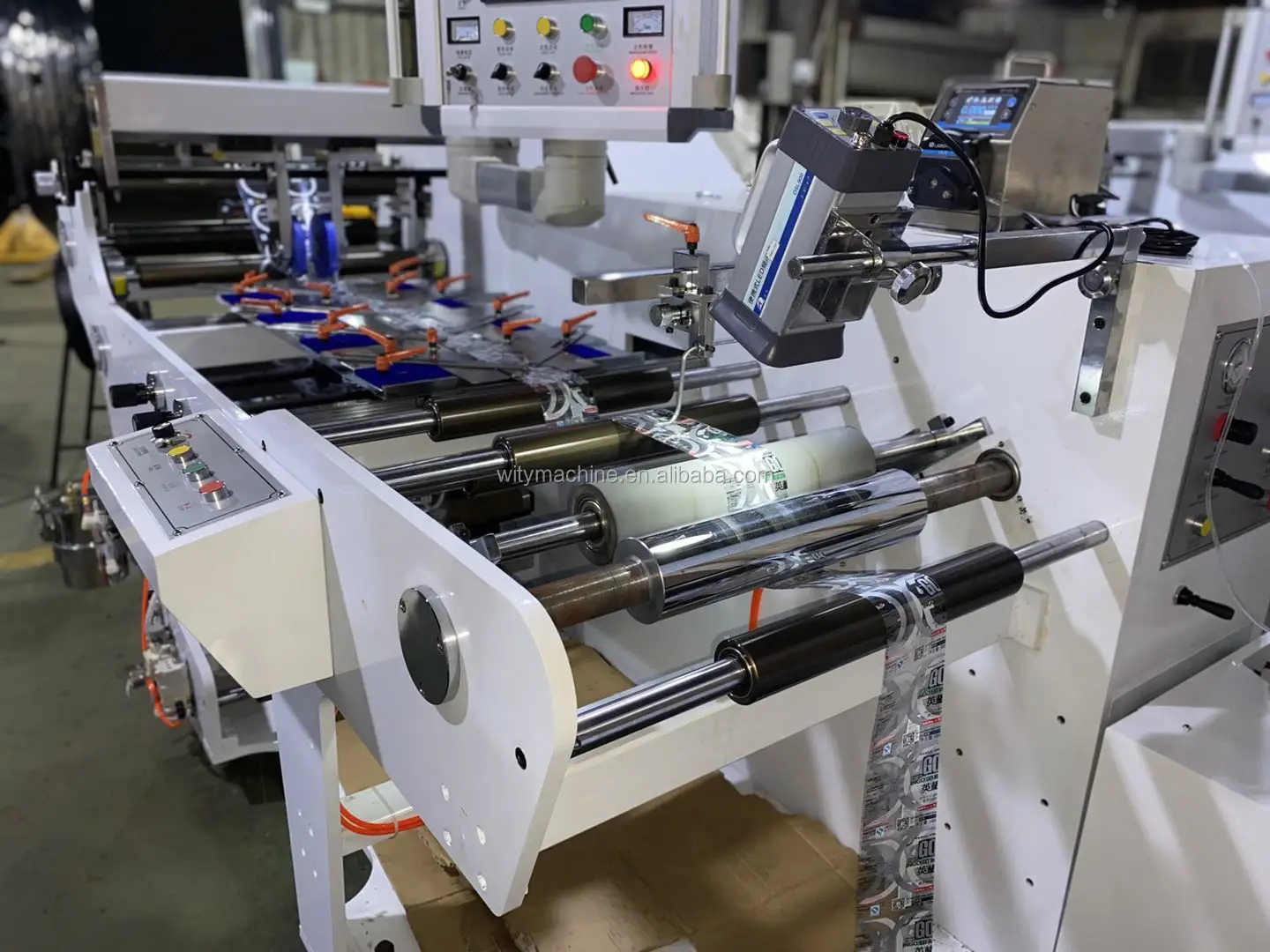

Seaming part
Gluing part

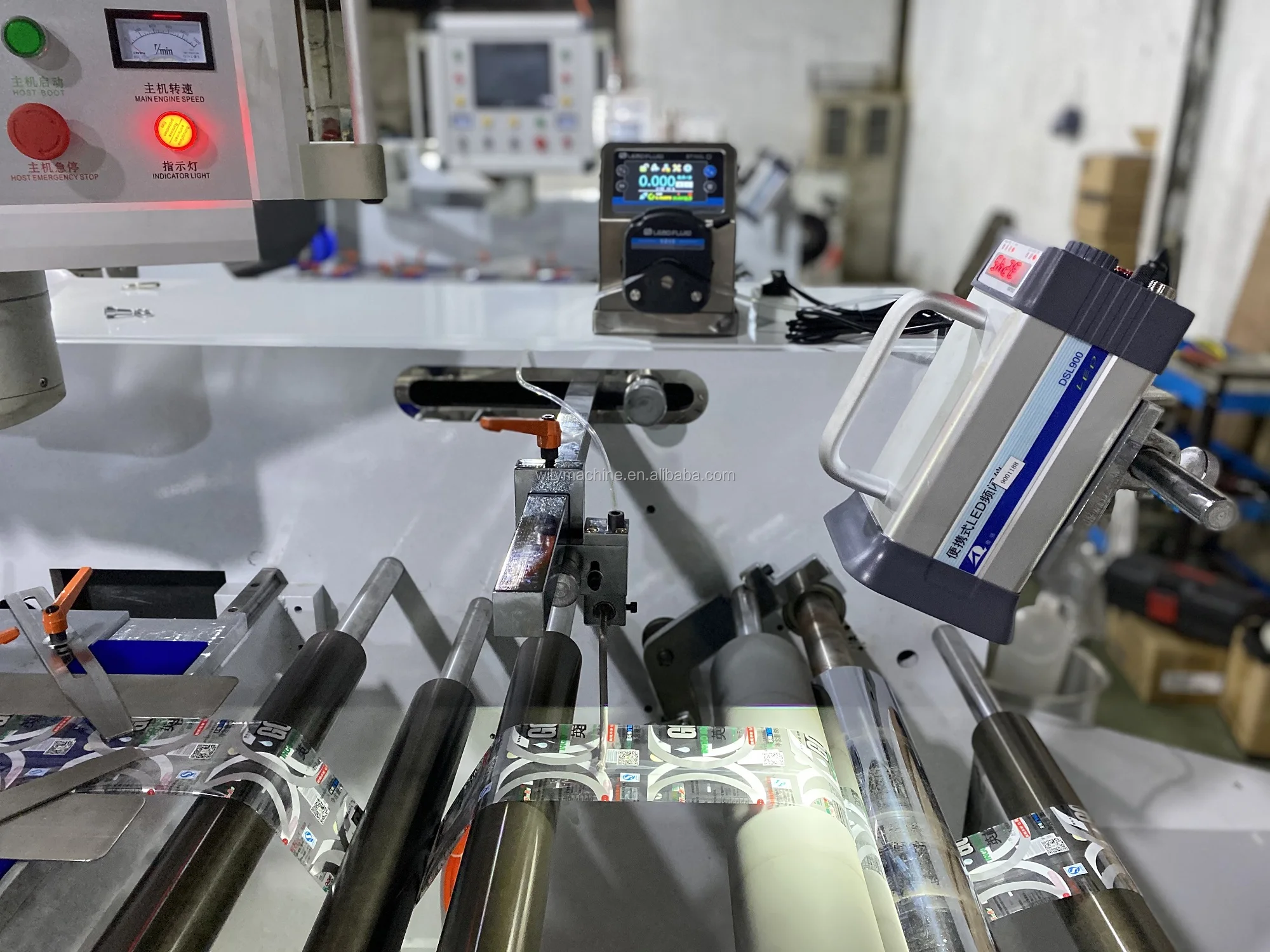

Stroboscope
Specification
Forming Width | 70~300mm |
Unwinding diameter | 500mm |
Rewinding diameter | 700mm |
Mechanical speed | 330m/min |
Max seaming speed | 300m/min |
Material Core Inner Diameter | 76 / 3" |
Total power | 5.5kw |
Voltage | 380v/50hz |
Machine weight | 1800kg |
Overall dimension | 2950×1550×1700mm |
Features
1) Unwinding Section
\tBuilt with heavy-duty frame to ensure Shrink Sleeve Seaming Machine operation.
\tMain drive YASKAWA brand three servo motor.
\t3" air shaft for fast roll changeover.
\tPAUSOURCE brand ultrasonic EPC Web guiding system provides the accuracy shrink sleeve seaming position.
\tAutomatic SIEMENS brand PLC unwind tension control, input material thickness and diameter, tension will be automatic calculate and controlled.
2) Shrink Sleeve Seaming Section
\tEmployed with glue pump system: the flow of solvent is automatically match up with the machine speed varies.
\tEquipped with blower for drying the solvent faster also increasing the production speed.
\tWith stroboscope and photo sensor to help monitoring the sealing quality.
\tMold adjustable system, film guiding by adjustable roller and bar, when seaming different width job, adjust the handle to increase or decrease the guide bar distance to reach request width, no need change mold.
3) Rewinding Section
\tCantilevered rewind 3" air shaft for fast roll changeover.
\tAutomatic rewinding tension control by PLC assure stable rewinding tension and no need to adjust while speed and diameter varied.
\tEquipped with statics eliminator.
4) Micro Computer Control System
\tAdopted with SIEMENS PLC system providing the accurate and stable control.
\tColorful 7 inch WEINVIEW brand touch screen
\tUnwind tension auto control function.
\tRewind tension auto increase function.
\tRewind length setting and gluing setting function.
5) Other function:
\tVertical continuous perforation device.
\tRewind oscillation device
Needle gluing device+stainless steel glue tank and gluing head+worm pump alternative using.
\tBuilt with heavy-duty frame to ensure Shrink Sleeve Seaming Machine operation.
\tMain drive YASKAWA brand three servo motor.
\t3" air shaft for fast roll changeover.
\tPAUSOURCE brand ultrasonic EPC Web guiding system provides the accuracy shrink sleeve seaming position.
\tAutomatic SIEMENS brand PLC unwind tension control, input material thickness and diameter, tension will be automatic calculate and controlled.
2) Shrink Sleeve Seaming Section
\tEmployed with glue pump system: the flow of solvent is automatically match up with the machine speed varies.
\tEquipped with blower for drying the solvent faster also increasing the production speed.
\tWith stroboscope and photo sensor to help monitoring the sealing quality.
\tMold adjustable system, film guiding by adjustable roller and bar, when seaming different width job, adjust the handle to increase or decrease the guide bar distance to reach request width, no need change mold.
3) Rewinding Section
\tCantilevered rewind 3" air shaft for fast roll changeover.
\tAutomatic rewinding tension control by PLC assure stable rewinding tension and no need to adjust while speed and diameter varied.
\tEquipped with statics eliminator.
4) Micro Computer Control System
\tAdopted with SIEMENS PLC system providing the accurate and stable control.
\tColorful 7 inch WEINVIEW brand touch screen
\tUnwind tension auto control function.
\tRewind tension auto increase function.
\tRewind length setting and gluing setting function.
5) Other function:
\tVertical continuous perforation device.
\tRewind oscillation device
Needle gluing device+stainless steel glue tank and gluing head+worm pump alternative using.
