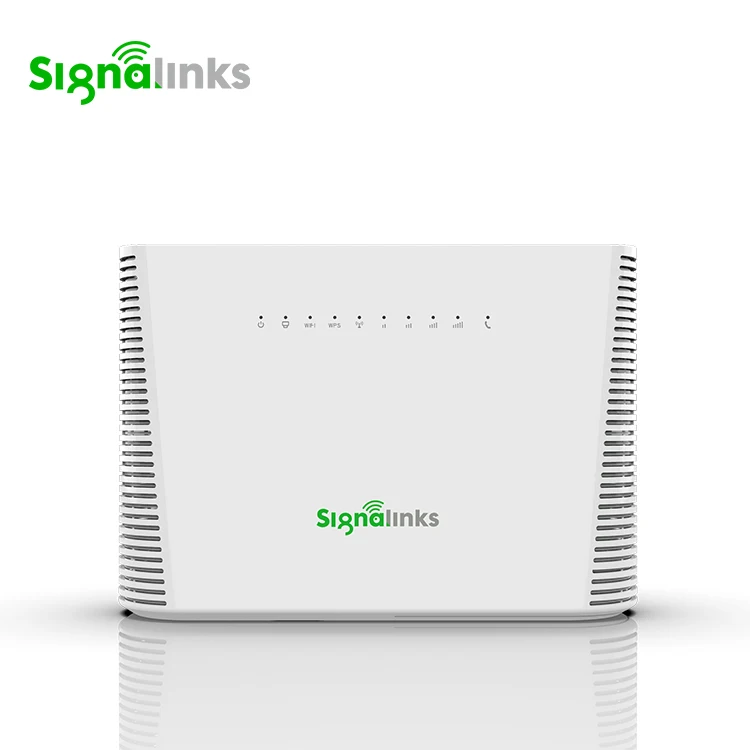

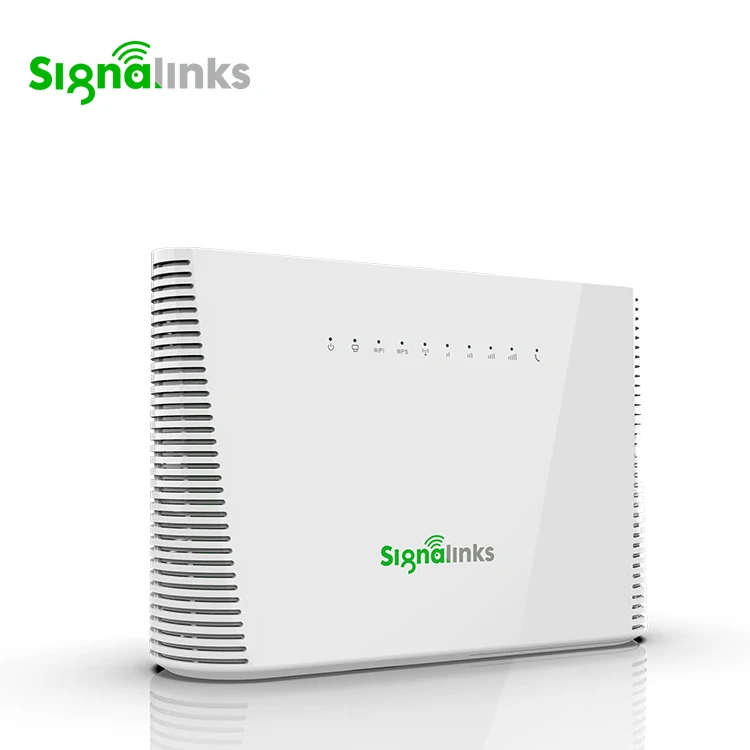

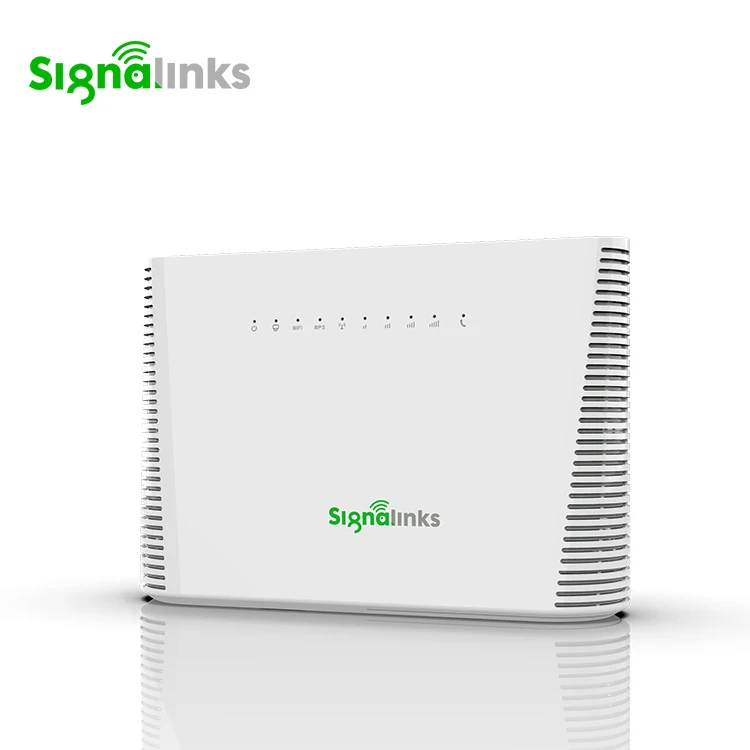

Signalinks портативный беспроводной маршрутизатор 4G CPE CAT6 со слотом для SIM-карты максимальная скорость потока 300
- Категория: Wireless Routers >>>
- Поставщик: Signalinks,Communication,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 27.17 $* | 28.53 $* |
| Jul-18-2025 | 22.98 $* | 22.27 $* |
| Jun-18-2025 | 26.86 $* | 27.69 $* |
| May-18-2025 | 26.23 $* | 27.27 $* |
| Apr-18-2025 | 21.39 $* | 21.62 $* |
| Mar-18-2025 | 26.94 $* | 27.57 $* |
| Feb-18-2025 | 25.27 $* | 26.0 $* |
| Jan-18-2025 | 25.76 $* | 26.3 $* |
Характеристики
| Signalinks Communication Technology Co.,Ltd | |||
| Date:2020-7-7 4G CPE Router specification Revision Number:V1.5 | |||
| Category | Spec item | Description | Remarks |
| Basic Info | Model Name | R204 | |
| Type | CPE | ||

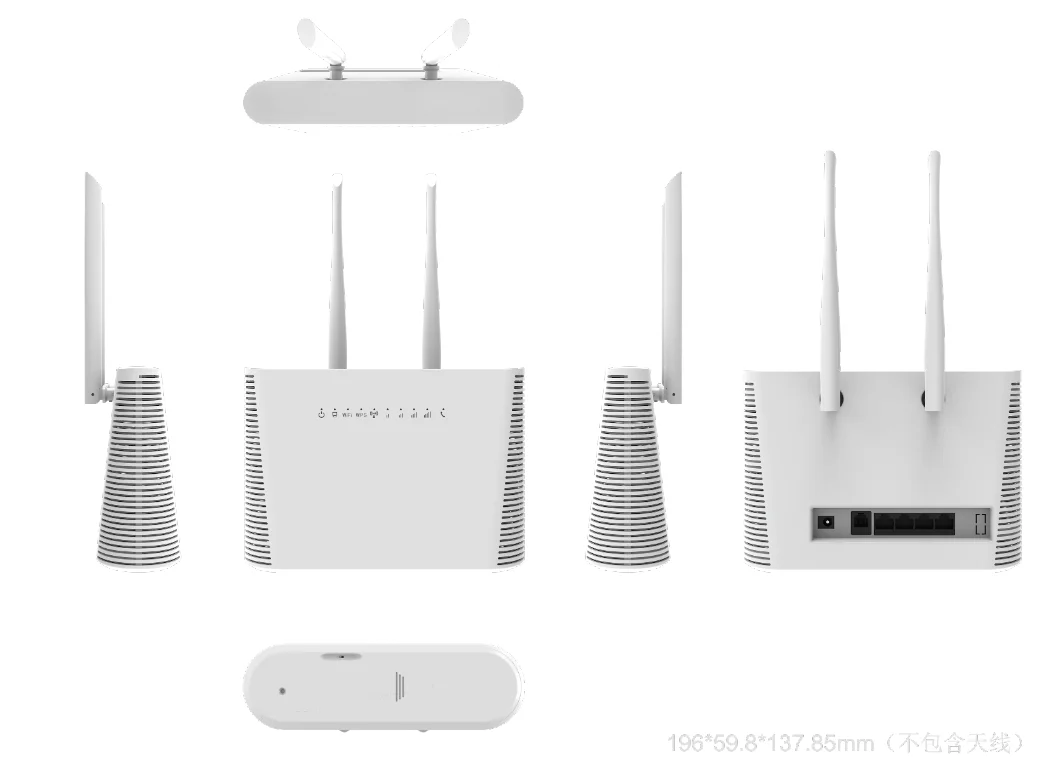

| Dimension | 196mm*60mm*138mm | ||
| Weight | about 500g | ||

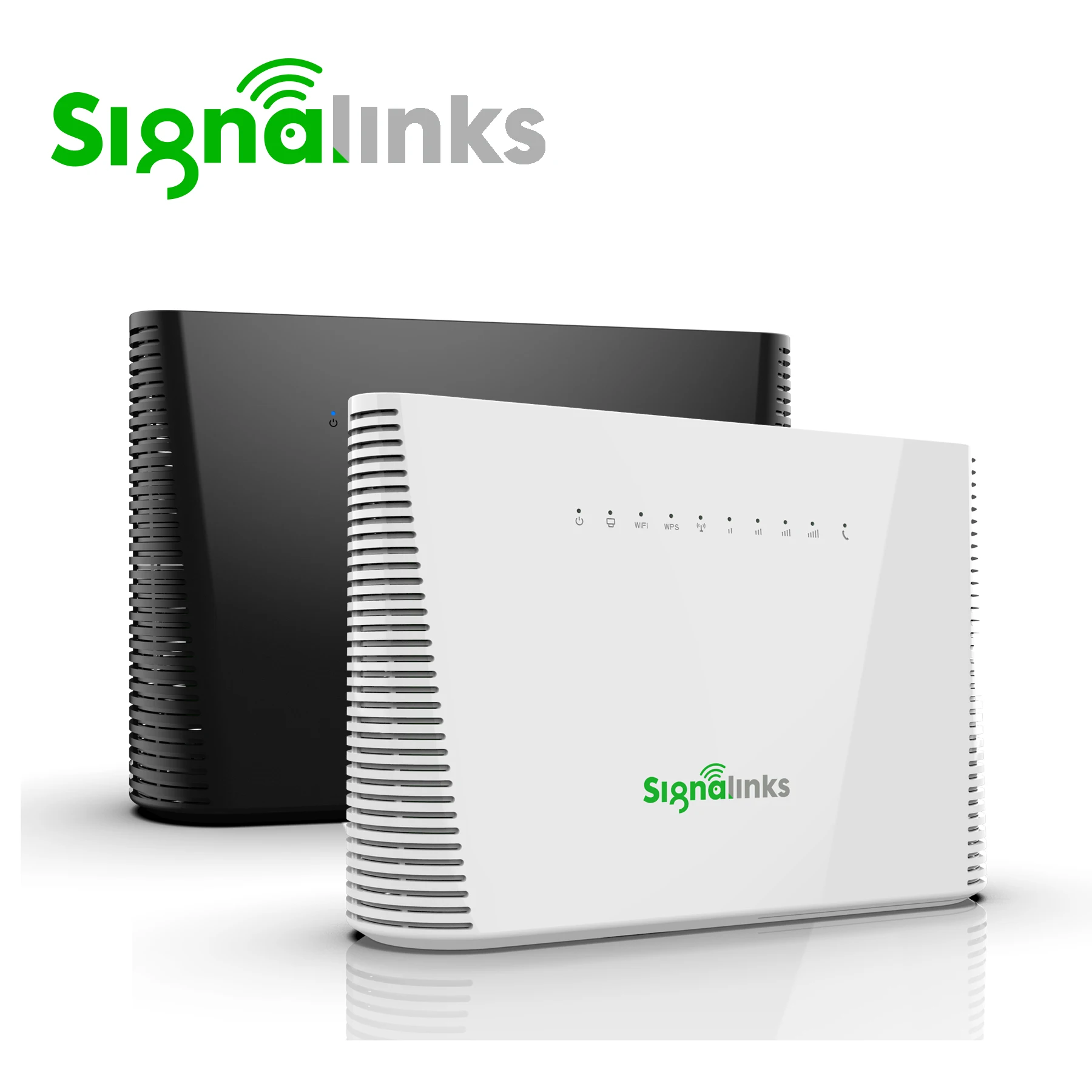

| Color | White/Black | ||
| Launch time(PP) | July.2020 | ||
| Air Interface | Technical Standard | Compatible with WCDMA, FDD-LTE,TDD-LTE Default 802.11b/g/n, 802.11ac is optional | |
| Frequency | LTE:1/2/3/4/5/6/7/8/9/12/13/17/19/20/25/26/28A/28B/38/39/40/41 WDMA:B1/5/8/ | normal: LTE:B1/3/5/7/8/20/40/41 WCDMA:B1/5/8 | |
| WIFI | 2.4G, WIFI 2*2 MIMO,802.11 a/b/g/n/ac | ||
| Performance | Maximum Data Throughput | LTE CAT 4 FDD-LTE(DL/UL) 300Mbps/50Mbps DC-HSPA+ (DL/UL) 42/5.76Mbps | Theoretical peak rates |
| Hardware | Receive Diversity | Support Receive Diversity | |
| BB Chipset | ASR 1802S / ZX297520V3E | ||
| WiFi Chipset | MT7628 | ||
| WiFi Memory | 32M | ||
| power consumption | <15W | ||
| Power Voltage | DC12V/1A | ||
| USIM/SIM | 2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot | ||
| LED | Power Indication LED, WiFi Indication LED, Interface Status LED,Internet Status LED, Signal Strength LED | ||
| Antenna | 2*2 MiMo internal WIFI antenna;2*2 MiMo internal LTE antenna; 2 external LTE antenna(optional) | ||
| Buttons | Power,Reset,WPS | ||
| Ethernet | 1 WAN+3 LAN, 10BaseT/100Base/1000Base automatic adaptive port | ||
| RJ11 | 1*RJ11 | ||
| Reset | Pin-hole | ||
| ESD | Contact±8KV,Air±10KV | ||
| Battery | none(4000mAh battery is optional) | ||
| Software | SW Update | TR069 & FOTA(customized) & Local | |
| WIFI Mode | AP mode only | ||
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK | ||
| SMS & Phone Book | Not Support by default, can be customized | ||
| UPnP | Need customize | ||
| Voice | VoLTE & CS Domain voice & VOIP | ||
| IPv4 | Support | ||
| IPv6 | Support | ||
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | ||
| Data Statistics | Support | ||
| VPN Pass Through | PP2P/L2TP/IPSec | ||
| SIM Lock | Support | ||
| HTTP | Support | ||
| DMZ | Support | ||
| Environment | Operating Temperature | Normal:-10°C to +65°C; | |
| Storage Temperature | -20° C to +85° C | ||
| Humidity | 5%~ 95% | ||
