30 мм медный цилиндр латунный обогреватель для
- Категория: Home Heater Parts >>>
- Поставщик: Yancheng,Yuheng,Electric,Heating,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.65 $* | 0.29 $* |
| Aug-15-2025 | 0.56 $* | 0.92 $* |
| Jul-15-2025 | 0.39 $* | 0.71 $* |
| Jun-15-2025 | 0.23 $* | 0.42 $* |
| May-15-2025 | 0.22 $* | 0.82 $* |
| Apr-15-2025 | 0.30 $* | 0.64 $* |
| Mar-15-2025 | 0.25 $* | 0.78 $* |
| Feb-15-2025 | 0.0 $* | 0.39 $* |
| Jan-15-2025 | 0.98 $* | 0.57 $* |
Характеристики
Product Description
Brass Band Heater adopts copper tube to seal the heating part, the heating part is made of high temperature resistance and heat resistance mica board ,lead wire uses heat resistance fiberglass wire, manner of lead wire as epiboly copper is more wearable and durable. Joint of brass band heater use copper screw to connect with the heating part, use silver storm welding to weld , makes the whole goods is in completely sealed situation.
Product Name | 30mm copper barrel brass band heater for extruder | ||||
Sheath Material | Brass | ||||
Diameter | 25mm - 150mm | ||||
Height | 25mm - 70mm | ||||
Voltage | 12V-480V customized | ||||
Resistance Wire | NiCr2080 | ||||
Operate temperature | 300℃ to 400℃ | ||||
Electrical terminations | Standard lead, Screw terminal; 2-Pin Euro Plug or 3-Pin Euro Plug | ||||
Photo shows

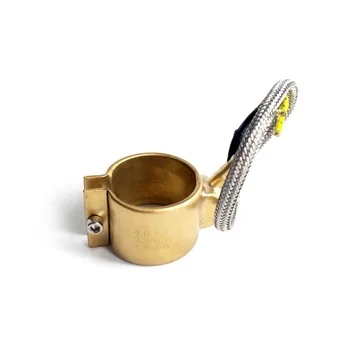

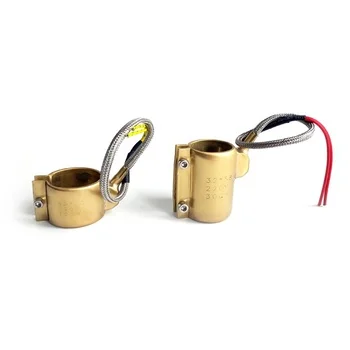

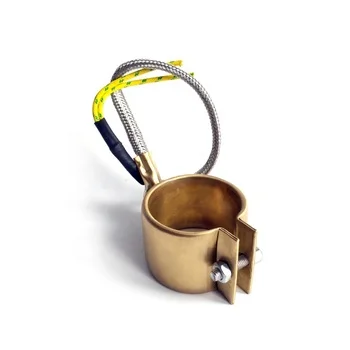

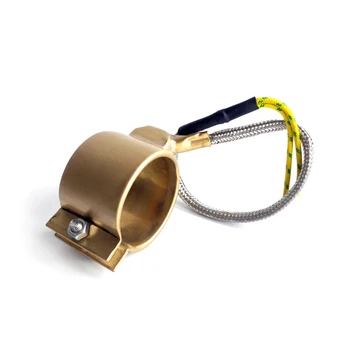

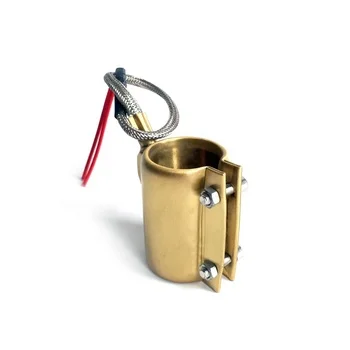

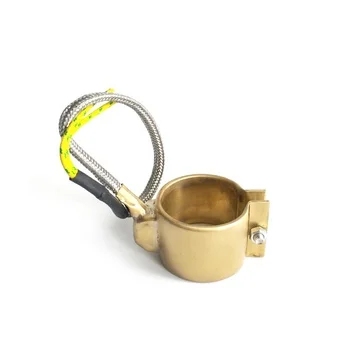

Detailed Images
Material of Brass Nozzle band heater
* Brass tube
* Nickel-Chrome 80/20 resistive winding
* Continuous mica insulation
* Flexible bipolar feeding lead + earth wire
* Teflon-fibreglass insulated nickel conductors, with metal braiding protection Max working temperature is 500ºC
1.Vottage :380V,110V and other can be customized.
2.Wattage :80W,200W and other can be customized.
3.Heater Inside Diameter :20mm, 40mm, 60mm and other can be customized.
4.Heater Height :30mm, 60mm, 80mm, 100mm and other can be customized.
5.Whether you need holes or not. If yes, it is necessary to provide holes' quantity, size and position.
6.Termination Stype :screw terminal, plug terminal, ceramic block terminal or lead wire terminal.
2.Wattage :80W,200W and other can be customized.
3.Heater Inside Diameter :20mm, 40mm, 60mm and other can be customized.
4.Heater Height :30mm, 60mm, 80mm, 100mm and other can be customized.
5.Whether you need holes or not. If yes, it is necessary to provide holes' quantity, size and position.
6.Termination Stype :screw terminal, plug terminal, ceramic block terminal or lead wire terminal.
Application:
●Injection moulding
●Production and processing lines
● Blow-molding
● Plastic extrusion
● Process applications
● All Plastic & Rubber Processing Machinery.
●Production and processing lines
● Blow-molding
● Plastic extrusion
● Process applications
● All Plastic & Rubber Processing Machinery.
Packing&Shipping
1) plastic bag + carton box
2) wooden box
2) wooden box
Shipping for quartz infrared heater
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available
Related Products
$5 - $ 10 Pieces
1Pieces (MOQ)
$15 - $ 30 Pieces
10 Pieces (MOQ)
$2 - $ 10 Pieces
1 Pieces (MOQ)
Company Introduction
Founded in 2008, Yancheng Yuheng Electric Heating Technology Co.,Ltd, is a professional heating element manufacturer. With more than 15 years of experience in heating element filed, we produce top quality products and offer efficient service to our customers.
Shaanxi Yuheng is a branch company located in Xianyang city. In order to meet customers’ requirements, we launched our new products, including CVD furnace, Pulping & Paper laboratory equipment, Testing equipment, and related equipment heating elements.Based on industry standards TAPPI, APPITA,CPPA,SCAN, and strict implementation of relevant national standards, our products have exported to US,Japan,Canada,more than 50 countries. Our engineers are always ready to meet your requests, our salesperson will provide timely response and offer efficient communication.
Shaanxi Yuheng is a branch company located in Xianyang city. In order to meet customers’ requirements, we launched our new products, including CVD furnace, Pulping & Paper laboratory equipment, Testing equipment, and related equipment heating elements.Based on industry standards TAPPI, APPITA,CPPA,SCAN, and strict implementation of relevant national standards, our products have exported to US,Japan,Canada,more than 50 countries. Our engineers are always ready to meet your requests, our salesperson will provide timely response and offer efficient communication.
Our Services & Strength
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Effective
Well-trained & experienced Sales team offer best and careful services before and after sales
Fast Shipping
Sample:3-4 days Lead time for the order:10-12 working days depend on the quantity.
Sample:3-4 days Lead time for the order:10-12 working days depend on the quantity.
FAQ
Welcome to your inquiry, please Contact Us for any question or products information.
