Машина для склеивания картона машина
- Категория: Packaging Forming Machines >>>
- Поставщик: Cangzhou,Lighten,Import,&,Export,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 21420.36 $* | 22491.65 $* |
| Aug-19-2025 | 21240.64 $* | 22302.64 $* |
| Jul-19-2025 | 17820.81 $* | 18711.2 $* |
| Jun-19-2025 | 20880.24 $* | 21924.63 $* |
| May-19-2025 | 18180.20 $* | 19089.0 $* |
| Apr-19-2025 | 20520.49 $* | 21546.62 $* |
| Mar-19-2025 | 20340.38 $* | 21357.8 $* |
| Feb-19-2025 | 20160.41 $* | 21168.56 $* |
| Jan-19-2025 | 19980.61 $* | 20979.93 $* |
Характеристики
Product Description
Good quality auto corrugated carton box folder gluer machine/glue machine/box folding machine
Whole machine description and feature:

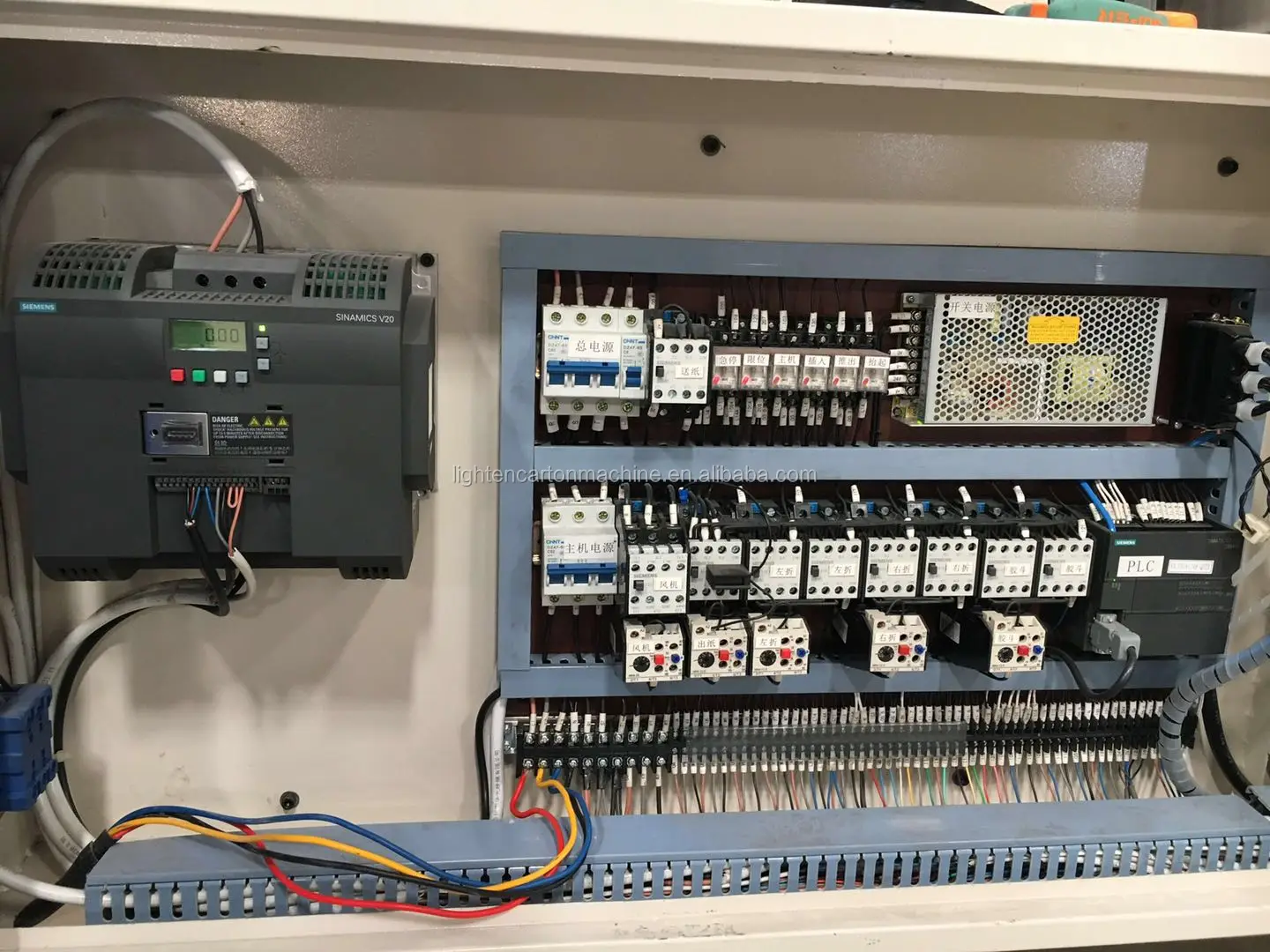

QS-2600 series automatic folder gluer machine consist of three sections: vacuum feeding section, gluing and folding section,counter and stacker section. Frequency conversion motor with quality inverter adjust speed. PLC and Touch screen control system for easy operation and running stable.Average speed is 150sheets/min. Energy conservation and high speed, saving labor cost.
QS-2600 series automatic folder gluer machine consist of three sections: vacuum feeding section, gluing and folding section,counter and stacker section. Frequency conversion motor with quality inverter adjust speed. PLC and Touch screen control system for easy operation and running stable.Average speed is 150sheets/min. Energy conservation and high speed, saving labor cost.

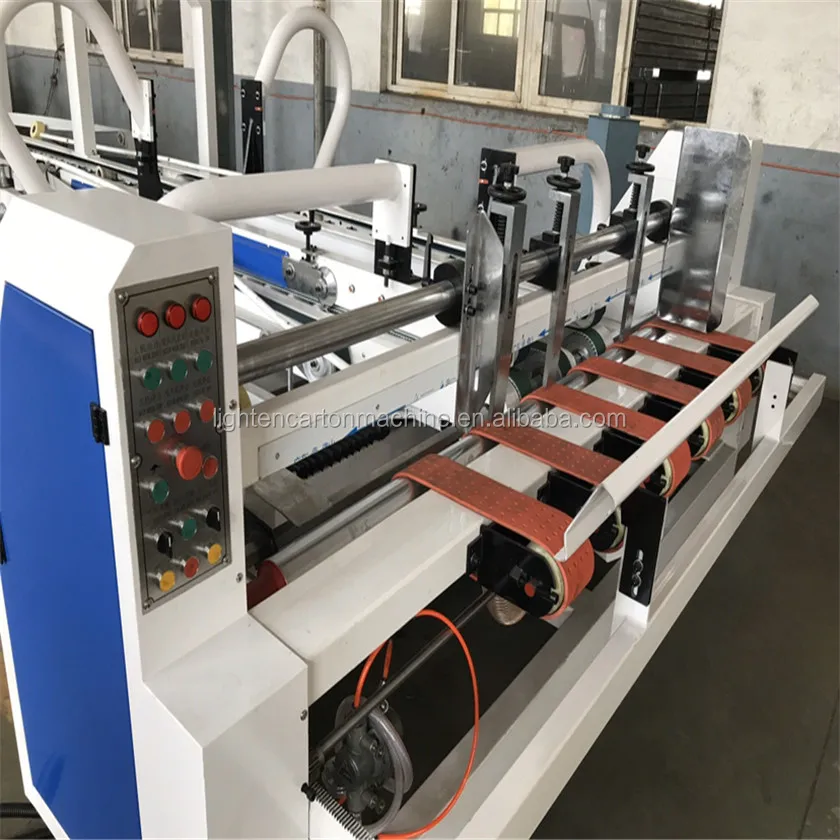

Feeding section:
1.Vacuum suction feeding to feed warping paperboard easily
2.Quality electromagnetic clutch and brake adpoted, feeding section controled independent, operation easily
3..Scorer wheel adjustable, suit for 2-8mm thick paperboard
4.Second creasing struction can impress again the paperboard which was not creased well
guling and Folding section
1.Simpless structure and high reliability, glue quantity adjustable, cleaning easily
2.Stainless steel glue wheel adopted,long life snd saving glue cost
3.Imported quality rubber belt adopted,automatic folding
4.With paperboard rectify device snd creasing rectify device
Counter and Stacker section:
1.Stacking and counting are simple and reliable
2.Digital control,operation easily and reliable. No-stop put in data and automatic counting
3.With rectification function.
4.Counting and put out by pneumatic, stable and quickly
1.Vacuum suction feeding to feed warping paperboard easily
2.Quality electromagnetic clutch and brake adpoted, feeding section controled independent, operation easily
3..Scorer wheel adjustable, suit for 2-8mm thick paperboard
4.Second creasing struction can impress again the paperboard which was not creased well
guling and Folding section
1.Simpless structure and high reliability, glue quantity adjustable, cleaning easily
2.Stainless steel glue wheel adopted,long life snd saving glue cost
3.Imported quality rubber belt adopted,automatic folding
4.With paperboard rectify device snd creasing rectify device
Counter and Stacker section:
1.Stacking and counting are simple and reliable
2.Digital control,operation easily and reliable. No-stop put in data and automatic counting
3.With rectification function.
4.Counting and put out by pneumatic, stable and quickly
Product Paramenters
Model | QF- 2200 | QF- 2400 |
Max. feeding paperboard size (mm) | 1100*2200 | 1200*2400 |
Min. feeding paperboard size (mm) | 200*900 | 300*900 |
Power required | 12 kw 380V 3phase 50HZ | 12 kw 380V 3phase 50HZ |
Paperboard thickness | 3 or 5 layer cardboard | 3 or 5 layer cardboard |
Control way | PLC touch screen | PLC touch screen |
Machine weight | 5.5 tons | 5.5 tons |
Dimensions | L11000 X W2800 X H1600 | L11000 X W3000 X H1600 |
Product packaging
Contact Details
Mailbox :colin@lightenmachine.com
Whatapp :+8618513640900
Wechat :Yue945946
Wechat :Yue945946

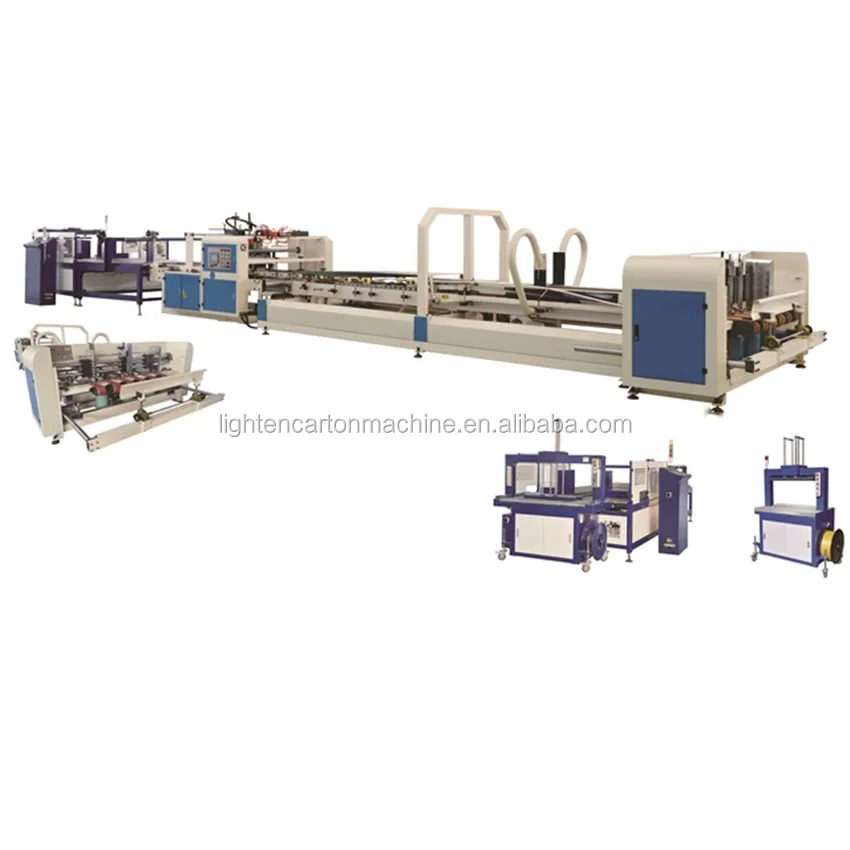

Other machines
FAQ
1. Q: Are you a factory or trading company?
A: We are a company owned our factory which is specialized in the production of various kind of carton equipment. (With export license)
2. Q: How can I visit your factory?
A: We can pick you up if you need, welcome to visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, creasing and die cutting
machine,folder gluer,flute laminator,stitching&strapping machine and other corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose, providing the products with excellent quality, professional technology. Always attach great importance to quality controlling from the very beginning to the very end.
a. All raw material we used are environmental-friendly.
b. Skillful workers care every detail in handling the producing and packing process.
c. Quality control department especially responsible for quality in each process.
5. Q: How is the evaluation of the products?
A: Products are distributed in Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and aboard.
6. Q: What is the payment term?
A: 30% deposit will be paid within 3 days after the contract is signed, and the remaining 70% will be paid before shipment.
Contact information
