Резак для бумаги, диаметр 44 мм
US $61.00-$64.00
Упаковочная машина производитель автоматической крышки и основания твердая по производству
- Категория: Paper Production Machinery >>>
- Поставщик: Guangdong,Hongming,Intelligent,Joint,Stock,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 371875.46 $* | 390469.8 $* |
| Aug-17-2025 | 368750.65 $* | 387188.38 $* |
| Jul-17-2025 | 309375.19 $* | 324844.79 $* |
| Jun-17-2025 | 362500.97 $* | 380625.24 $* |
| May-17-2025 | 315625.86 $* | 331406.0 $* |
| Apr-17-2025 | 356250.50 $* | 374063.31 $* |
| Mar-17-2025 | 353125.29 $* | 370781.88 $* |
| Feb-17-2025 | 350000.62 $* | 367500.5 $* |
| Jan-17-2025 | 346875.97 $* | 364219.17 $* |
Характеристики
Product Description

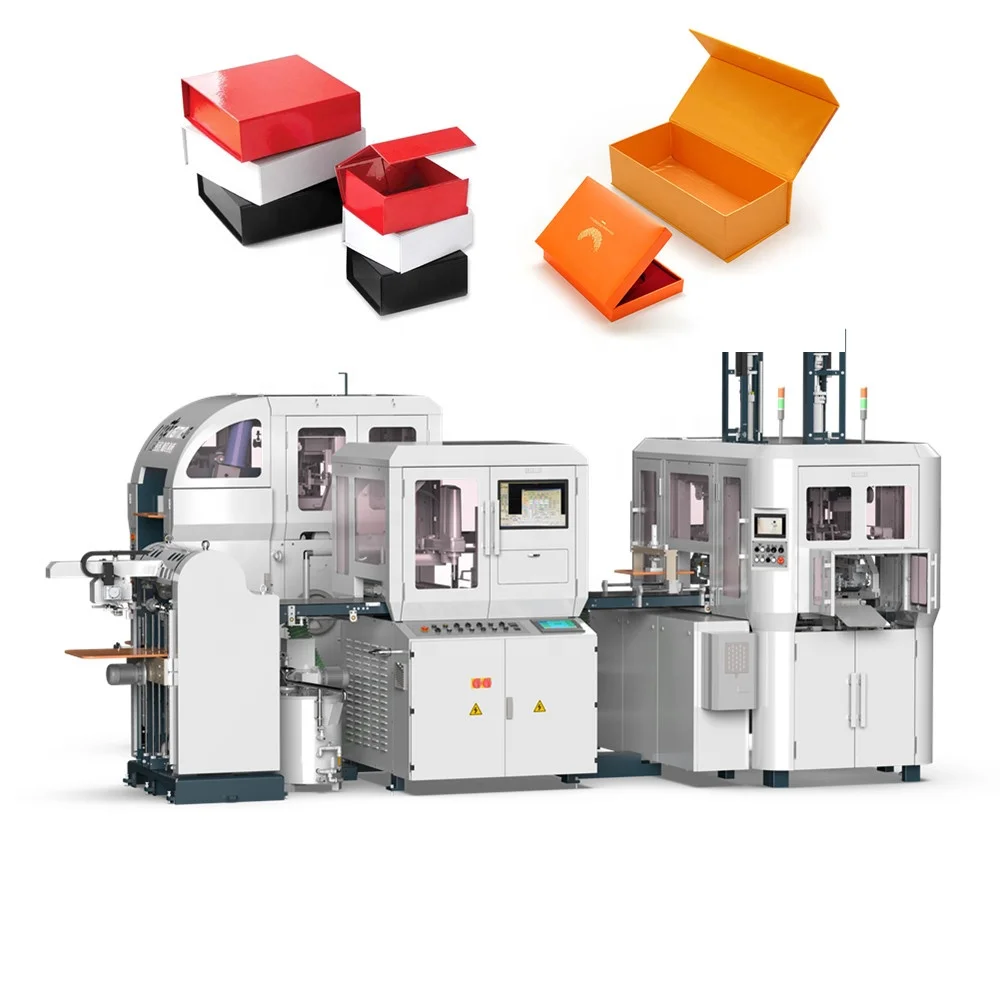

HM-ZD350D Automatic Perfume Rigid Box Making Machine
HM-ZD350D Automatic Perfume Rigid Box Making Machine, is the one of the most advanced fully auto box machines by our company. It is suitable to make various types of rigid boxes for mass production, such as jewelry boxes, mobilephone boxes, gift boxes, cosmetic boxes, watch boxes, slanting boxes, crossover boxes (optional), and clamshell boxes (optional), etc. The minimum size for wrapped box is 45x35x10mm, and maximum size is 350x250x80mm which covers a larger range compared to the previous machines and meets better
the market.
And it is upgraded also by its exterior with more safety and beauty.
HM-ZD350D Automatic Perfume Rigid Box Making Machine adopts PLC and man-machine control, camera tracing system, and can automatically feed coverpaper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.

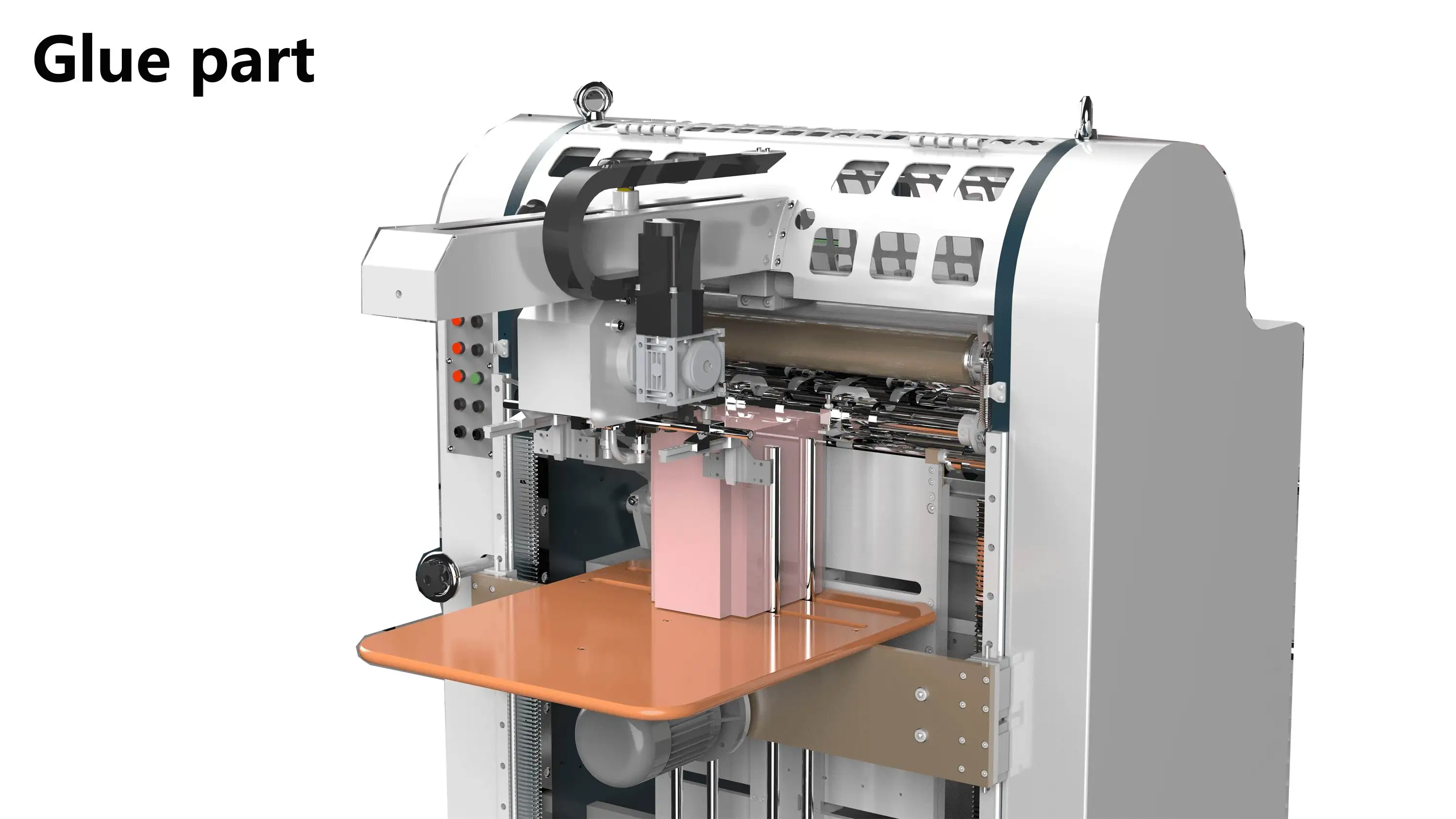

The feeder, the gluer and the conveyor are driven by servo which has continuously variable transmission and enjoys high accuracy, easy adjusting, and less time consumption. Double color conveyor can avoid changing to other color belt, which is Hongming’s patent. The spot unit adopts Germany camera with 5 million pixel and robot arm to pick and spot the greyboard, enhancing the spotting accuracy to ±0.05mm. The forming unit employs Germany REXROTH linear slider and virtual cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.
This whole machine only needs 1 or 2 operators and outputs about 2400-3600 boxes/hour.
the market.
And it is upgraded also by its exterior with more safety and beauty.
HM-ZD350D Automatic Perfume Rigid Box Making Machine adopts PLC and man-machine control, camera tracing system, and can automatically feed coverpaper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.
The feeder, the gluer and the conveyor are driven by servo which has continuously variable transmission and enjoys high accuracy, easy adjusting, and less time consumption. Double color conveyor can avoid changing to other color belt, which is Hongming’s patent. The spot unit adopts Germany camera with 5 million pixel and robot arm to pick and spot the greyboard, enhancing the spotting accuracy to ±0.05mm. The forming unit employs Germany REXROTH linear slider and virtual cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.
This whole machine only needs 1 or 2 operators and outputs about 2400-3600 boxes/hour.
Features and Function
1. Suit to all kinds of rigid boxes in mass production
2. Computer control with error auto stop and display (optional)
3. Adopt servo and PLC
4. Automatically change mould(optional)
5. Automatically feed paper and greyboard
6. 24-hours control for glue pre-heating
7. Input 300 product formula, and add 2G memory SD card(optional)

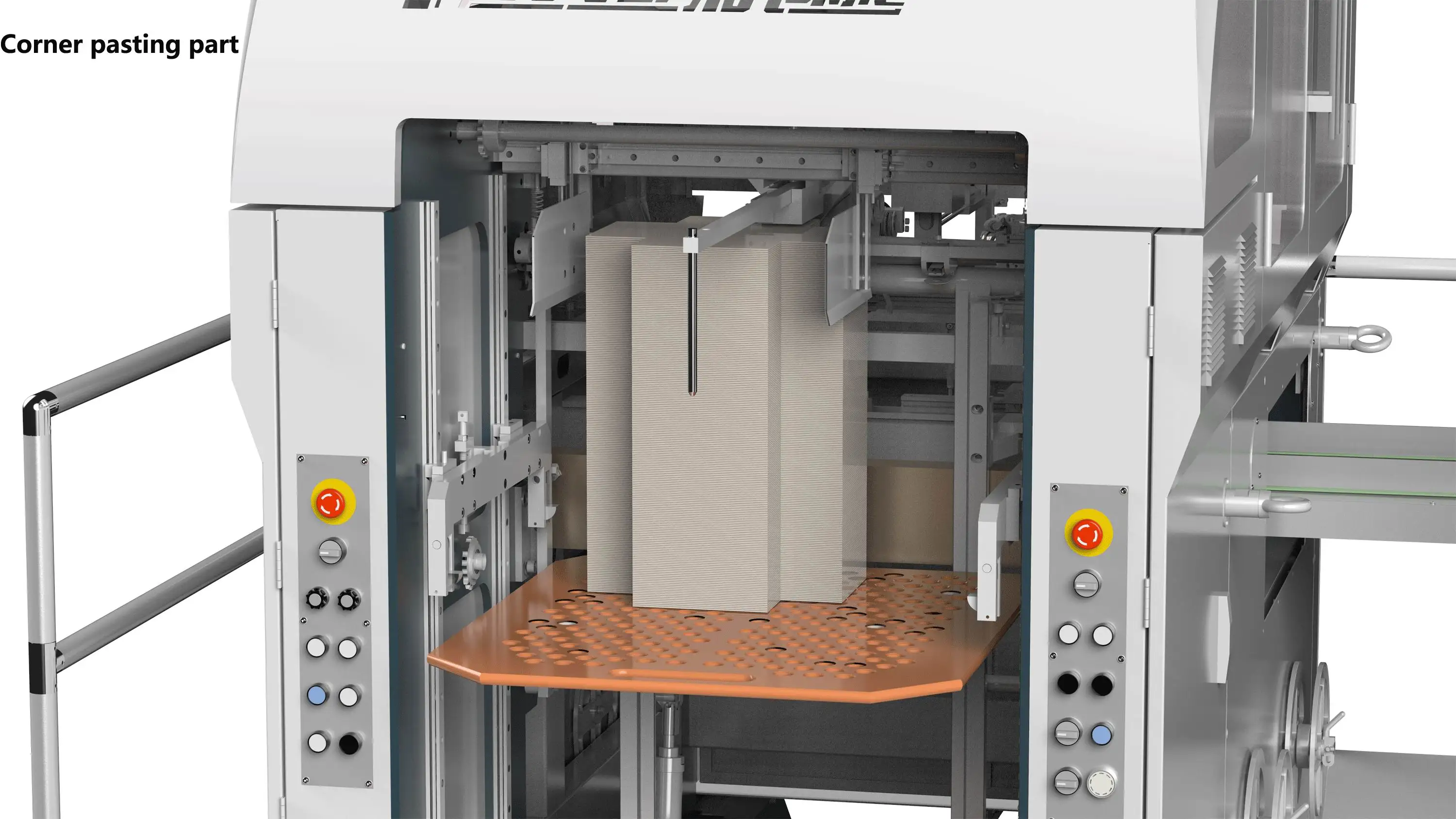

8. Automatically cut and heat tape to paste the greyboard box’s quad stayer (four corners), with independent man-machine control

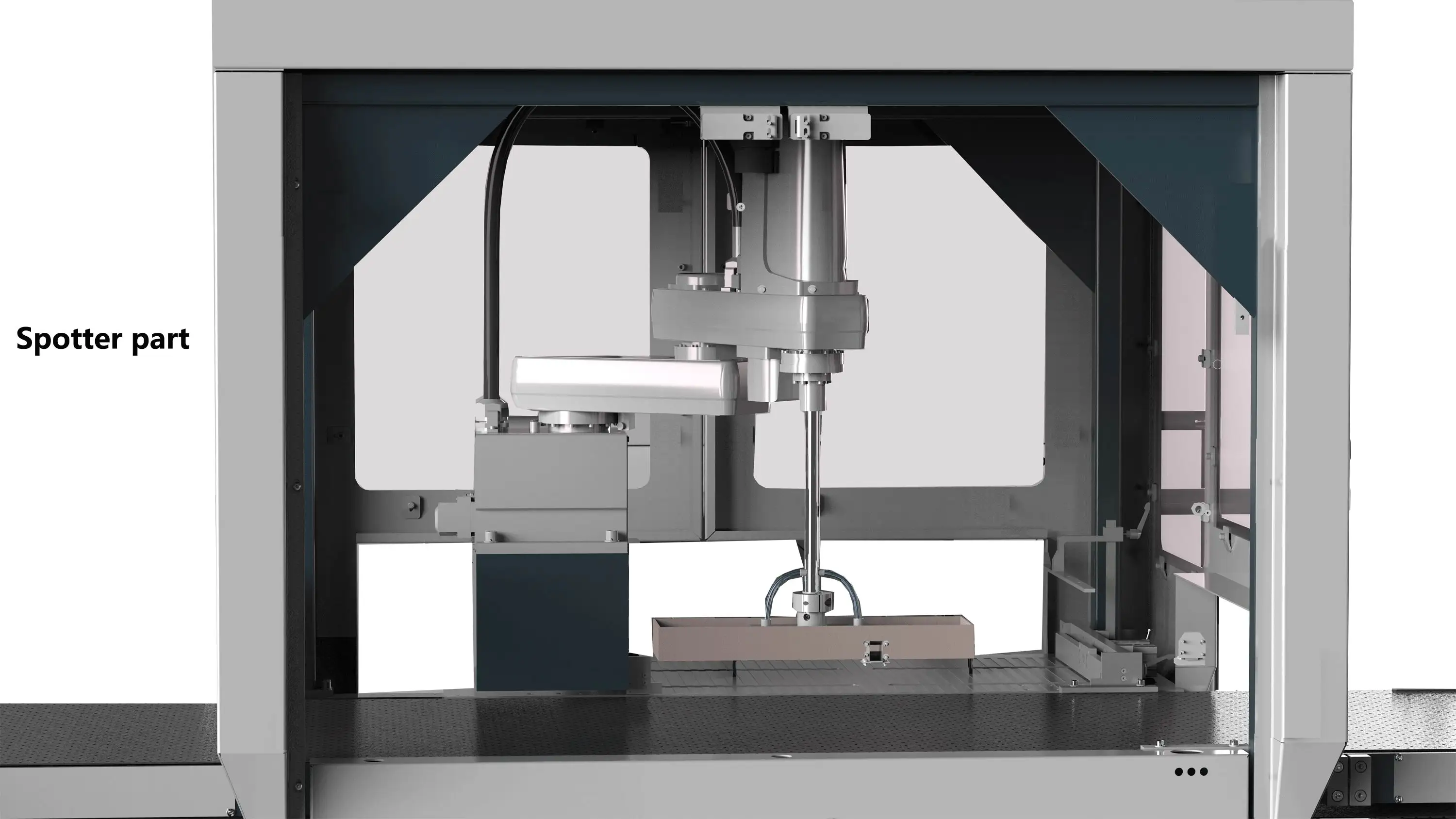

9. Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm) (spotting inaccuracy ±0.05mm)

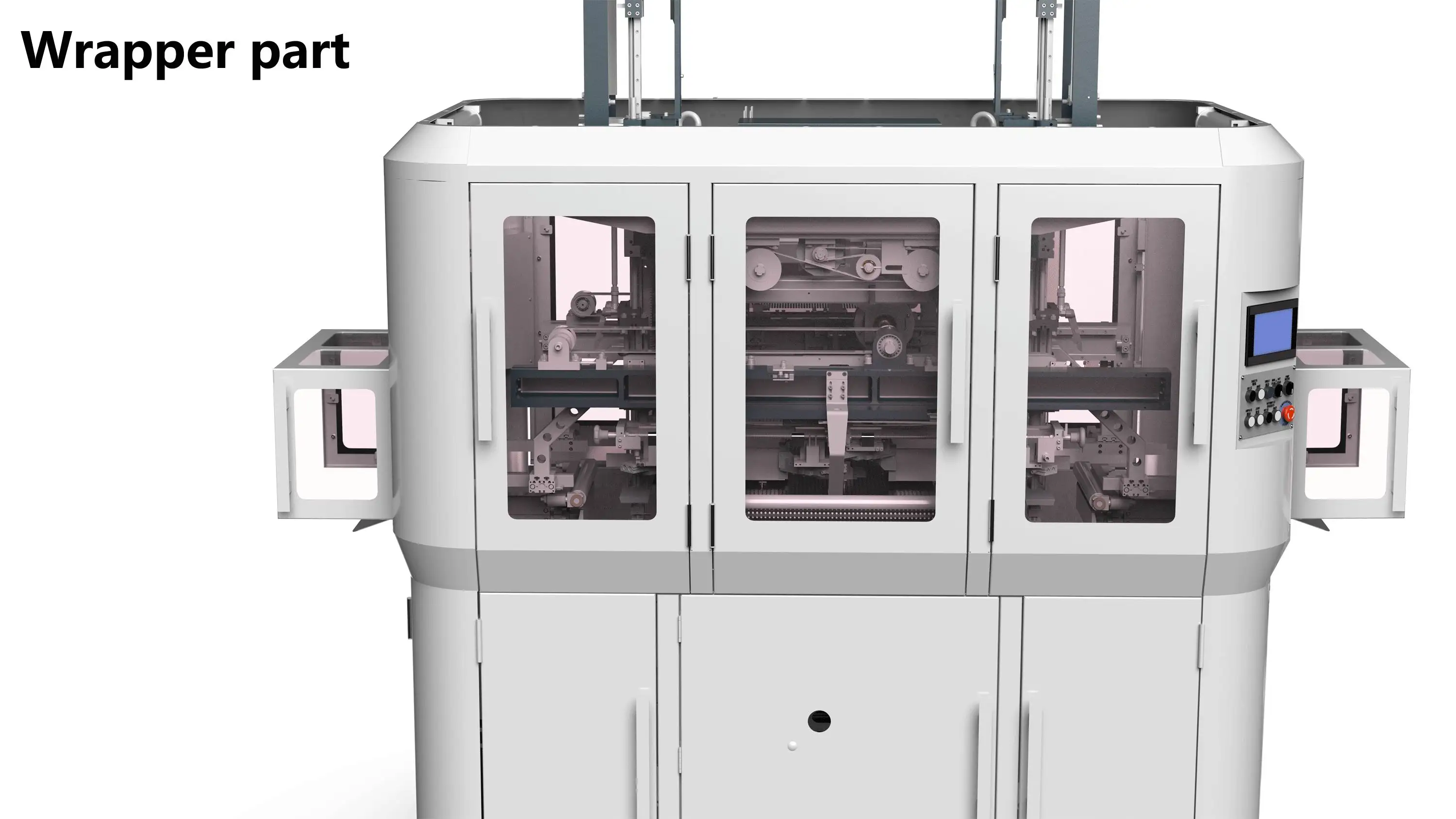

10. Wrapper can automatically and continually lift box, wrap paper, fold corner edge, fold in and form box
11. All the major units are sheltered for operation safety and from optical deviation
12. Automatic control system for glue viscosity(optional)
13. Remodel to use Automatic Greyboard Assembling Unit (optional)
2. Computer control with error auto stop and display (optional)
3. Adopt servo and PLC
4. Automatically change mould(optional)
5. Automatically feed paper and greyboard
6. 24-hours control for glue pre-heating
7. Input 300 product formula, and add 2G memory SD card(optional)
8. Automatically cut and heat tape to paste the greyboard box’s quad stayer (four corners), with independent man-machine control
9. Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm) (spotting inaccuracy ±0.05mm)
10. Wrapper can automatically and continually lift box, wrap paper, fold corner edge, fold in and form box
11. All the major units are sheltered for operation safety and from optical deviation
12. Automatic control system for glue viscosity(optional)
13. Remodel to use Automatic Greyboard Assembling Unit (optional)
Specification
glue type | hot-melt glue, cold glue, animal glue, bone glue,white glue |
tape type | paper tape |
air compressor | needed, 7.5kW |
working type | Servo motors |
control type | PLC |
spotter type | by camera tracing system |
output products | rigid box, set-up box,greyboard box, paper box |
power | 21kW |
speed | ≤40pcs/min |
Company Profile
Guangdong Hongming Intelligent Joint Stock Co., Ltd (Formerly Dongguan Hongming Machinery Co., Ltd) is the leading professional manufacturer who makes automatic rigid box making machines and hardcover books making machines in china. It was established in 1999.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Exhibition
FAQ
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines
4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines
4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
