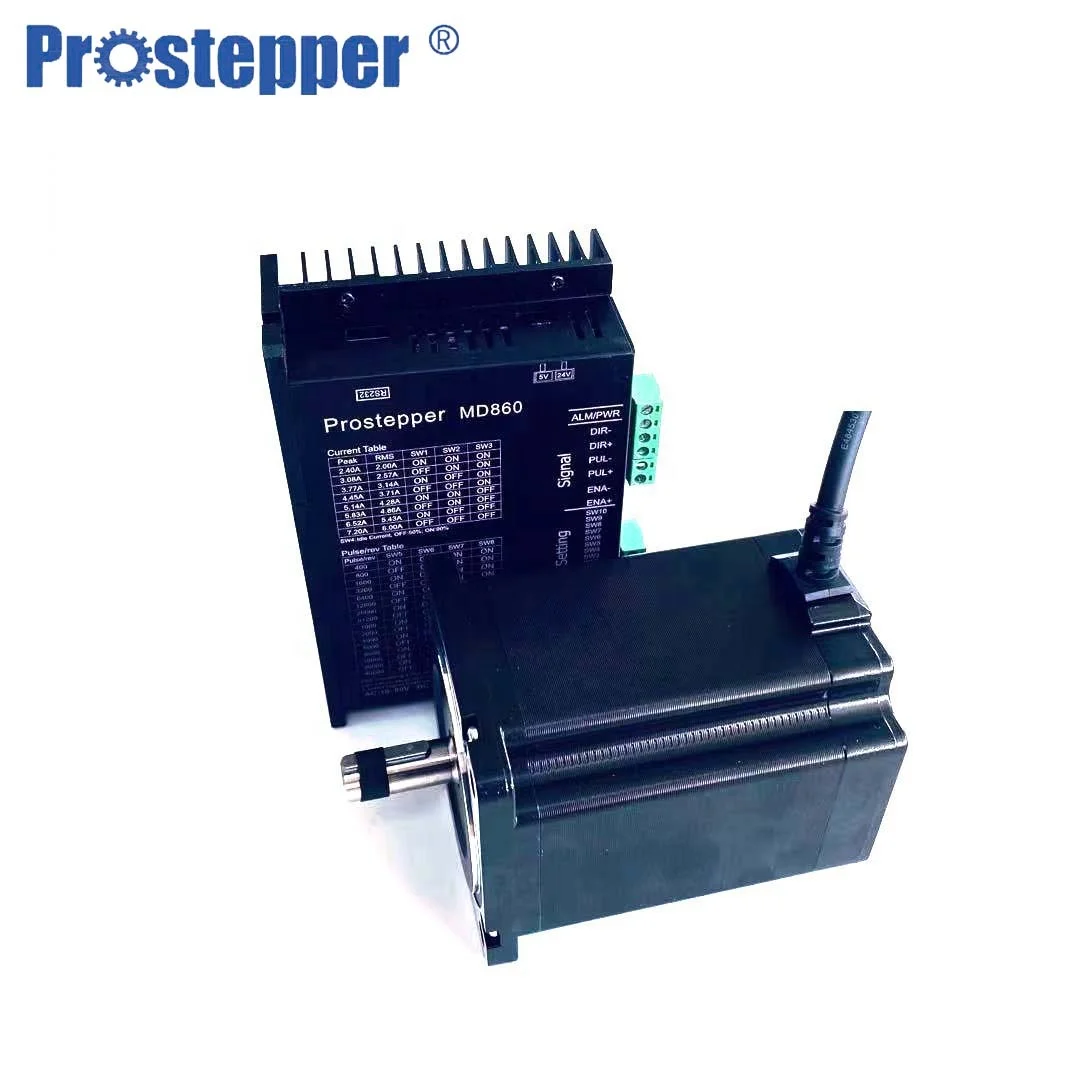

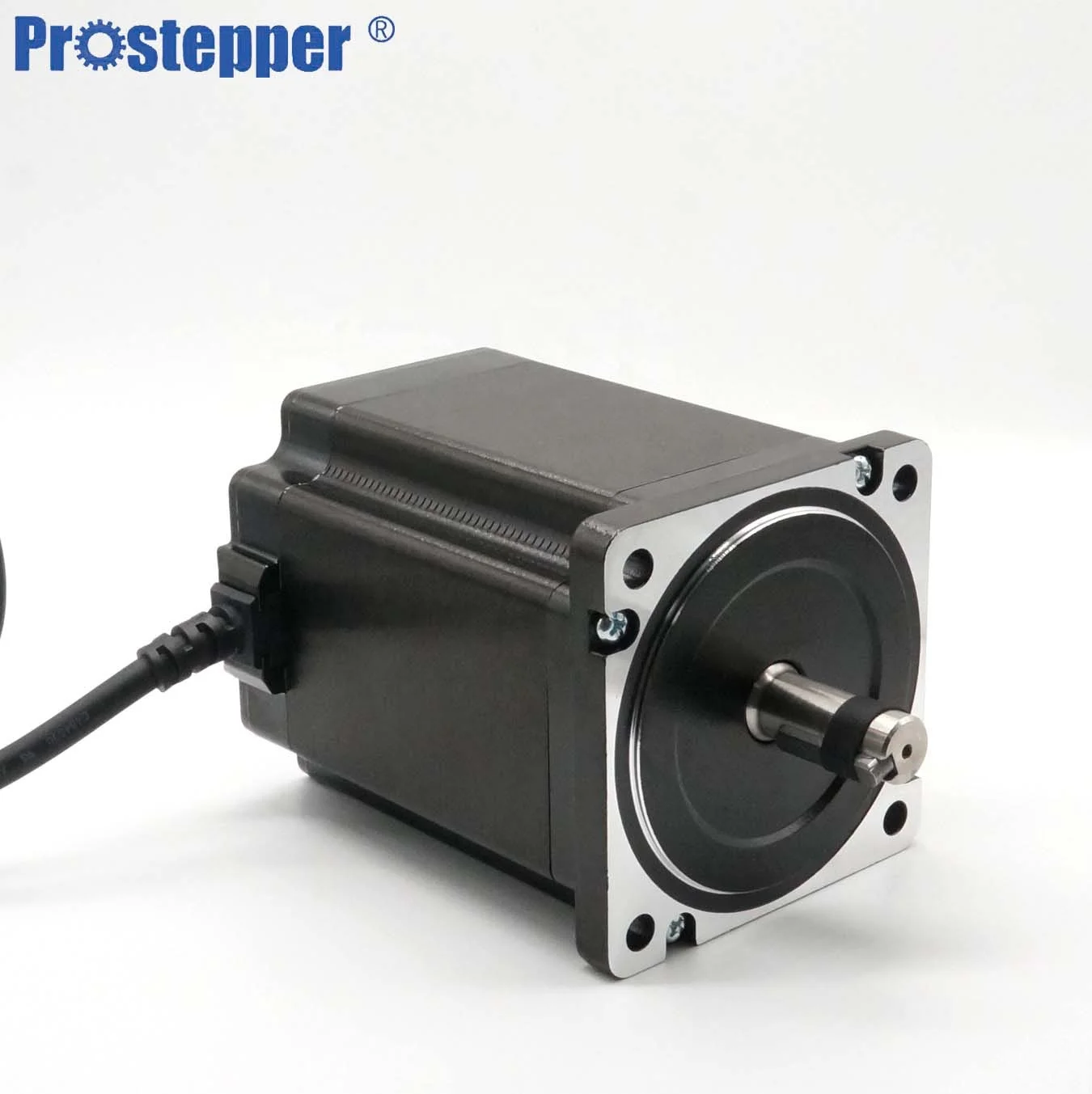

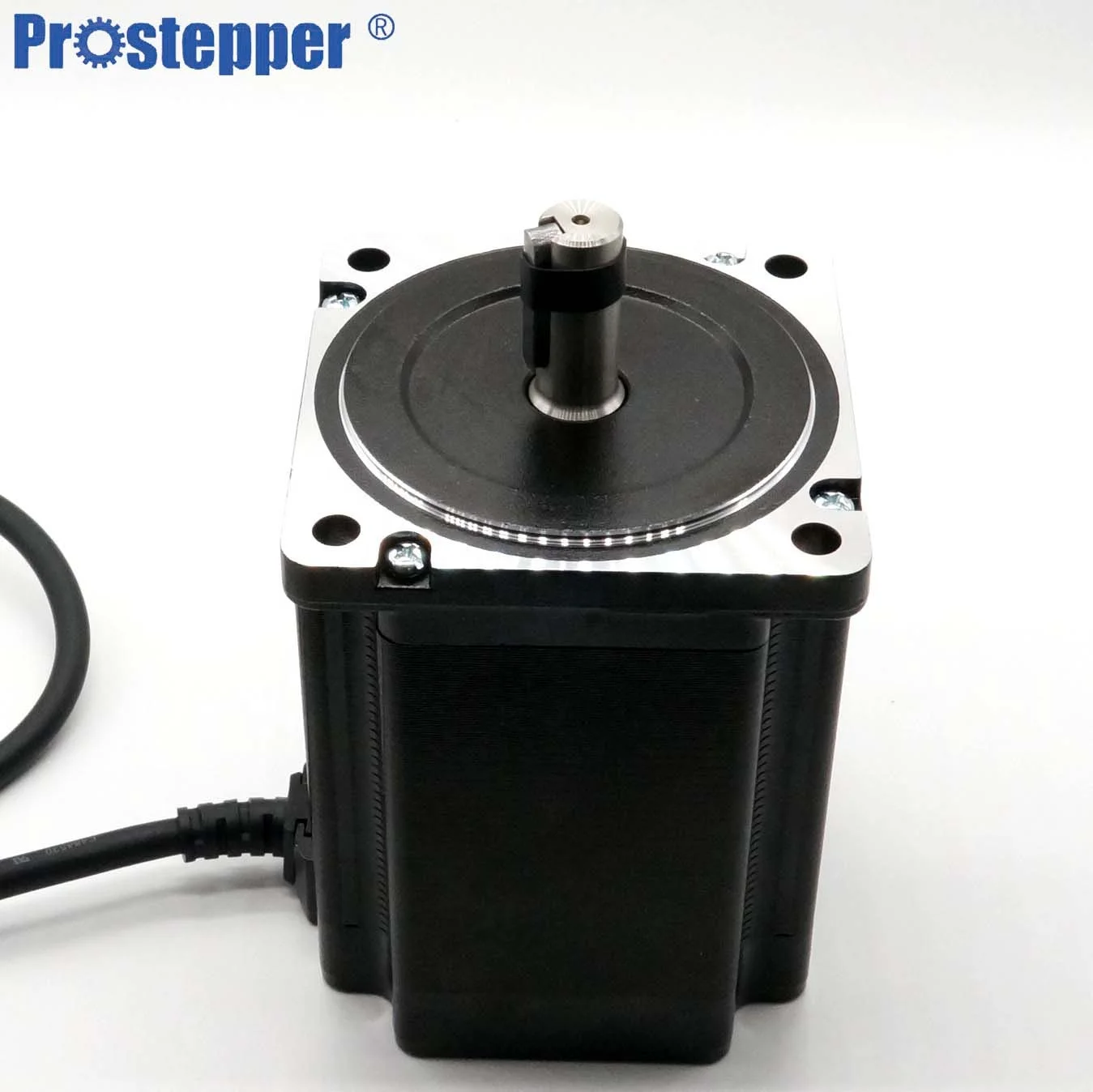

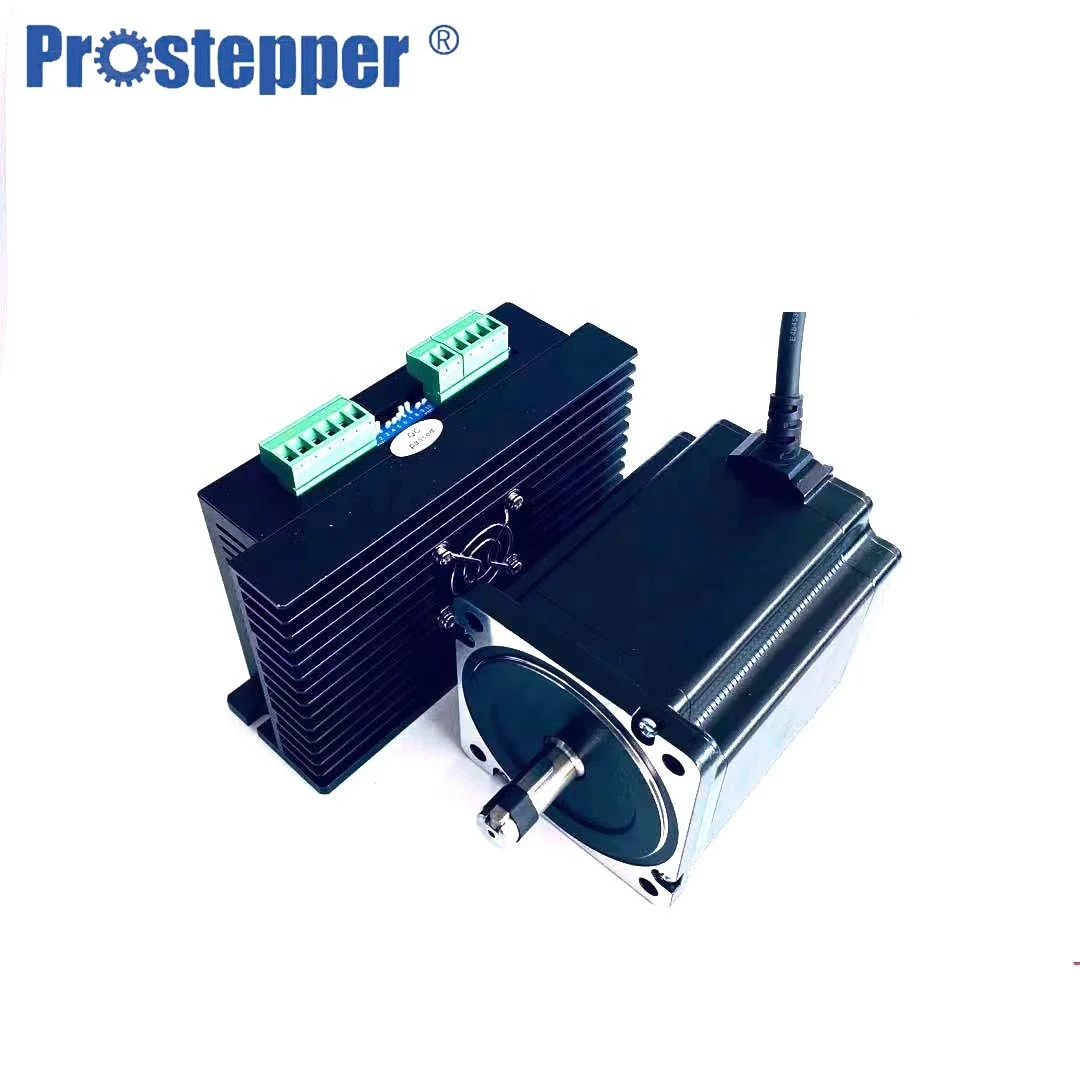

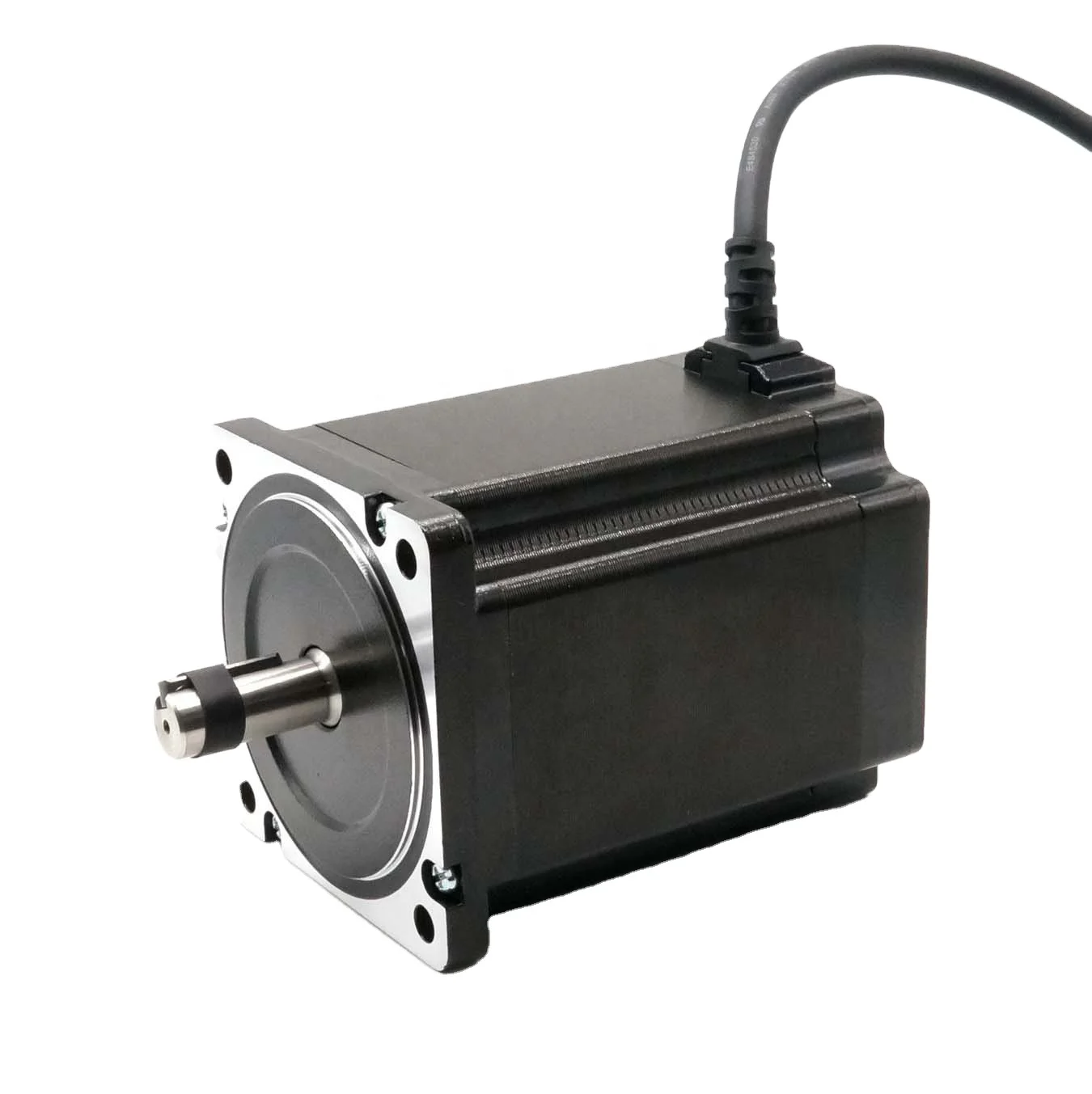

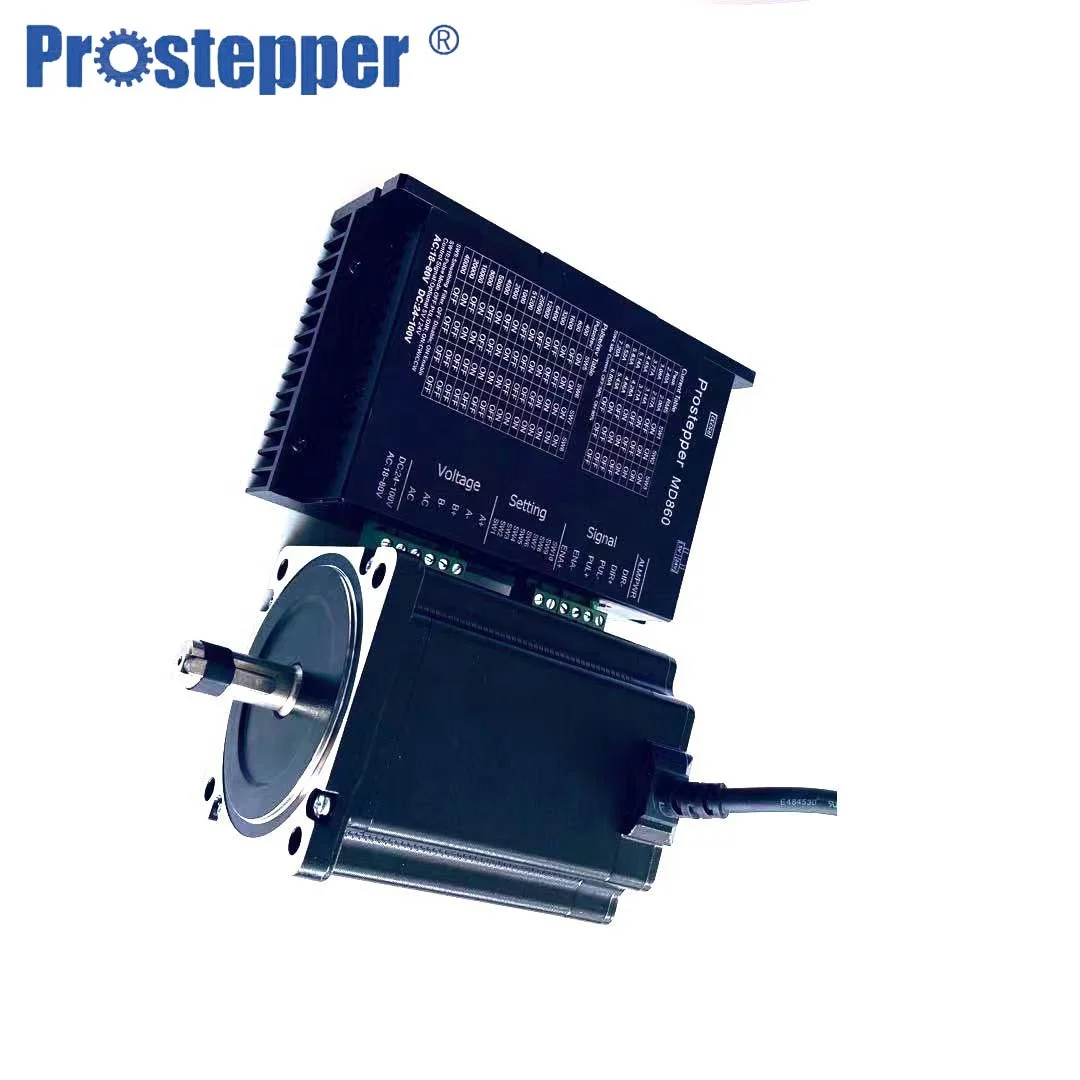

Features of prosteppers’ stepping motor Accurate Position Control The angular displacement of the stepping motor can be precisely controlled by the number of electric pulses. Angle accuracy can be controlled within ±0.09゜without any feedback devices. Forward/Reverse Rotation, Pause and Hold The forward/reverse rotation of the stepper motor can be controlled by the input sequence of the controlled electric pulses. In case of a stepper motor lock (the motor winding is energized, there is no external electric pulse command), the stepper motor can still maintain a certain torgue output. Longer life Stepper motor is a mechanical structure, which does not need to be commutated by brush and Hall sensor, thus reducing the probability of failure and increasing the motor life. Stepping motor life usually determined by the life of the bearing.
Specification
Model
Holding Torque N.m
Related Current A/Phase
Resistance Ω/Phase
Inductance mH/Phase
Inertia g.cm2
Weight kg
Length mm
PST86H260-4C30
3
3
0.96
5
1100
1.6
60.5
PST86H260-4C45
3
4.5
0.5
2.7
1100
1.6
60.5
PST86H268-4C30
3.6
3
1
6.8
1400
1.8
66.5
PST86H268-4C45
3.6
4.5
0.5
3.3
1400
1.8
66.5
PST86H280-4C45
4.5
4.5
0.6
4.5
1800
2.1
75
PST86H280-4C60
4.5
6
0.34
2.4
1800
2.1
75
PST86H298-4C45
7
4.5
0.76
6.7
2800
2.9
96.5
PST86H298-4C60
7
6
0.45
3.5
2800
2.9
96.5
PST86H2120-4C45
8.5
4.5
0.9
8.8
3600
3.6
113.5
PST86H2120-4C60
8.5
6
0.54
5
3600
3.6
113.5
PST86H2128-4C45
10.2
4.5
0.64
10.2
4200
4.1
126
PST86H2128-4C60
10.2
6
0.6
5.5
4200
4.1
126
PST86H2160-4C45
12
4.5
1.3
11.8
5400
5
151.5
PST86H2160-4C60
12
6
0.72
7.3
5400
5
151.5
Please note: there are some of speed / torque stable drawings in the aboved photo. If you need more details, you can contact us by inquiry or e-mail us freely.
Packing & Delivery
PST86H series products can be hold 2 pcs in a carton. Generally packing size:32cmx30cmx14. If you have any special requirements, we also can make your demand.
Company Profile
CHANGZHOU PROSTEPPER CO.,LTD. was established in 2004 as Jiangsu High-Tech Enterprise, which is engaging in Developing, designing and producing professional stepper motor and DC brushless motor. It's motor manufacturing and R&D history dated from 1998. Service: OEM/ODM Support for customized services, completion after markets
With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper’s commitment to customers.
FAQ
Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors we can make it too.
Q: Do you have an individual design service for motors? A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q: Can I have samples for testing first? A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: How do you make sure motor quality? A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
