Малошумный Циркулярный воздушный нож с кольцевым лезвием для использования воздушным компрессором

JIEMING RING AIR KNIVES

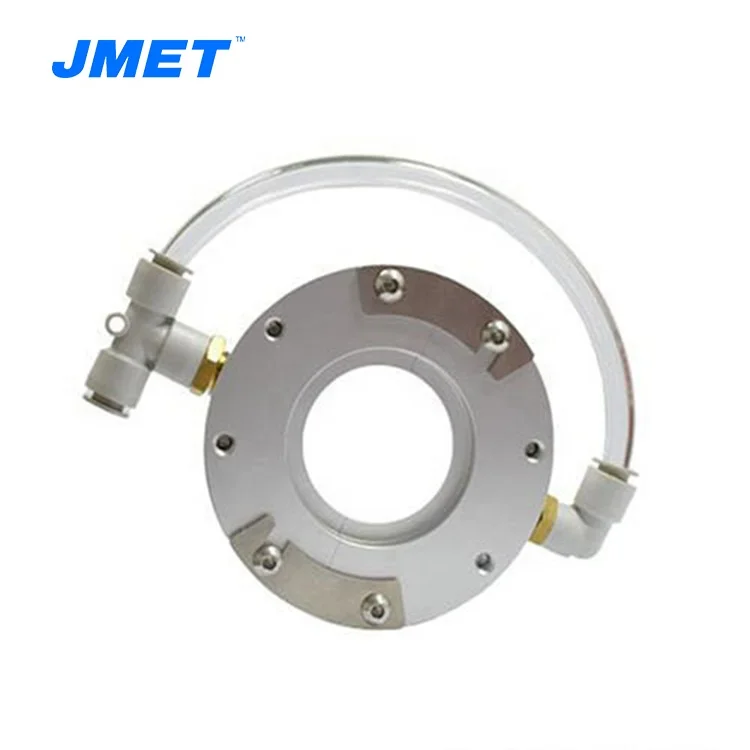

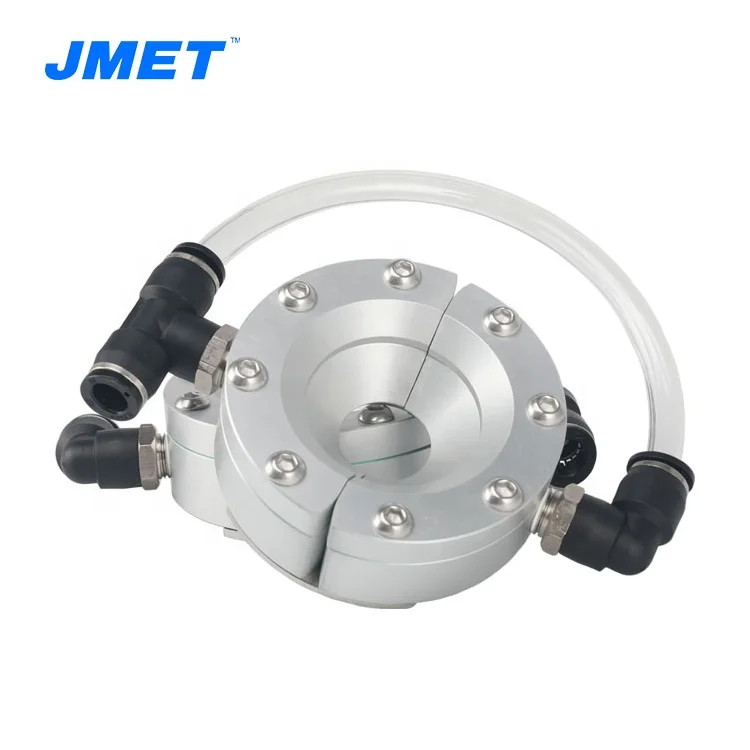

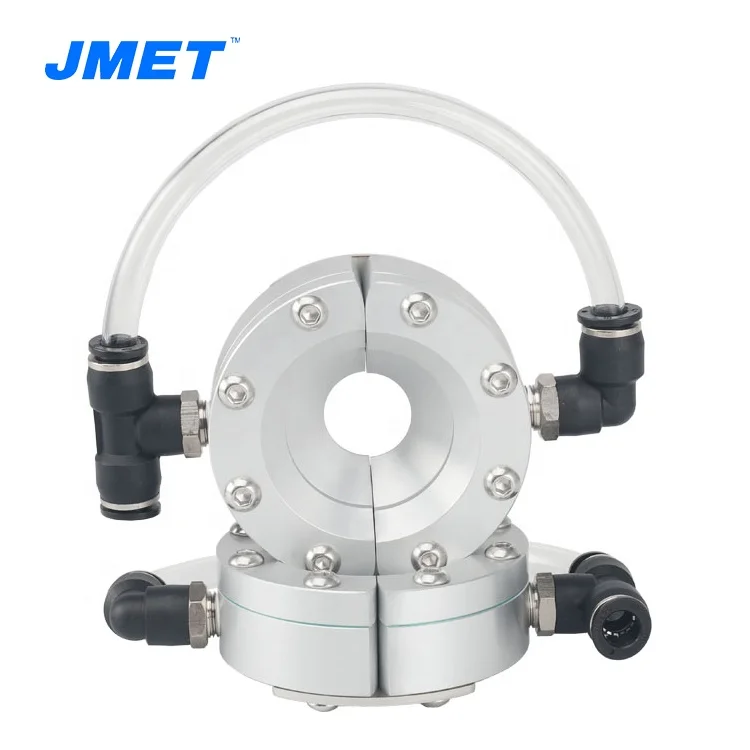

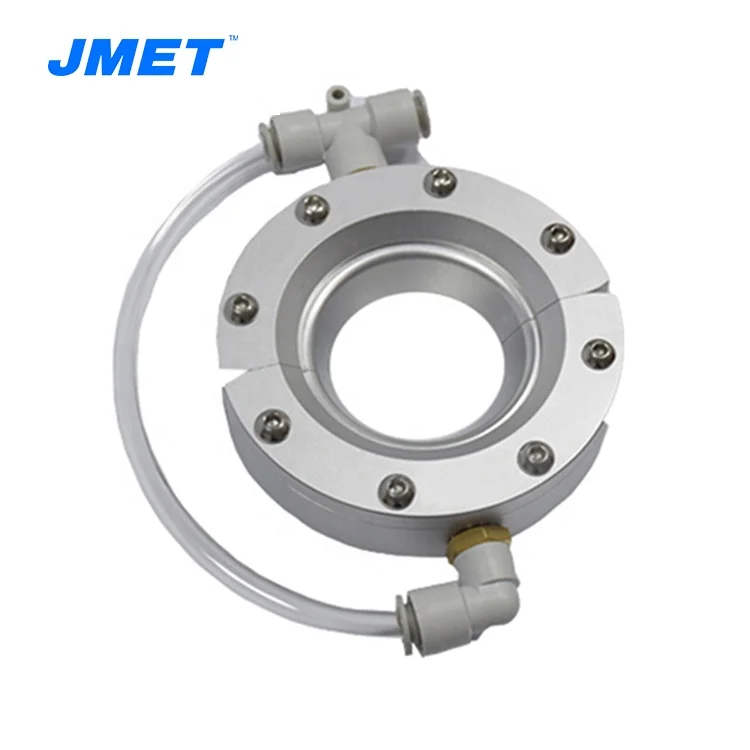

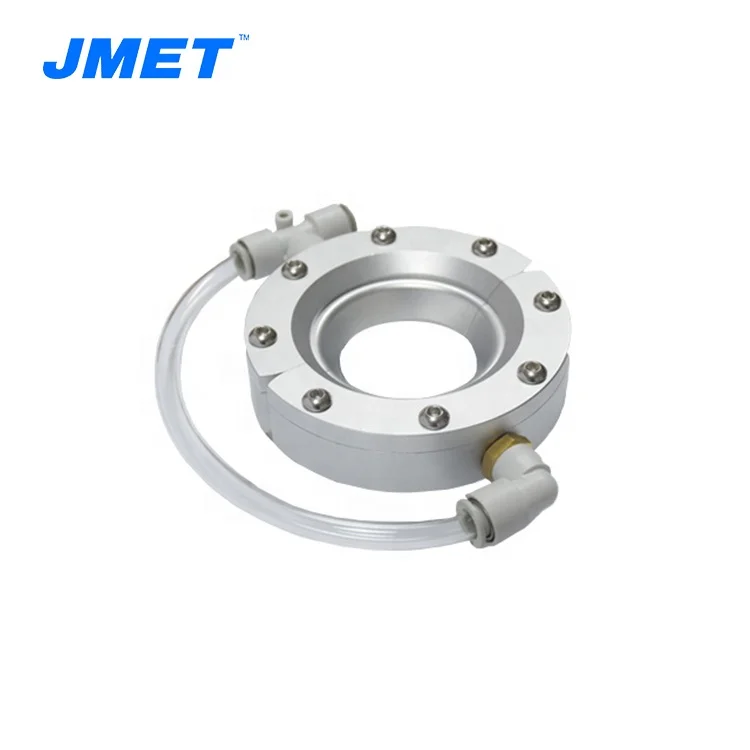

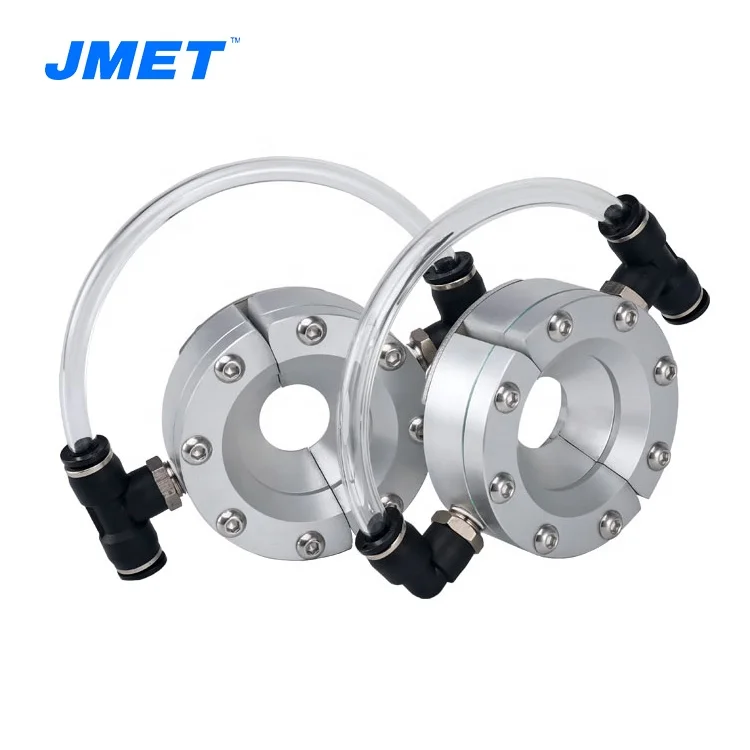

JIEMING  air wipes are also known as round air knives, ring air knives, air scrubbers, air ring scrubbers.

JIEMING  air wipe is an equipment that is used for providing blowing off,drying, cleaning and cooling for pipe, cable, extrusion products, hose or other products,and it provides uniform 60 °annular air flow.

The air wipe consists of two air knives connected by two curved hinges. It consumes a small amount of air, but it produces a powerful blow-off force.

Material: Aluminum Alloy and Stainless Steel ,normally aluminum alloy ring air knives production time is fast.

Instruction:

1. Compressed air must be dry, oil-free gas, otherwise, it will affect the life and performance of the air wipes.

2. Five micro-level movable exhaust air filters should be selected, and 0.3 micro-level oil filters should be selected and should be installed as close as possible to the product.

3. Minimize the distance of the gas source, If it is far away, it should be connected by G1/2 pipe, and the distance of 30 meters or more should be connected by G1 air pipe.

4. Compressed air pressure should be 0.55-0.69 Mpa.

5. If the performance of the air knife is greatly reduced, please send it back to our company for testing.

6. When the flow rate of the air pressure and the blowing force are decreased, the common reasons are: the compressed air pipe diameter is too small, the gas path is installed with an airflow limit, and the filter is clogged, etc.

7. If the size is beyond those sizes in the chart, please call +86 137 9022 9580

Working principle

The access compressed air flows through the air ring through the inlet (1) into the ring cavity (2). The flow is then throttled and passed through the annular nozzle (3) at a high speed.

The airflow began to flow out at a high speed along the side wall of Conda (4), which was ejected at a diagonal angle along the side wall of the air ring.

In this way, in the central position of the air ring, there will be a low pressure area (5), which will force a large amount of air around the air to flow to the other side of the air ring along with the air flow from the high pressure.

When the air flow leaves the air ring, a 360 conical ring flow is produced, which can continuously and steadily blow through the water, dirt and other impurities on the material (6) of the air ring.

.

     Aluminum alloy air knife                             Stainless steel air knife                       Conada air knife

 ♦Blow off oil,debis ,waste,water and dust.

 ♦Cooling of molds or castings

 ♦Cooling extruded material

 ♦Replace opened compressored air direct nozzle to clean parts after processing

 ♦Continuous cooling of longer parts(wires and pipes)

 ♦Drying treatment is required after cleaning,washing,coating or plating

 ♦Remove dirt from the material during radial transfer

 ♦Ideal drying solutions for pipes,cables,extruded materials,wires,scales and pipes

Advantages

♦ Low noise, in most cases less than 70 db.

♦.Environmental protection, energy saving, airflow balance.

♦. Quickly adjust to different sizes of bottles, low compressed air consumption, air compression ratio up to 40:1.

♦ Wind strength and flow volume are adjustable.

♦. Composed of two air knives connected by two curved hinges, compact, sturdy and easy to install.

♦.No need for electricity, no movable mechanical parts

♦.Ring edge with holes, easy to install.

 Dongguan Jieming Electric Tech Co.,Ltd.

 Jieming export service:

Jieming Export Delivery terms:

1. What is the warranty of your machine?
R: 18 months, any product have question,you can contact with us.

2. What is the material of your machine , is oil free?
R: our air knife material is aluminum alloy and staineless steel

3. How to operate your air knife?
R: Connect with blower or air compressors ,we provide air knife system solutions.

4. You are trading company or manufacture?
R: We are manufacture, we can provide long-term supply with fast speed.

5. How to contact with you?
R: You can send messages to me directly by alibaba trade manager.

6. Can it be customized?

R: Air knives can be customized.
