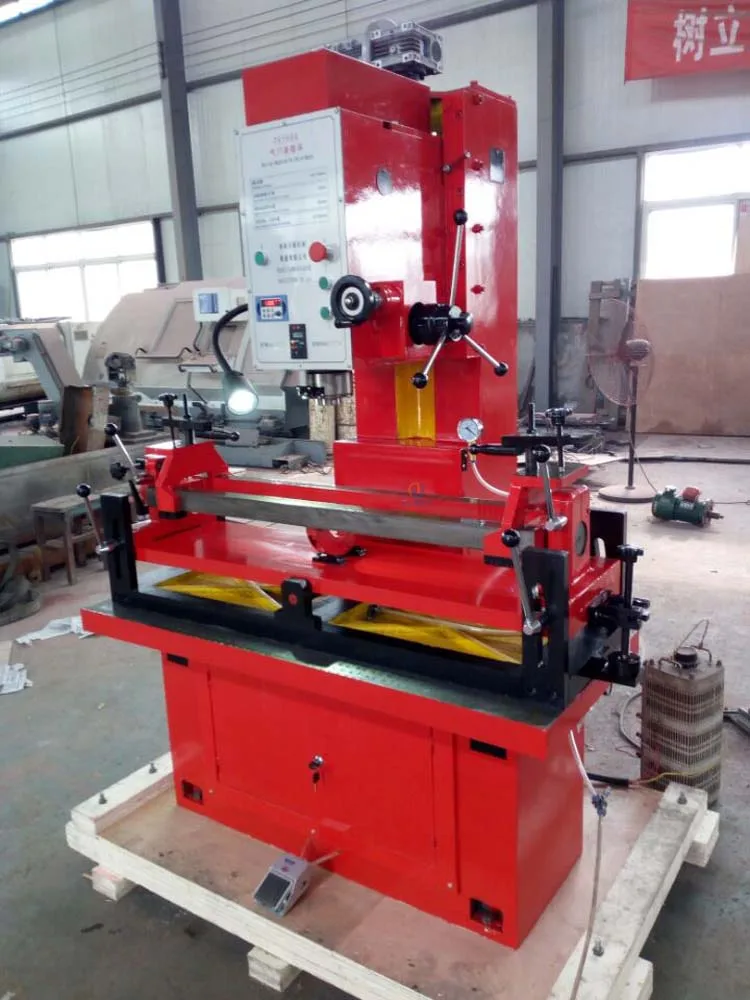

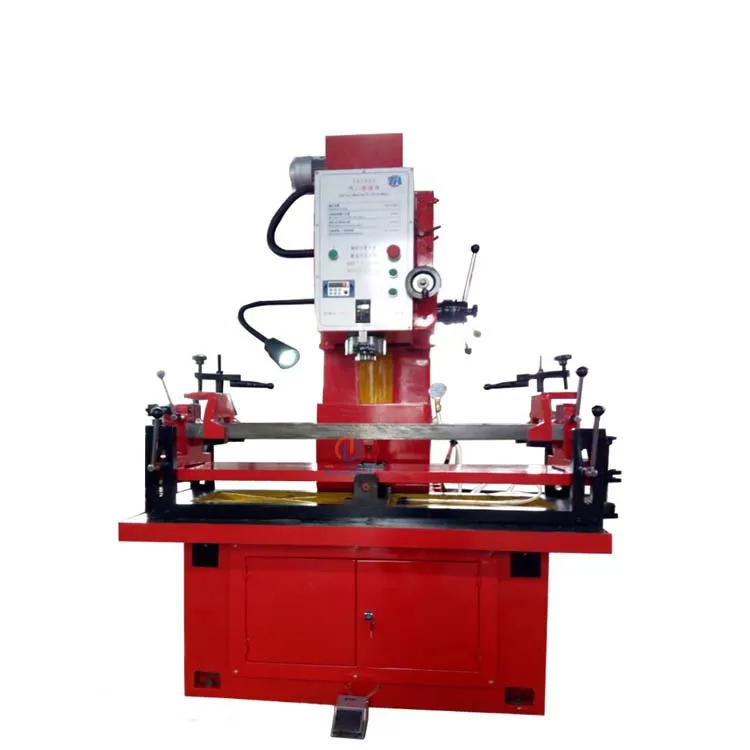

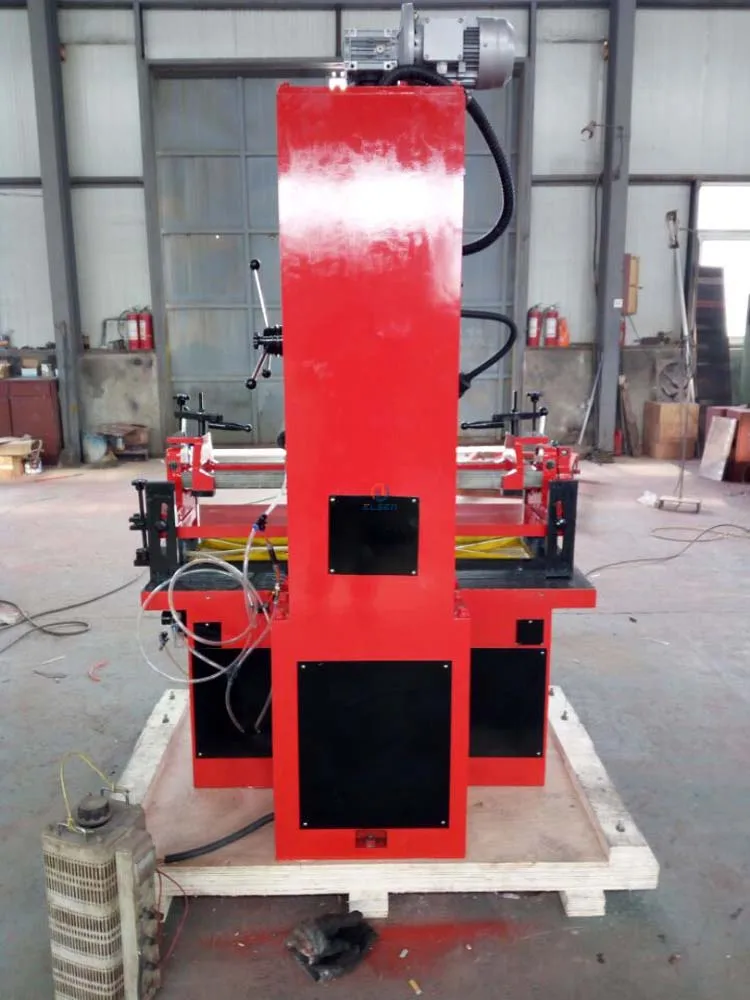

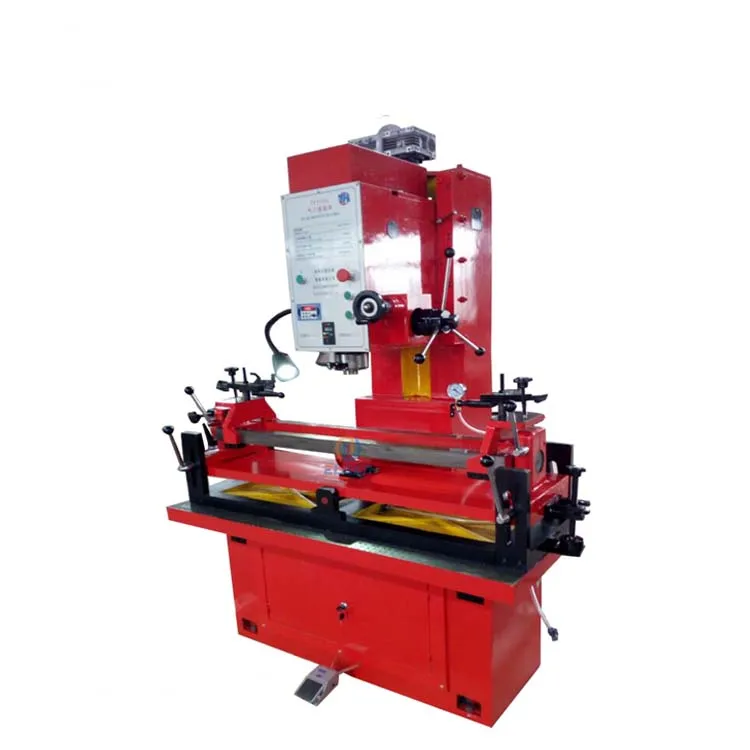

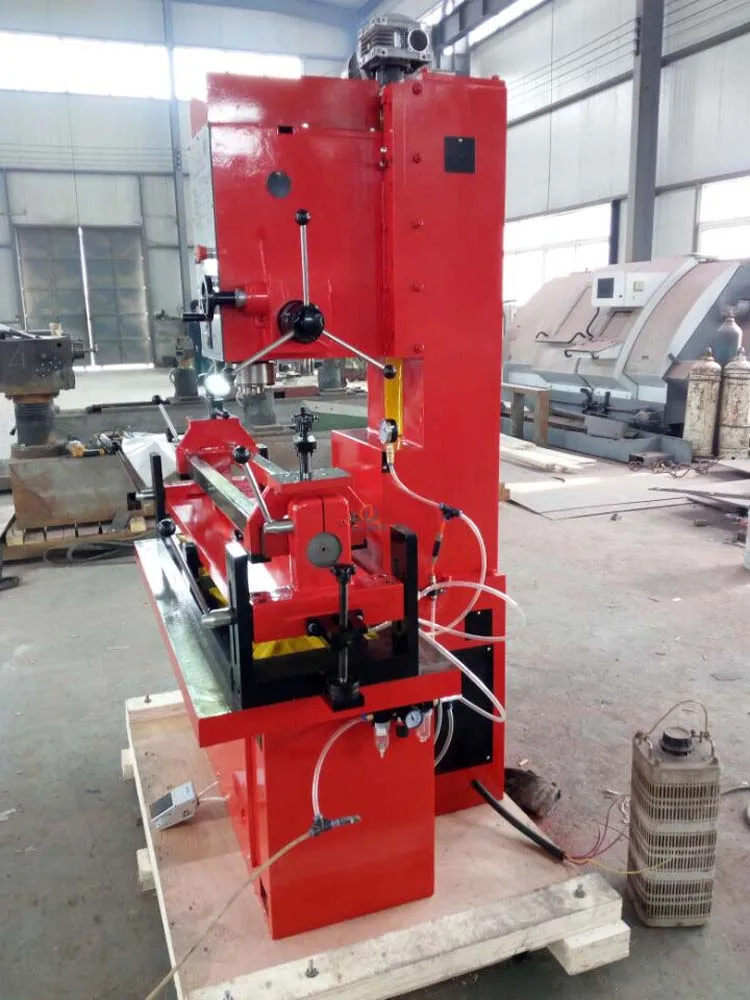

T8590B газовый клапан сиденья расточной

Категория: Boring Machines >>>
Поставщик: Xuzhou,Elsen,Machine,Tool,Co.,Ltd.

Цена:8 650,00 $ - 8 850,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	10294.81 $*	10809.92 $*
Aug-16-2025	10207.5 $*	10717.51 $*
Jul-16-2025	8564.56 $*	8992.5 $*
Jun-16-2025	10034.76 $*	10536.34 $*
May-16-2025	8737.75 $*	9174.87 $*
Apr-16-2025	9861.17 $*	10354.32 $*
Mar-16-2025	9775.41 $*	10264.39 $*
Feb-16-2025	9688.39 $*	10172.49 $*
Jan-16-2025	9602.58 $*	10082.70 $*

Характеристики

Products Description

It mainly used for boring and repairing the gas valve seats hole,when equipped with all sorts of clamping device,It can manufacture the gas valve seats hole for cylinder cover with various angles,when equipped with boring-drilling tolls,It also can bore ,drill,ream the pipe seat hole of gas valve or ream and repair it.
Structure characters:
1,It adopts the air-floating work table, which can be easy centering of work piece and spindle.
2,The feeding system of the tools has two ways:rough and finishing, which can improve the work efficiency and processing rate.
3,It adopts vertical rectangle guide-way, which can increase the rigidity of the machine ,and guarantee the processing precision for all kinds of the gas valve seats hole on different diameter.
4,It equips with the vacuum examining device, for quickly measuring the work piece.

Specification	T8590B
Boring diameter	20-90 mm
Spindle speed range	80-900 rpm (Stepless)
Spindle travel	185mm
Distance from spindle axis to guiderway surface	350mm
Max. distance from end of spindle to working table	750mm
Moving speed of machine head	512 mm/min
Main motor power	1.1/0.85kw 1400/950 rpm
Overall dimensions(L×W×H)	1300×800×1930 mm
Packing dimensions(L×Wx H)	1470x980x2170mm
N.W. / G.W.	1200/1400 kg

Recommend Products

Company Information

Package and Shipping

FAQ

1: Are you a manufacture?

A: Yes,we are a real manufacture.Welcome to visit our factory!

2: What is your payment terms?
A: Our payment terms is 30% T/T in advance,70% balance T/T before shipment.

3: Can you offer customized service ?
A: Machines listed on our website are just part of our conventional models, we can also provide customized service according to your requirements.

4: How can I choose the most suitable machines ?
A: Please tell me your need specifications ,we can introduce the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will introduce the most suitable machines for you .

5: Can you offer the training ?
A: Yes, we can provide a cost-free training,Teach you how to operate our machine, some common problems, and how maintain the machine etc. It would be great honor to us.

6: How about your after-sales service ?
A: Machines overall warranty is two years.During the normal using,we can send you the machine's components for free,not damaged on purpose.Our engineers are available to service overseas, we will offer lifetime service for machine.
