Расточная машина T8210D с

Категория: Boring Machines >>>
Поставщик: Xuzhou,Elsen,Machine,Tool,Co.,Ltd.

Цена:5 800,00 $ - 6 200,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	6902.40 $*	7247.26 $*
Aug-16-2025	6844.51 $*	7186.61 $*
Jul-16-2025	5742.73 $*	6029.68 $*
Jun-16-2025	6728.41 $*	7064.34 $*
May-16-2025	5858.2 $*	6151.77 $*
Apr-16-2025	6612.87 $*	6943.87 $*
Mar-16-2025	6554.36 $*	6882.75 $*
Feb-16-2025	6496.5 $*	6821.46 $*
Jan-16-2025	6438.76 $*	6760.46 $*

Характеристики

Products Description

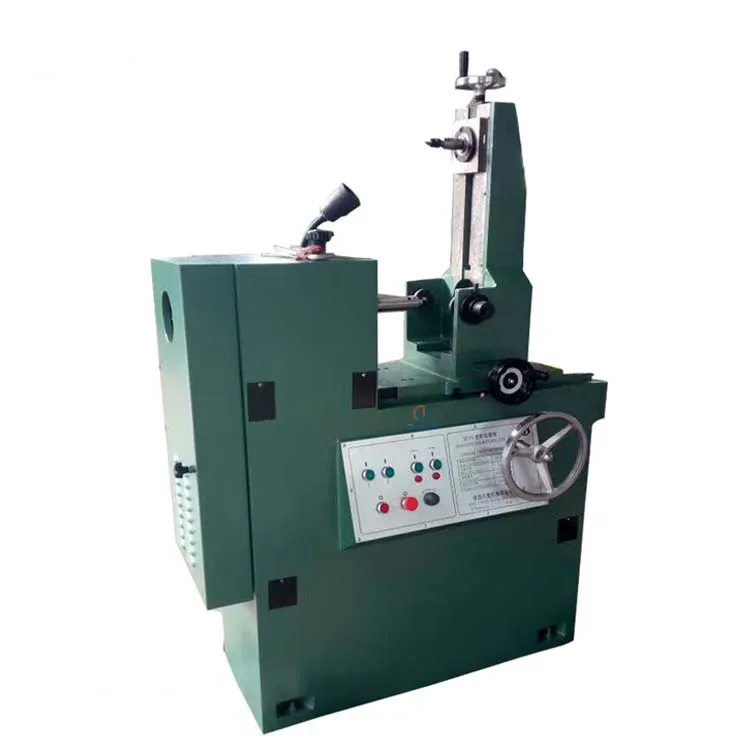

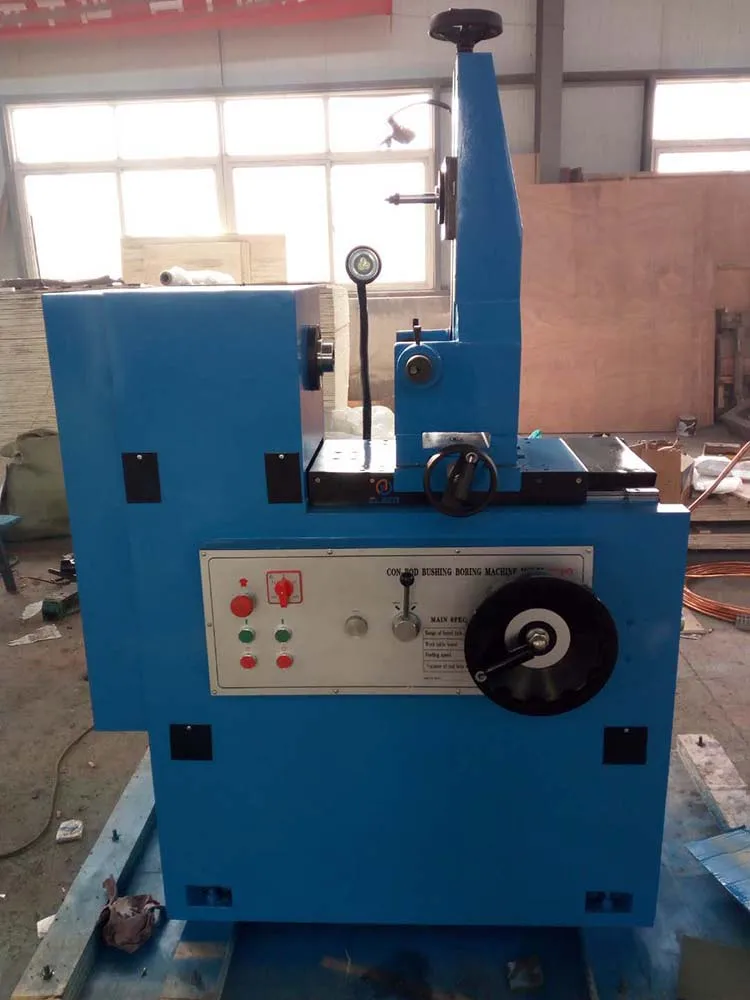

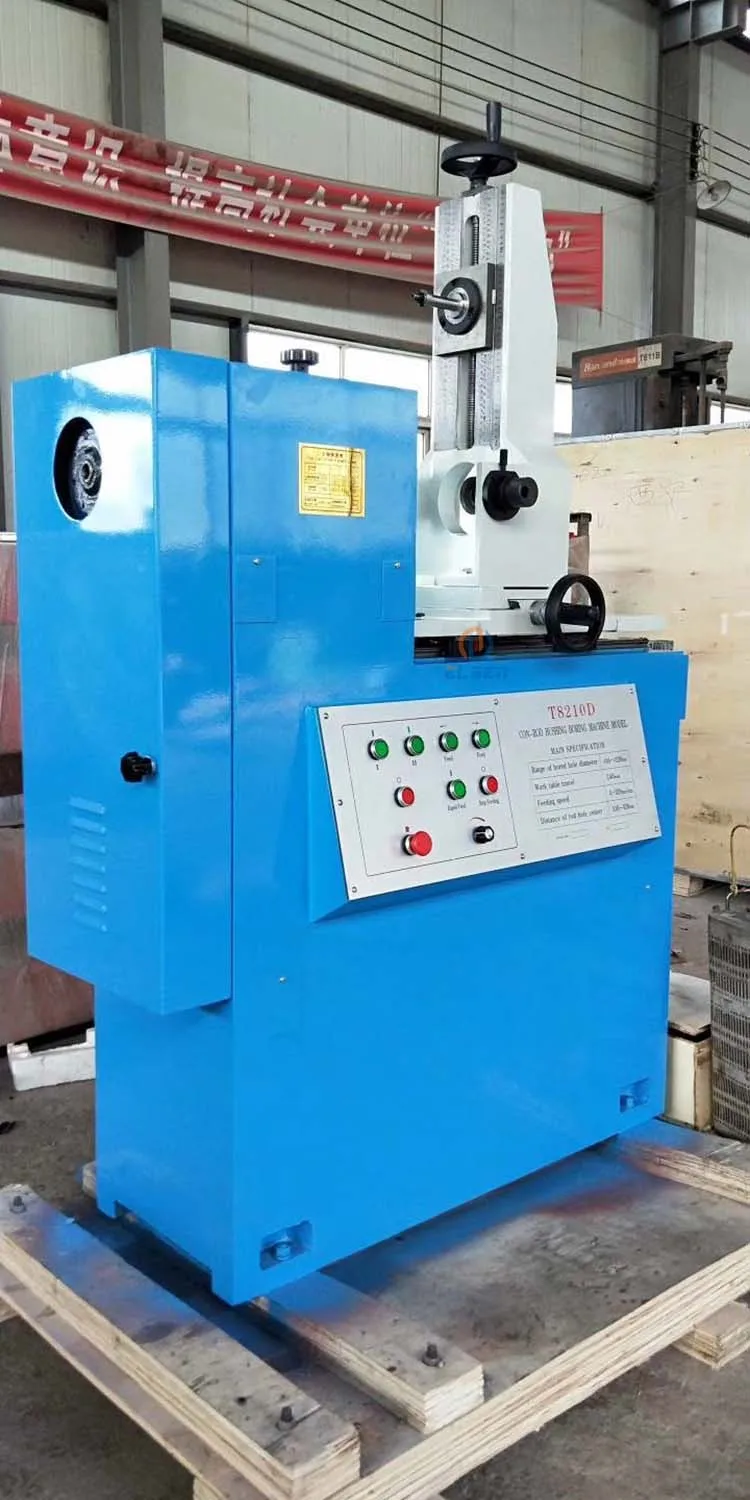

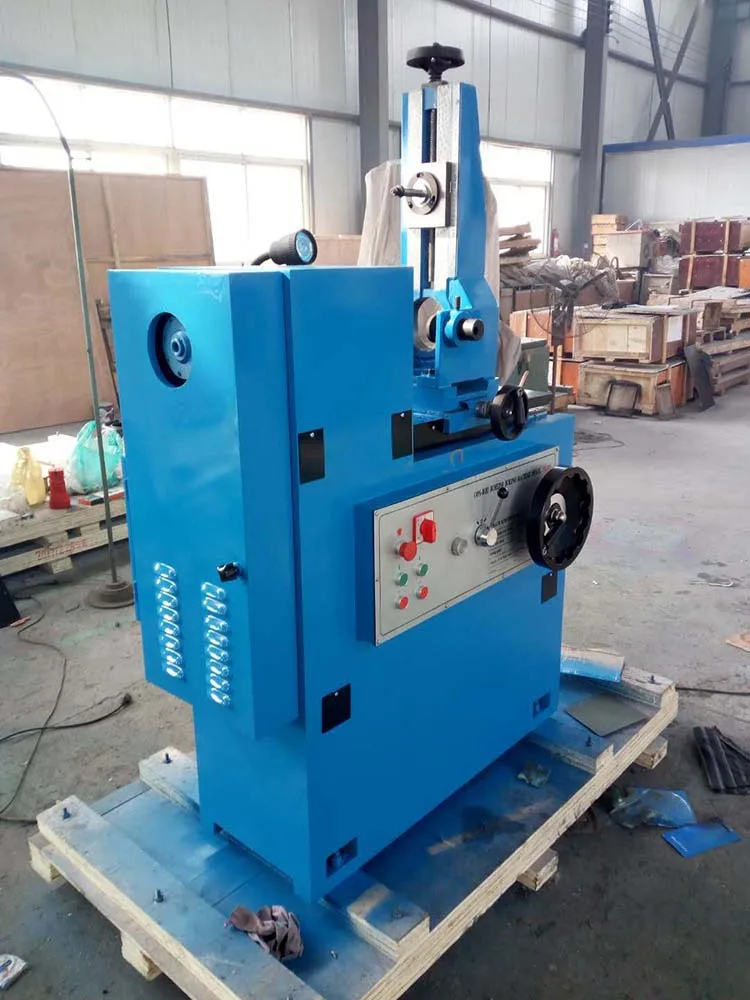

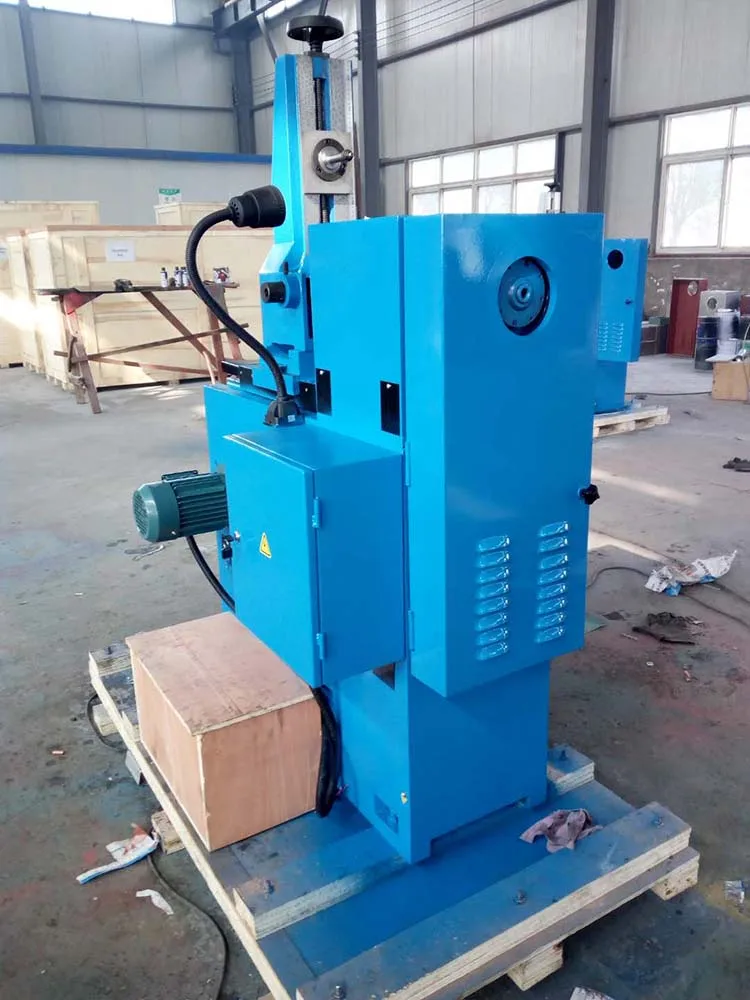

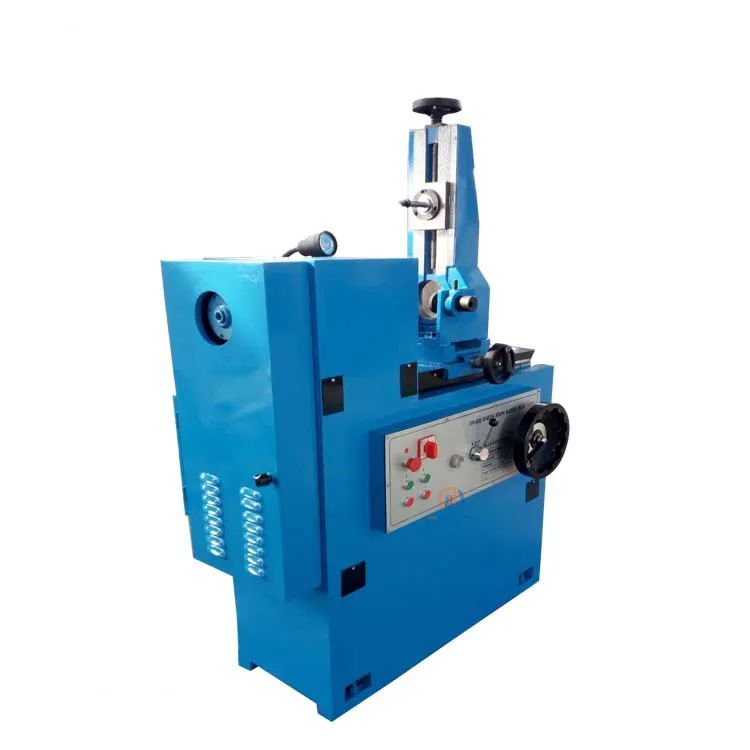

1. Con-rod boring machine has good performance, better structure, easy operation and high accuracy and can meet customer’s demand.
2. The machine is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors.
3. In case of necessity, rod bushing seat hole can be fine-bored.
4. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps.
5. Besides, it has the accessories for centering sectifying tools, boring tools and micro-adjustment tools holder etc.

Specification	T8210D	T8216D
Diameter range of boring hole	Ø16-Ø120 mm	Ø15-Ø150 mm
Distance of rod hole center	110-420 mm	85-600 mm
Longitudinal travel of worktable	240 mm	320 mm
Spindle speed	350, 520, 820, 1120 rpm	140-1200 rpm (infinite speed)
Transverse adjusting amount of fixture	80 mm	80 mm
Feeding speed of worktable	0-320mm/min	0-320mm/min
Traveling speed of working	1800 mm/min	1800 mm/min
Diameter of boring bar (4 class)	14, 16, 24, 40 mm	14, 16, 24,40, 60 mm
Main motor power	0.85 Kw	1.5 Kw(frequency conversion motor)
Motor power of oil pump	0.55kw	0.55kw
Machine size(L×W×H)	1750×900×1950 mm	1800×1000×1950 mm
N.W/G.W	800/1000 kg	1000/1200 kg

Machine Details

Recommend Products

Company Information

Package and Shipping

FAQ

1: Are you a manufacture?

A: Yes,we are a real manufacture.Welcome to visit our factory!

2: What is your payment terms?
A: Our payment terms is 30% T/T in advance,70% balance T/T before shipment.

3: Can you offer customized service ?
A: Machines listed on our website are just part of our conventional models, we can also provide customized service according to your requirements.

4: How can I choose the most suitable machines ?
A: Please tell me your need specifications ,we can introduce the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will introduce the most suitable machines for you .

5: Can you offer the training ?
A: Yes, we can provide a cost-free training,Teach you how to operate our machine, some common problems, and how maintain the machine etc. It would be great honor to us.

6: How about your after-sales service ?
A: Machines overall warranty is two years.During the normal using,we can send you the machine's components for free,not damaged on purpose.Our engineers are available to service overseas, we will offer lifetime service for machine.
