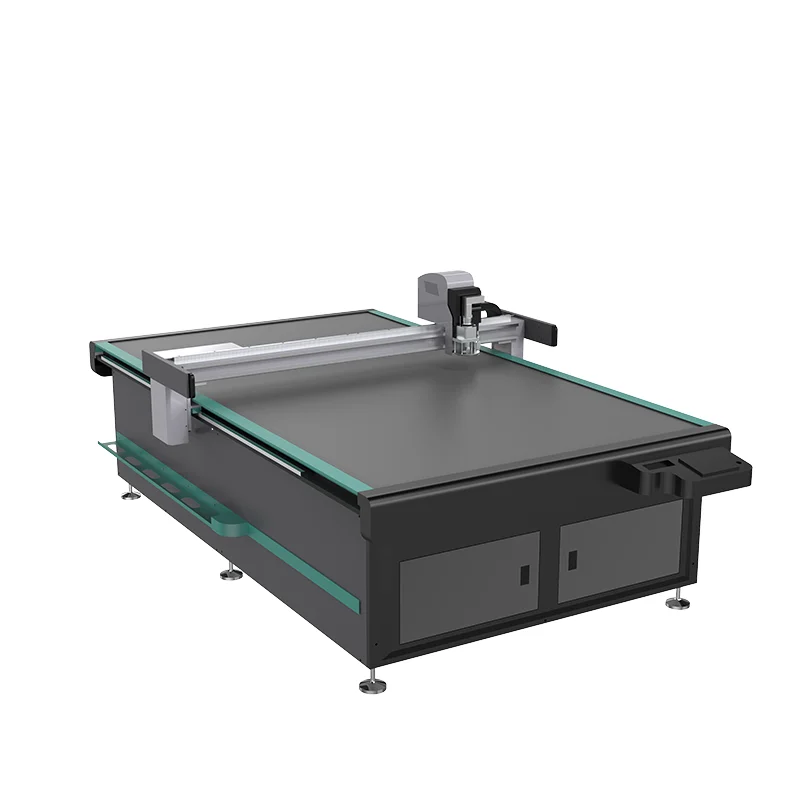

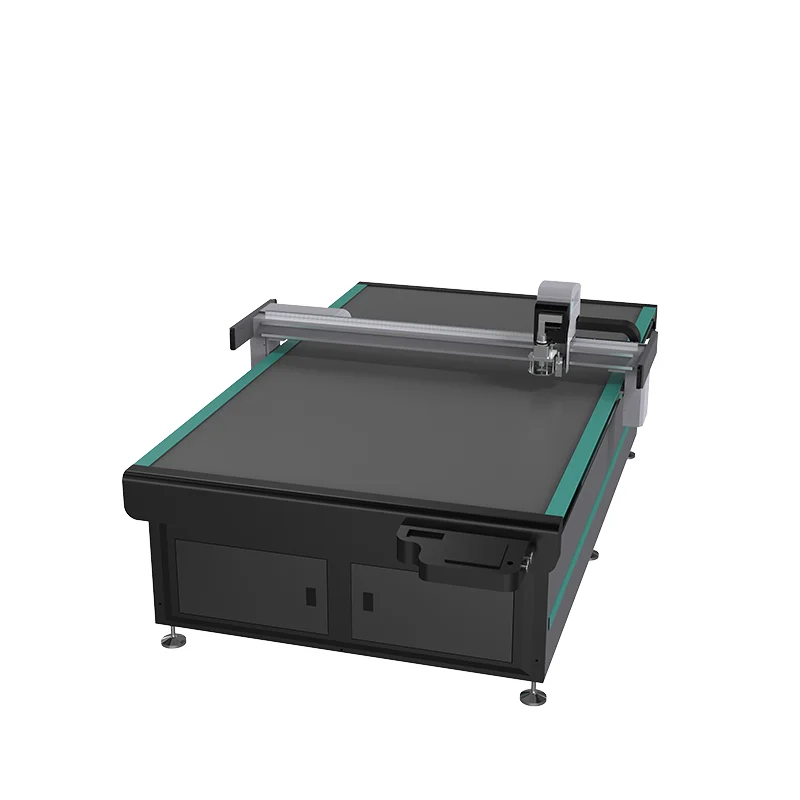

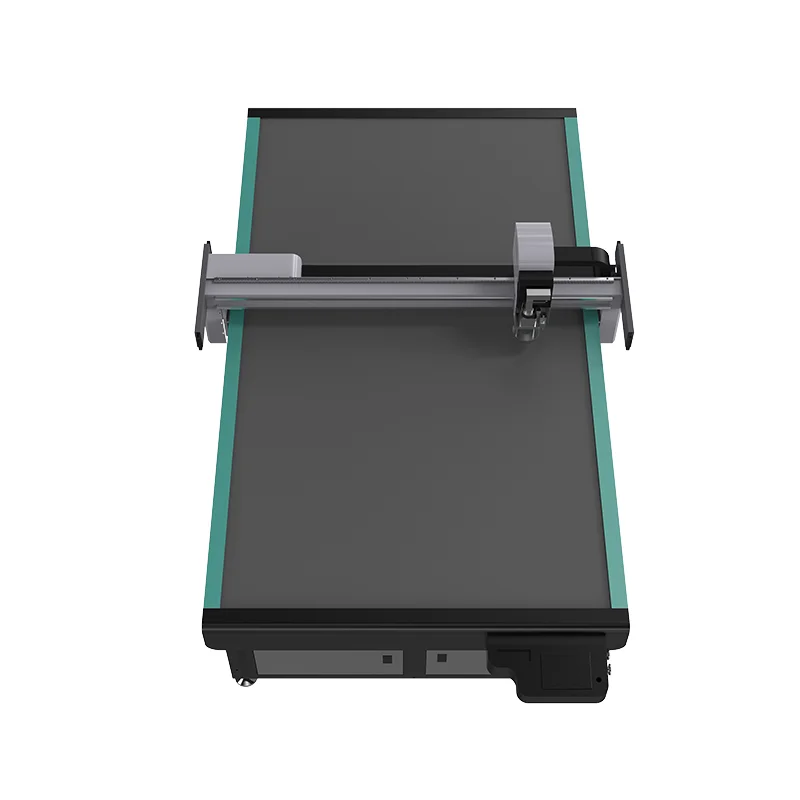

LEJIANG YJ-125 круглая машина для резки ткани
US $10.00-$1000
Качественная машина для резки прокладок из углеродного волокна
- Категория: Cloth Cutting Machines >>>
- Поставщик: Jinan,Top,Cnc,Machines,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.46 $* | 0.54 $* |
| Aug-15-2025 | 0.57 $* | 0.12 $* |
| Jul-15-2025 | 0.8 $* | 0.36 $* |
| Jun-15-2025 | 0.26 $* | 0.94 $* |
| May-15-2025 | 0.12 $* | 0.66 $* |
| Apr-15-2025 | 0.32 $* | 0.56 $* |
| Mar-15-2025 | 0.93 $* | 0.88 $* |
| Feb-15-2025 | 0.12 $* | 0.48 $* |
| Jan-15-2025 | 0.12 $* | 0.36 $* |
Характеристики
Quality Carbon Fiber Prepreg Carbon Fiber Fabrics Gaskets Cutting Machine vibrating Cnc Cutter Flatbed cutting machine
Machine | Fixed Table Double Heads Digital Knife Cutting Machine |
Model | 2516D |
Cutting tools | Big Power Oscillating cutting tool |
Tool head | One |
Working area | 2500mm (Width Y Axis)*1600mm (Length X1, X2 Axis) |
Cutting speed | 0-1,500mm/s(according to different cutting materials) |
Cutting thickness | ≤10mm |
Cutting accuracy | ≤0.1mm |
Drive system | Delta servo motors and drivers |
Transmission system | HIWIN linear square guide rails |
Instruction system | HP-GL compatible format |
Vacuum pump power | 9 KW |
Graphic format supported | PLT, DXF, AI, etc. |
Compatible | CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. |
Safety device | Infrared sensors and and emergency stop devices |
Working voltage | AC 220V/ 380V±10%, 50Hz/60Hz |
Package | Wooden case |
Machine size | 3.2x2.2x1.35 Meters |
Packing Size | 3.27x2.28x1.57 Meters |
Net weight | 1050KGS |
Gross weight | 1150KGS |
